HIR63/TKN

Bluetooth DALI PIR Lowbay | 6 Wires 3 Circuits | Integrated 30 mA PSU

BENEFITS

Adjustable: Max. 180° vertical tilt + 360° horizontal rotation
Stabl: With built-in DALI PSU ensuring reliable power supply
Simple: Allowing fast wireless commissioning via app

APPLICATIONS

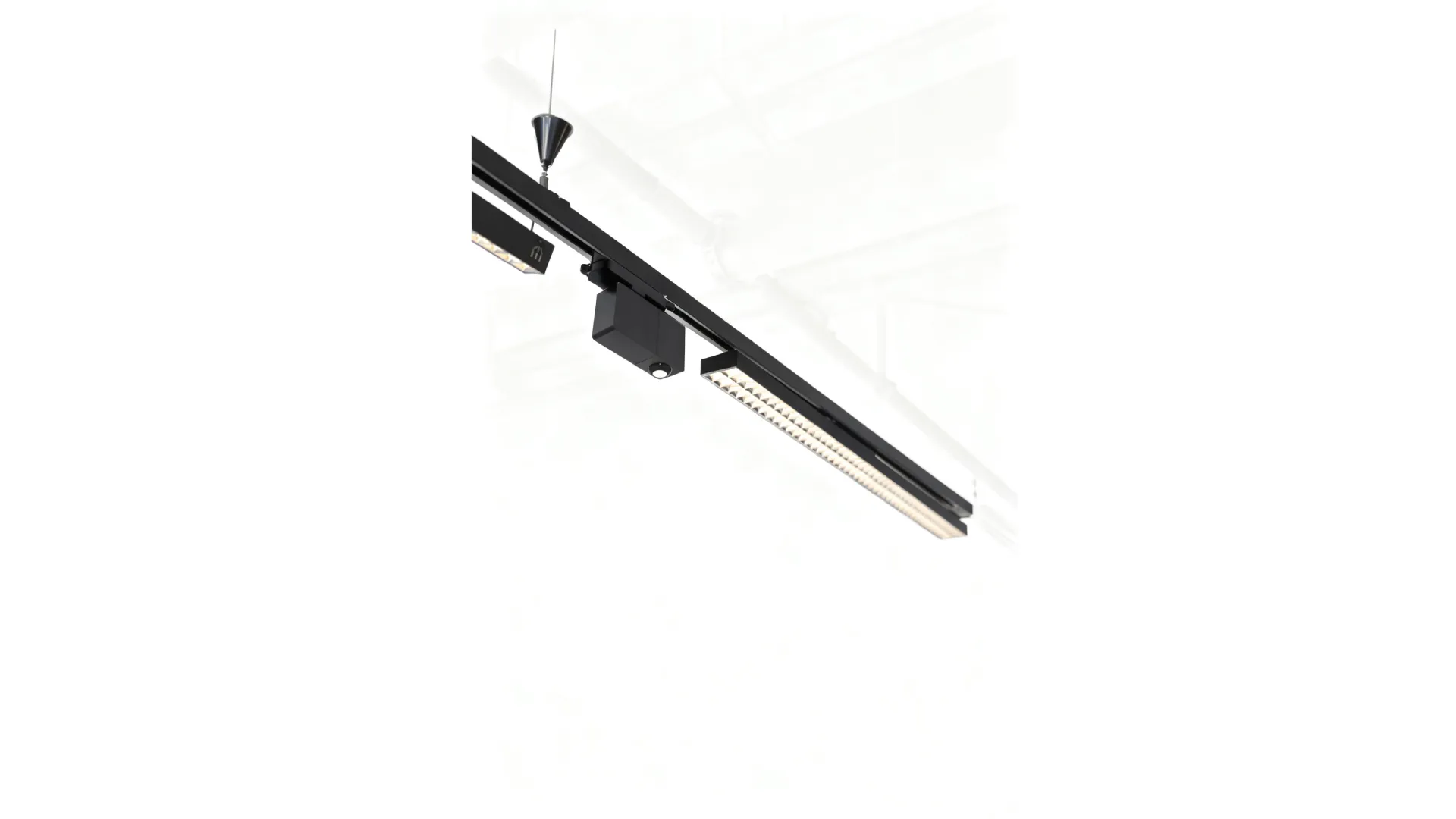

DALI track light project renovation and upgrade
Offices, Retail stores, Warehouse
Museums, Galleries

Product information "HIR63/TKN"

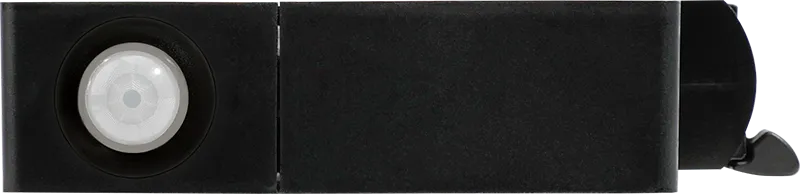

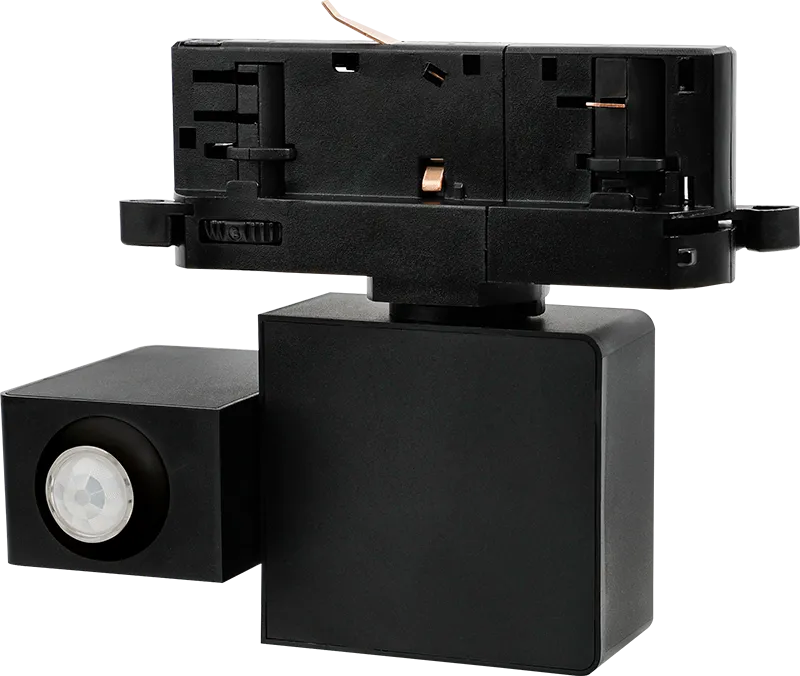

HIR63/TKN is a Bluetooth DALI PIR sensor for track lighting systems, featuring a built-in DALI PSU to provide stable power while enabling intelligent coordination and control between luminaires via DALI broadcast. It supports motion and daylight-based control with dimming and tunable white functions to meet standard smart lighting needs. Featuring 180° vertical tilt and 360° horizontal rotation, all parameters can be wirelessly configured via the Koolmesh app. Its compact, all-in-one design makes it suitable for both commercial and residential track lighting applications.

Ambient temperature max.:	50 °C
Ambient temperature min.:	20 °C
Bluetooth Platform:	Nordic nRF52832
Bluetooth frequency:	2.4 GHz - 2.483 GHz
Bluetooth range:	10-30m
Bluetooth system:	Koolmesh
Bluetooth transmit power:	4 dBm
Commissioning Methods:	App & Web (Bluetooth)
Daylight Harvest:	Yes
Daylight Sensor Option:	Photodiode/Photocell
Detection Methods:	Passive Infrared (PIR)
Detection angle:	360°
Detection range (Diameter):	12x3
Dimming (Output) Interface:	DALI/DALI-2
Features:	Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL
Human Centric Lightning (HCL):	Yes
Humidity max:	90 %
Humidity min:	10 %
IP Rate:	IP20
Installation Type:	Track Light
Lens type:	Standard Low-bay
Maximum Mounting Height:	3.0000 m
Mounting Height:	Low-bay
Output Voltage:	220-240VAC 50/60Hz
Product height:	116.6000 mm
Product length:	138.4000 mm
Product width:	31.0000 mm
Storage temperature max.:	70 °C
Storage temperature min.:	25 °C
Tri-level (Corridor function):	Yes
Voltage Type:	AC
Warming-up:	20 s
Zhaga:	No
