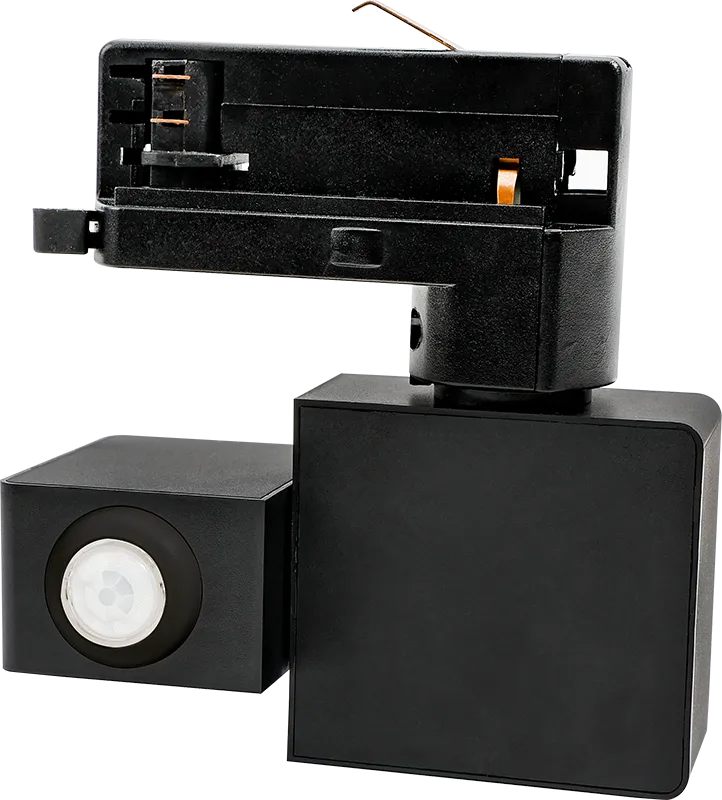

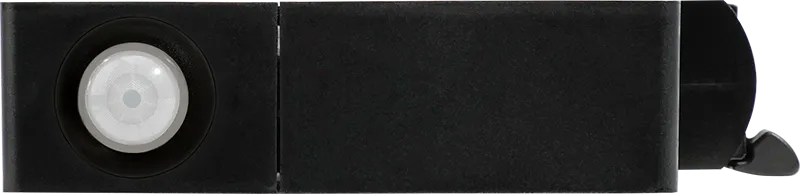

HIR62/TKN
PIR Lowbay | Bluetooth Transceiver | 4 Wires 3 Circuits
BENEFITS
- Adjustable: Max. 180° vertical tilt + 360° horizontal rotation
- Flexible: Supports grouping, scenes, and signal coordination
- Simple: Allowing fast wireless commissioning via app
APPLICATIONS

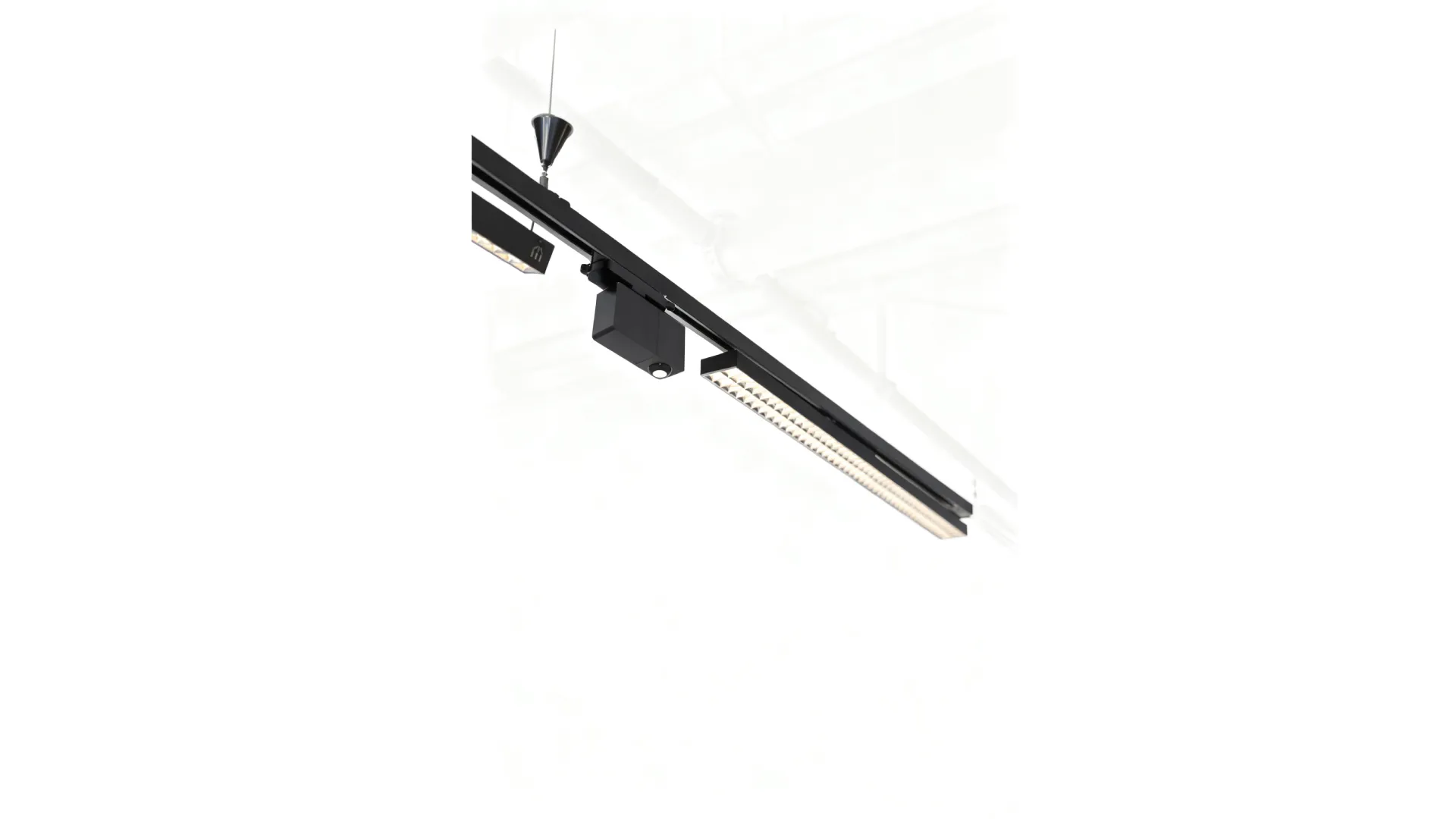

- Compatible with Global, Powergear, and equivalent standard track systems
- Offices, Retail stores, Warehouse
- Museums, Galleries
Product information "HIR62/TKN"
HIR62/TKN is a Bluetooth node integrated with PIR motion and lighting detection, designed to enable signal exchange and coordination between devices through Bluetooth communication. As a functional node within a Bluetooth Mesh network, it supports wireless grouping, scene triggering, and inter-device signaling without additional wiring. Featuring plug-and-play installation into the track, all parameters can be configured wirelessly via the Koolmesh app. Its compact, integrated track-mounted design makes it suitable for both commercial and residential track lighting applications.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 12x3 |
| Dimming (Output) Interface: | Bluetooth dimming |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Track Light |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / New |
| Product height: | 124.3000 mm |
| Product length: | 110.7000 mm |
| Product width: | 31.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -25 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Zhaga: | No |
Datasheets
Product datasheet: hir62-tkn.pdf
