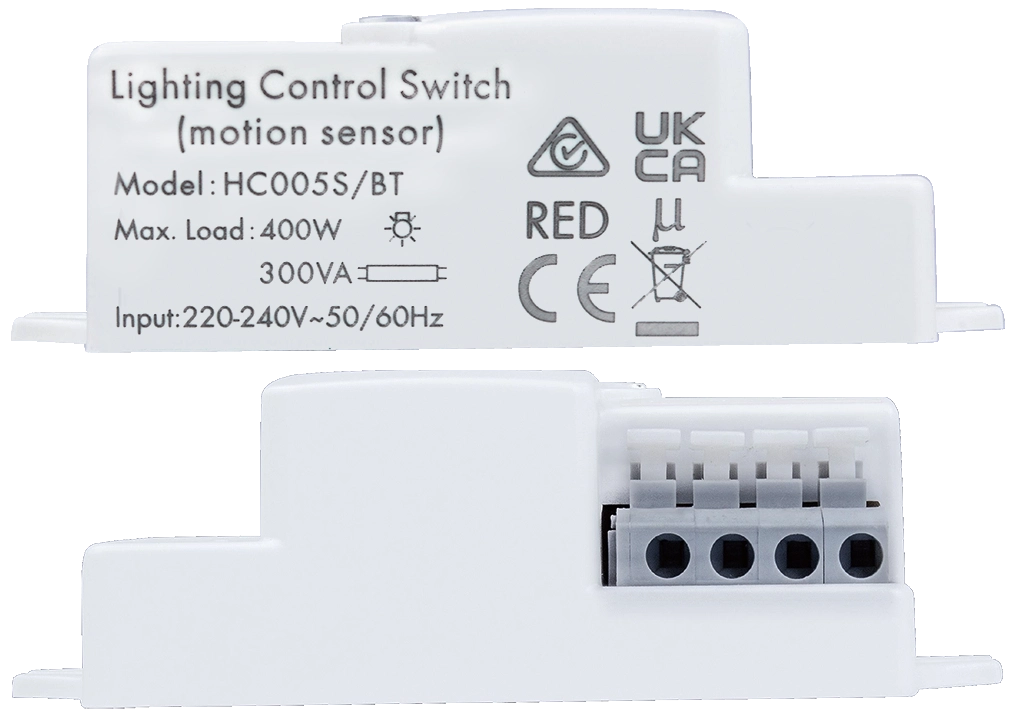

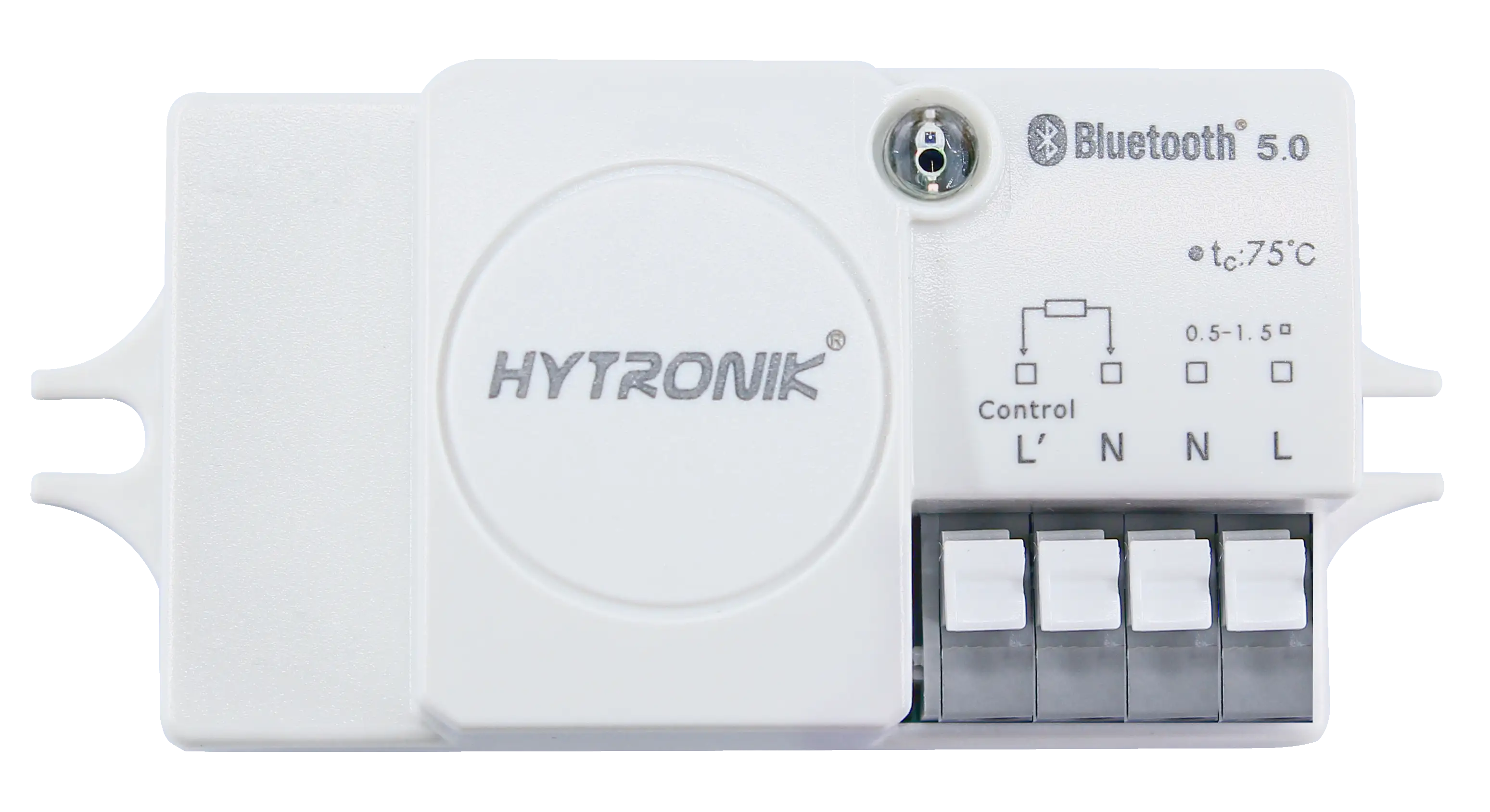

HC005S/BT
HF Lowbay | Bluetooth/ ON/OFF | Photocell Advance
BENEFITS
- Compact: Super compact size - ON/OFF Sensor
- Simple: Daylight, detection range and holdtime setting
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- For round shape luminaire up to 6m height
- Office / Meeting rooms
- Schools / Classroom
Product information "HC005S/BT"
HC005S/BT is a Bluetooth built-inmicrowave motion sensor with ON/OFF control. It is designed for professional lighting manufactures who would like to incorporate wireless control into their luminaires. HC005S/BT is suitable for any typical indoor applications such as office, classroom, car park, warehouse and other commercial/industrial areas. With Bluetooth wireless mesh networking, it makes communication much easier without any hardwiring, which eventually adds values to luminaires and saves costs for projects. Meanwhile, simple device setup and commissioning can be done via koolmesh app.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 10x6 |
| Dimming (Output) Interface: | Relay On/Off |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Load capacitive: | 300.0000 VA |
| Load resistive: | 400.0000 W |
| Maximum Mounting Height: | 6.0000 m |
| Max withstandable in-rush current: | 80A@160μs |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 26.0000 mm |
| Product length: | 80.5000 mm |
| Product weight: | 40.0000 g |
| Product width: | 36.5000 mm |
| Push Button Input: | 0 |
| Sensitivity: | 10% /50% / 75% / 100% |
| Storage temperature max.: | 75 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hc005s-bt.pdf
Installation Manual
User manual: installation-manual-hc005s-bt.pdf
