Active / New
HBTD54V/N
Bluetooth Dimmer | 6 Wires 3 Circuits | 0/1-10V
BENEFITS
- Compact: Enabling plug-in Bluetooth dimming for track systems
- Smart: Providing wireless 0/1–10V dimming for lighting upgrades
- Flexible: Allowing wireless setup and parameter adjustment via app
APPLICATIONS
- Designed for Global, and Powergear track systems
- Offices, Retail stores, Warehouse
- Museums, Galleries
Product information "HBTD54V/N"

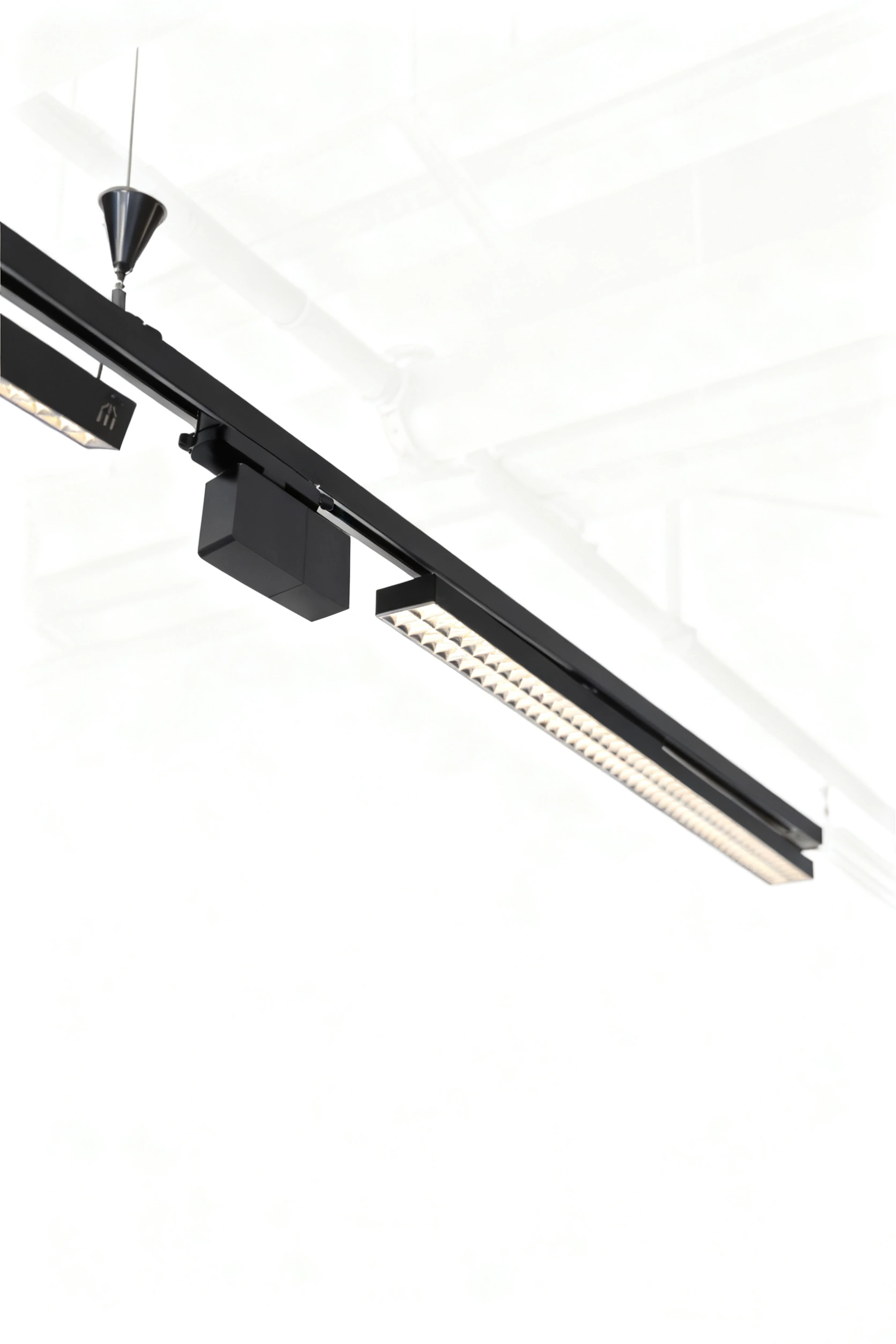

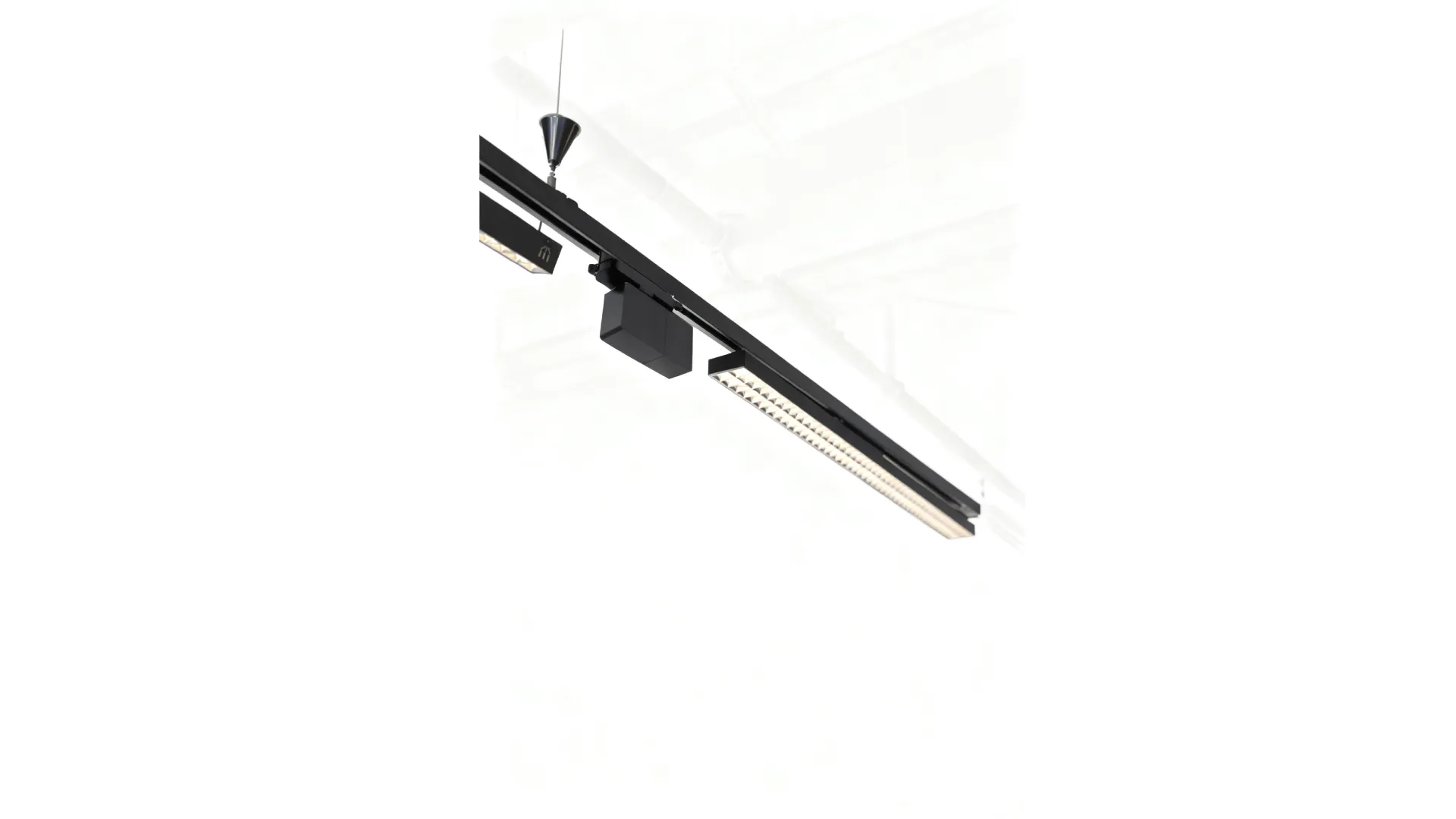

HBTD54V/N is a Bluetooth 0/1–10V dimmer for track lighting systems, enabling wireless dimming control and smart lighting upgrades. It is compatible with tracks system and supports independent or grouped control of three circuits, with simple plug-in installation and no additional wiring required. With Bluetooth Mesh technology, luminaires can communicate wirelessly, and all parameters can be easily configured via the Koolmesh app for fast and intuitive commissioning.
| Ambient temperature max.: | 45 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | Controller for Track Lighting |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Dimming (Output) Interface: | 0/1-10V |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / New |
| Product height: | 116.6000 mm |
| Product length: | 138.4000 mm |
| Product width: | 31.0000 mm |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | No |
| Zhaga: | No |
Datasheets
Product datasheet: hbtd54v-n.pdf
