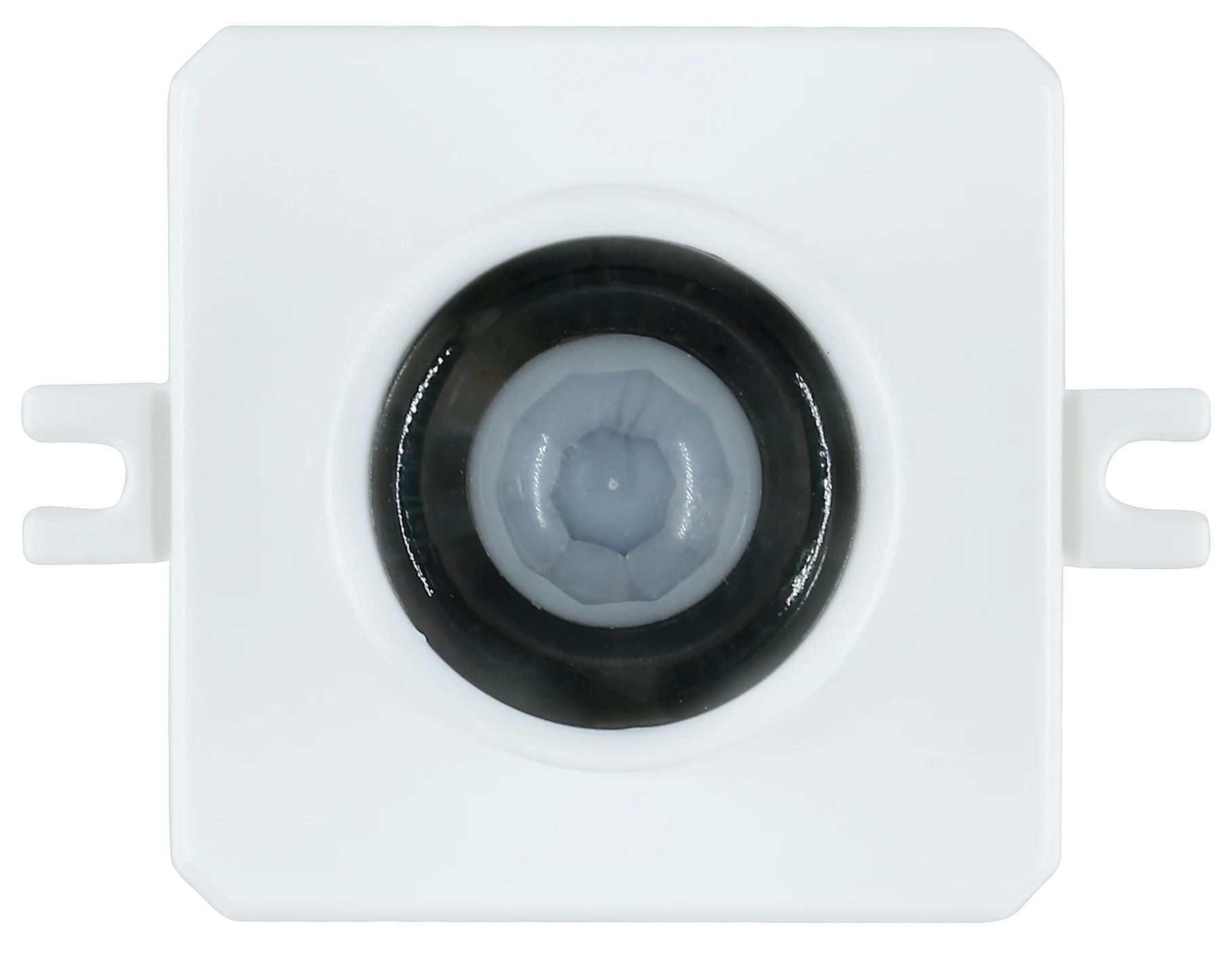

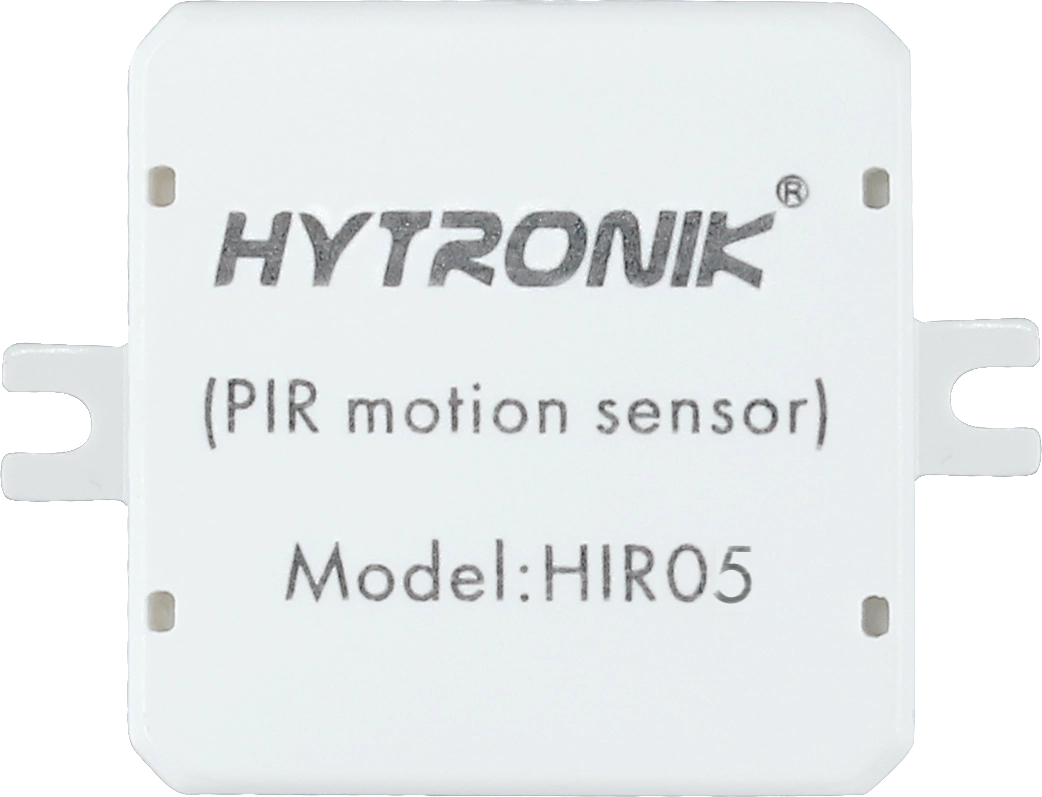

HIR05
PIR Lowbay | Circadian Rhythm | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Circadian Rhythm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- For luminaires with a height of up to 3m
- Classrooms
- Offices
Product information "HIR05"
This PIR sensor features three-level adjustment and natural light harvesting functions. It is compatible with Human Centric Lighting/Circadian Rhythm with DT8 controllers for tunable white control, includes a photocell for light detection, and offers active lux switching. Suitable for installations up to 3 m in height with a detection range of up to Ø = 6 m.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 6x3 |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 2.5000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 26.2000 mm |
| Product length: | 39.5000 mm |
| Product weight: | 30.0000 g |
| Product width: | 30.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
Datasheets
Product datasheet: hir05.pdf
Login

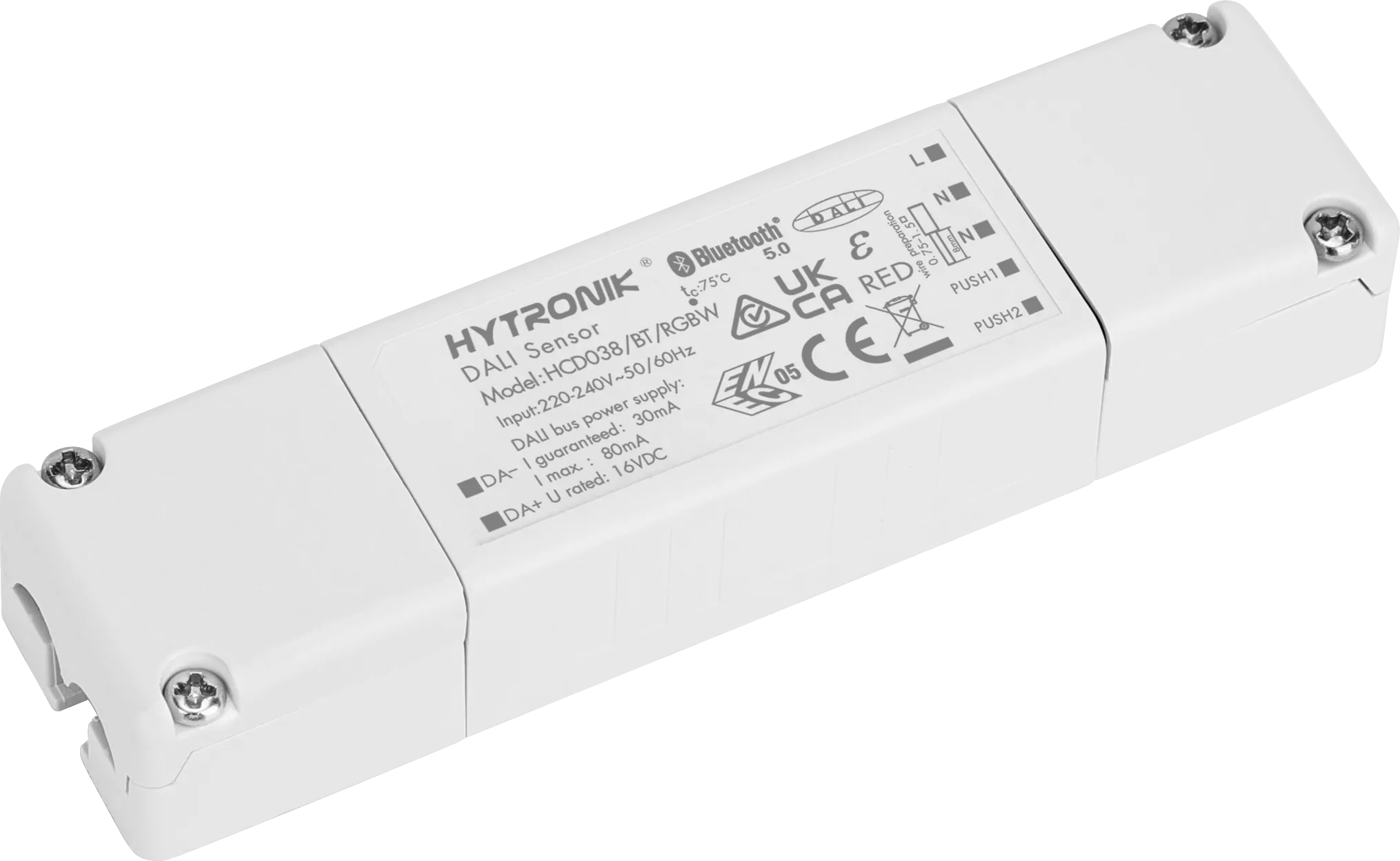

Compatible products (for full functionality)
