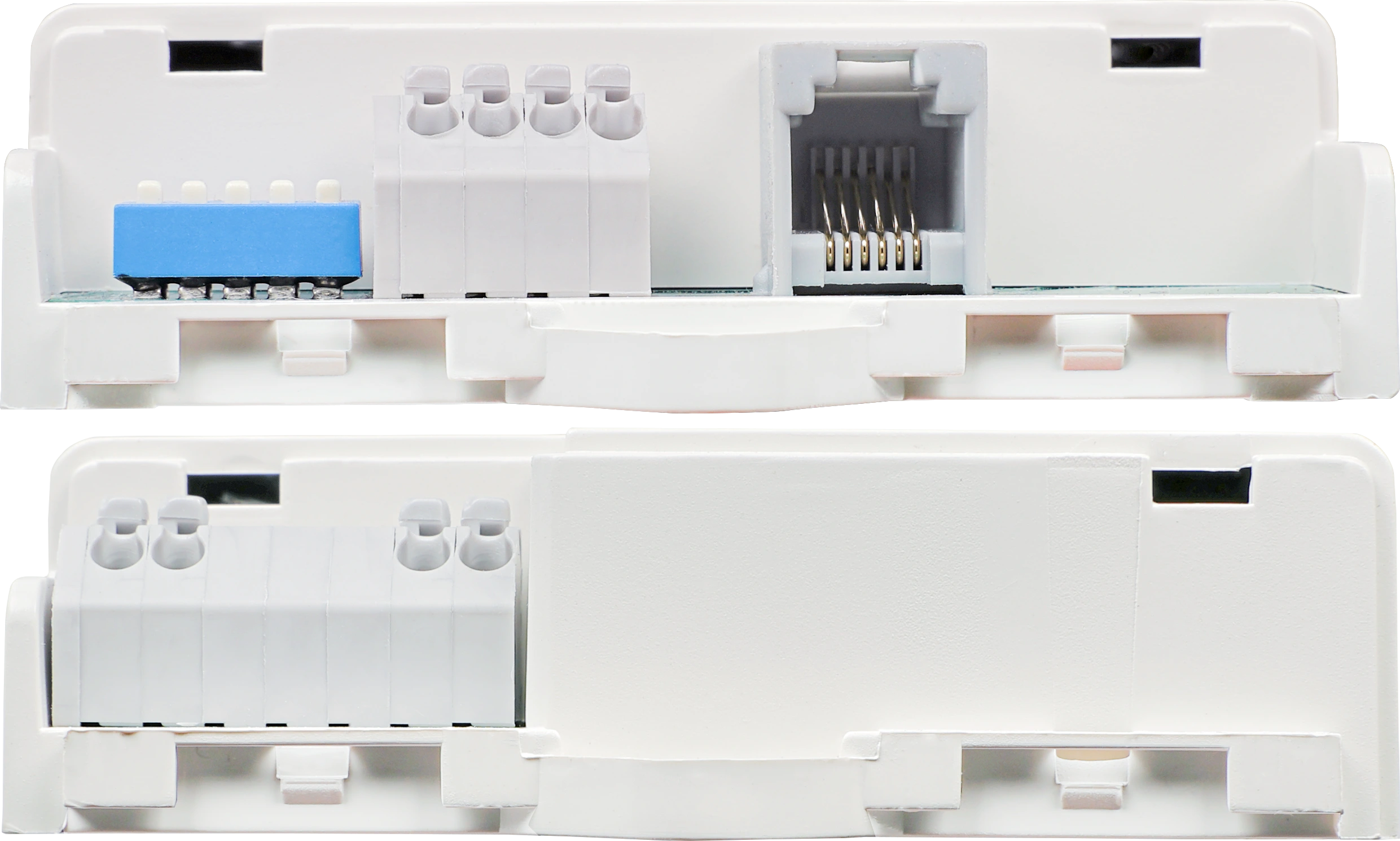

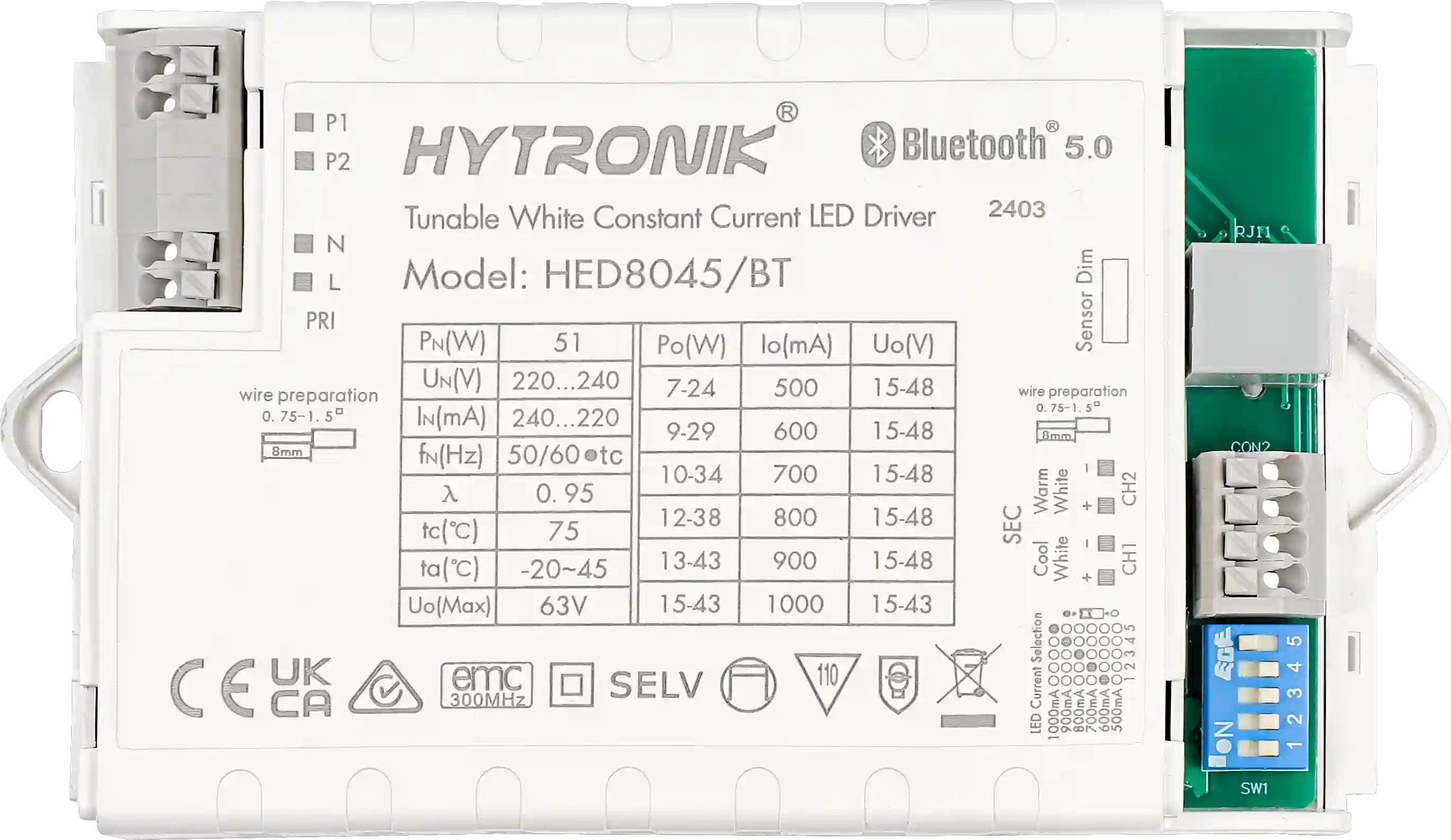

HED8045/BT
Bluetooth LED Driver 45W (CC) Tunable white | Plug’n’Play | Built-in/Stand alone
BENEFITS
- Flexible: Switch-Dim inteface + Bluetooth dimming interface
- Versatile: Suitable for various sensor head options via Plug’n’Play
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Luminaire Built-in integration
- Offices
- Classrooms
Product information "HED8045/BT"
Bluetooth Mesh Control With app, 220-240VAC input, Constant current, Multiple current selection via DIP-Switches, Tunable white control, Human Centric Lighting / Circadian Rhythm, Max power: 43W, 2 Switch-Dim (PUSH) terminals, Optional motion sensor pluggable (Sensor-Dim)
| Ambient temperature max.: | 45 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth), DIP-switch |
| DALI device type: | DT8 |
| Dimming (Output) Interface: | Relay On/Off |
| Driver Type: | Dimming & Color Tuning |
| Efficiency: | 88.0000 % |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Operating Mode: | Constant Current |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Power: | ≥45W |
| Output Voltage: | 220~240VAC 50/60Hz |
| Product height: | 23.0000 mm |
| Product length: | 140.6000 mm |
| Product weight: | 260.0000 g |
| Product width: | 79.2000 mm |
| Storage temperature max.: | 45 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | No |
Datasheets
Product datasheet: hed8045-bt.pdf
Login
Bluetooth Network Components

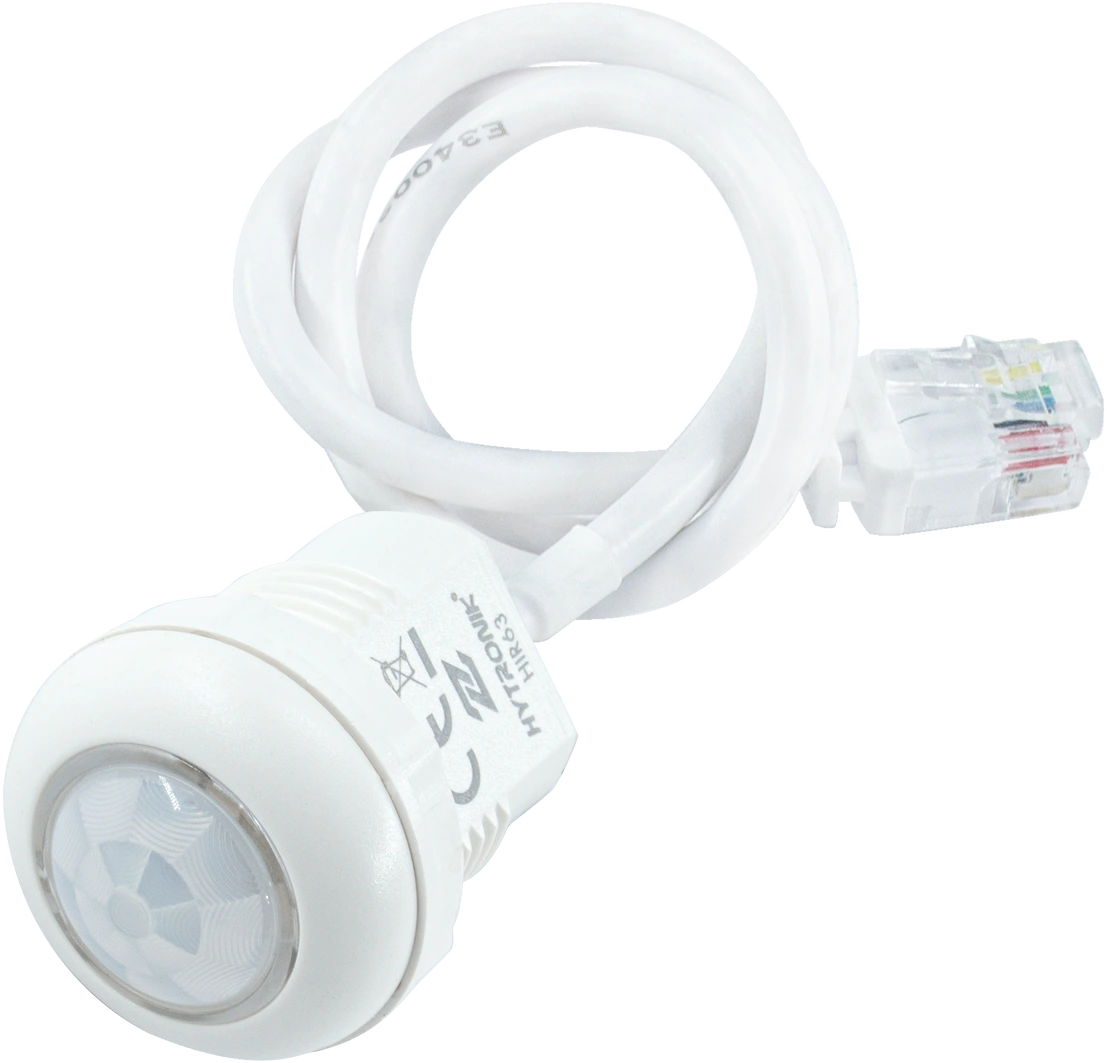

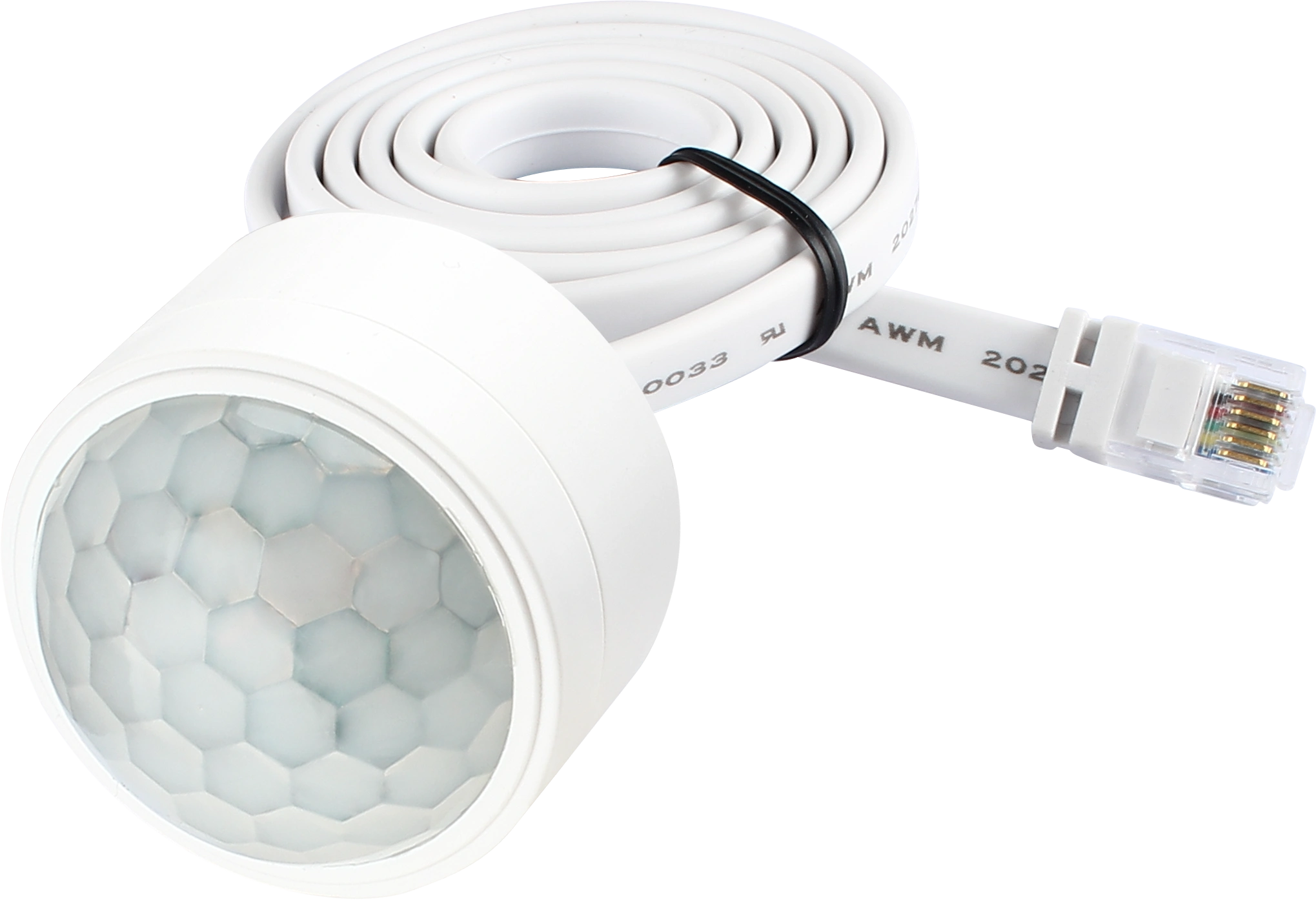

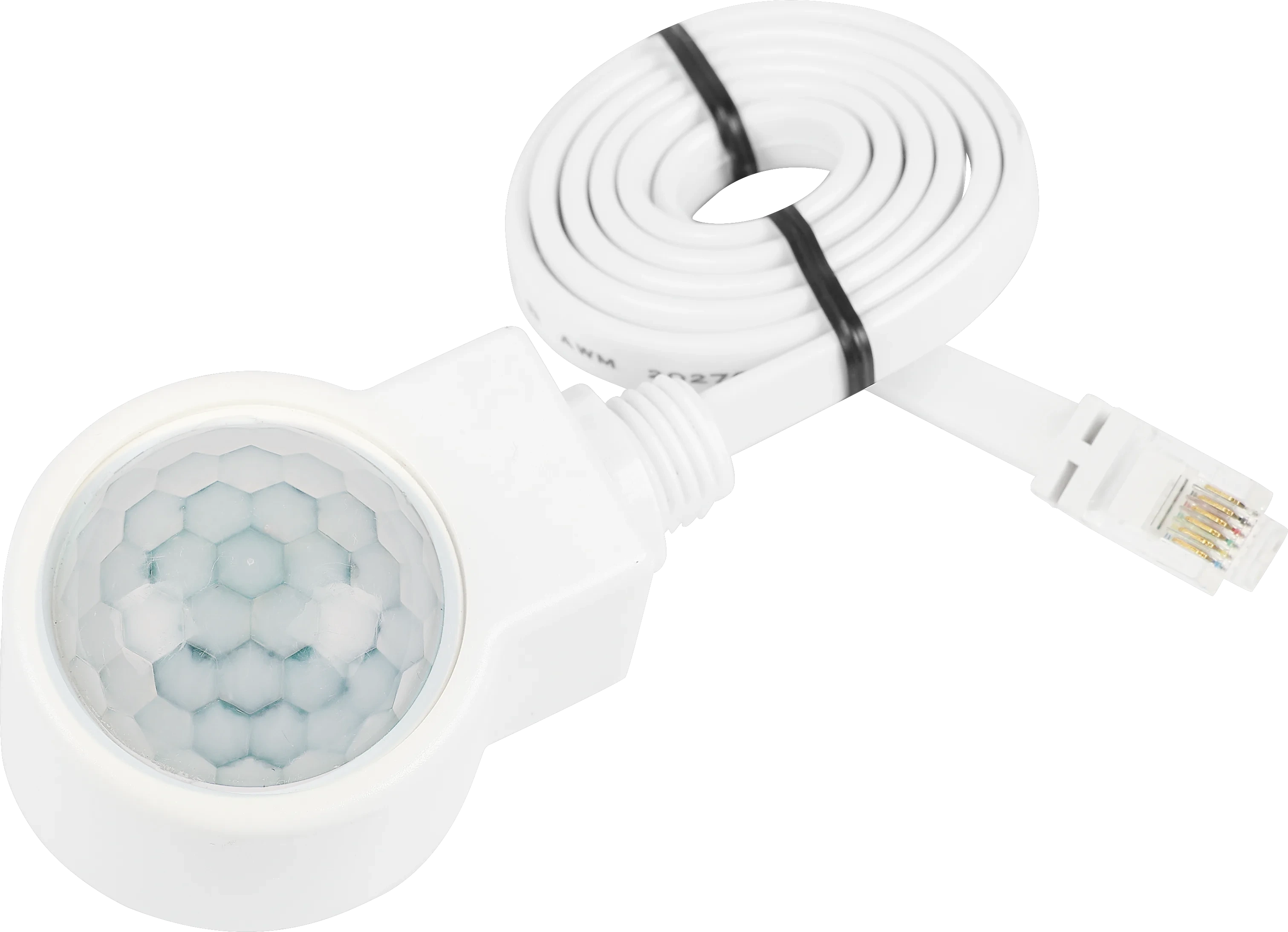

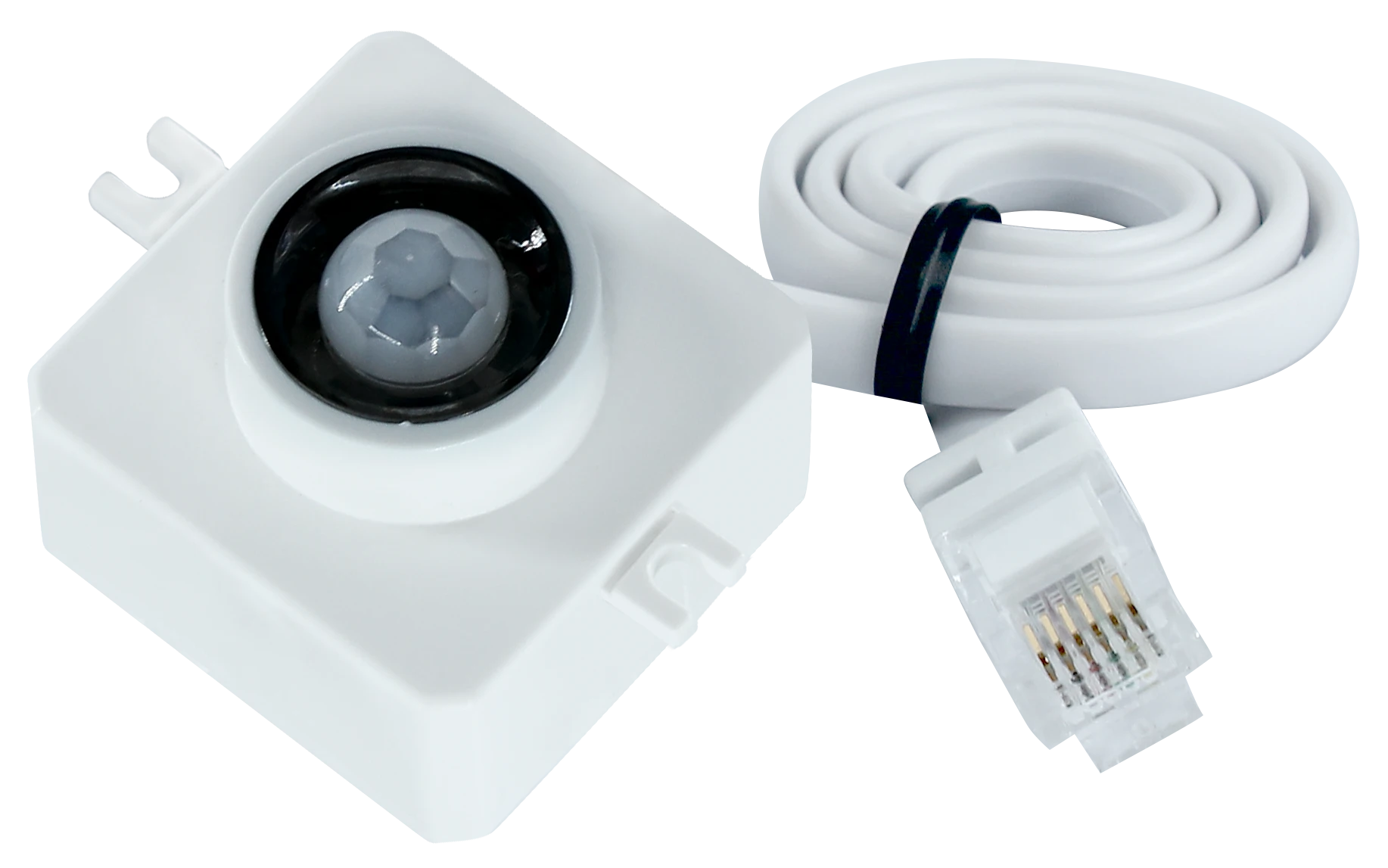

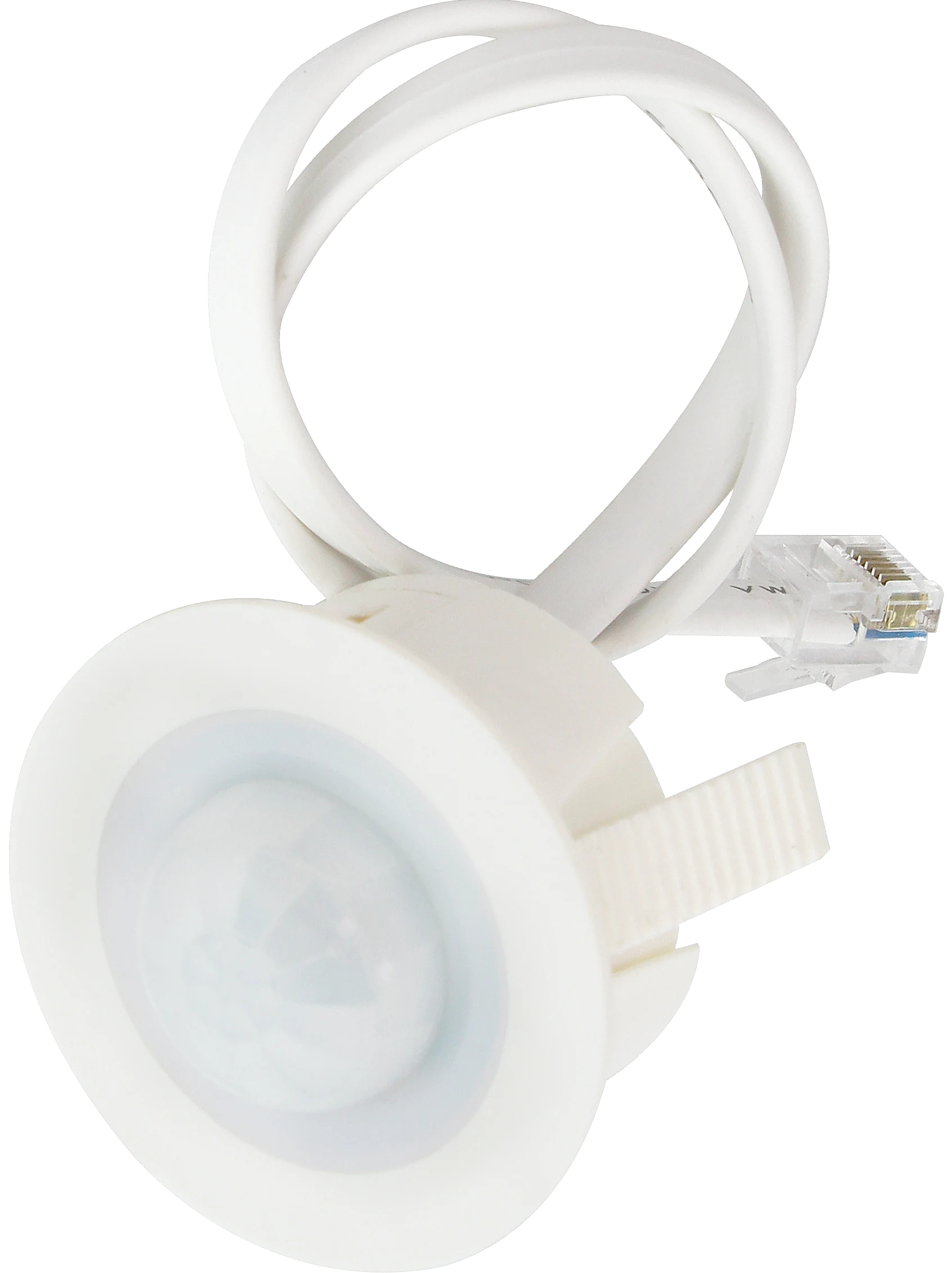

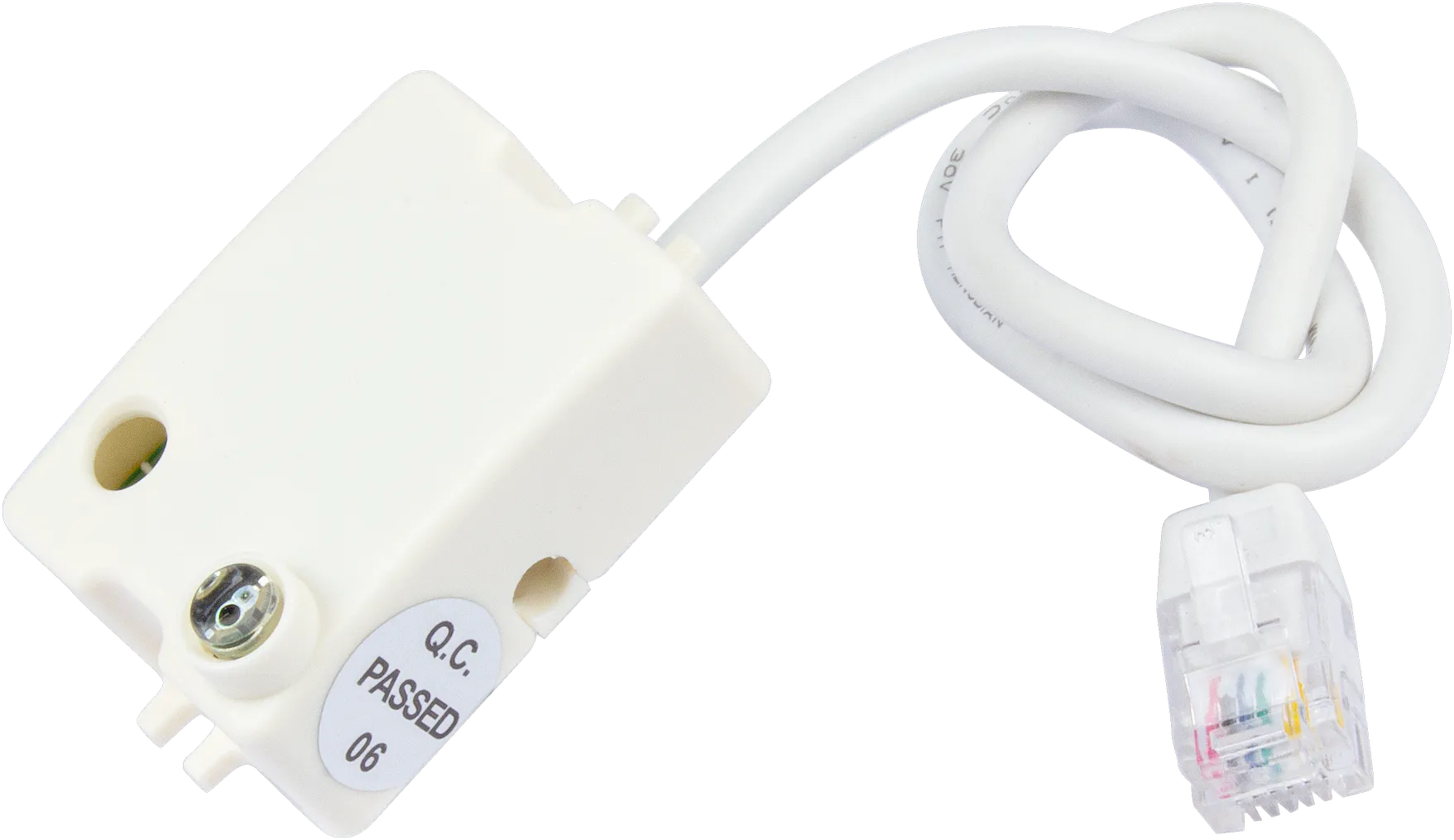

Compatible products (for full functionality)
