HBEM02
Emergency Inverter Max.4W | Bluetooth | Attachable sensor heads
BENEFITS
- Compact：Enabling seamless integration into ON/OFF driver luminaires
- Intelligent: Supports plug-and-play sensors and selectable emergency output
- Flexible: Allows wireless test scheduling and easy output adjustment.
APPLICATIONS
- Luminaire Built-in integration or standalone
- Offices & Classrooms
- Industry & Healthcare Spaces
Product information "HBEM02"

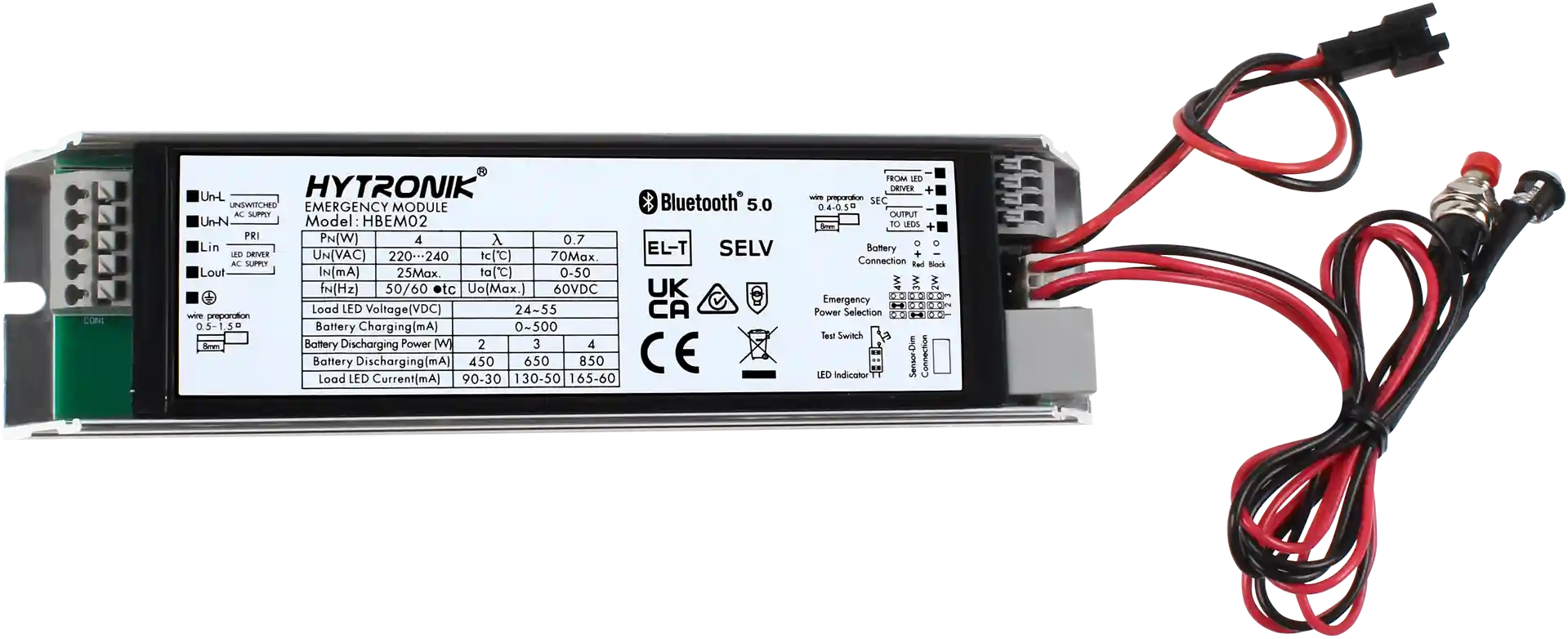

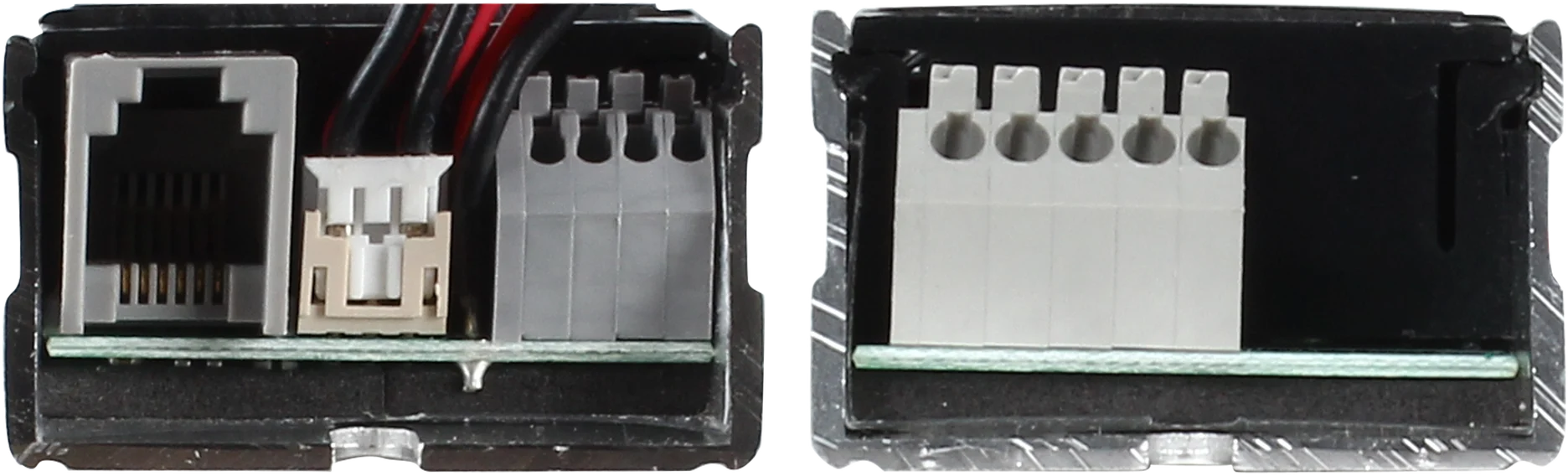

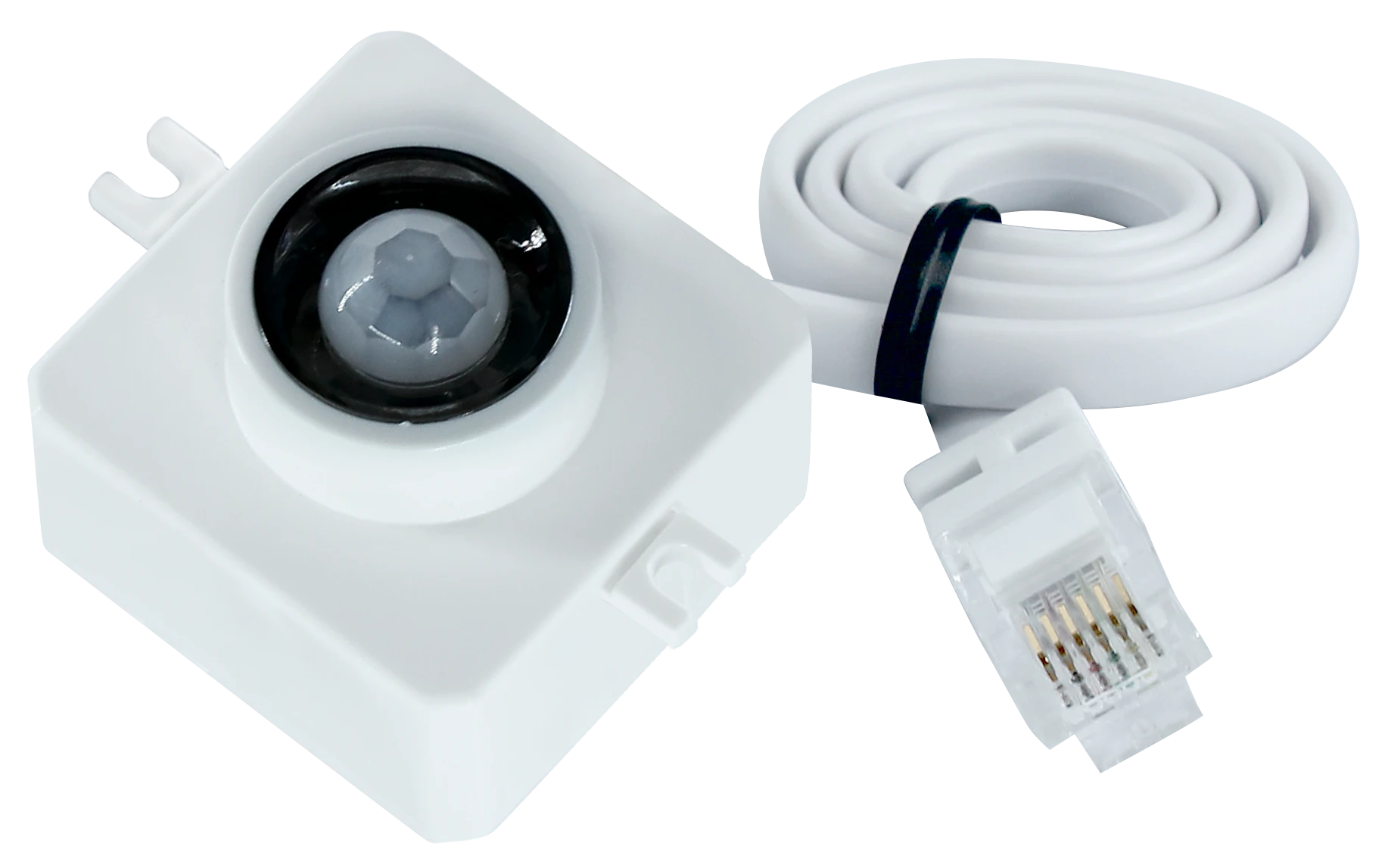

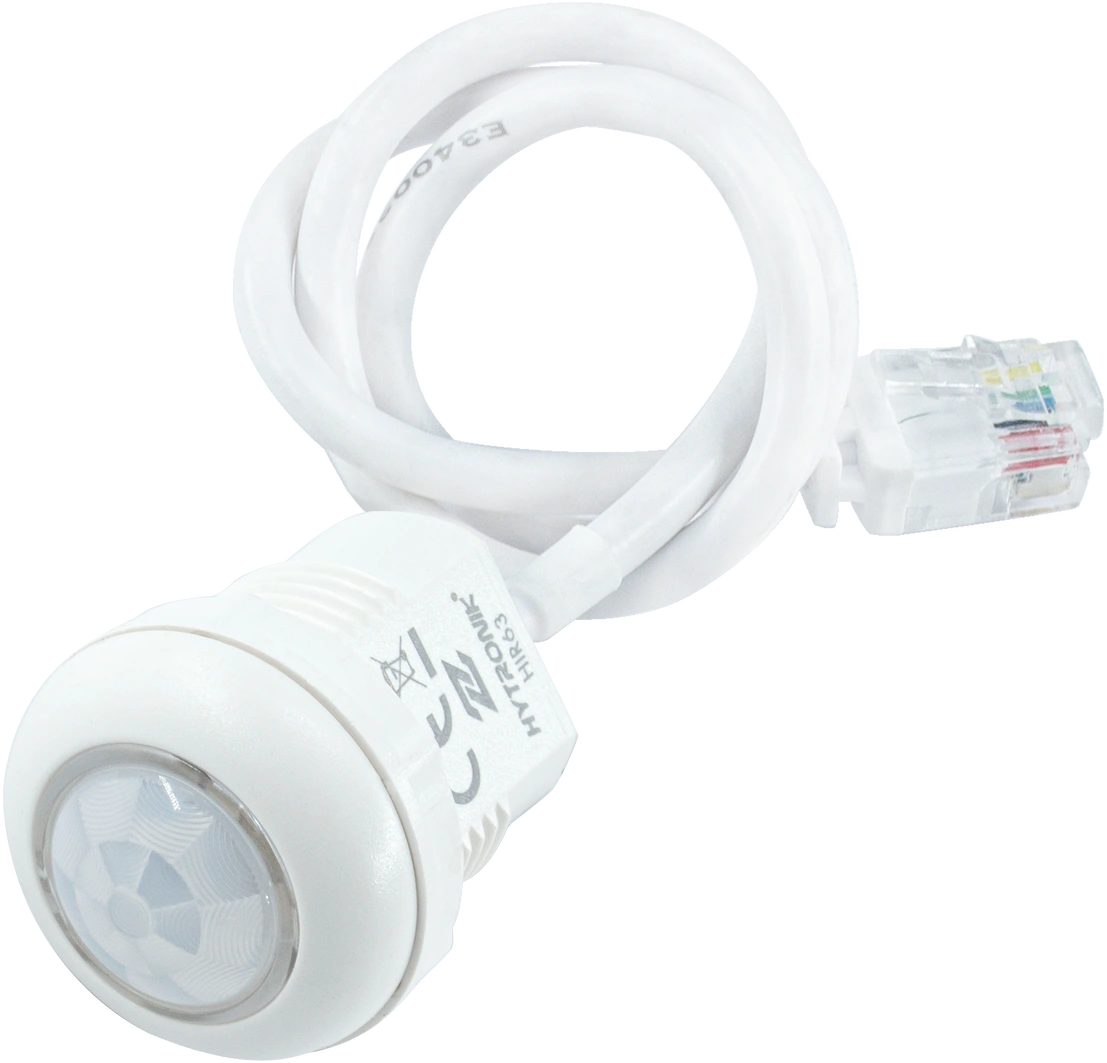

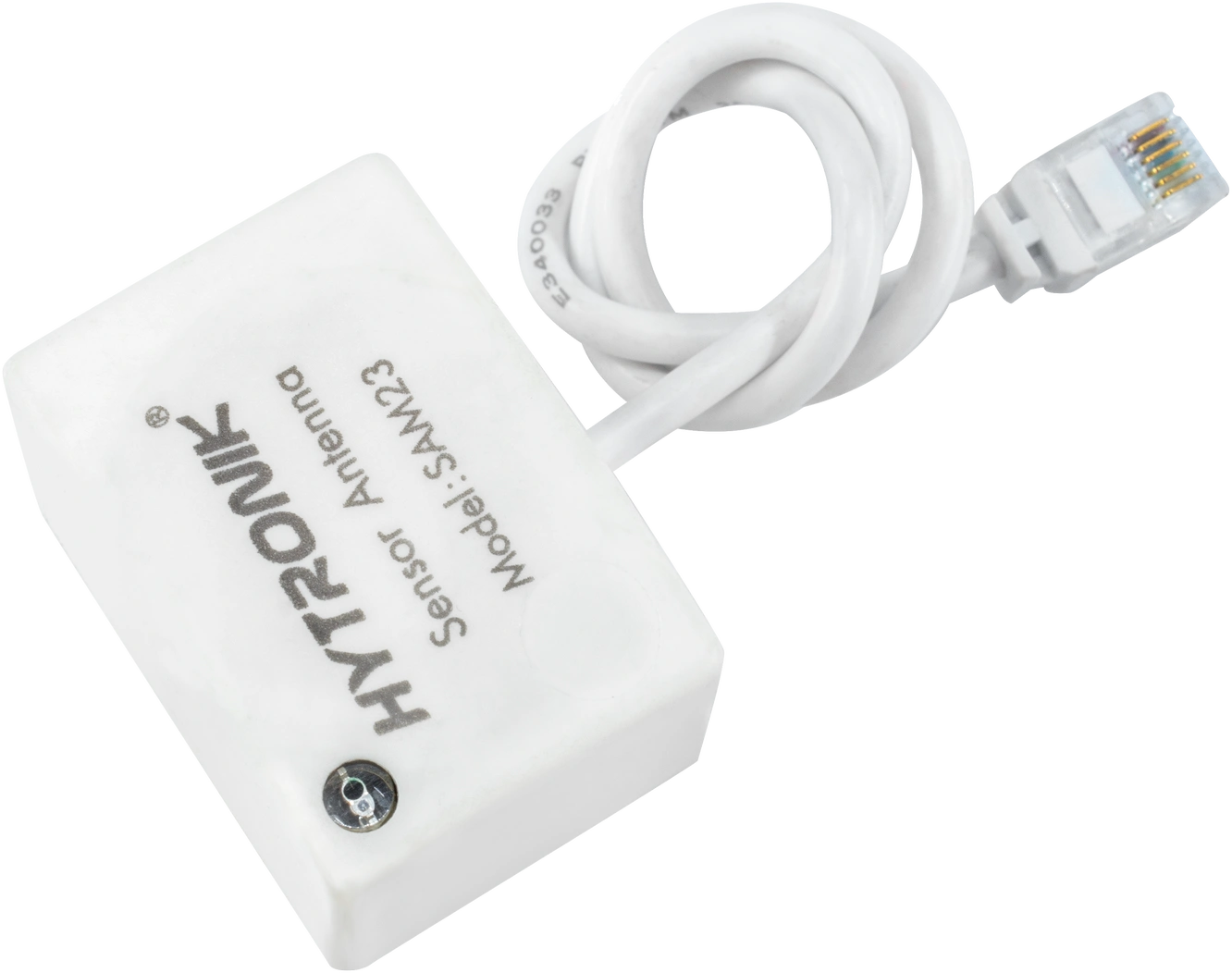

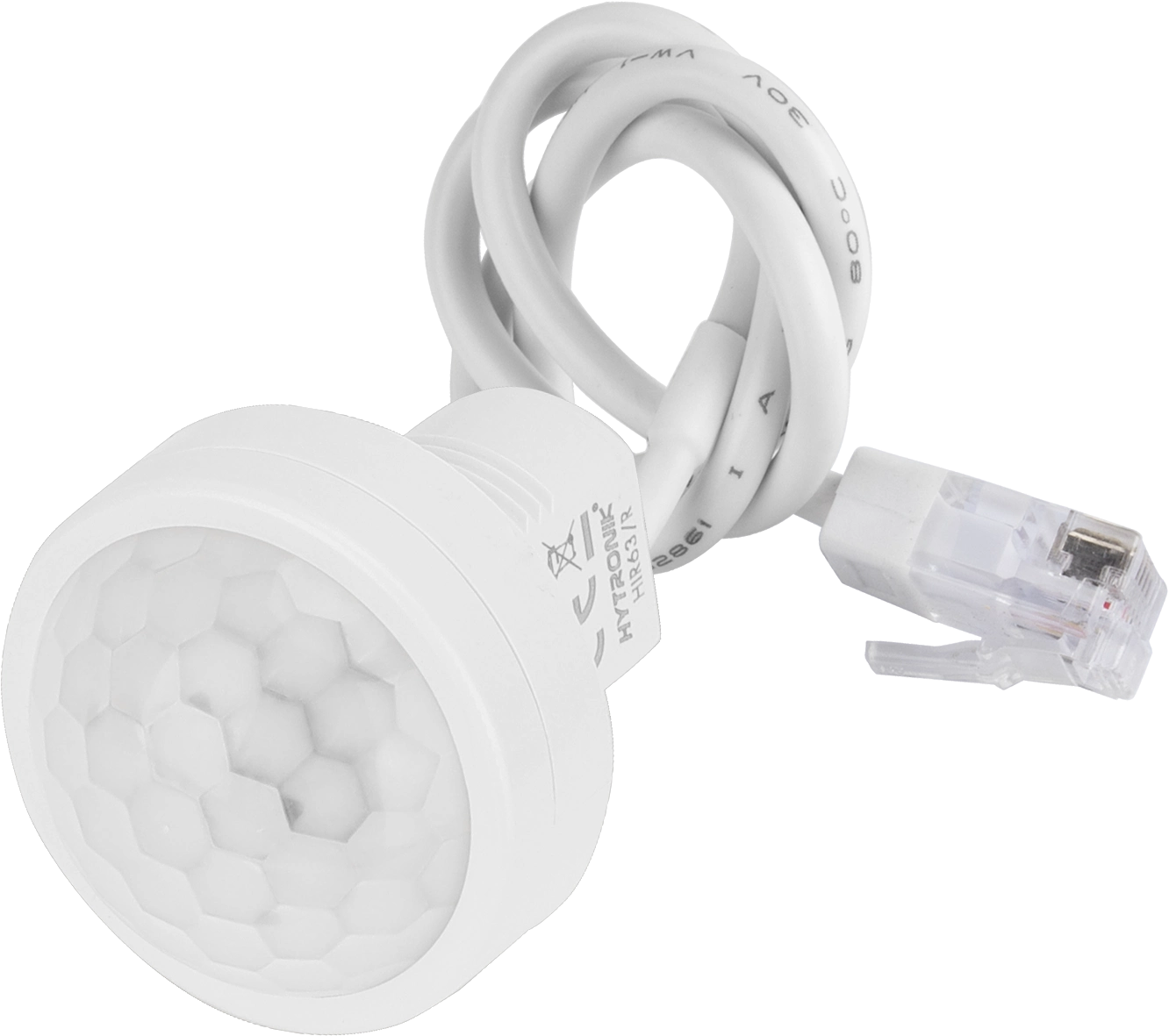

HBEM02 is an emergency inverter with RJ12 connection for optional sensor heads SAM20, SAM21, SAM22, SAM23, HIR05, HIR05/FM, HIR07, HIR11 series, HIR12, HIR63 series. HBEM02 alone is a normal emergency inverter with self-test function. With gateway HBGW01 ready, user can generate emergency testing report through our Koolmesh APP.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | 0 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Category - Emergency LED Drivers & Inverters: | Emergency Inverter (Bluetooth) |
| Commissioning Methods: | App & Web (Bluetooth) |
| Dimming (Output) Interface: | Bluetooth dimming, Switch-Dim |
| Efficiency: | 80.0000 % |
| IP Rate: | IP20 |
| Mounting hole: | 4.5000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 22.0000 mm |
| Product length: | 160.0000 mm |
| Product weight: | 161.0000 g |
| Product width: | 40.5000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -20 °C |
| Zhaga: | No |
Datasheets
Product datasheet: hbem02.pdf
