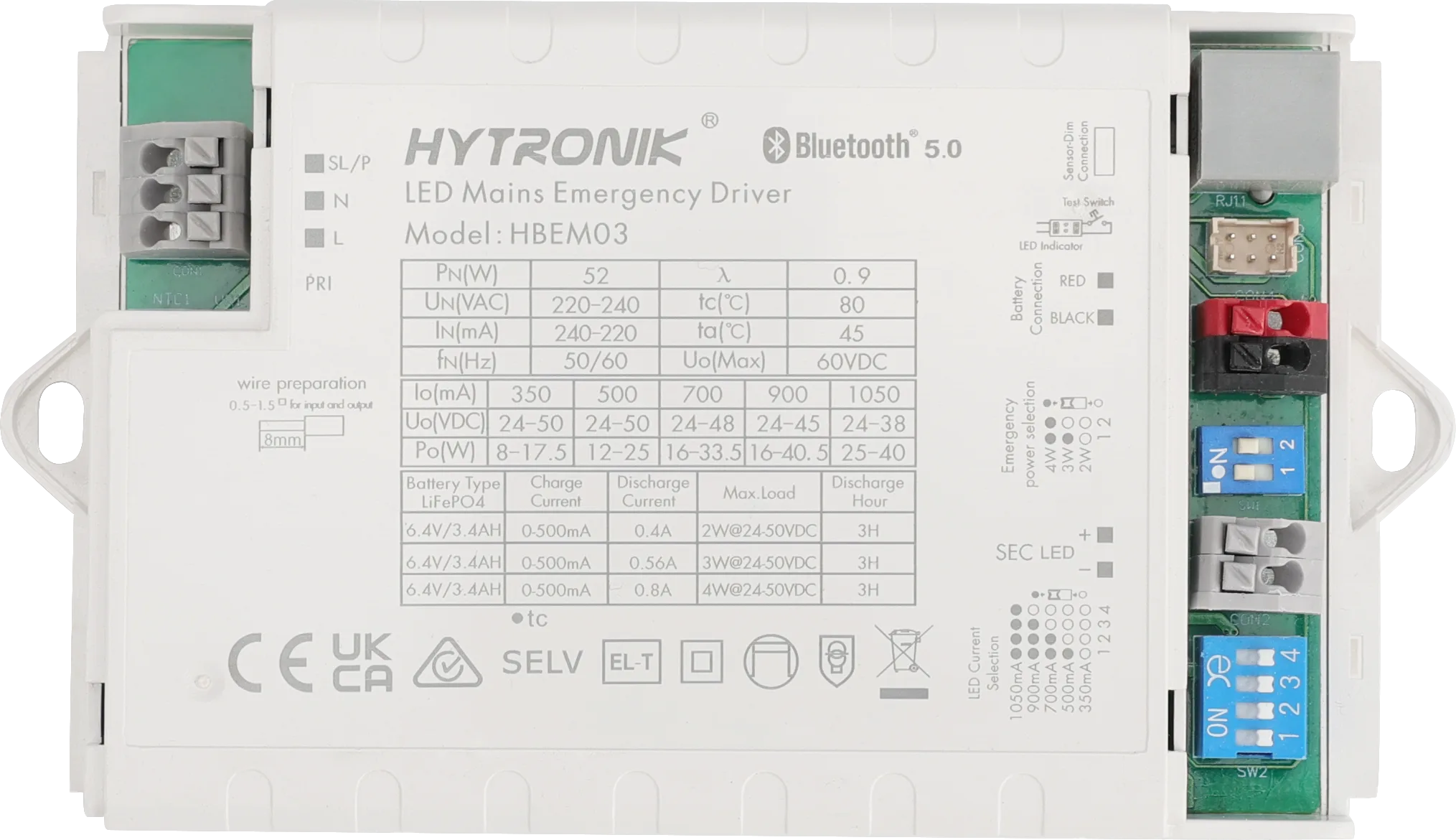

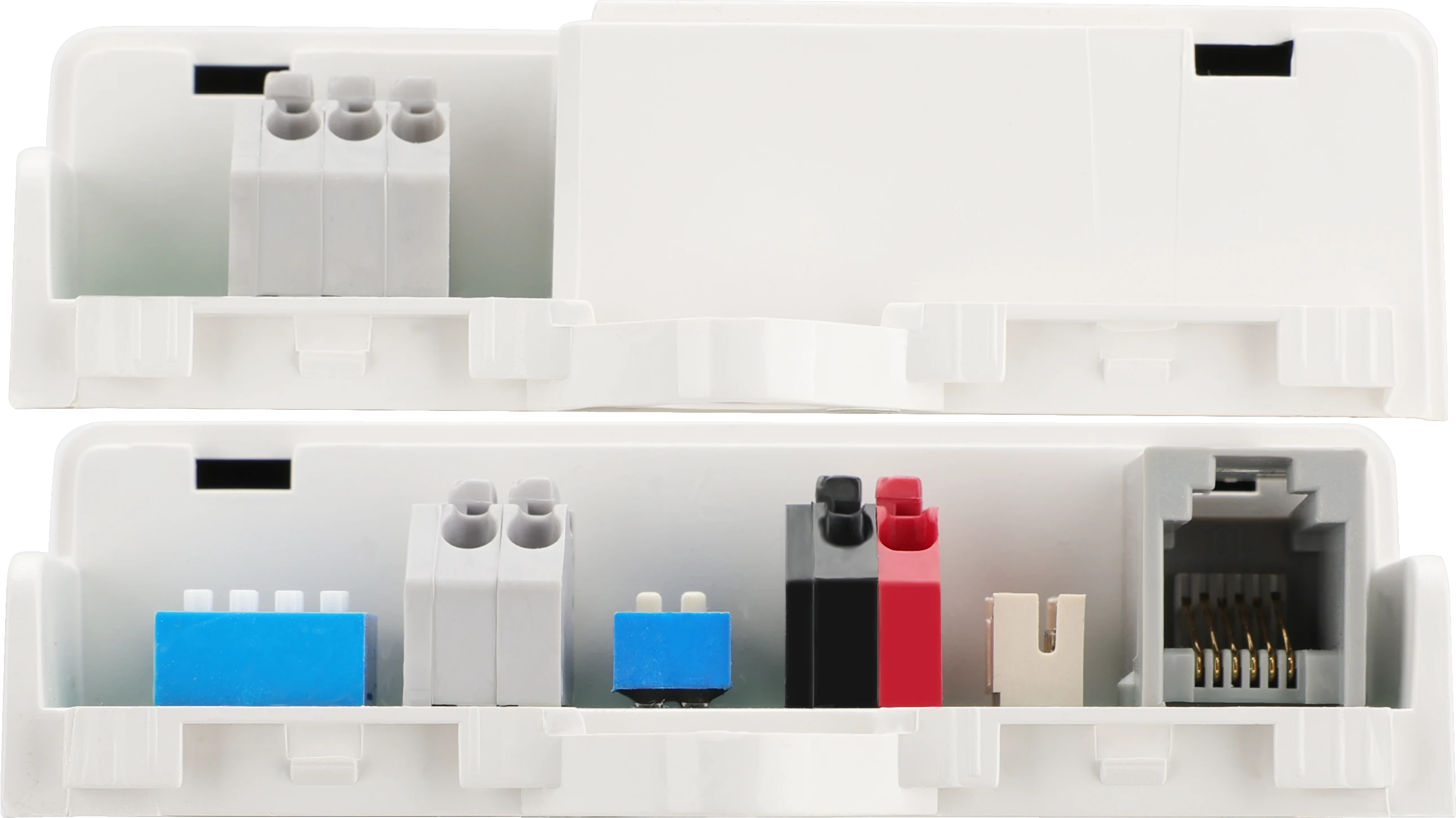

HBEM03
Integrated Mains & Emergency Control | Max. (Main 40W / EM 4W) | Attachable sensor heads
BENEFITS
- Compact: Self - contained Emergency & LED drivers combination
- Intelligent: Supports plug-and-play sensors and selectable emergency output
- Flexible: Enables dimming via both Switch-Dim and wireless app control.
APPLICATIONS
- Luminaire Built-in integration or standalone
- Retrofit upgrades & New luminaire designs
- Offices, Classrooms, Industry and Healthcare Spaces
Product information "HBEM03"
HBEM03 is a combined LED driver & emergency control gear with Bluetooth module built inside. HBEM03 is ideal for lighting manufacturers with new plastic luminaire design. It can conduct monthly or annually testing automatically and user can get email notification as soon as fault is detected. Meanwhile, simple device setup and commissioning can be done via Koolmesh app.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | 0 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Category - Emergency LED Drivers & Inverters: | LED Driver & Inverter Combo (Bluetooth) |
| Dimming (Output) Interface: | Switch-Dim |
| Efficiency: | 88.0000 % |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Mounting hole: | 4.1000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 60V |
| Product height: | 23.0000 mm |
| Product length: | 140.7000 mm |
| Product weight: | 203.0000 g |
| Product width: | 79.2000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 45 °C |
| Storage temperature min.: | -10 °C |
| Tri-level (Corridor function): | Yes |
| Zhaga: | No |
Datasheets
Product datasheet: hbem03.pdf
