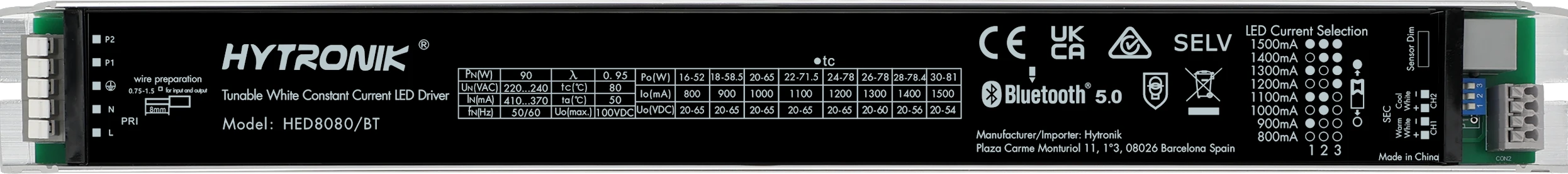

HED8080/BT
Bluetooth LED Driver 80W (CC) | Tunable white | Stand-alone
BENEFITS
- Compact: Constant current LED Driver with Bluetooth interface
- Innovative: Featuring Switch-Dim and Bluetooth dimming interfaces
- Easy configuration: via Dip-switch & Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Retrofit projects with no extra wiring for control
- Offices
- Classrooms
Product information "HED8080/BT"
HED8080/BT is a Bluetooth dimming and tunable white LED driver with 60W max power output. It has a Switch-Dim interface via a Push switch. By connecting sensor heads to the driver, it enables motion detection and Bluetooth mesh control. Meanwhile, simple device setup and commissioning can be done via Koolmesh app.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth technology: | Nordic nRF52832 |
| Driver Type: | Dimming & Color Tuning |
| Efficiency: | 88 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Stand-alone |
| Mounting hole: | 4.5000 mm |
| Operating Mode: | Constant Current |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Output Power: | ≥45W |
| Product height: | 21.3000 mm |
| Product length: | 358.0000 mm |
| Product width: | 39.7000 mm |
