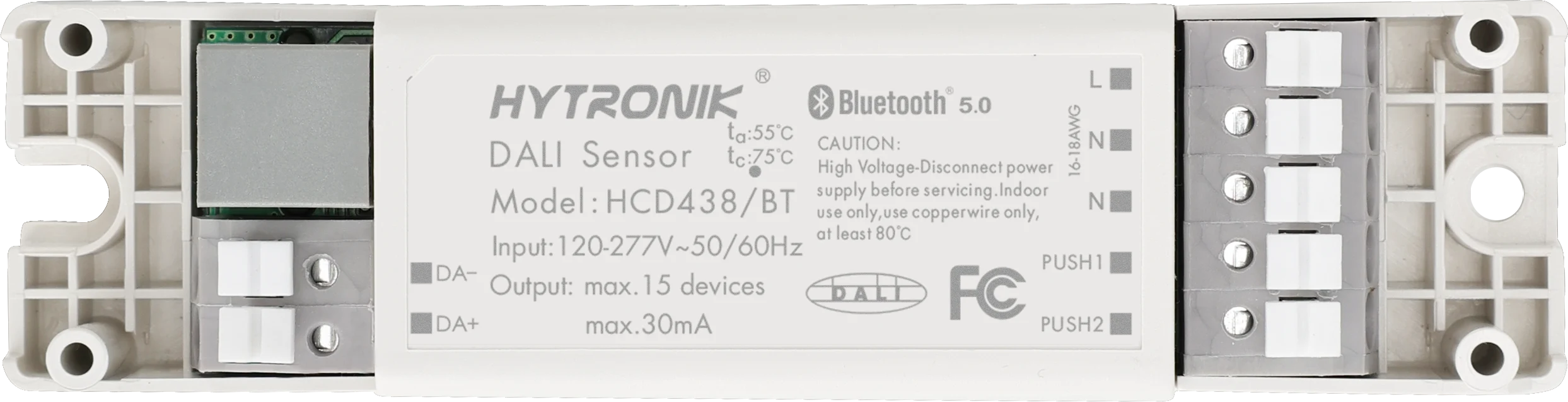

HCD438/BT
Control body | Bluetooth & DALI | Attachable sensor heads | US Certified
BENEFITS
- Adaptable: Small control unit with strain relief

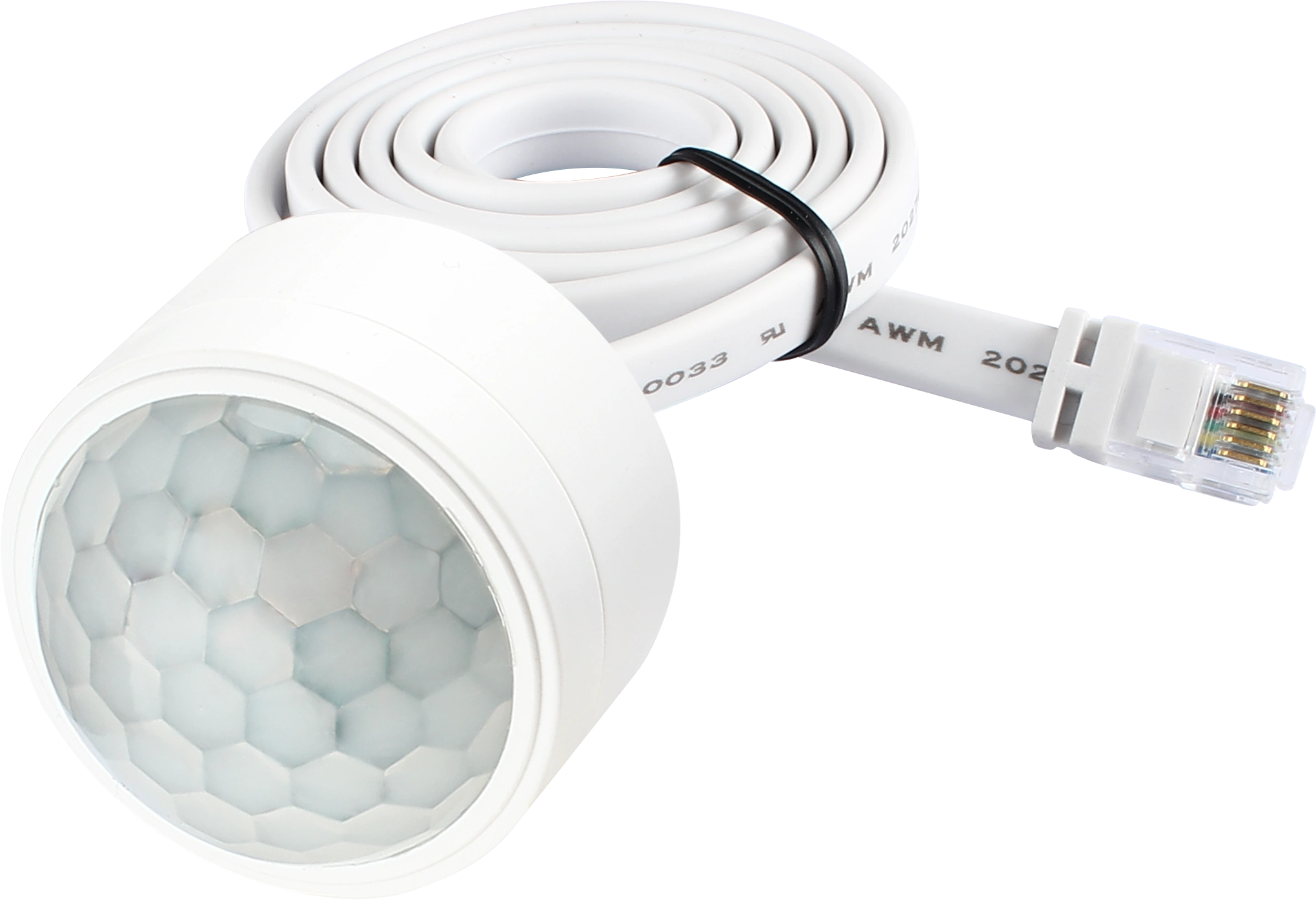

- Versatile: Suitable for various sensor head options via Plug’n’Play
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS

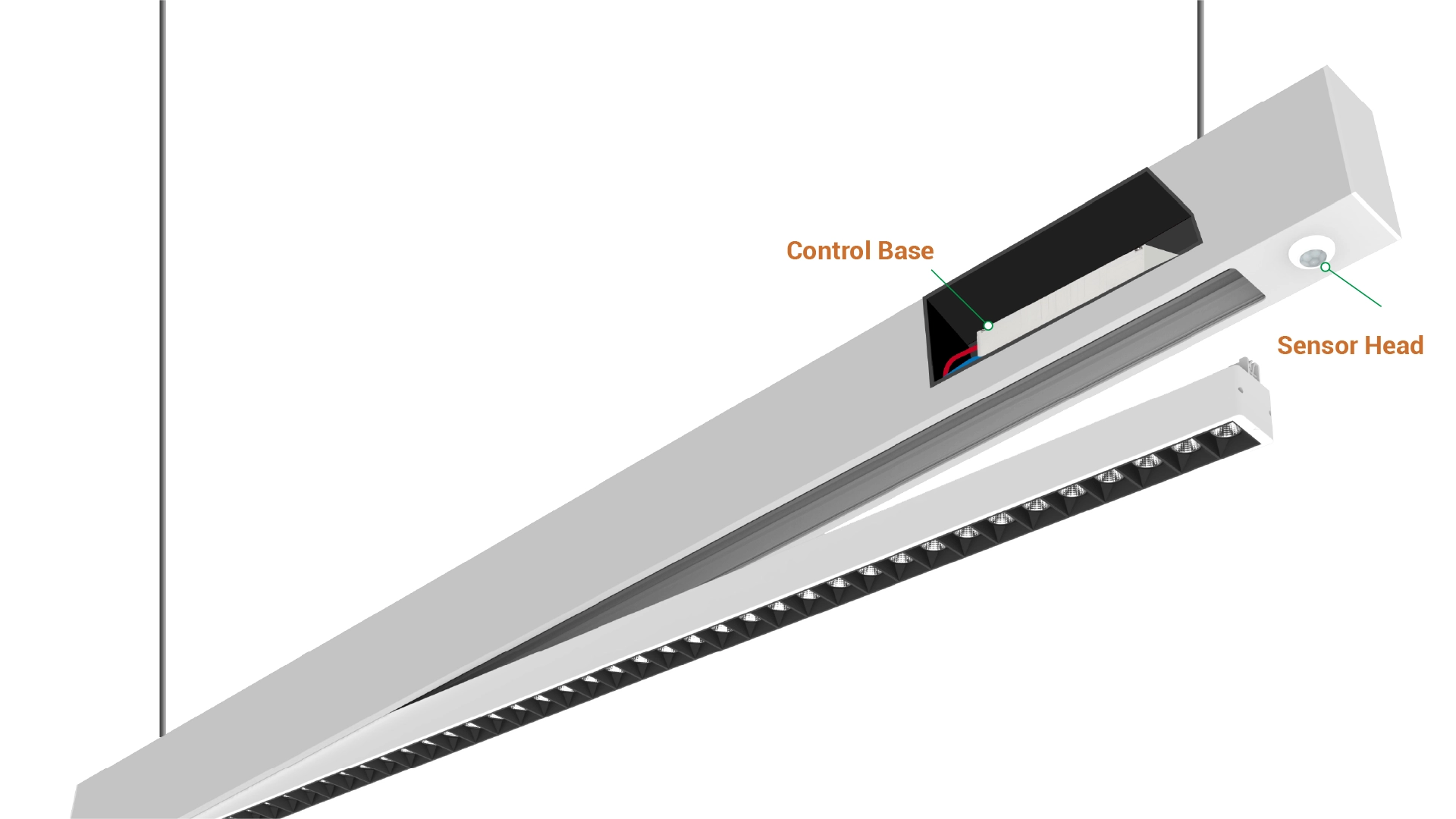

- Master luminaire with sensor
- School/Classrooms
- Office/Commercial Lighting
Product information "HCD438/BT"
HCD438/BT is a Bluetooth DALI control base with 30mA DALI power supply built in. It work with a wide range of microwave and PIR sensor heads. It is ideal for plastic luminaires as compared to metal luminaires because Bluetooth signal can transmit through plastic. it is suitable for any typical indoor applications such as office, classroom, car park, warehouse and other commercial/industrial areas. With Bluetooth wireless mesh networking, it makes communication much easier without any hardwiring.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |

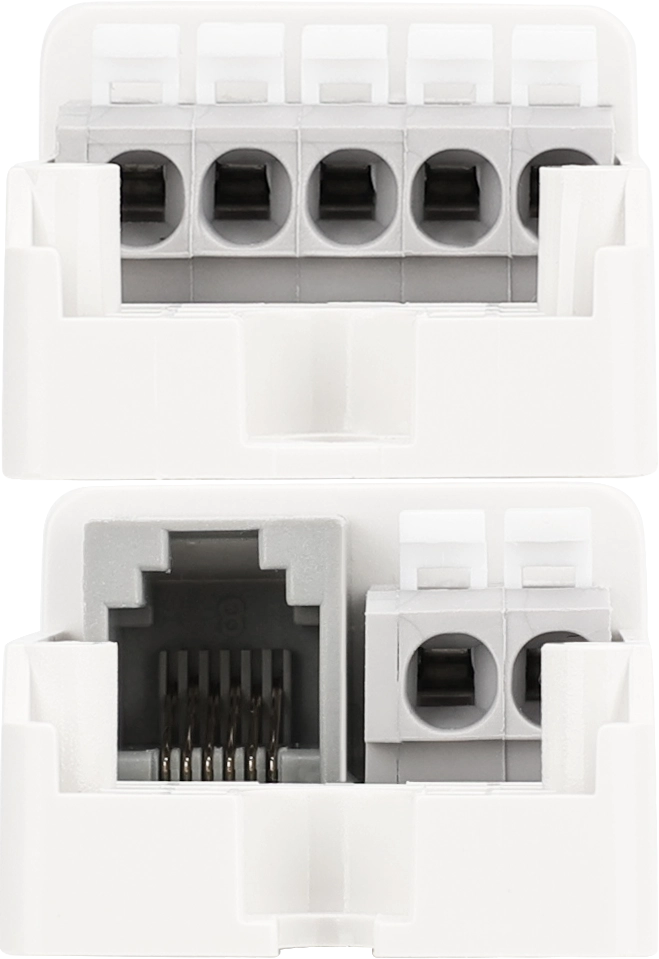

| Connector Type: | Standard 2 cables |
| Daylight Harvest: | No |
| Detection Methods: | Microwave (MW), Passive Infrared (PIR) |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Mounting hole: | 4.5000 mm |
| Operating voltage range: | 120-277 VAC |
| Product height: | 21.0000 mm |
| Product length: | 120.0000 mm |
| Product weight: | 50.0000 g |
| Product width: | 30.0000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hcd438-bt.pdf
