HBEM05

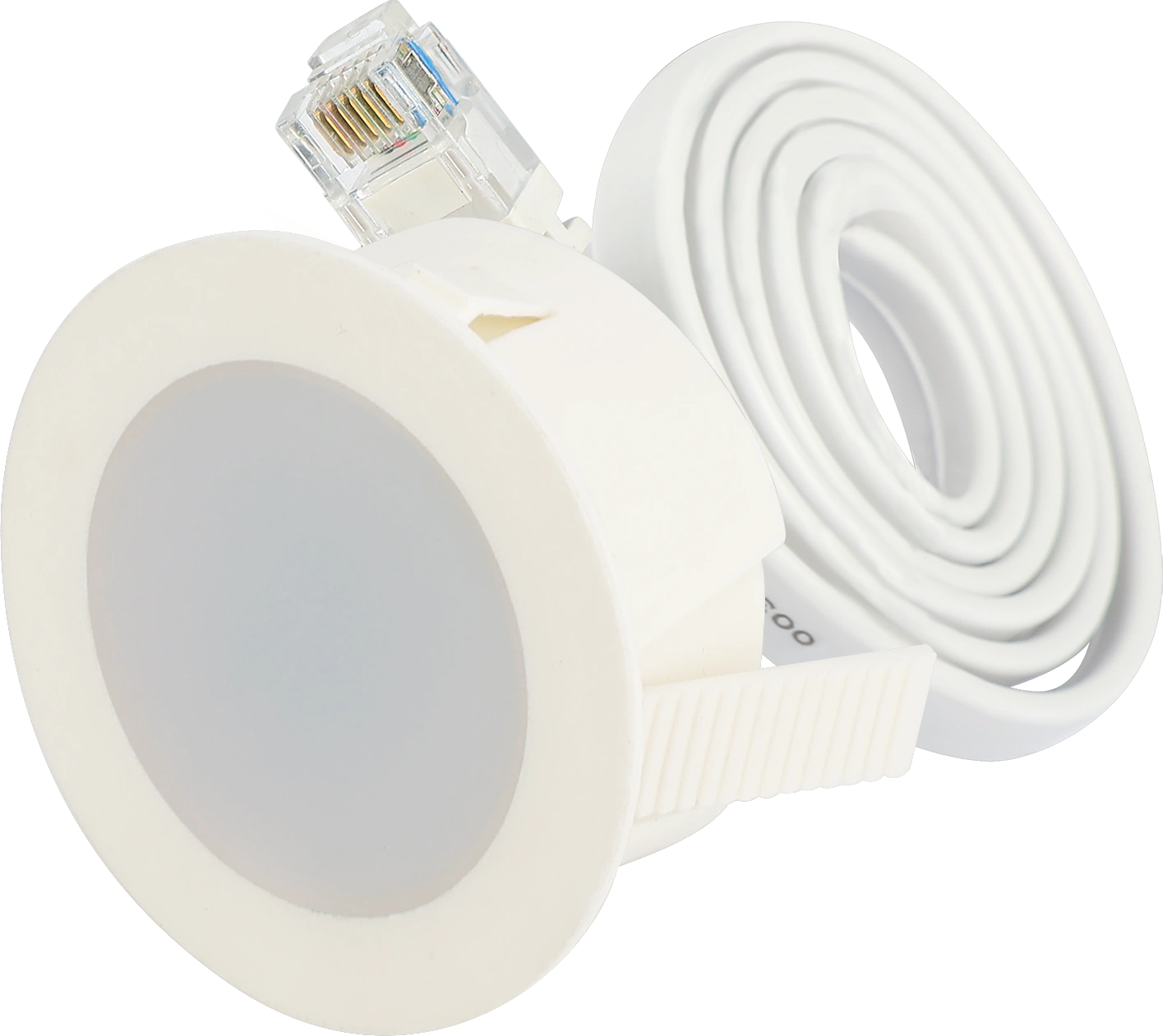

Emergency Inverter Max.12W | DALI Dimmable | Attachable sensor heads
BENEFITS
- Compact: Emergency inverter with Bluetooth
- Flexible: Choose over many sensors options via plug & play
- Cost-Saving: BLE eliminates the need for time-consuming hardwiring
APPLICATIONS
- Built-in integration
- Offices & Classrooms
- Industry & Healthcare Spaces

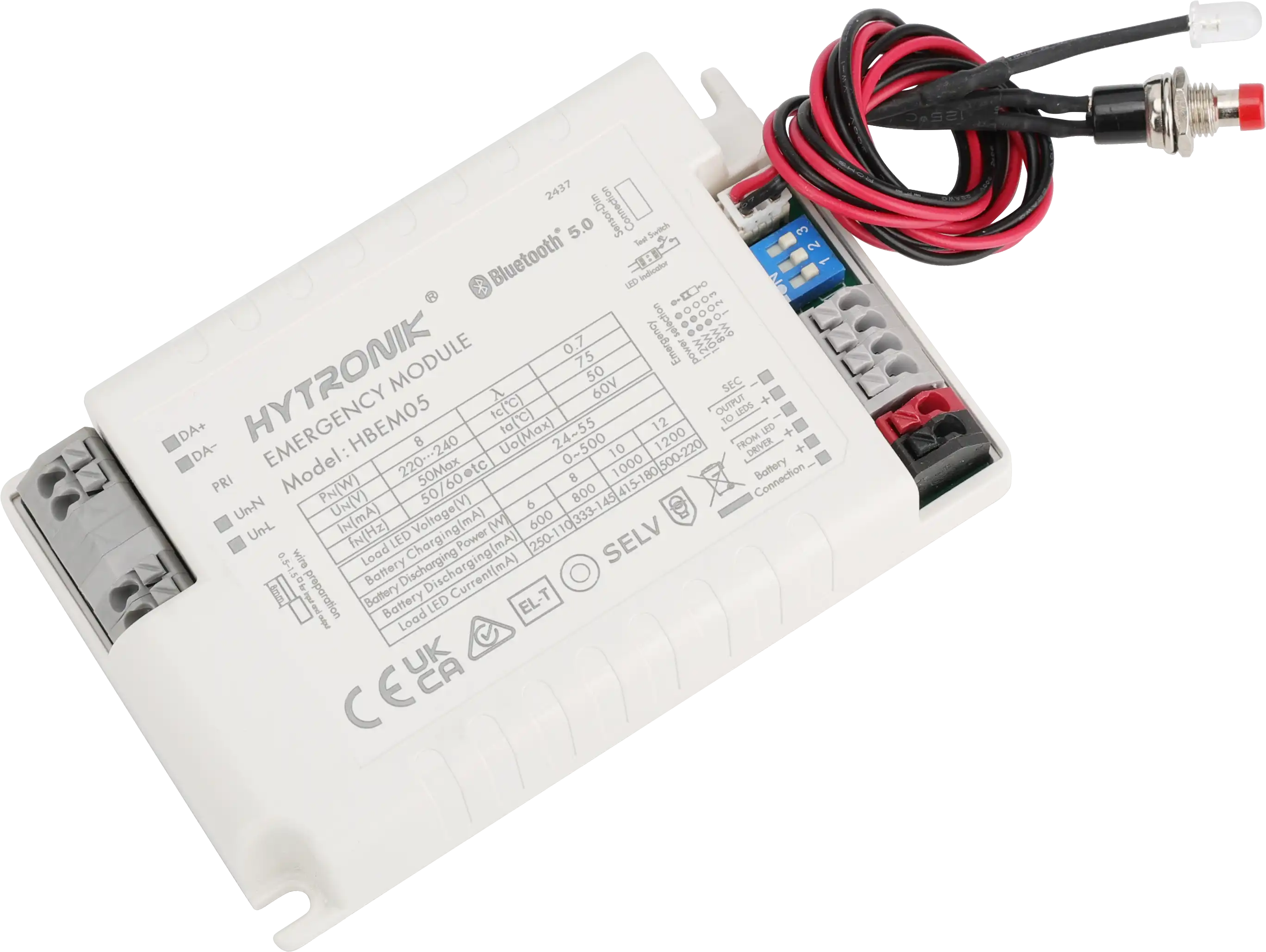

Product information "HBEM05"

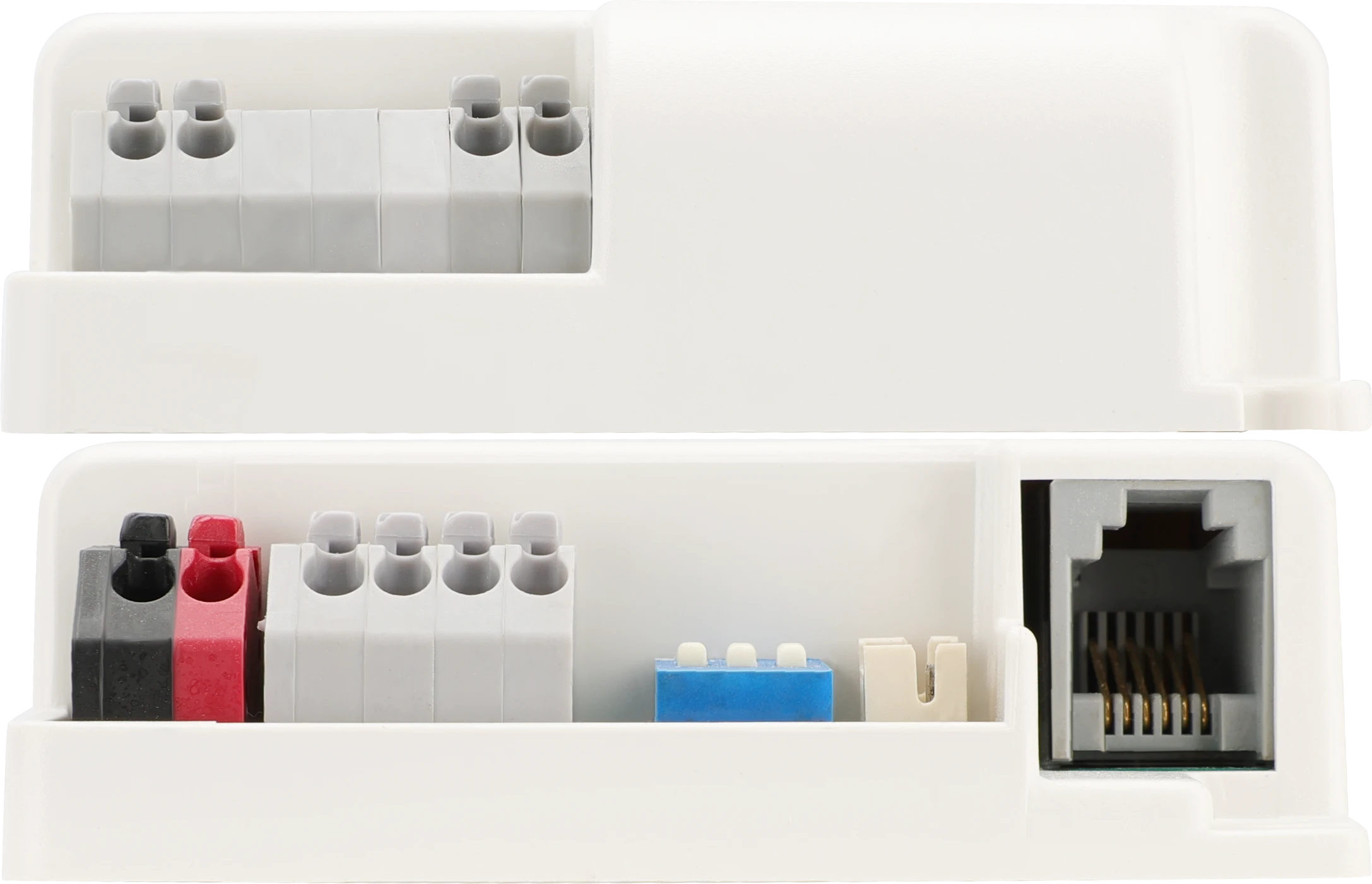

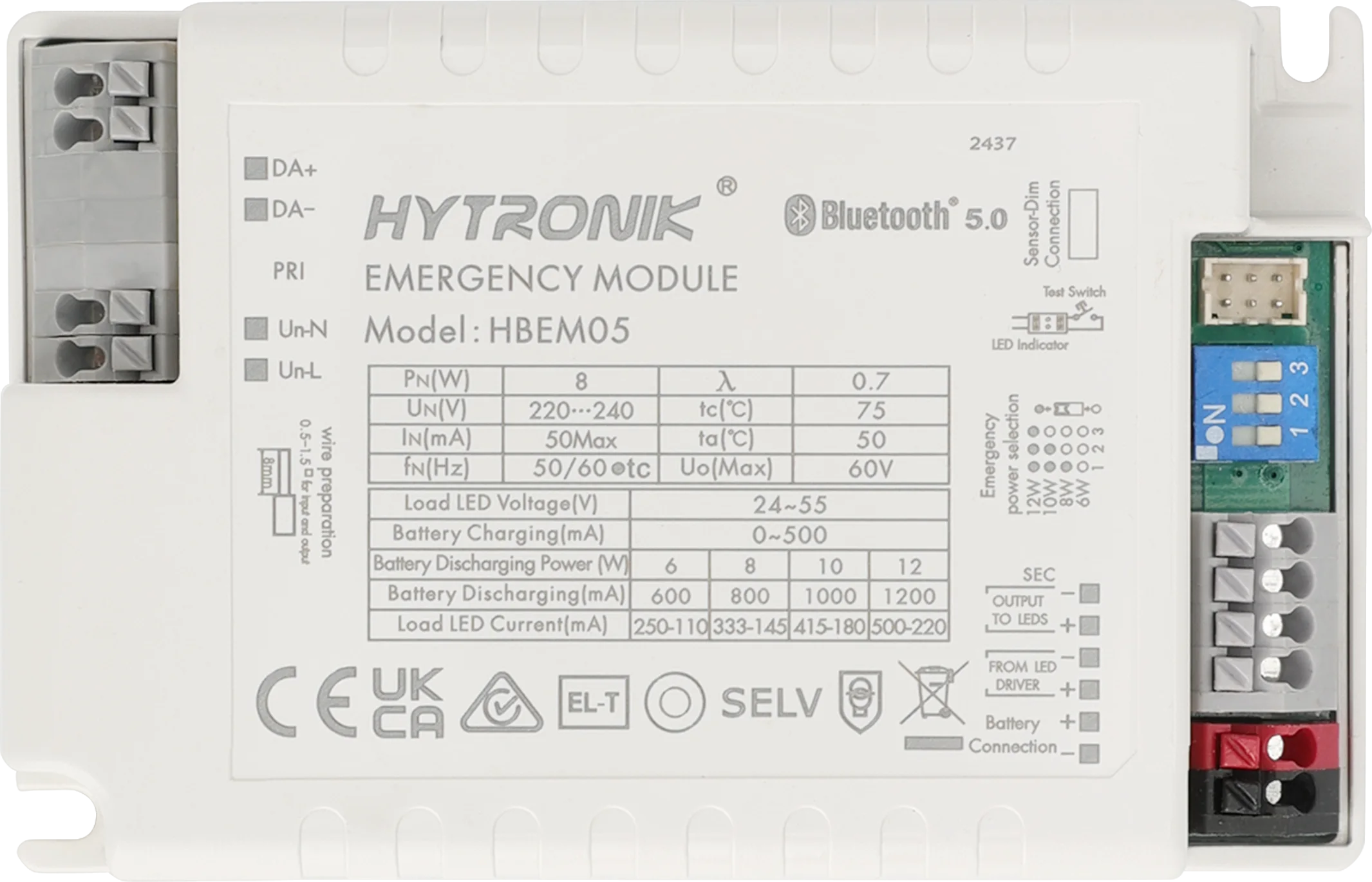

This emergency inverter for DALI dimmable drivers measures 140.6mm x 79.2mm x 23mm. It offers a maximum emergency output power of 6W, 8W, 10W, or 12W and supports up to 12W loading. Features include a Switch-Dim (PUSH) terminal and optional terminal caps for standalone installation.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | 0 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Category - Emergency LED Drivers & Inverters: | Emergency Inverter (Bluetooth) |
| Commissioning Methods: | App & Web (Bluetooth) |
| Efficiency: | 85.0000 % |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 60V |
| Product height: | 23.0000 mm |
| Product length: | 140.0000 mm |
| Product weight: | 113.0000 g |
| Product width: | 79.2000 mm |
| Storage temperature max.: | 45 °C |
| Storage temperature min.: | -10 °C |
| Zhaga: | No |
Datasheets
Product datasheet: hbem05.pdf
Login

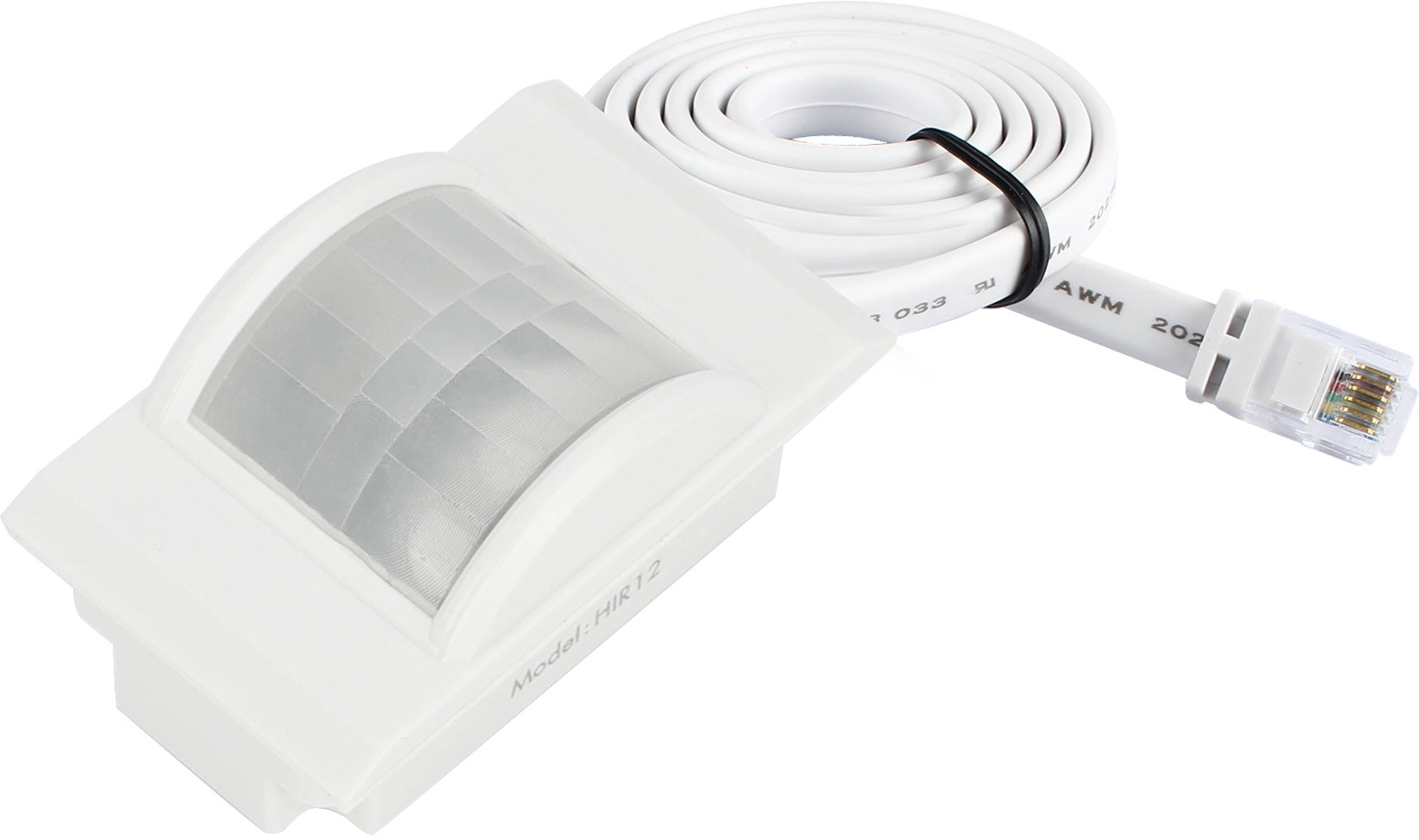

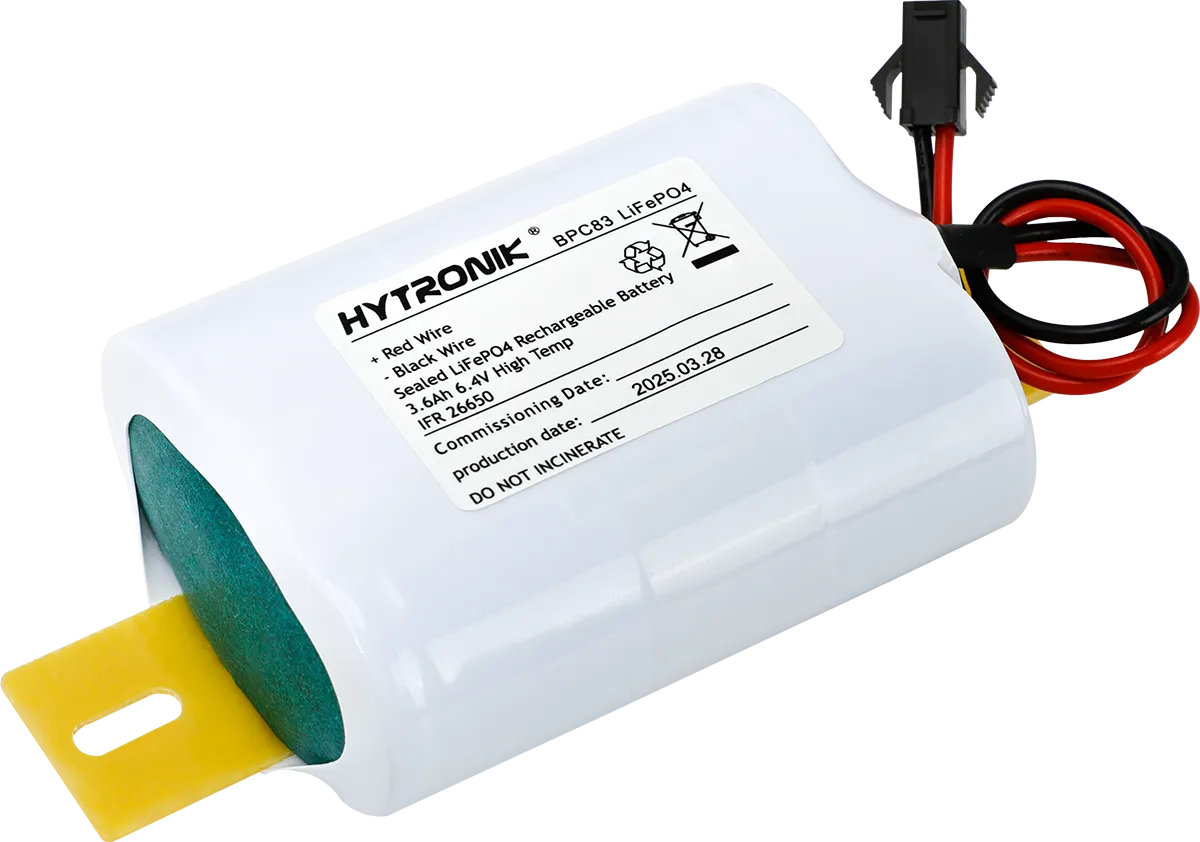

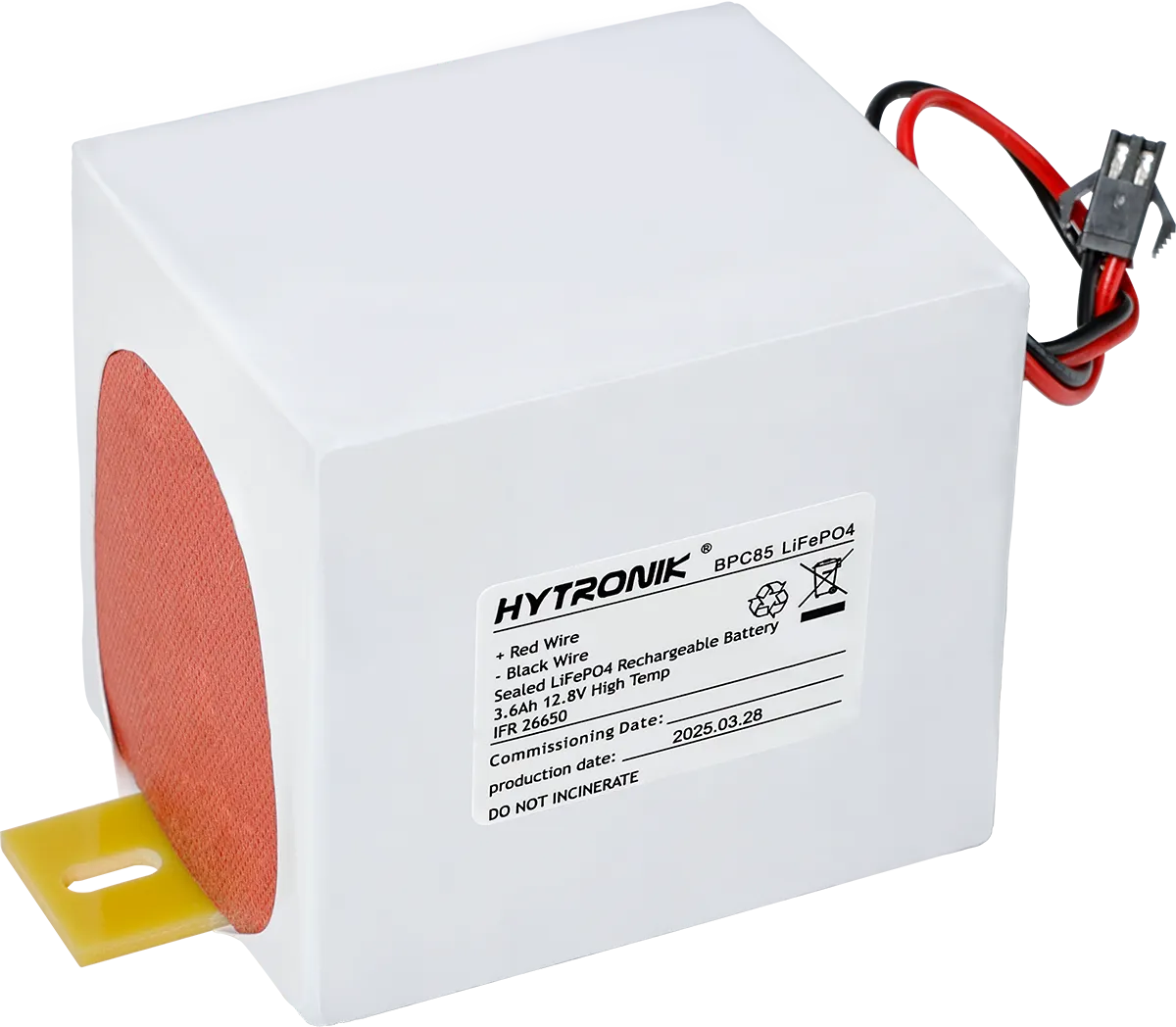

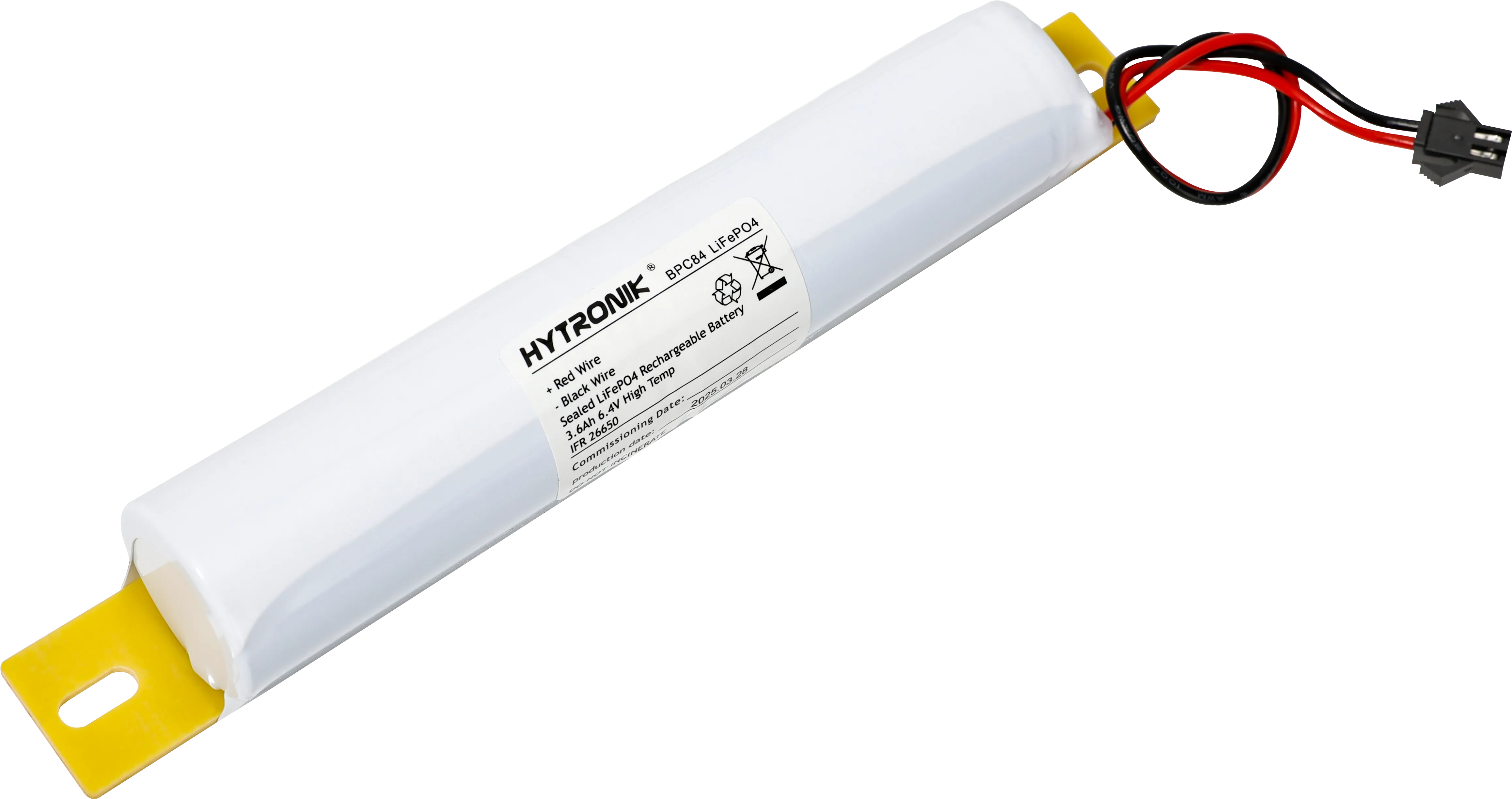

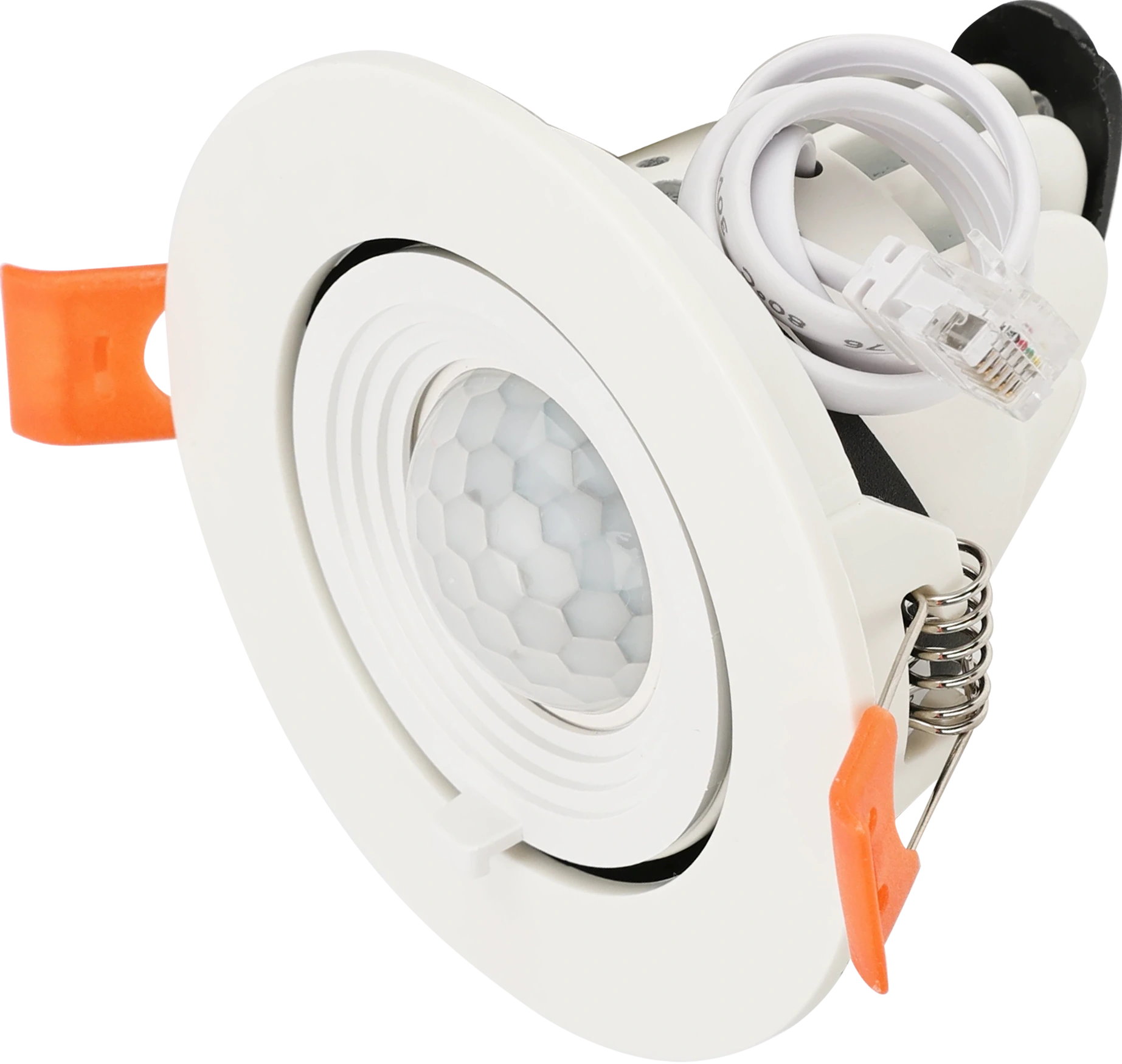

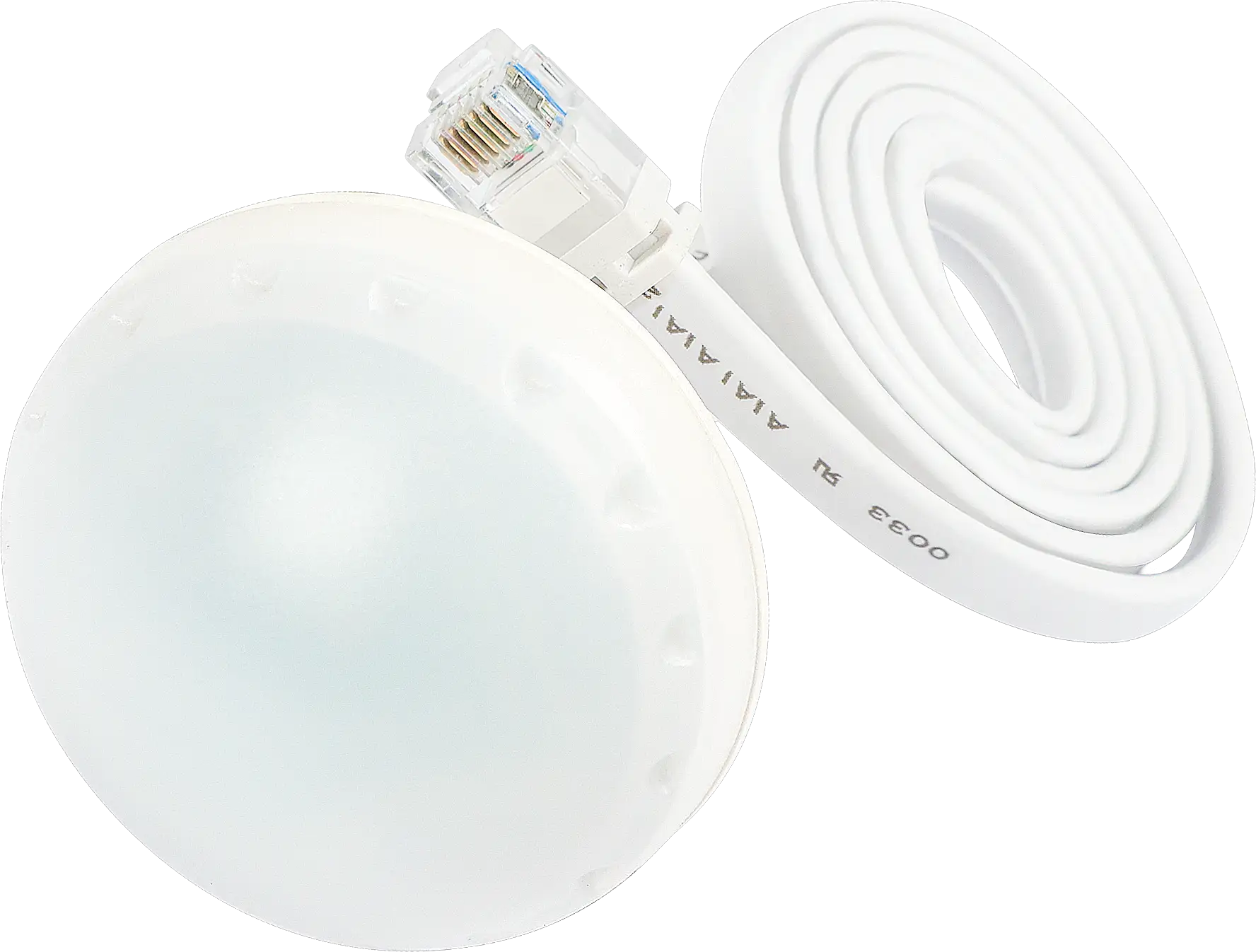

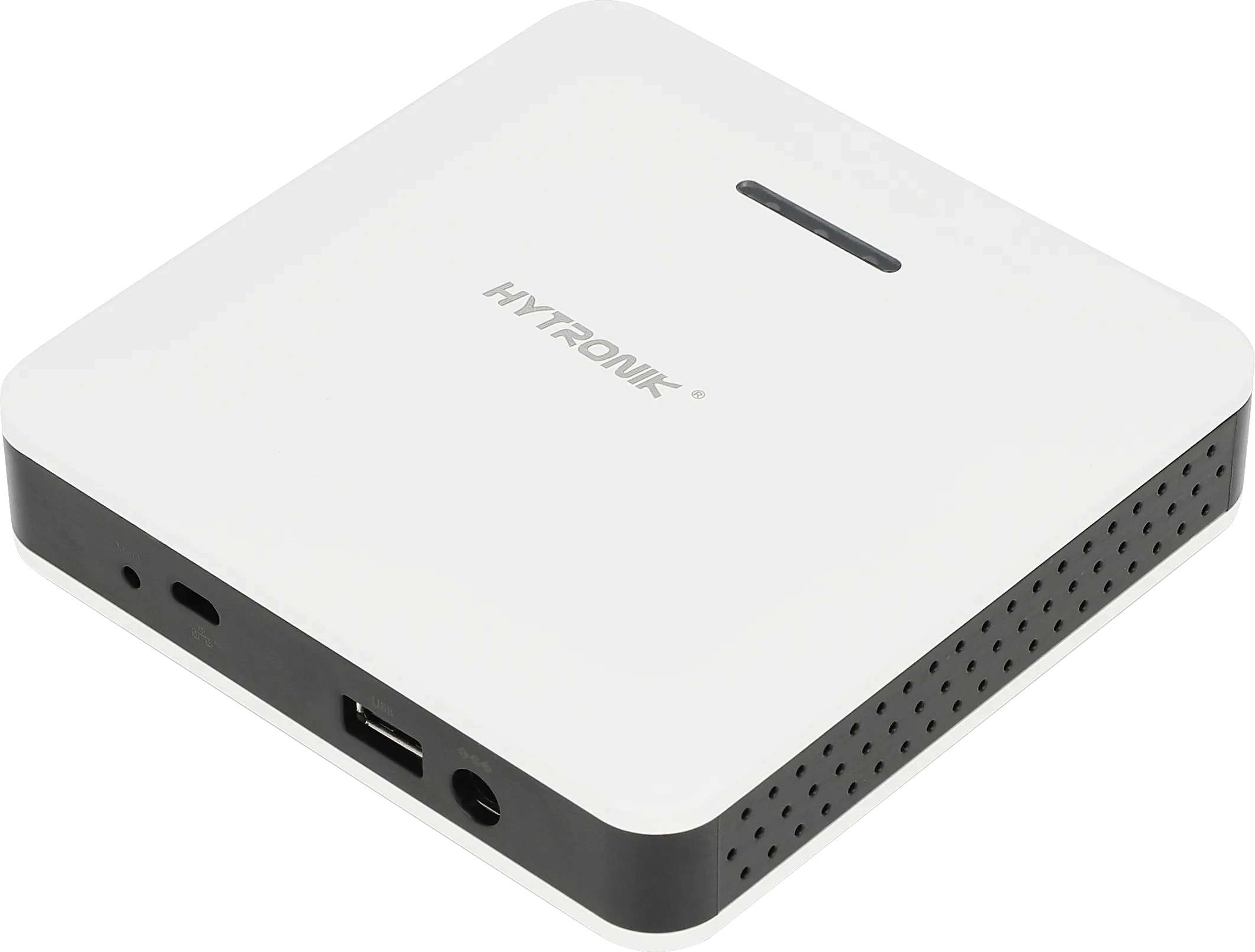

Compatible products (for full functionality)
