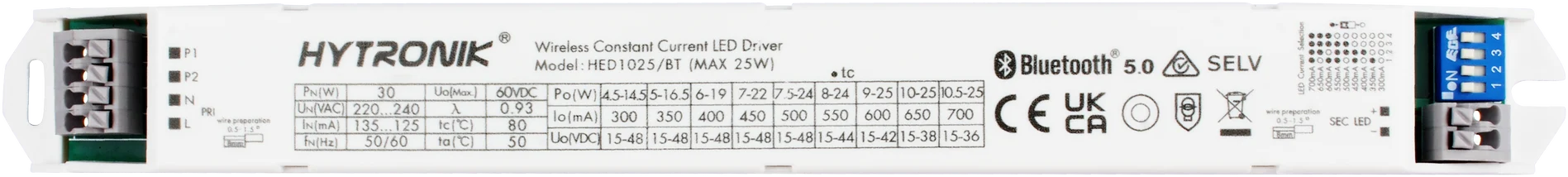

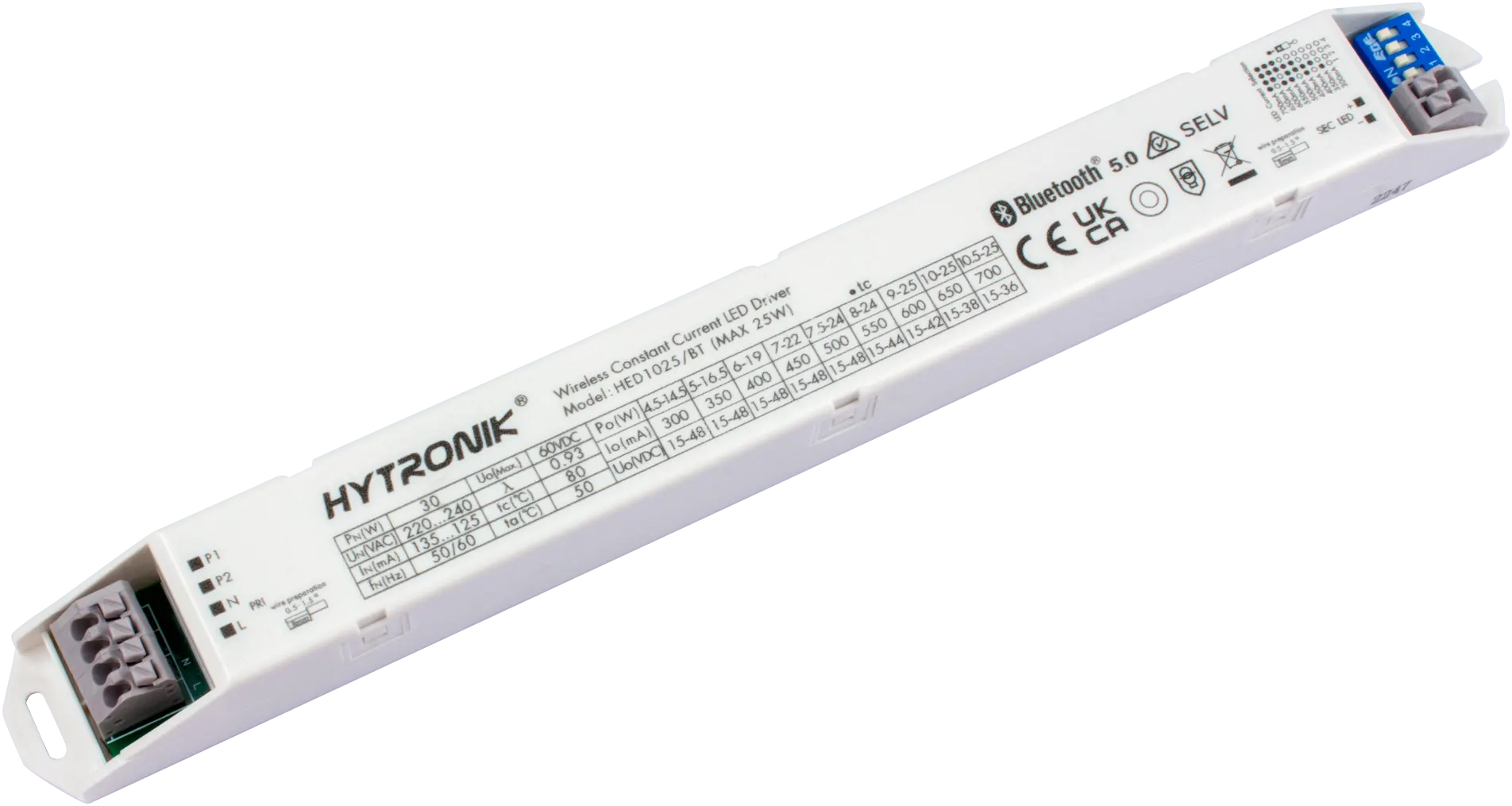

HED1025/BT
Bluetooth LED Driver 25W (CC) | Dimmable | Built-in version
BENEFITS
- Compact: Linear LED Driver with Bluetooth interface
- Efficient: Loop-in & Loop-out terminals design
- Easy configuration: via dip-switch & wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Linear Luminaire Built-in integration
- Offices
- Classrooms
Product information "HED1025/BT"
HED1025/BT is a Bluetooth dimmable LED driver, with the maximum power output ranging from 25W. It has a Switch-Dim interface by using a Push switch (retractive switch) and of course a Bluetooth dimming interface. Meanwhile, simple device setup an commissioning can be done through the Koolmesh app.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| DALI device type: | DT6 |
| Dimming (Output) Interface: | Switch-Dim |
| Driver Type: | Dimming Only |
| Efficiency: | 85.0000 % |
| Human Centric Lightning (HCL): | No |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Operating Mode: | Constant Current |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Power: | ≤25W |
| Product height: | 21.0000 mm |
| Product length: | 245.0000 mm |
| Product weight: | 109.0000 g |
| Product width: | 25.5000 mm |
| Storage temperature max.: | 50 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | No |
Datasheets
Product datasheet: hed1025-bt.pdf
