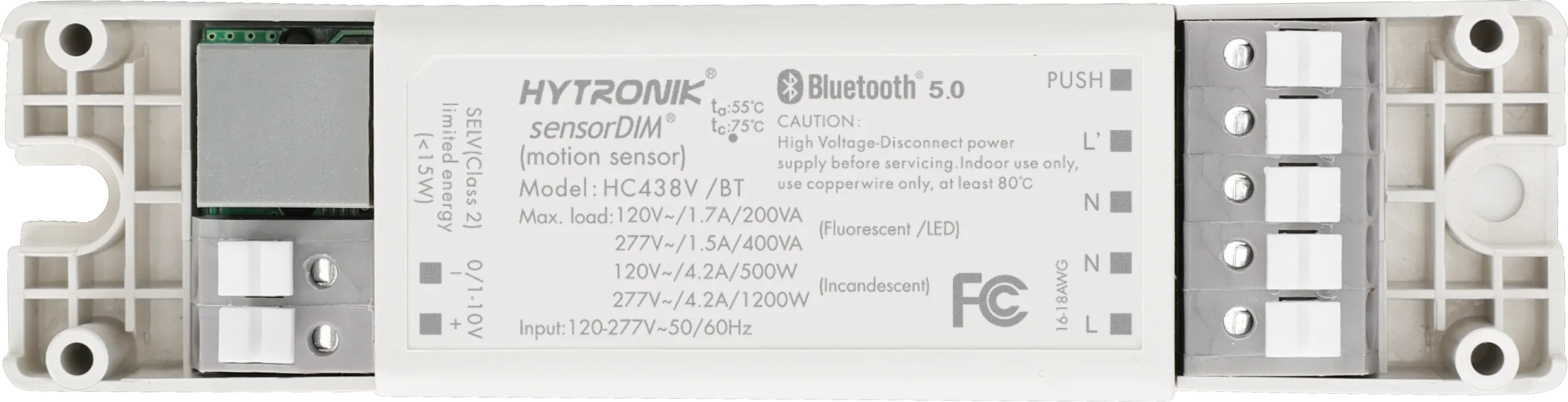

HC438V/BT
Control body | Bluetooth & 0/1-10V | Attachable sensor heads | US Certified
BENEFITS
- Adaptable: Small control unit with strain relief
- Versatile: Suitable for various sensor head options via Plug’n’Play
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Master luminaire with sensor
- School/Classrooms
- Office/Commercial Lighting
Product information "HC438V/BT"

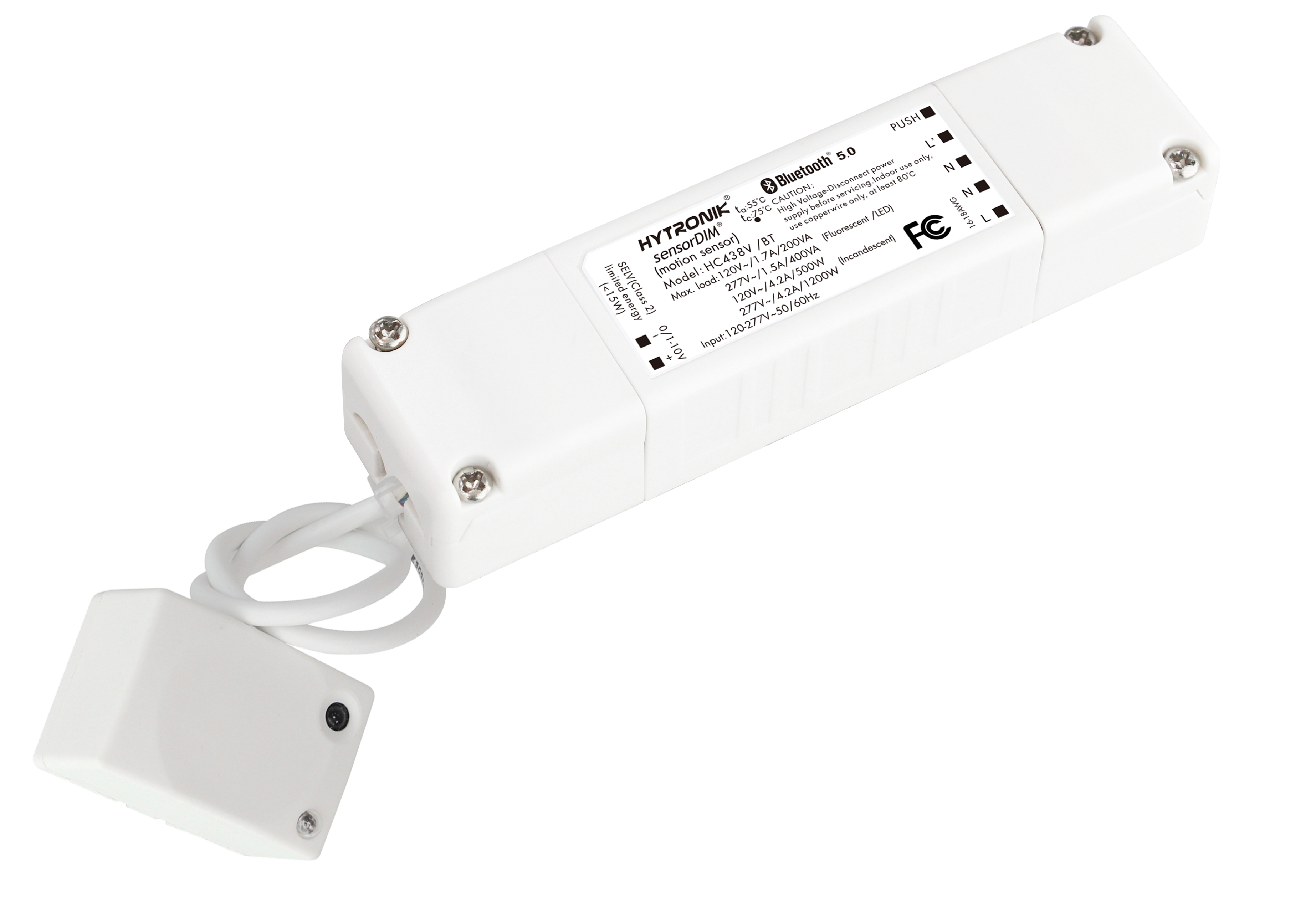

HC438V/BT is a Bluetooth 0/1-10V control base compatible with various microwave and PIR sensor heads. Ideal for metal luminaire designs, it supports Bluetooth mesh networking for easy communication without hardwiring, adding value and reducing costs. Device setup and commissioning are simplified via Koolmesh app, making it suitable for typical indoor applications.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |

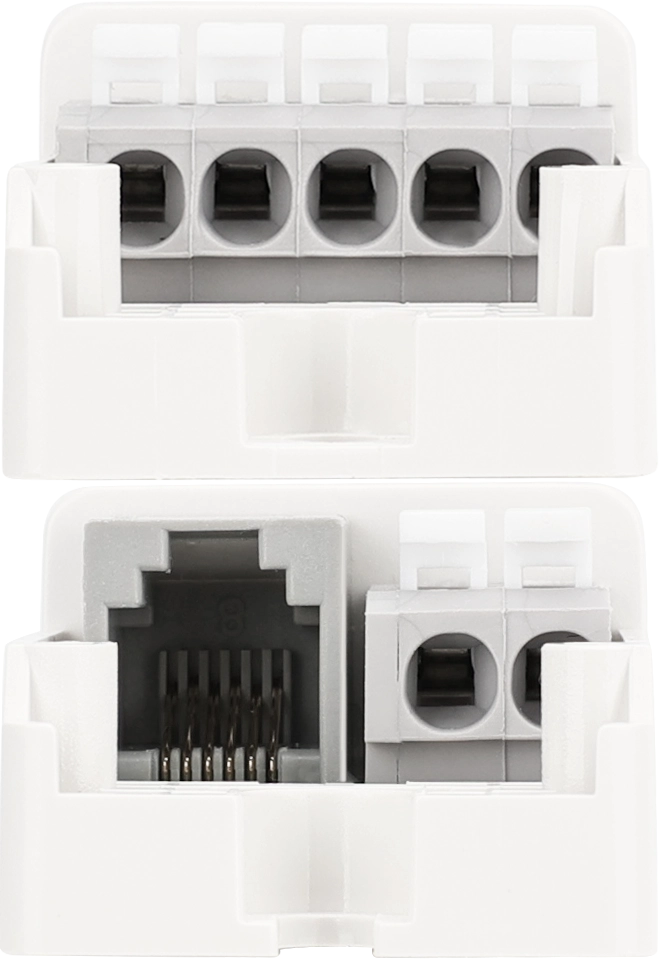

| Connector Type: | RJ12 |
| Detection Methods: | Microwave (MW), Passive Infrared (PIR) |
| Detection angle: | 360° |
| Dimming (Output) Interface: | 0/1-10V |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Mounting hole: | 4.5000 mm |
| Operating voltage range: | 120-277 VAC |
| Product height: | 21.0000 mm |
| Product length: | 120.0000 mm |
| Product weight: | 65.0000 g |
| Product width: | 30.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hc438v-bt.pdf
