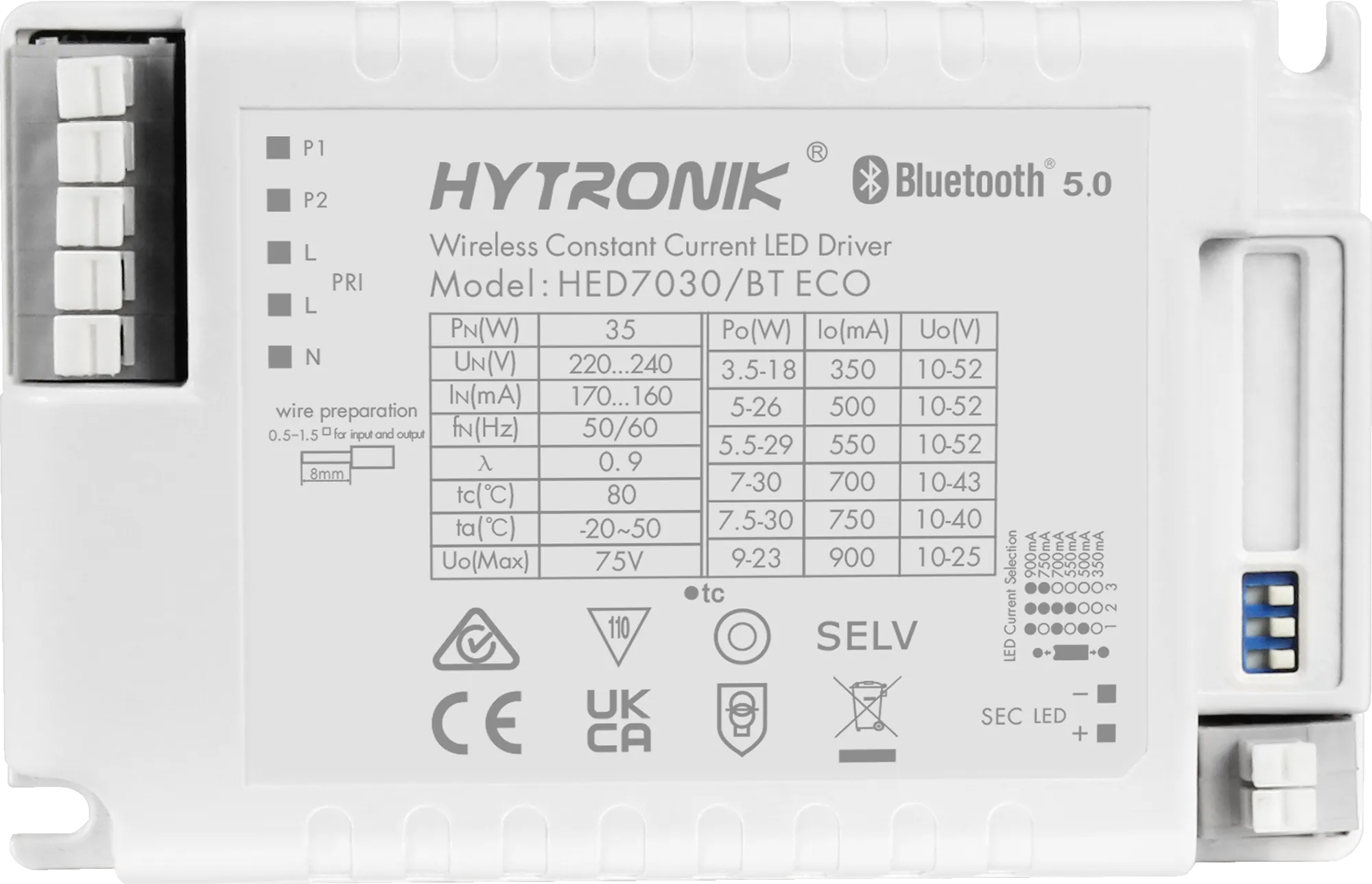

HED7030/BT
Bluetooth LED Driver 30W (CC) Dimmable | Plug’n’Play | Built-in version
BENEFITS
- 2-in-1: 30W Compact driver with plug-and-play motion sensors
- Innovative: Featuring Switch-Dim and Bluetooth dimming interfaces
- Easy: Motion and Daylight harvest configuration via Koolmesh app
APPLICATIONS
- Luminaires with integrated sensor
- Retrofit projects with no extra wiring for control
- All types of indoor applications
Product information "HED7030/BT"

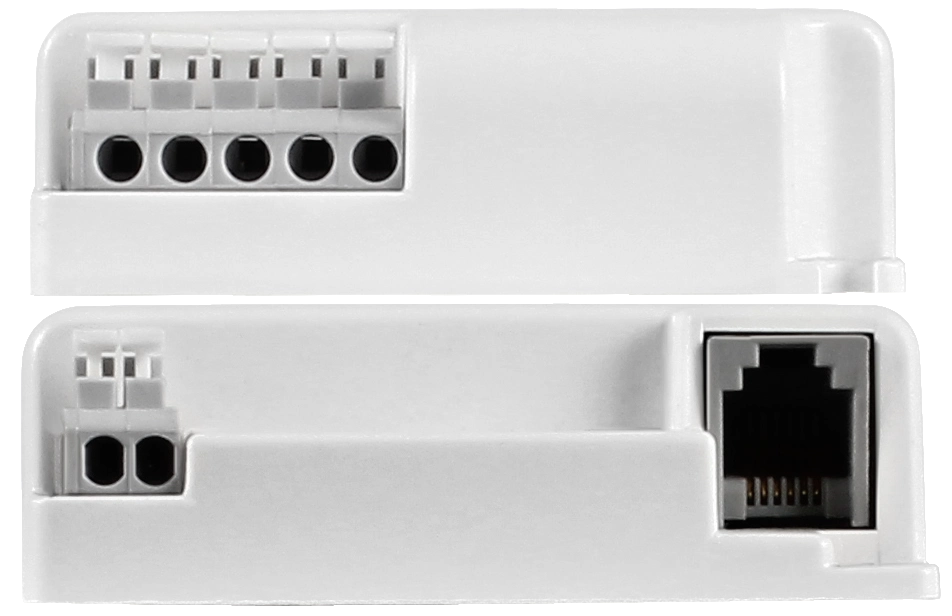

HED7030/BT is a Bluetooth dimmable LED driver, with maximum power output of 30W. It come with Switch-Dim interface by using Push switch (retractive switch) and of course Bluetooth dimming interface. The driver comes with an RJ12 terminal, ready to plug in a wide selection of motion sensors, ranging from HF to PIR, from low bay to high bay etc. It is ideal for direct projects or new luminaires design for lighting manufacturers. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Driver Type: | Dimming Only |
| Efficiency: | 86.0000 % |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Mounting hole: | 4.1000 mm |
| Operating Mode: | Constant Current |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Power: | 26 - 44W |
| Output Voltage: | 10~57V |
| Product height: | 22.2000 mm |
| Product length: | 108.0000 mm |
| Product weight: | 138.0000 g |
| Product width: | 69.0000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
Datasheets
Product datasheet: hed7030-bt.pdf
