HBEM01

Emergency Driver Max.25w | BLE & Switch-Dim | LiFePO4

BENEFITS

Compact: Emergency driver with self-test optional remote
Flexible: Choose over many sensors options via plug & play
Cost-Saving: BLE eliminates the need for time-consuming hardwiring and onsite check

APPLICATIONS

Luminaire Built-in integration or standalone
Retrofit upgrades & New luminaire designs
Offices, Classrooms, Industry and Healthcare Spaces

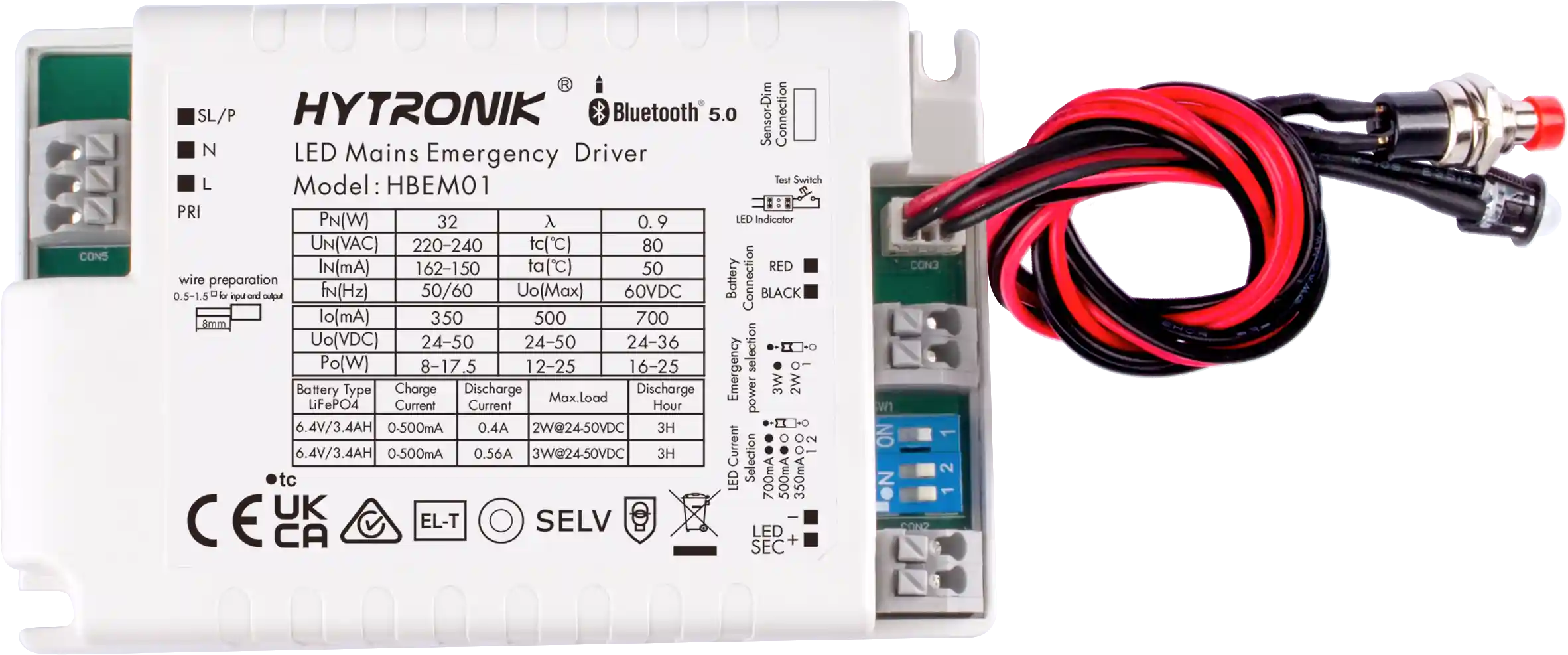

Product information "HBEM01"

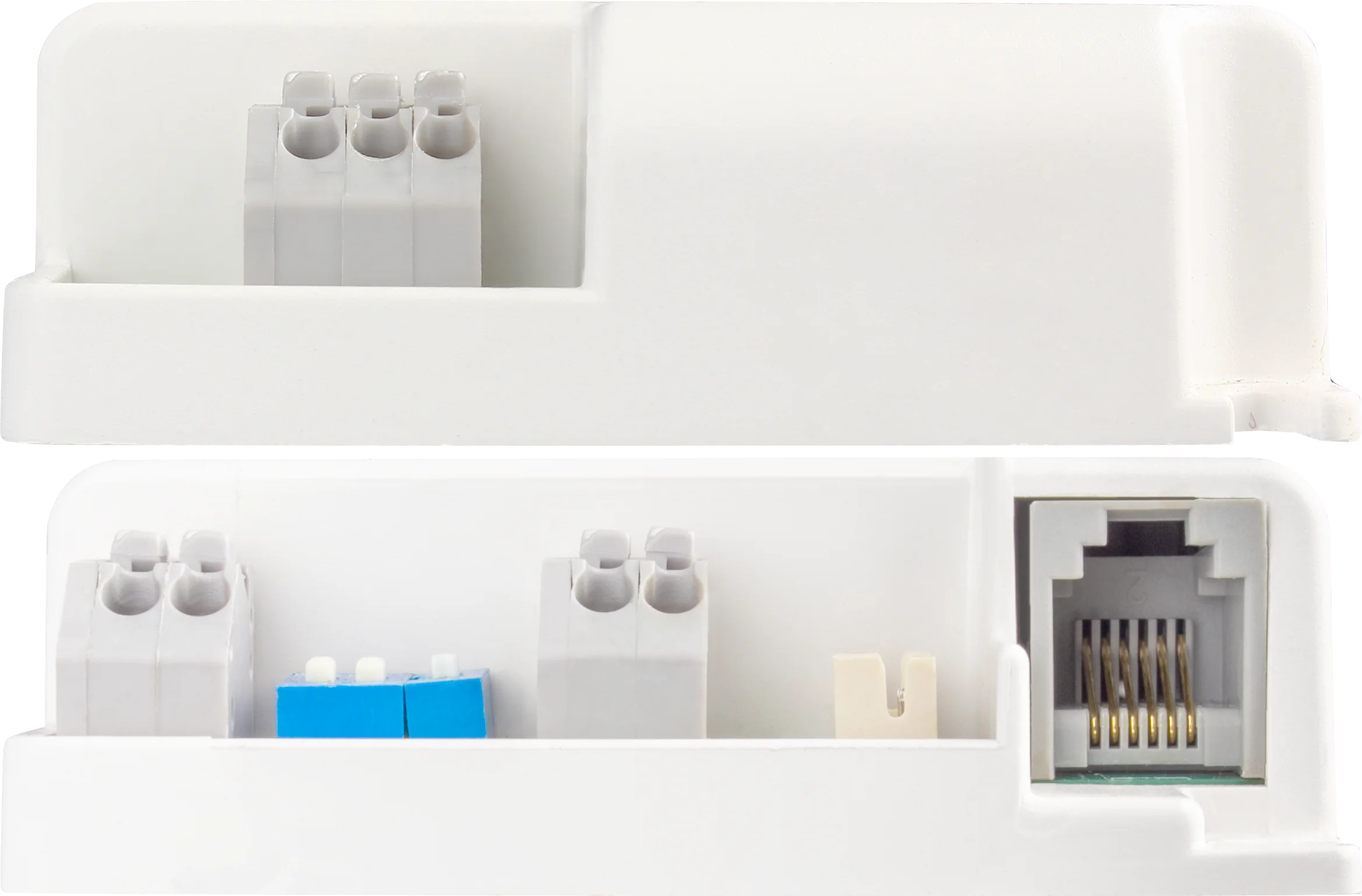

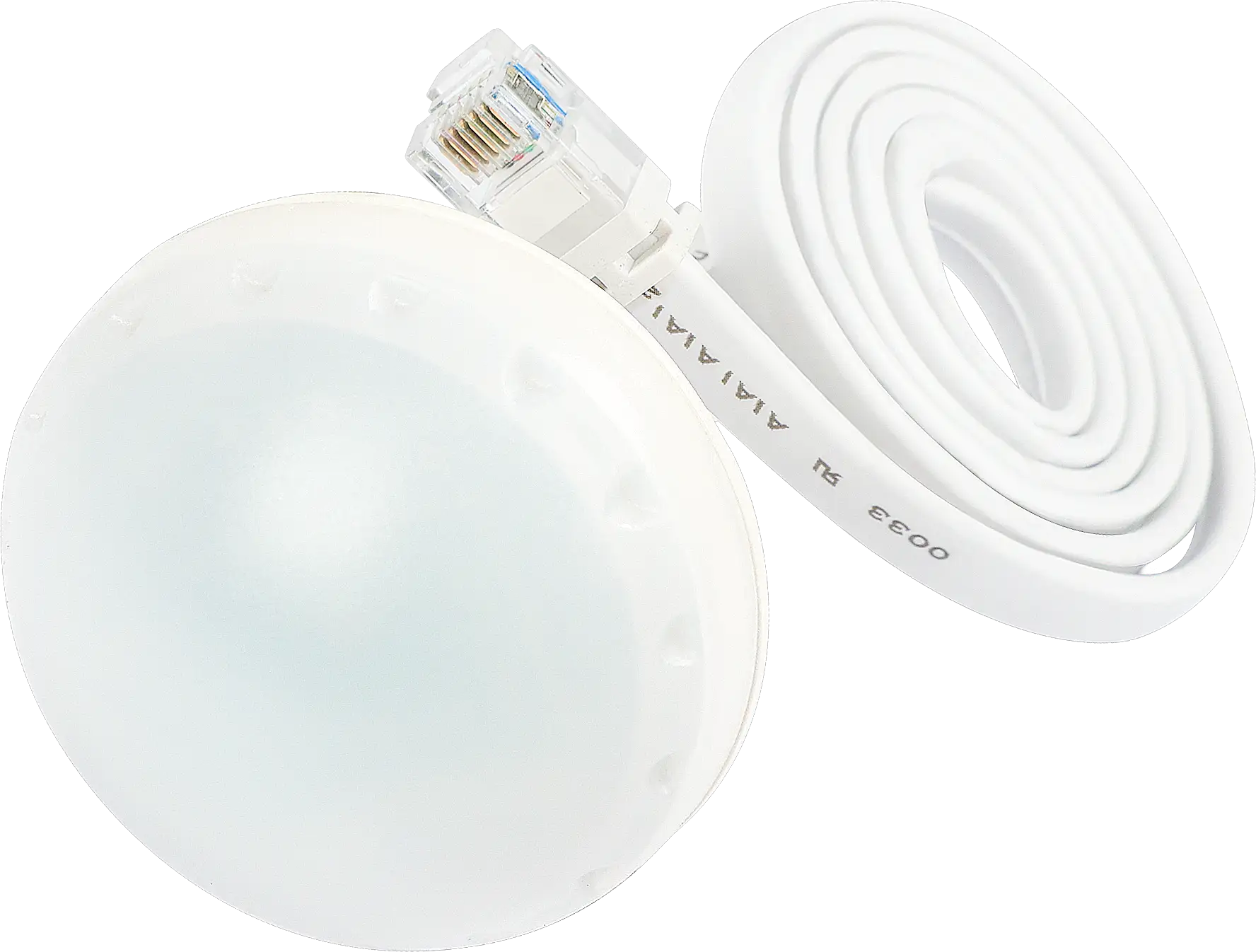

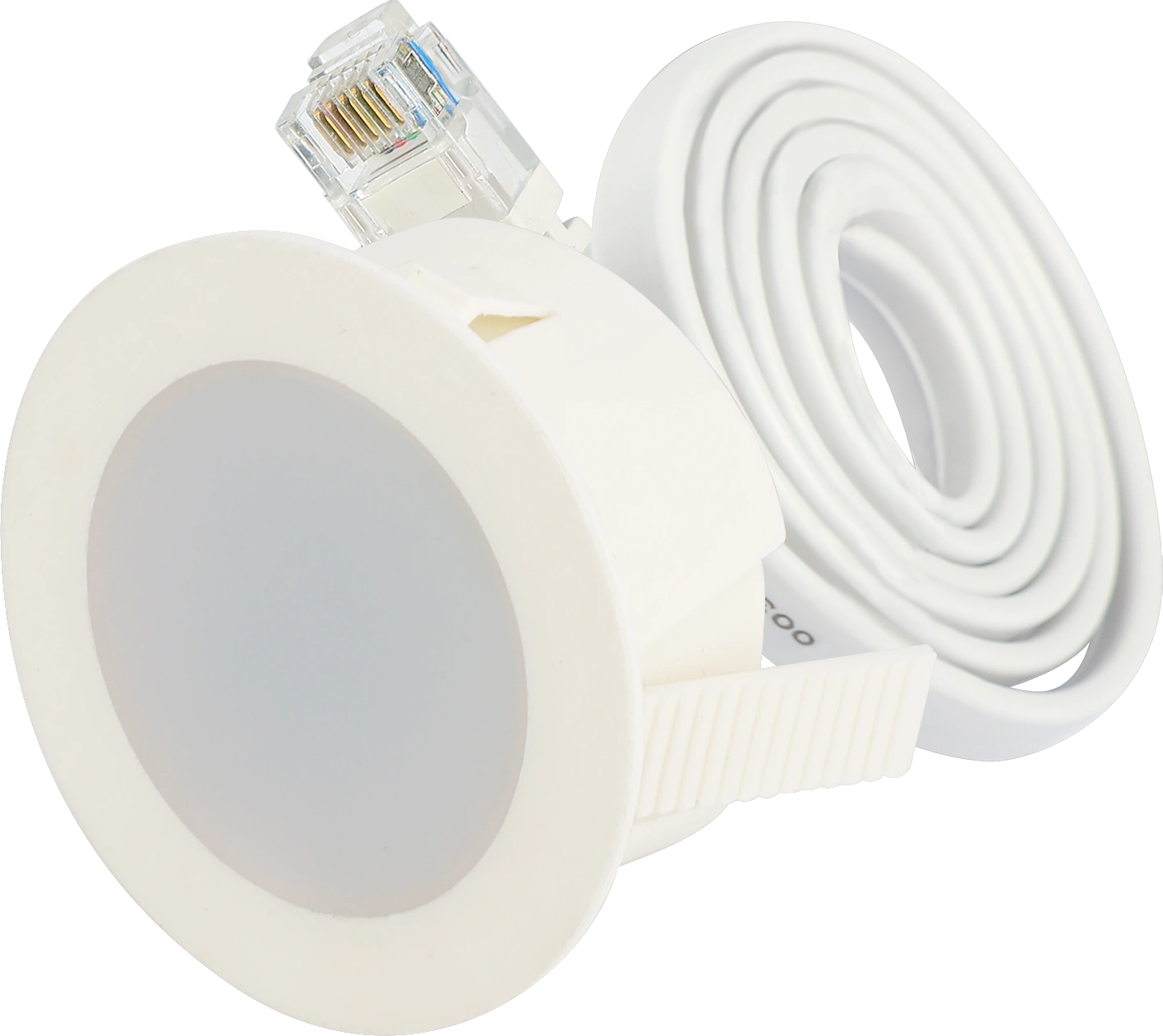

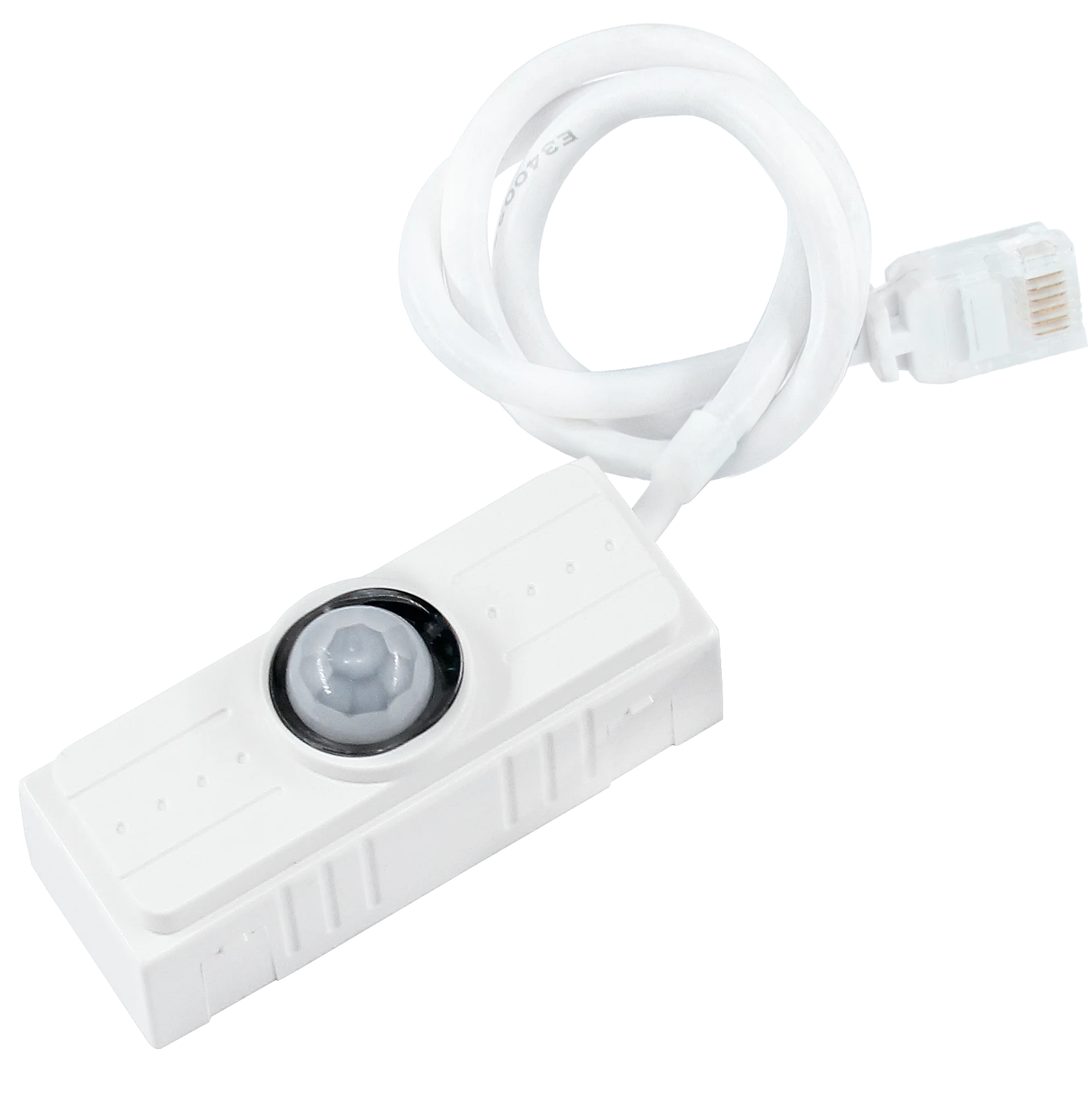

HBEM01 is a combined Bluetooth LED driver & emergency control gear with RJ12 connection for optional sensor heads SAM20, SAM21, SAM22, SAM22/FM, SAM23, HIR05, HIR05/FM, HIR05/AA, HIR07, HIR11 series, HIR12, HIR63 series. When the sensor head is not attached to, HBEM01 alone is a normal Bluetooth emergency driver with self-test function. When the sensor head is attached to, HBEM01 is a normal Blutooth emergency driver with motion, daylight sensor and self-test function. With gateway HBGW01 ready, user can generate emergency testing report through our app. HBEM01 can also conduct monthly or annually testing automatically and user can get email notification as soon as fault is detected. Meanwhile, simple device setup and commissioning can be done via Koolmesh app.

Ambient temperature max.:	50 °C
Ambient temperature min.:	0 °C
Bluetooth frequency:	2.4 GHz
Bluetooth range:	10-30m
Bluetooth system:	Koolmesh
Bluetooth technology:	Nordic nRF52832
Bluetooth transmit power:	4 dBm
Category - Emergency LED Drivers & Inverters:	LED Driver & Inverter Combo (Bluetooth)
Dimming (Output) Interface:	Relay On/Off
Efficiency:	85 %
Human Centric Lightning (HCL):	Yes
Humidity max:	90 %
Humidity min:	10 %
IP Rate:	IP20
Mounting hole spacing:	4.1000 mm
Operating Voltage:	220 - 240 VAC 50/60 Hz
Output Voltage:	24~50V
Product height:	22.2000 mm
Product length:	108.0000 mm
Product width:	69.0000 mm
Push Button Input:	1
Storage temperature max.:	35 °C
Storage temperature min.:	-10 °C
Tri-level (Corridor function):	Yes
Zhaga:	No
