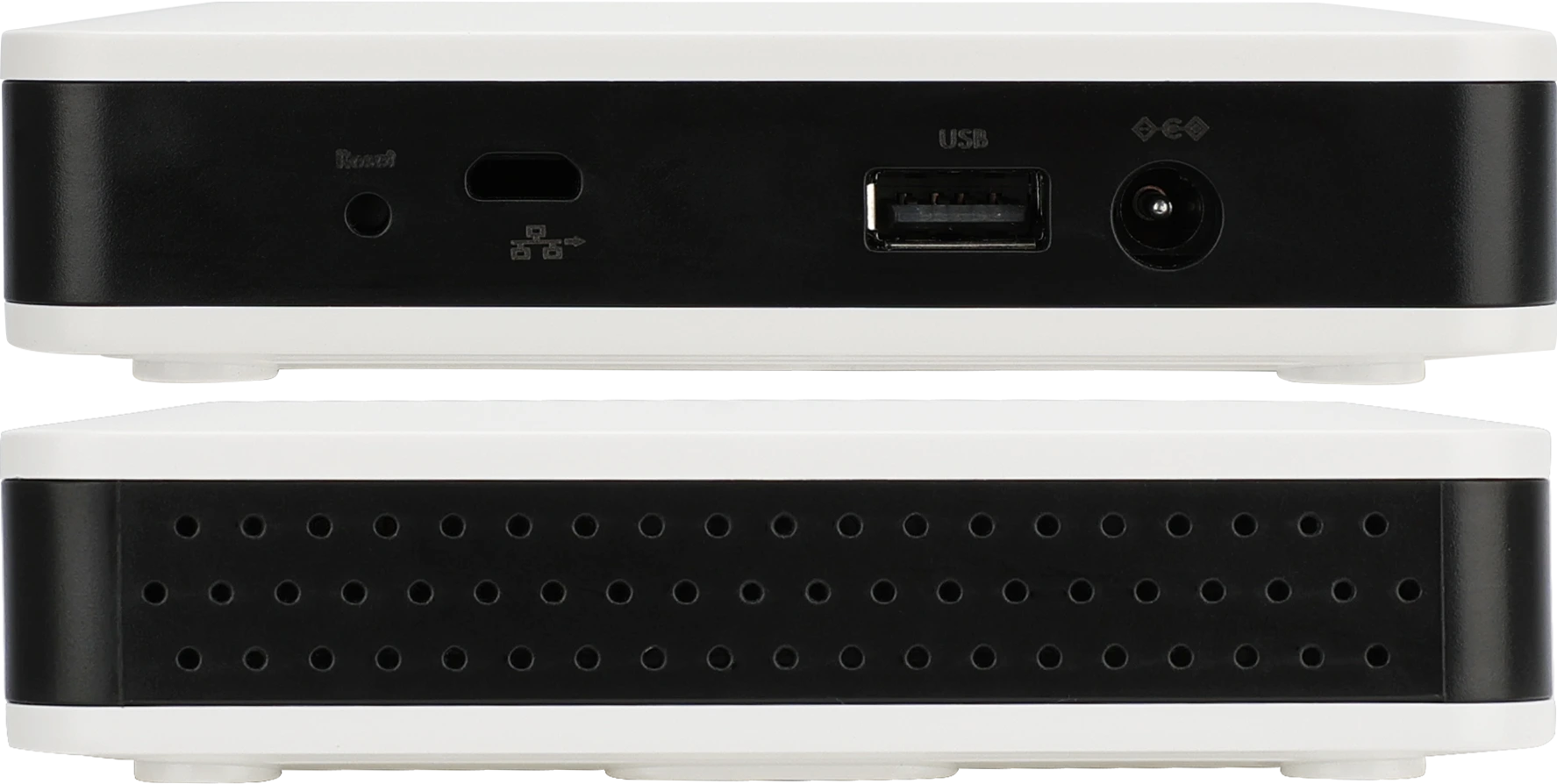

HBGW02/D
Bluetooth Mesh Gateway | Dual-band Wi-Fi | wall/flat surface mounting
BENEFITS
- Design: Compact saving installation space
- Scalable: Supporting up to 200 Bluetooth devices for network expansion
- Flexible: Supporting dual-band Wi-Fi and remote data management
APPLICATIONS
- Commercial & Office Lighting
- Industrial & Warehouse Logistics
- All types of applications
Product information "HBGW02/D"
HBGW02/D is a Bluetooth Mesh gateway that utilizes frequency-hopping Bluetooth technology to establish stable one-to-many connections, reducing disconnections in typical applications. It supports up to 200 Bluetooth nodes and can connect via 2.4 GHz and 5 GHz Wi-Fi. This gateway enables remote monitoring, control, and data collection for easier network management and maintenance. Its compact design and versatile connectivity make it an ideal solution for smart lighting systems.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -25 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 19 dBm |
| Category - System Level Components: | Gateway for Bluetooth System |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 80 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / New |
| Product height: | 30.0000 mm |
| Product length: | 120.0000 mm |
| Product weight: | 135.0000 g |
| Product width: | 120.0000 mm |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -35 °C |
| Tri-level (Corridor function): | No |
Datasheets
Product datasheet: hbgw02-d.pdf
