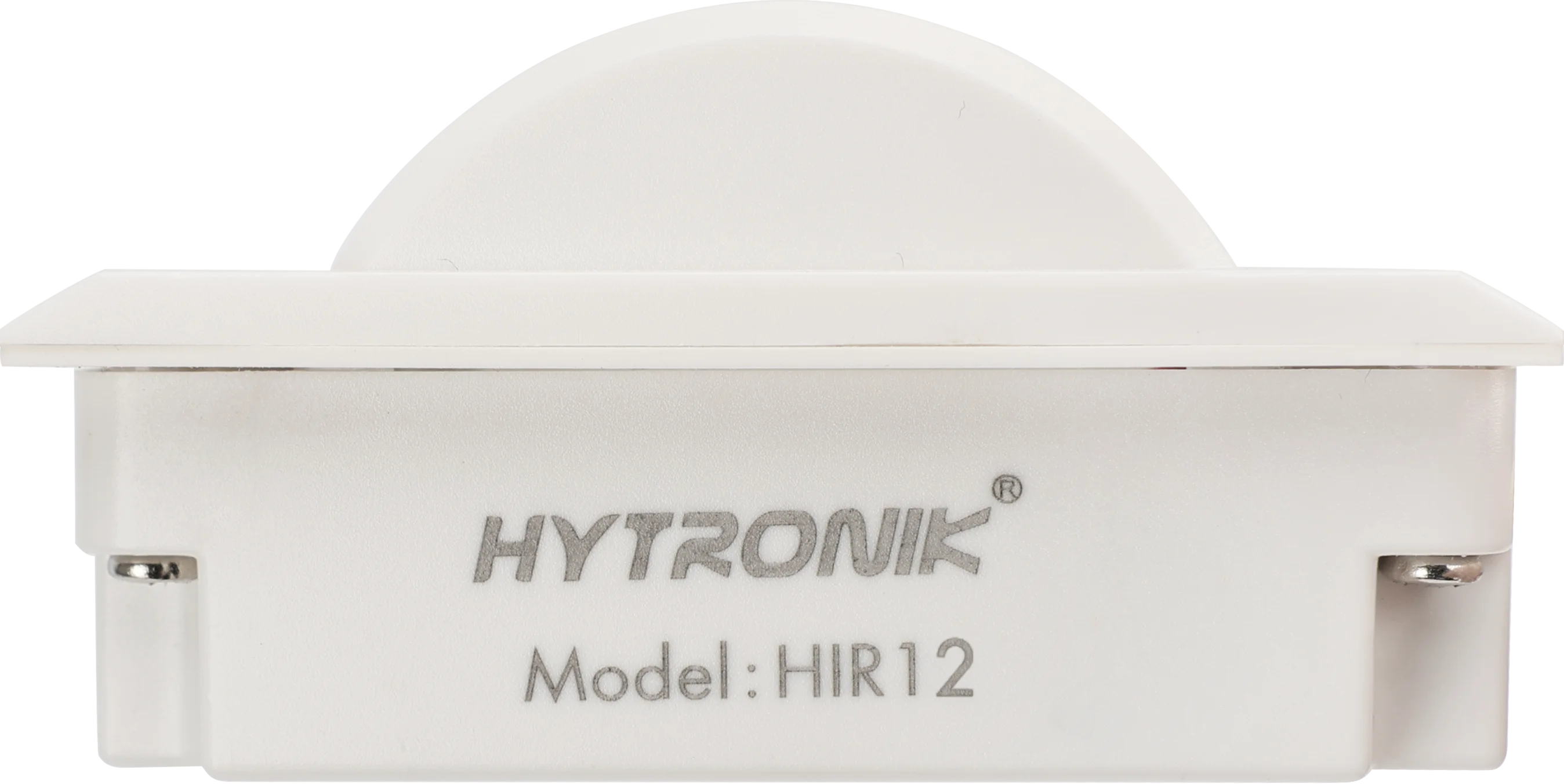

HIR12
PIR Highbay | Ciradian Rhyhm | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Designed for linear luminaire
- Warehouse/ Logistic
- Production/ Industry
Product information "HIR12"
This PIR sensor is designed for linear luminaires and features tri-level dimming and daylight harvesting capabilities. It supports Human Centric Lighting/Circadian Rhythm with DT8 drivers for tunable white control, includes a photocell and active lux switching, and is IP65 rated for protection of the lens/facial part.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 18×15 |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 33.0000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 38.2000 mm |
| Product length: | 75.0000 mm |
| Product weight: | 49.0000 g |
| Product width: | 45.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir12.pdf
Login

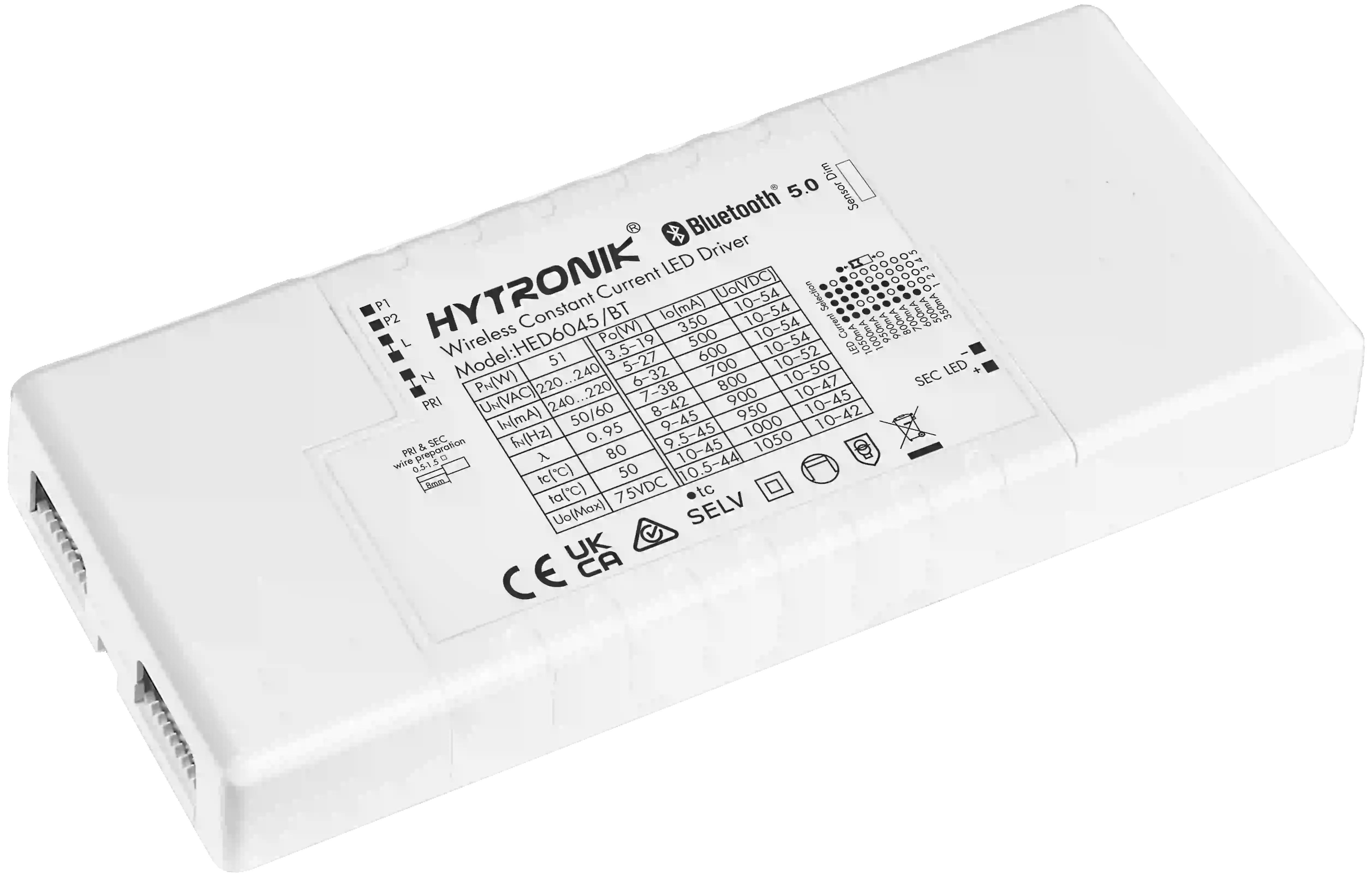

Compatible products (for full functionality)
