Engineering Sample / Evaluation

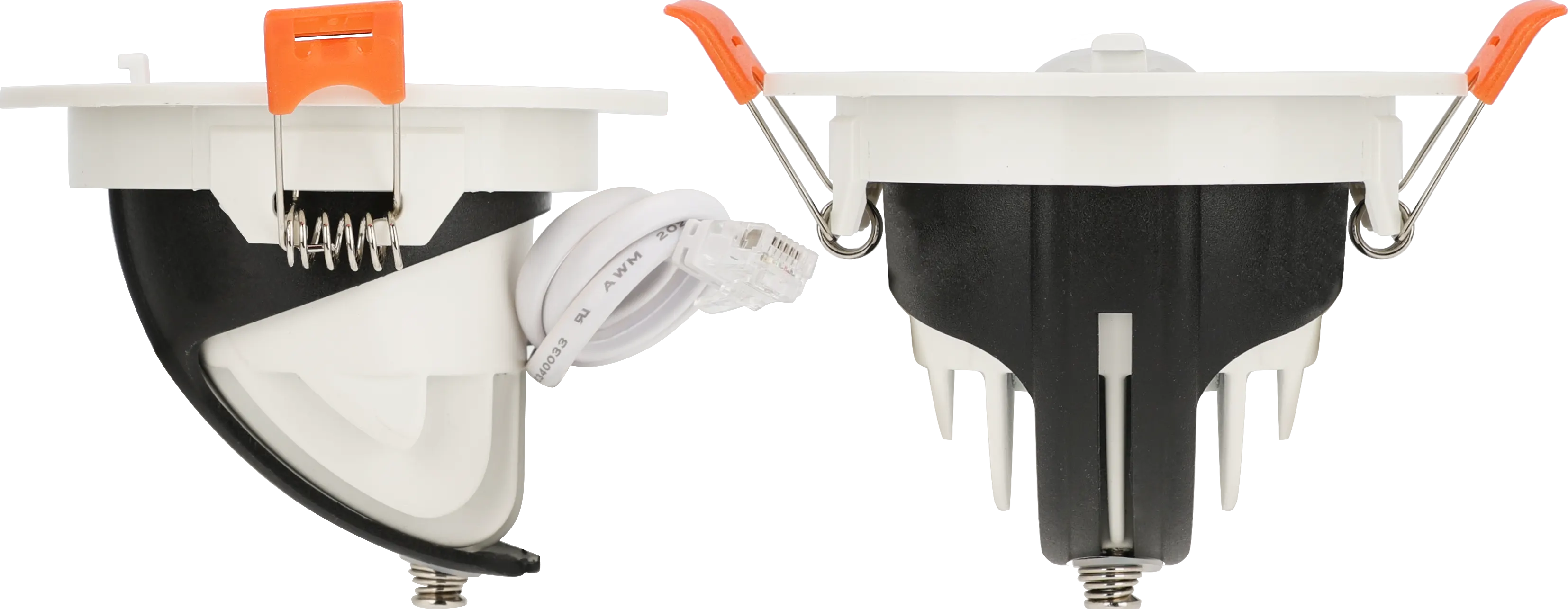

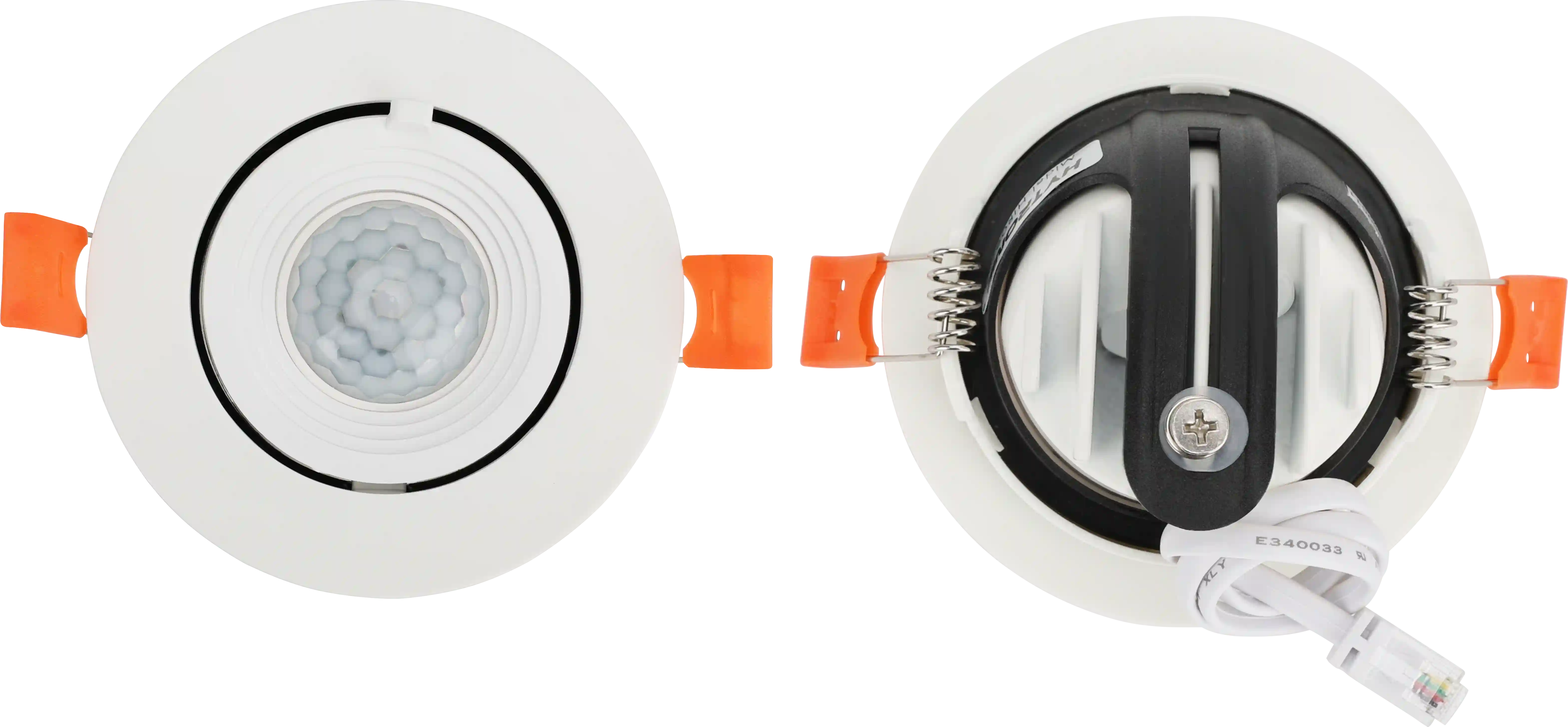

HIR11/AA
PIR Highbay | Adjustable Angle | RJ12 connector to control body
BENEFITS
- Compact: Flush mount plug&play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Compatible: Compatible with Bluetooth control bases and driversh
APPLICATIONS
- Corridors / Walkways application
- Industry
- Offices
Product information "HIR11/AA"
The HIR11/AA is a high-bay PIR sensor head compatible with the Daylight Harvest system. It can work with linear control bases such as the HC038V/BT and HCD038/BT to enable Bluetooth control functions, including tri-level dimming and circadian rhythm adjustment — all through a plug-and-play design that lets you customize lighting without extra accessories. Perfect for warehouses, gyms, and open-plan offices where flexibility matters most.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 24x15 |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Operating voltage range: | 5 VDC |
| Product Status: | Engineering Sample / Evaluation |
| Product height: | 75.5000 mm |
| Product length: | 90.0000 mm |
| Product weight: | 117.0000 g |
| Product width: | 90.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Zhaga: | No |
Datasheets
Product datasheet: hir11-aa.pdf
