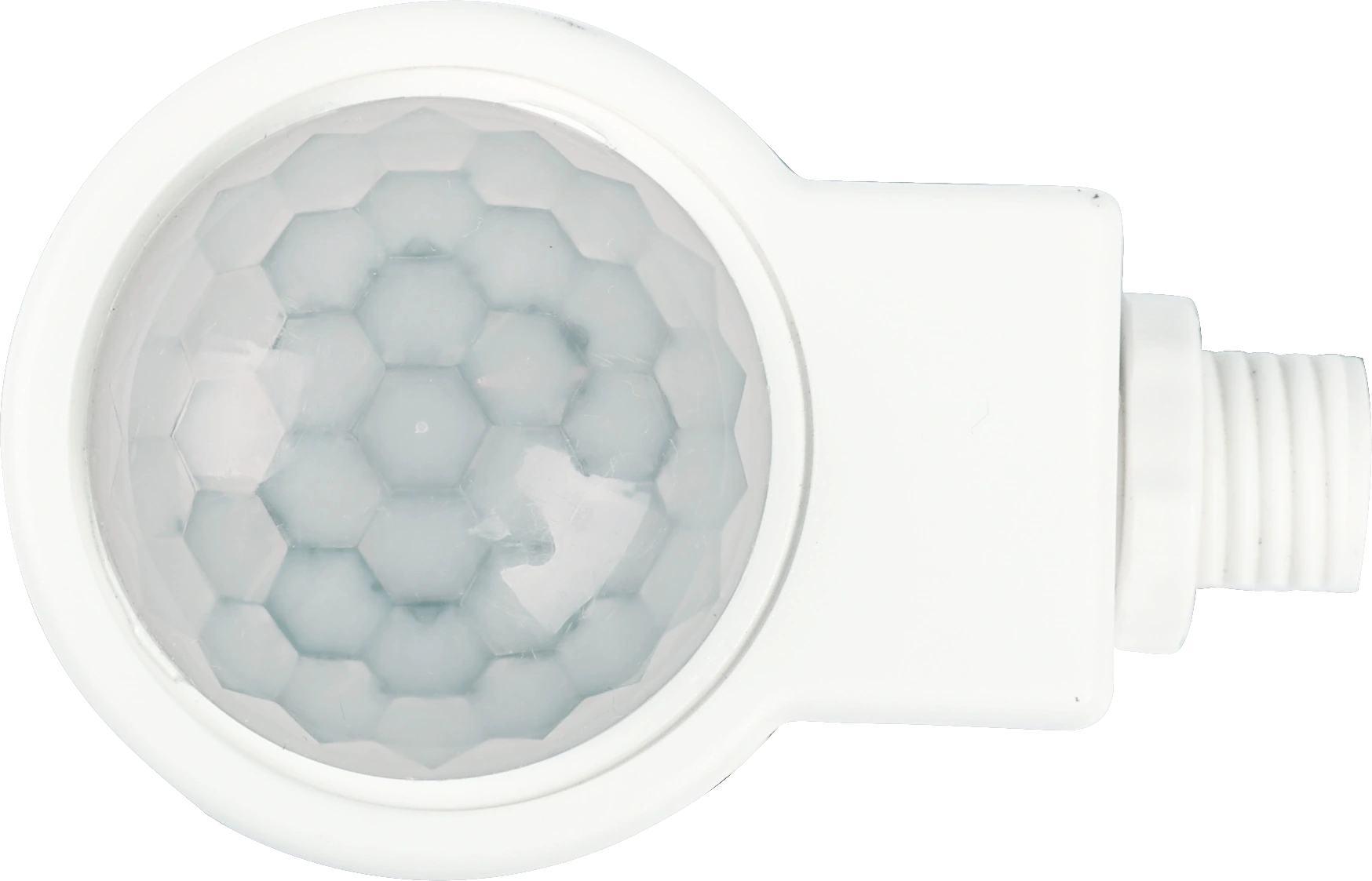

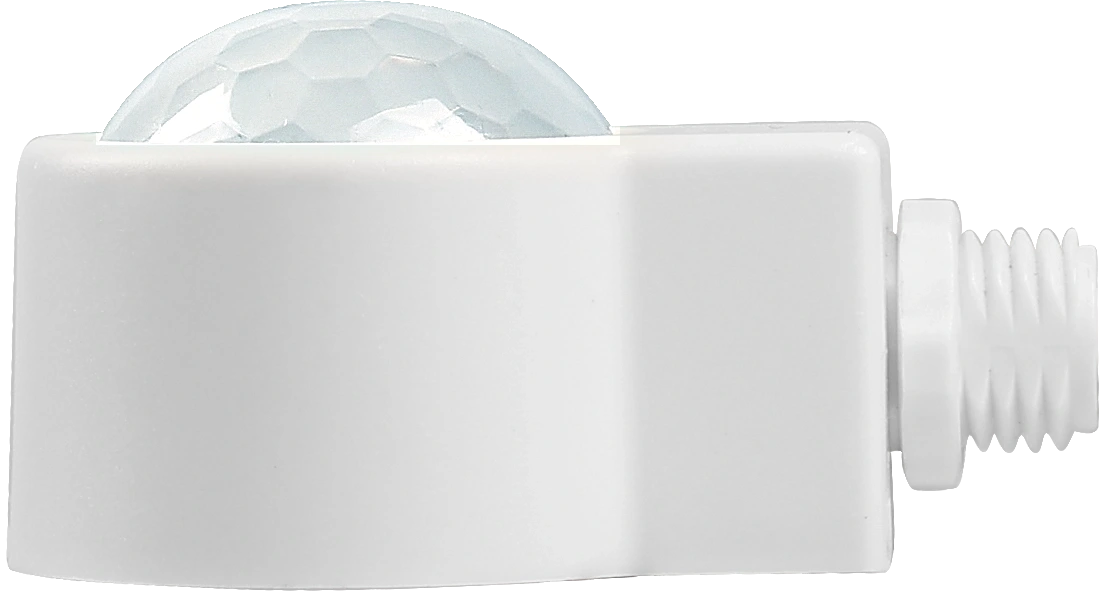

HIR11/C
PIR Highbay | Ciradian Rhyhm | RJ12 connector to control body
BENEFITS
- Flexible: Plug-and-Play sensor design with side-entry conduit
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Compatible: Compatible with Bluetooth control bases and driversh
APPLICATIONS
- Conduit thread: M 13x1.5mm
- School/Classrooms
- Office/Commercial Lighting
Product information "HIR11/C"
The HIR011/C is a high-bay PIR sensor head compatible with the Daylight Harvest system. It can work with linear control bases such as the HC038V/BT and HCD038/BT to enable Bluetooth control functions, including tri-level dimming and circadian rhythm adjustment — all through a plug-and-play design that lets you customize lighting without extra accessories. Perfect for warehouses, gyms, and open-plan offices where flexibility matters most.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 24x15 |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Conduit screws, Plug & Play Sensor Heads |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 14.0000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 33.9000 mm |
| Product length: | 63.0000 mm |
| Product weight: | 38.0000 g |
| Product width: | 40.5000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Zhaga: | No |
Datasheets
Product datasheet: hir11-c.pdf
Login

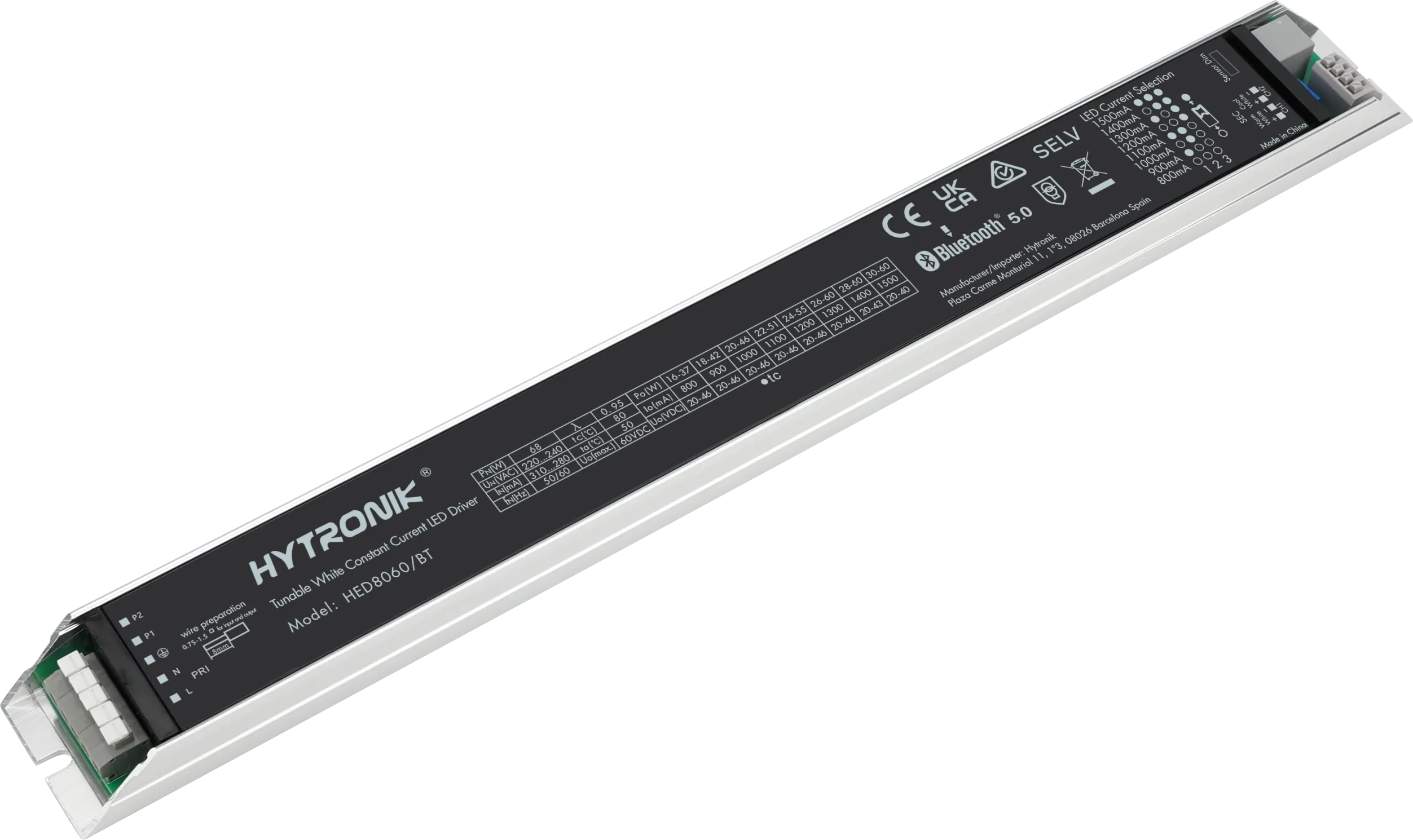

Compatible products (for full functionality)
