Active / Make to Stock
HIR63

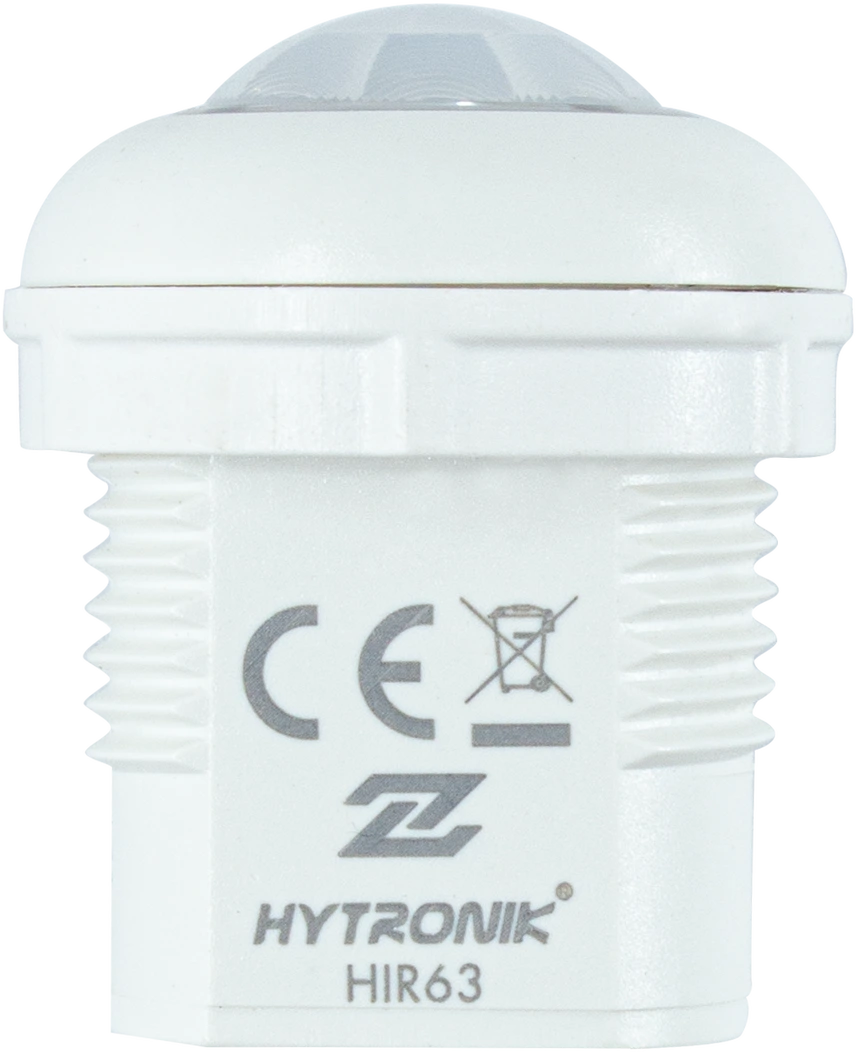

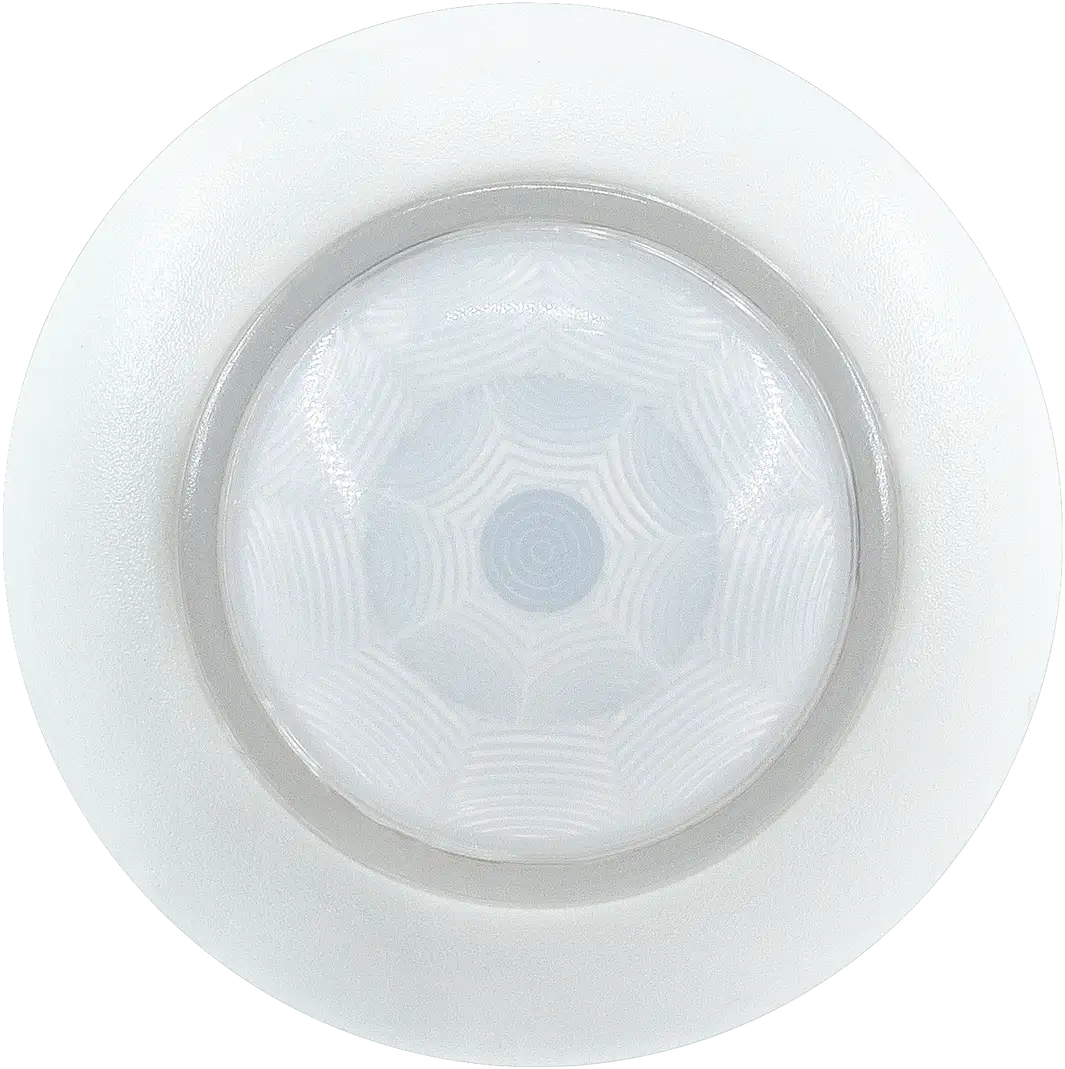

PIR Lowbay Sensor Head | RJ12 connector | Conduit Screws
BENEFITS
- Flexible: Easy upgrade or extension of sensing functions
- Compatible: Compatible with Bluetooth control bases and drivers
- Plug-and-play: Enabling fast installation and replacement
APPLICATIONS
- Conduit thread: M 22x1.5mm
- Smart Office Lighting
- Commercial Indoor Lighting
Product information "HIR63"

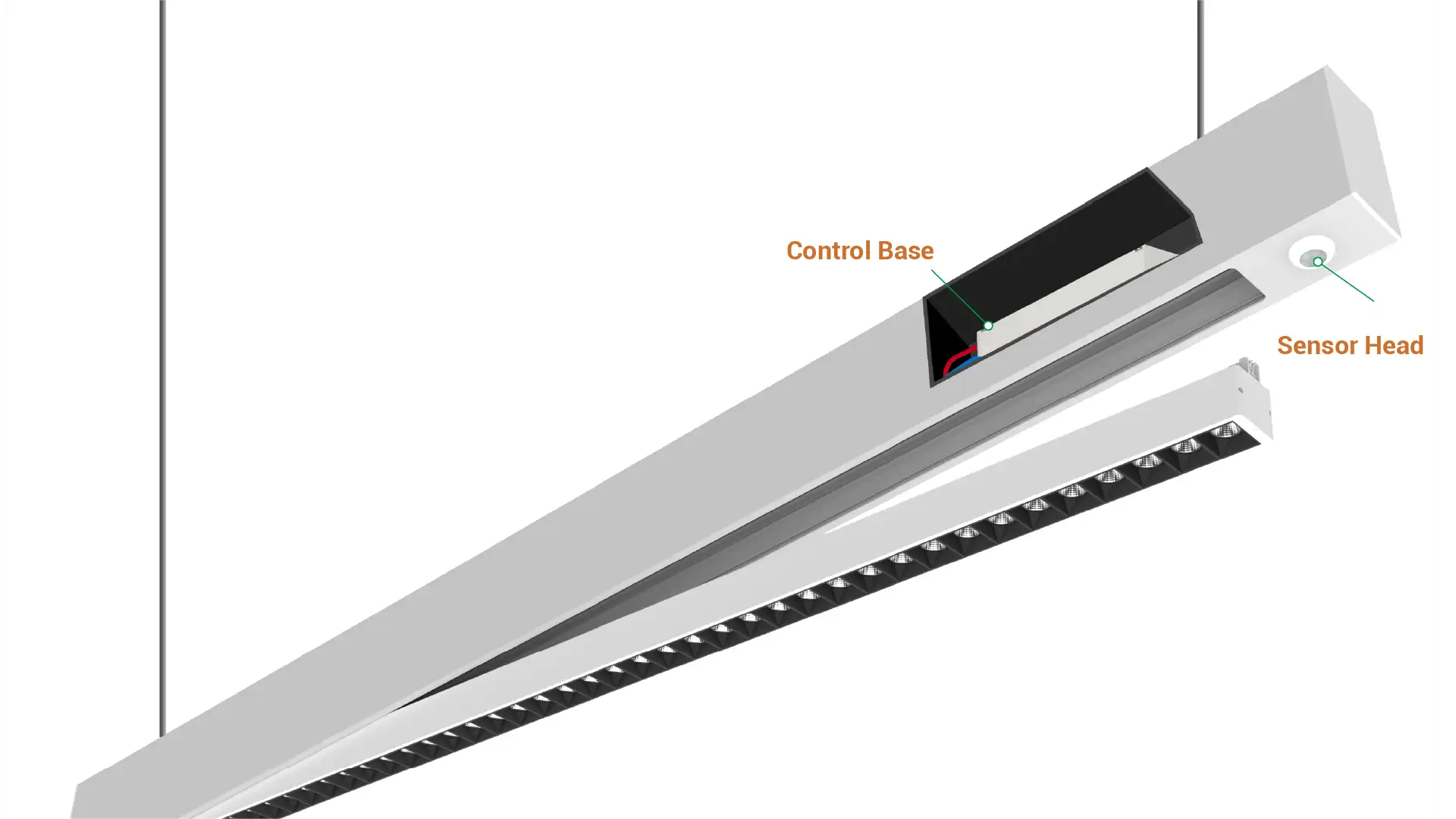

HIR63 is a plug-and-play infrared sensor head designed for standard low-bay applications with a typical mounting height of 2.5 m, working with Bluetooth control bases and drivers such as HCD038/BT, HC038V/BT, and HC438V/BT to provide a flexible solution for adding smart sensing capability to luminaires. When used with a Bluetooth control body, the non-Bluetooth sensor head is especially suitable for upgrading metal luminaires to wireless control, enabling functions such as dimming and daylight-based lighting control. The modular design allows easy upgrading or extension of sensing functions according to project requirements while maintaining system flexibility and simplifying installation.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | RJ12 |
| Daylight Harvest: | No |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 12x3 |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 22.0000 mm |
| Product Status: | Active / Make to Stock |
| Product height: | 31.8000 mm |
| Product length: | 26.0000 mm |
| Product weight: | 22.0000 g |
| Product width: | 26.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir63.pdf
