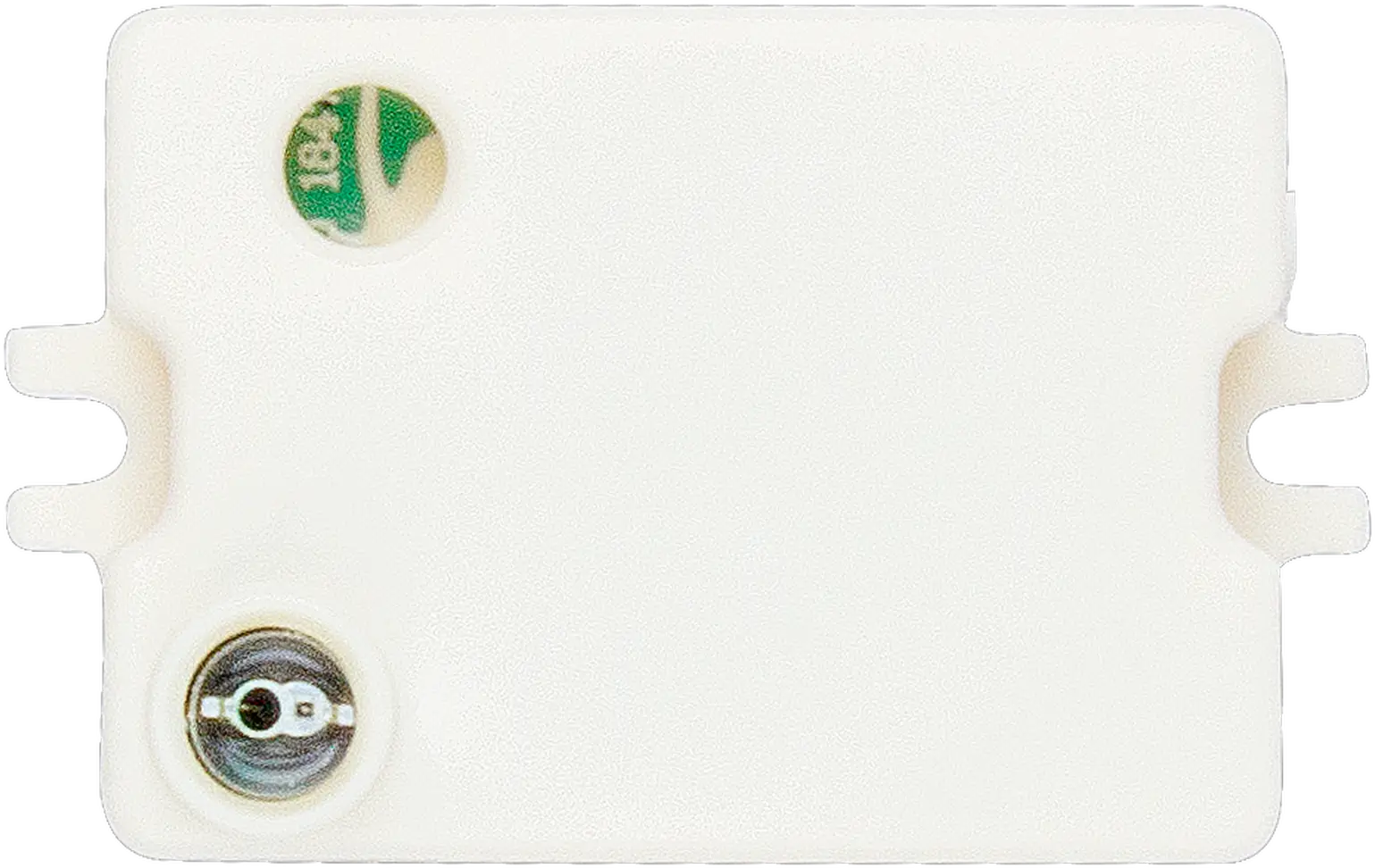

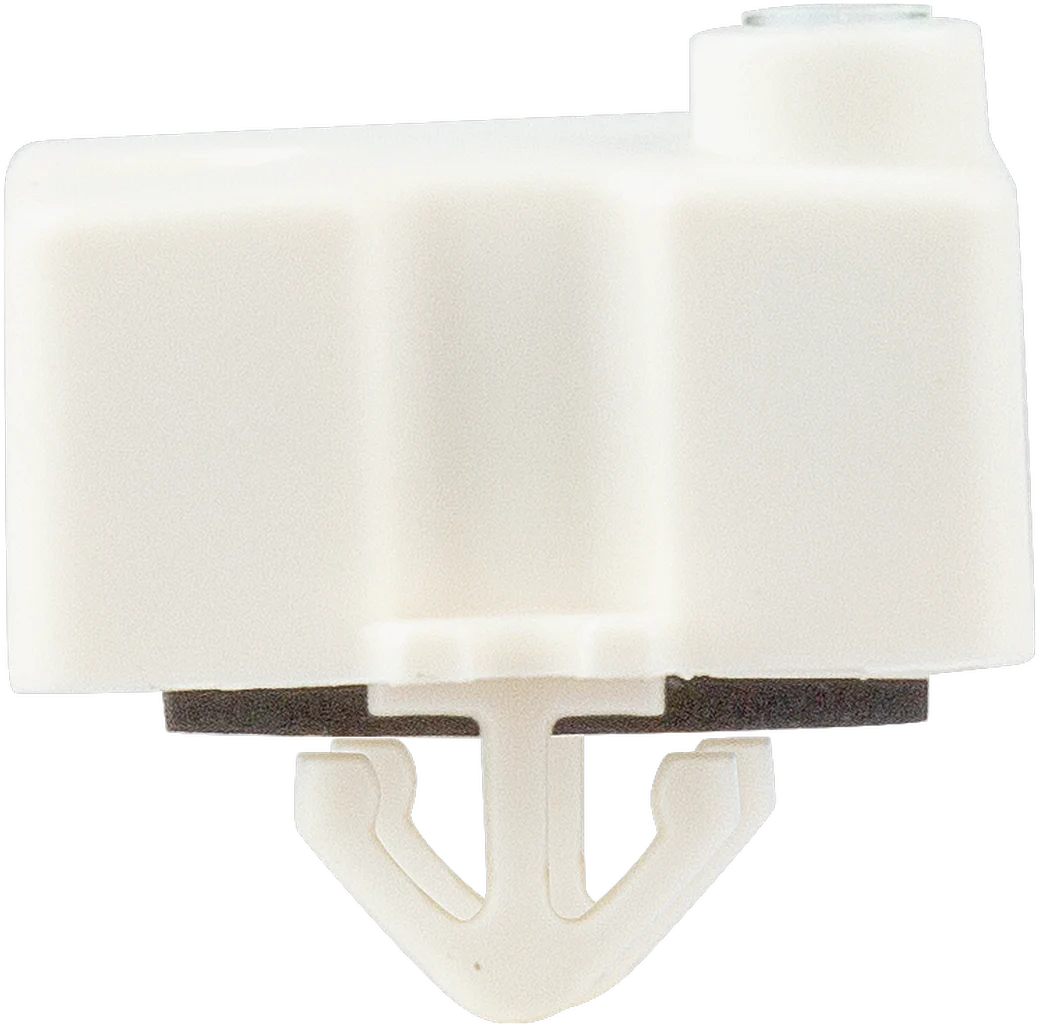

SAM20
HF Lowbay | Daylight Harvest | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Innovative: Robus HF antenna design against wireless interface
- Easy configuration: Wireless control via Bluetooth control base
APPLICATIONS
- Luminaire build-in installation, Surface mount
- Offices
- Classrooms
Product information "SAM20"
SAM20 is a HF sensor head and compatible with the Photocell Advance. It includes tri-level dimming, daylight harvesting, and supports Human Centric Lighting/Circadian Rhythm with DT8 drivers for tunable white control after connective with DALI control base like HCD038/BT. It has a robust HF antenna design to minimize wireless interference. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x3 |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Yes |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 2.5000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 15.5000 mm |
| Product length: | 40.4000 mm |
| Product weight: | 20.0000 g |
| Product width: | 25.2000 mm |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: sam20.pdf
Installation Manual
User manual: installation-manual-sam20.pdf
