HIR11/F
PIR Highbay | Ciradian Rhyhm | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Flush mount installation
- Office/Commercial Lighting
- School/Classrooms
Product information "HIR11/F"
HIR11/F is a PIR sensor head and compatible with the Daylight Harverst. It can work with the linear shaped control base such as HCD038/BT and HCD438/BT. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 70 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 24x15 |
| Features: | Daylight Harvest, Human Centric Lighting, Tri-level (Corridor Function), Tunable White Control |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | High-bay |
| Mounting hole: | 48.0000 mm |
| Operating Voltage: | 5 VDC |
| Product height: | 48.0000 mm |
| Product width: | 20.3000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Login

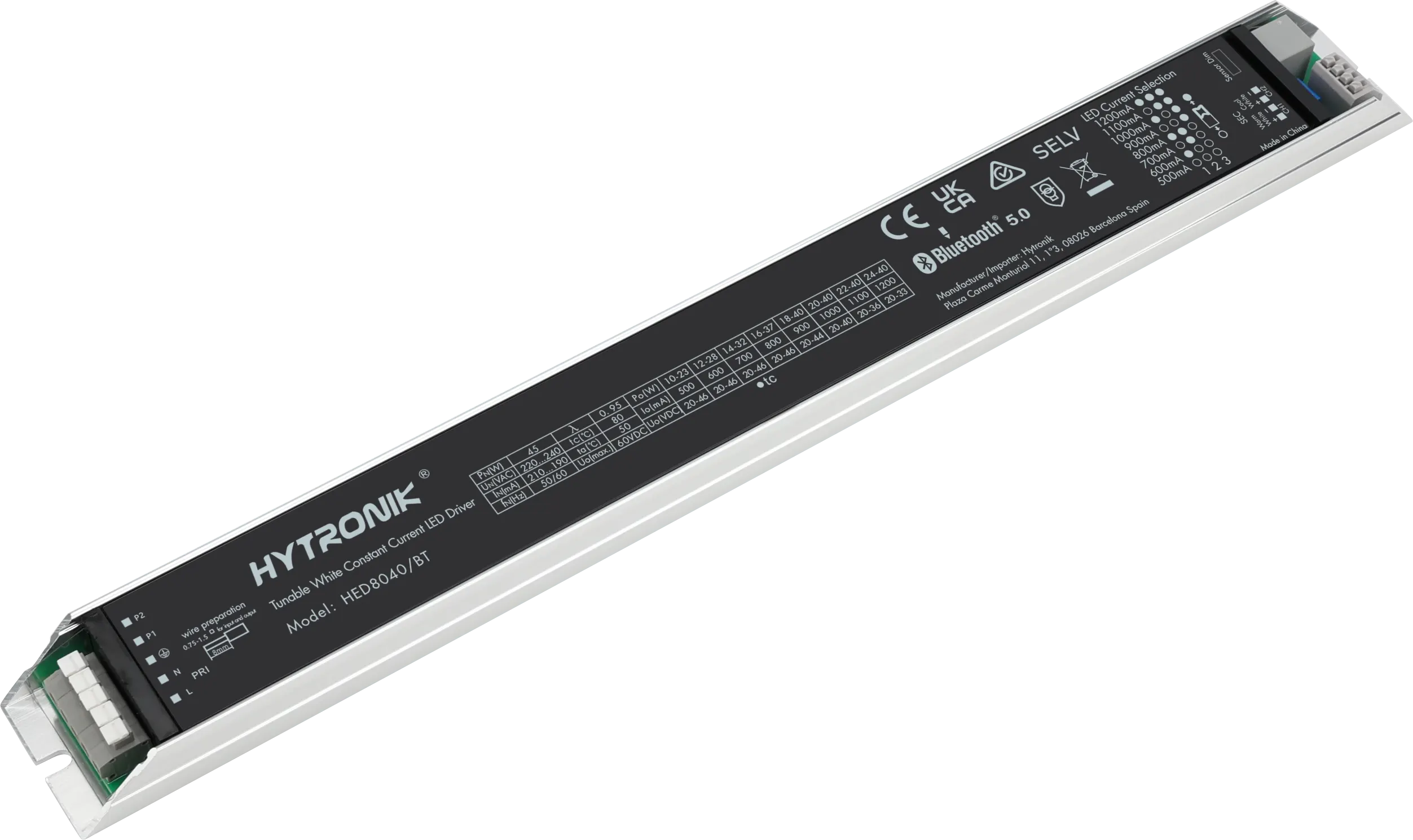

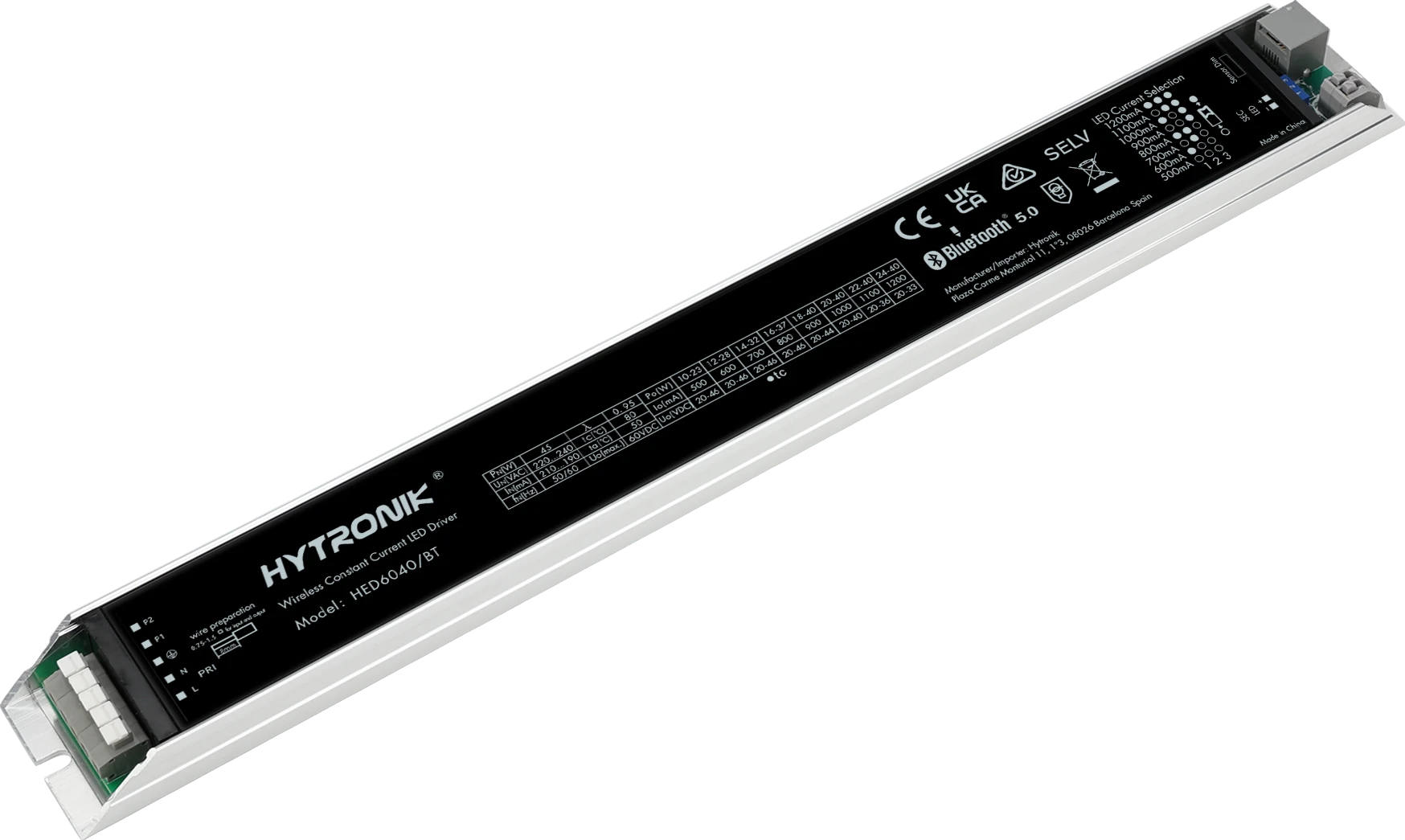

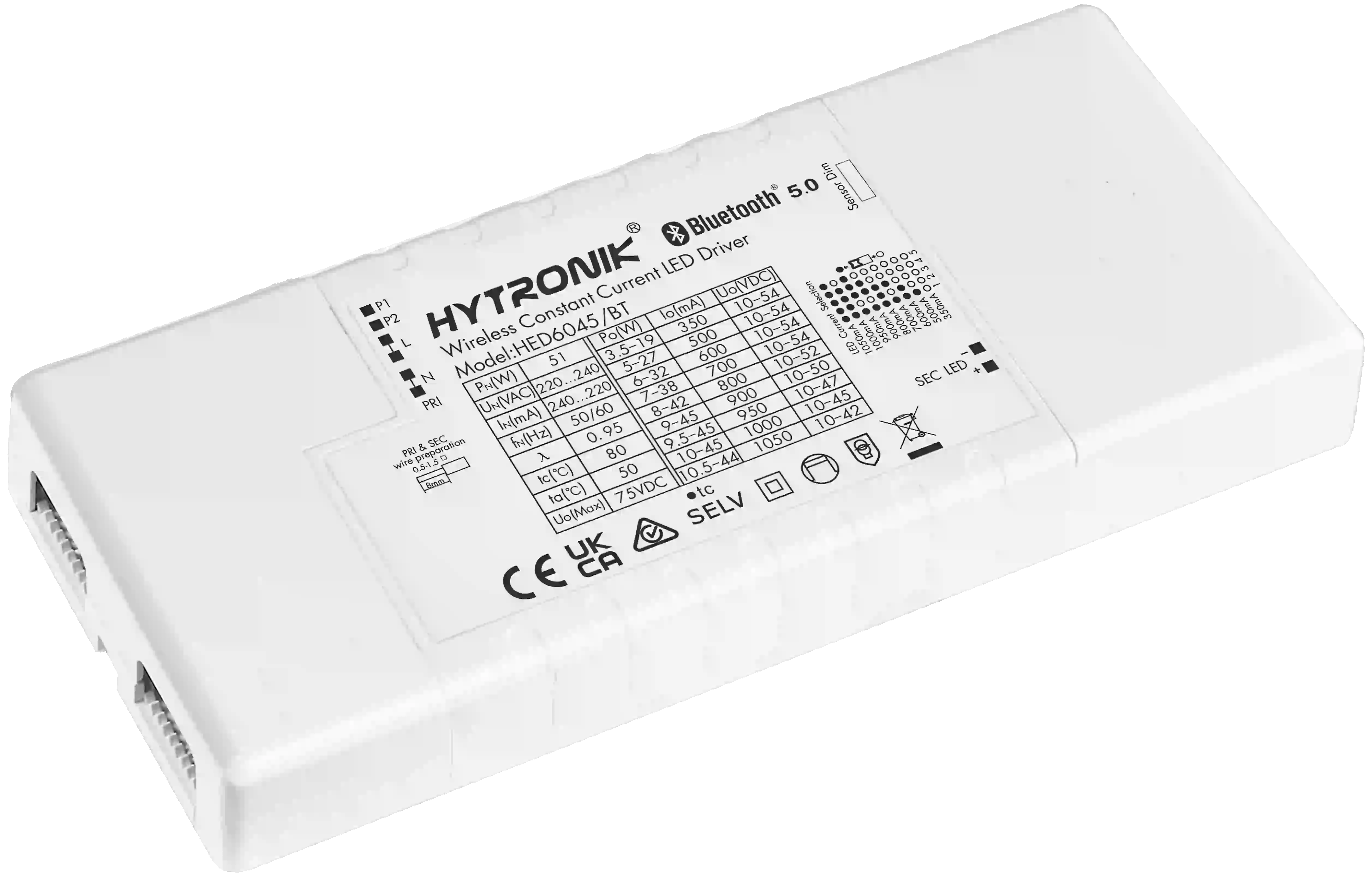

Compatible products (for full functionality)
