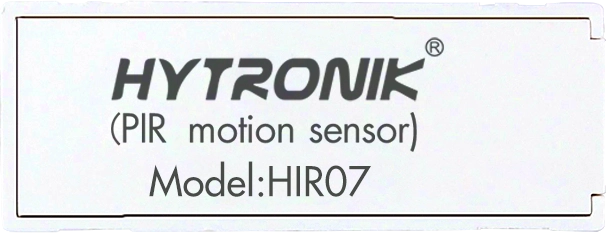

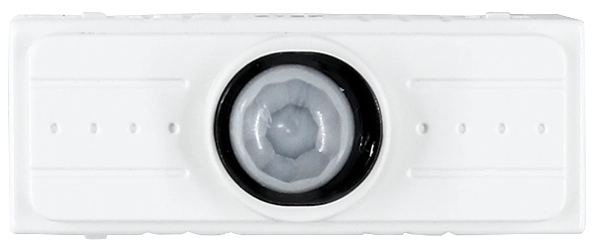

HIR07
PIR Lowbay | Photocell Advance | RJ12 connector to control unit
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Master luminaire with sensor
- Classrooms
- Offices
Product information "HIR07"

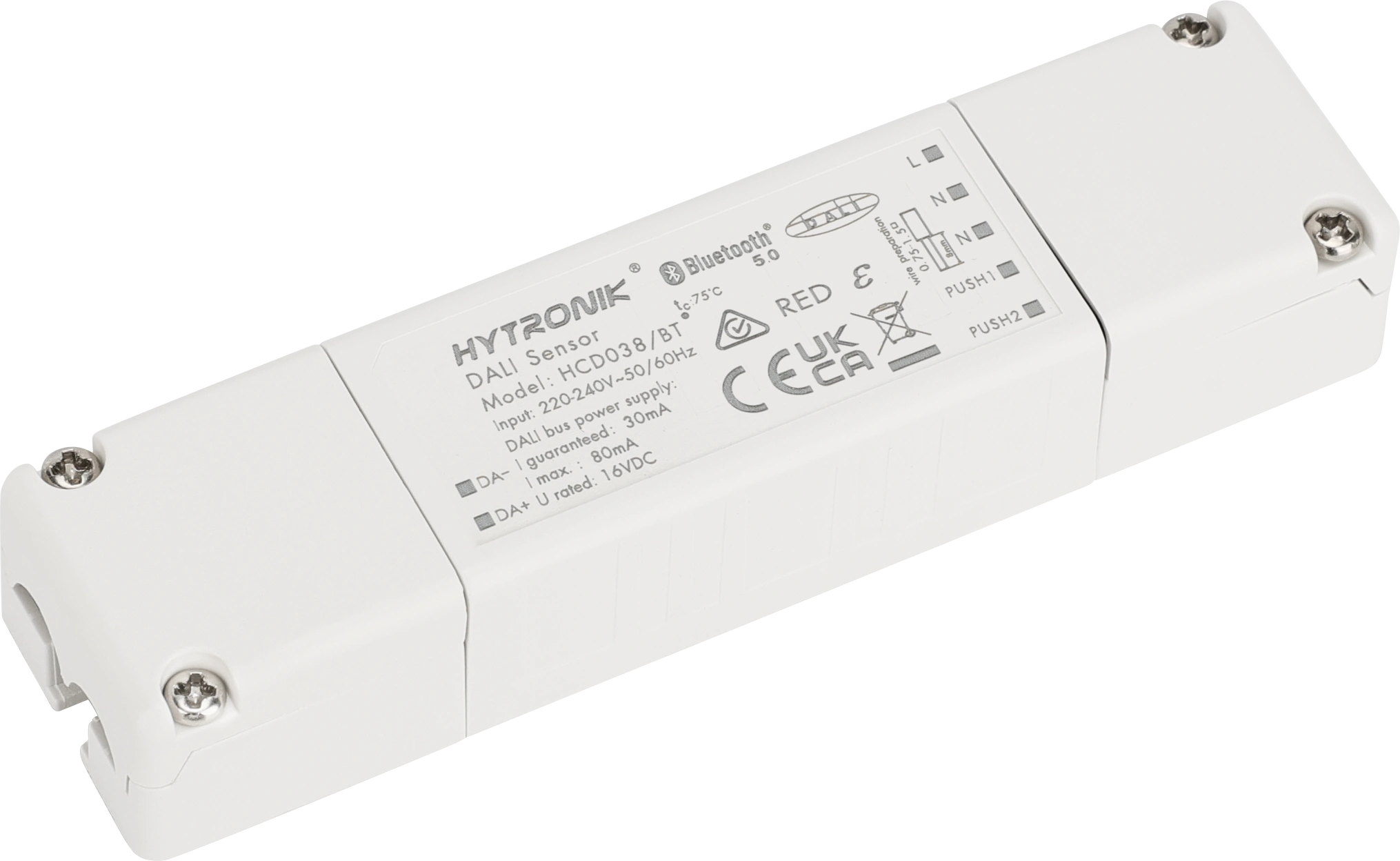

The HIR07 is a PIR Lowbay sensor head and operates with Photocell Advance. It is compatible with the linear control unit HC038V/BT and HCD038/BT. It offers a wide range of Plug’n’Play options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 6x3 |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 13.8000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 19.3000 mm |
| Product length: | 44.5000 mm |
| Product weight: | 15.0000 g |
| Product width: | 17.0000 mm |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir07.pdf
Installation Manual
User manual: installation-manual-hir07.pdf
