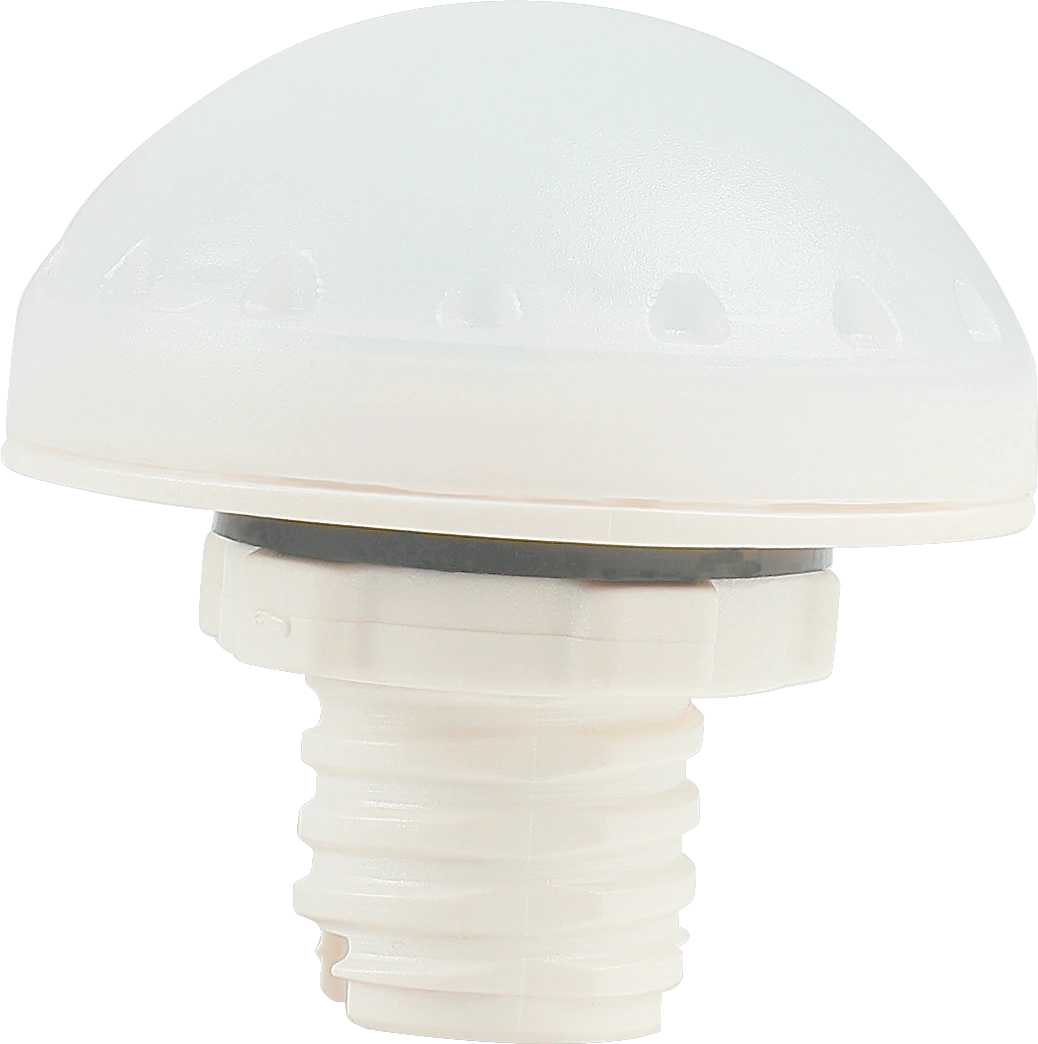

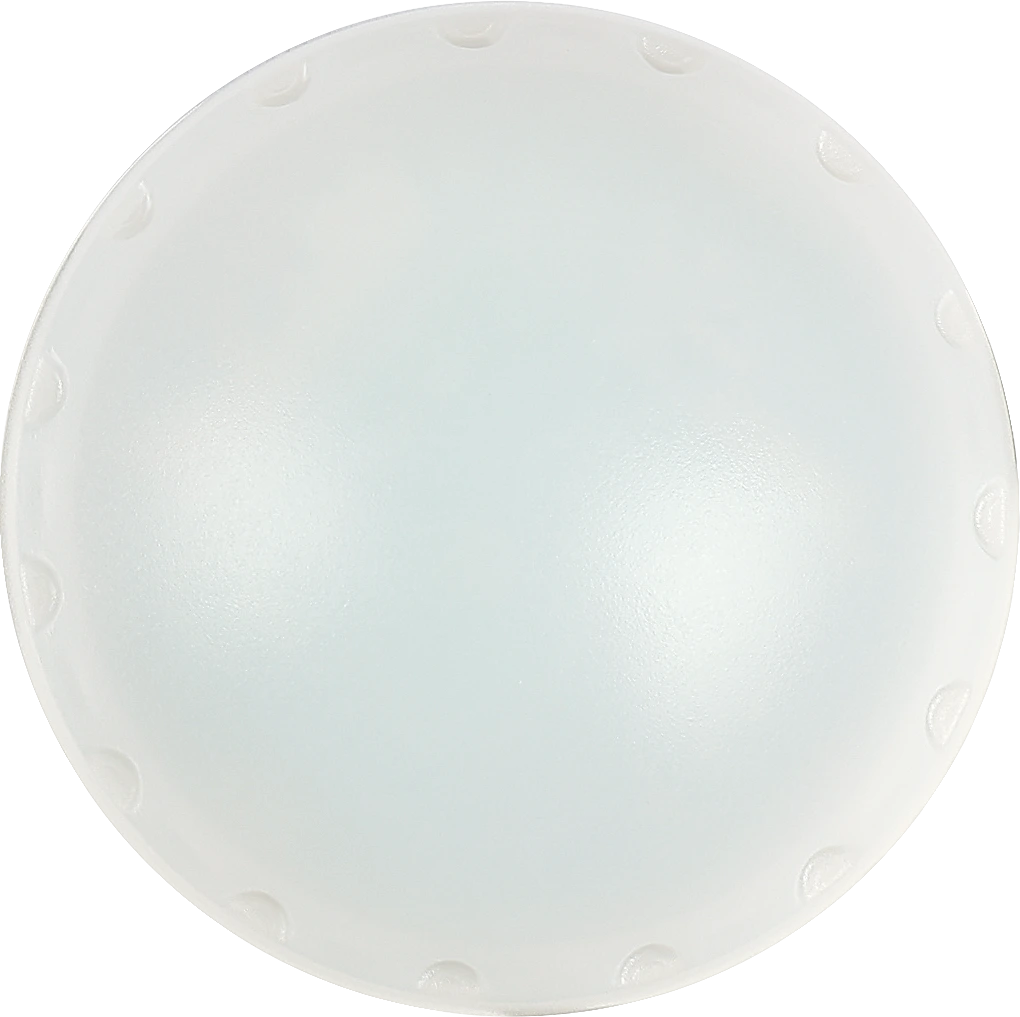

SAM21
HF Lowbay | Ciradian Rhyhm | RJ12 connector to control body | IP65
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless control via Bluetooth control base
APPLICATIONS
- Luminaire build-in installation, Conduit screws
- Classrooms
- Offices
Product information "SAM21"

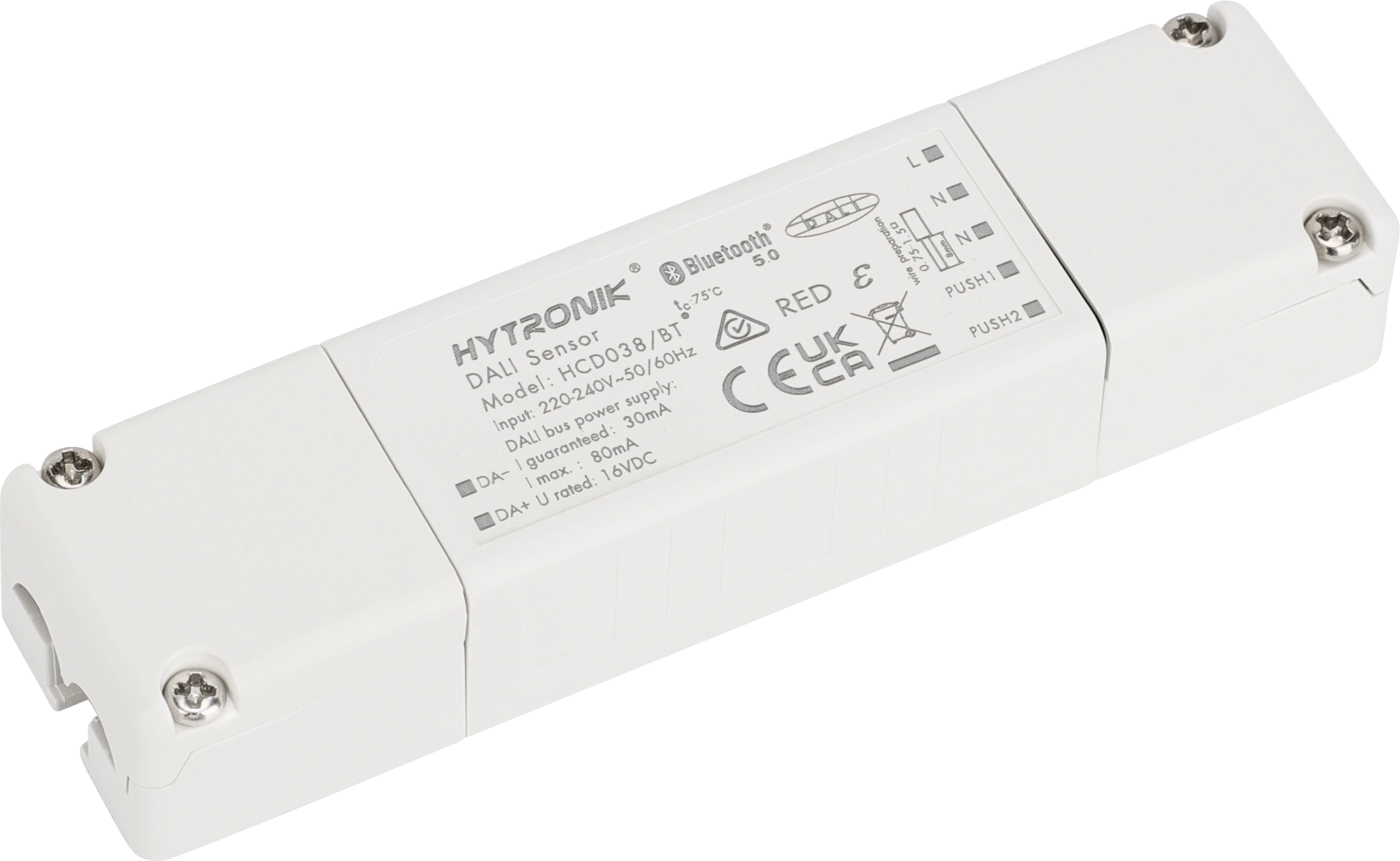

This sensor features microwave (HF) detection and is designed for M16 * 3mm conduit installation. It includes tri-level dimming, daylight harvesting, and supports Human Centric Lighting/Circadian Rhythm with DT8 drivers for tunable white control after connective with DALI control base like HCD038/BT. It has a robust HF antenna design to minimize wireless interference, a photodiode (PD), active lux switching, and is IP65 rated. Suitable for installations up to 3m high with a detection range up to Ø = 12m.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x3 |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Operating Voltage: | 5 VDC |
| Product height: | 40.3000 mm |
| Product length: | 41.0000 mm |
| Product weight: | 21.0000 g |
| Product width: | 41.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
Datasheets
Product datasheet: sam21.pdf
Login

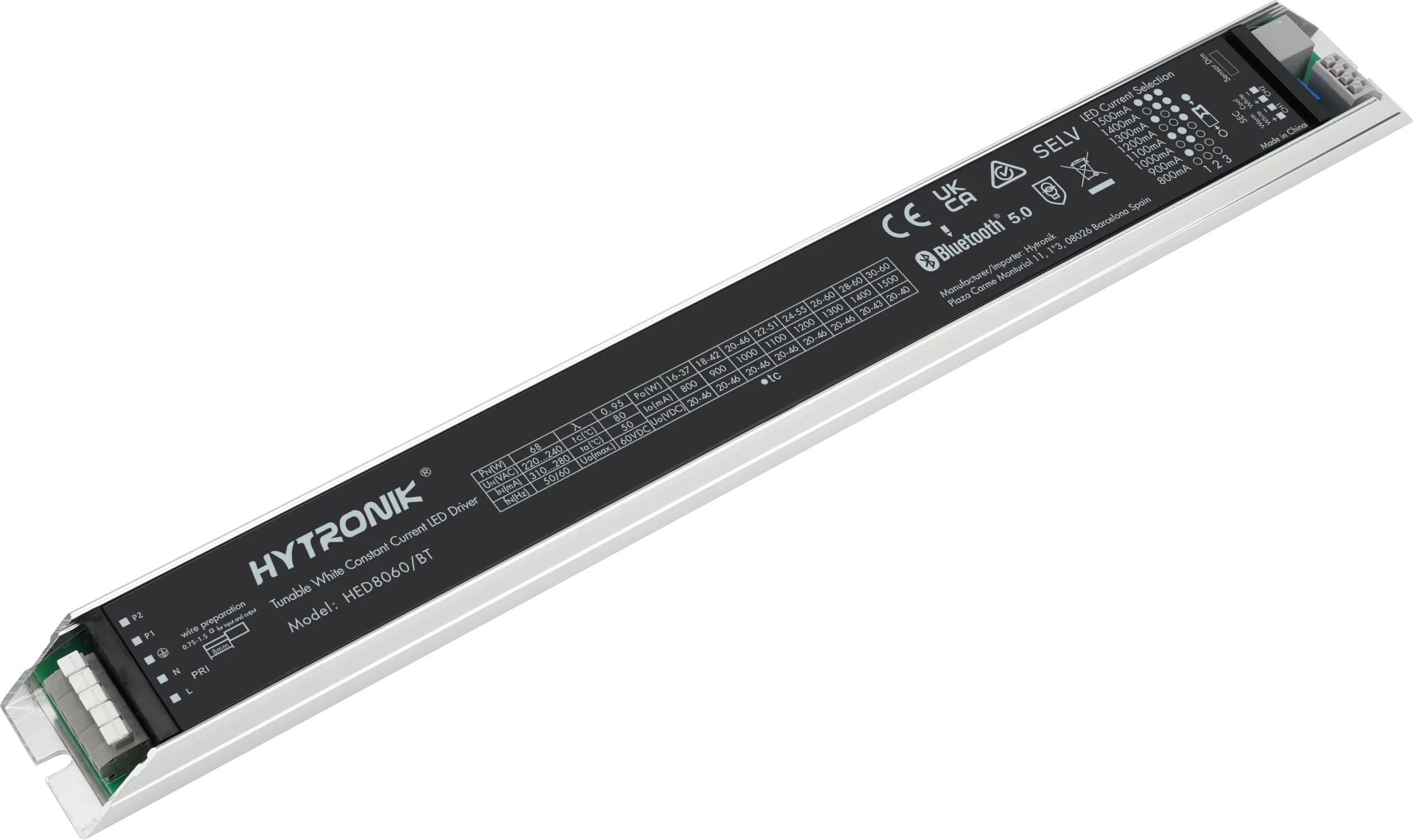

Compatible products (for full functionality)
