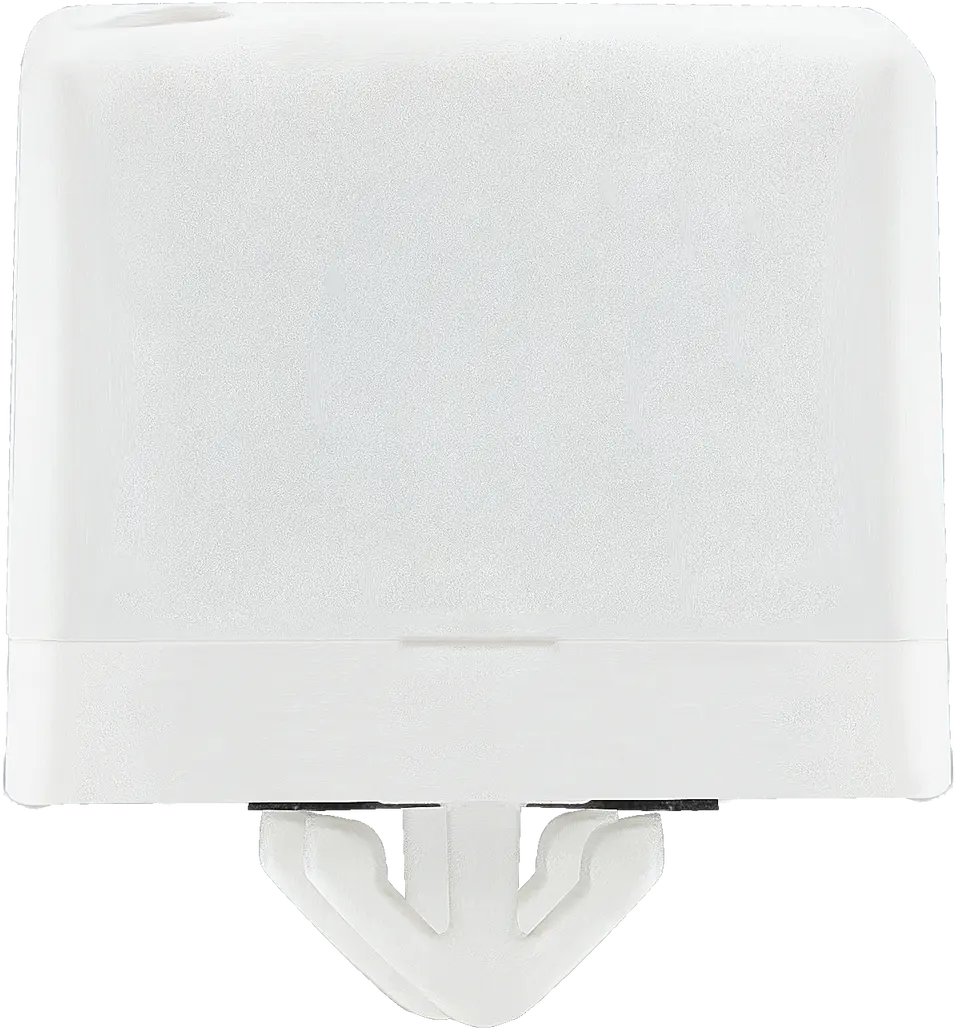

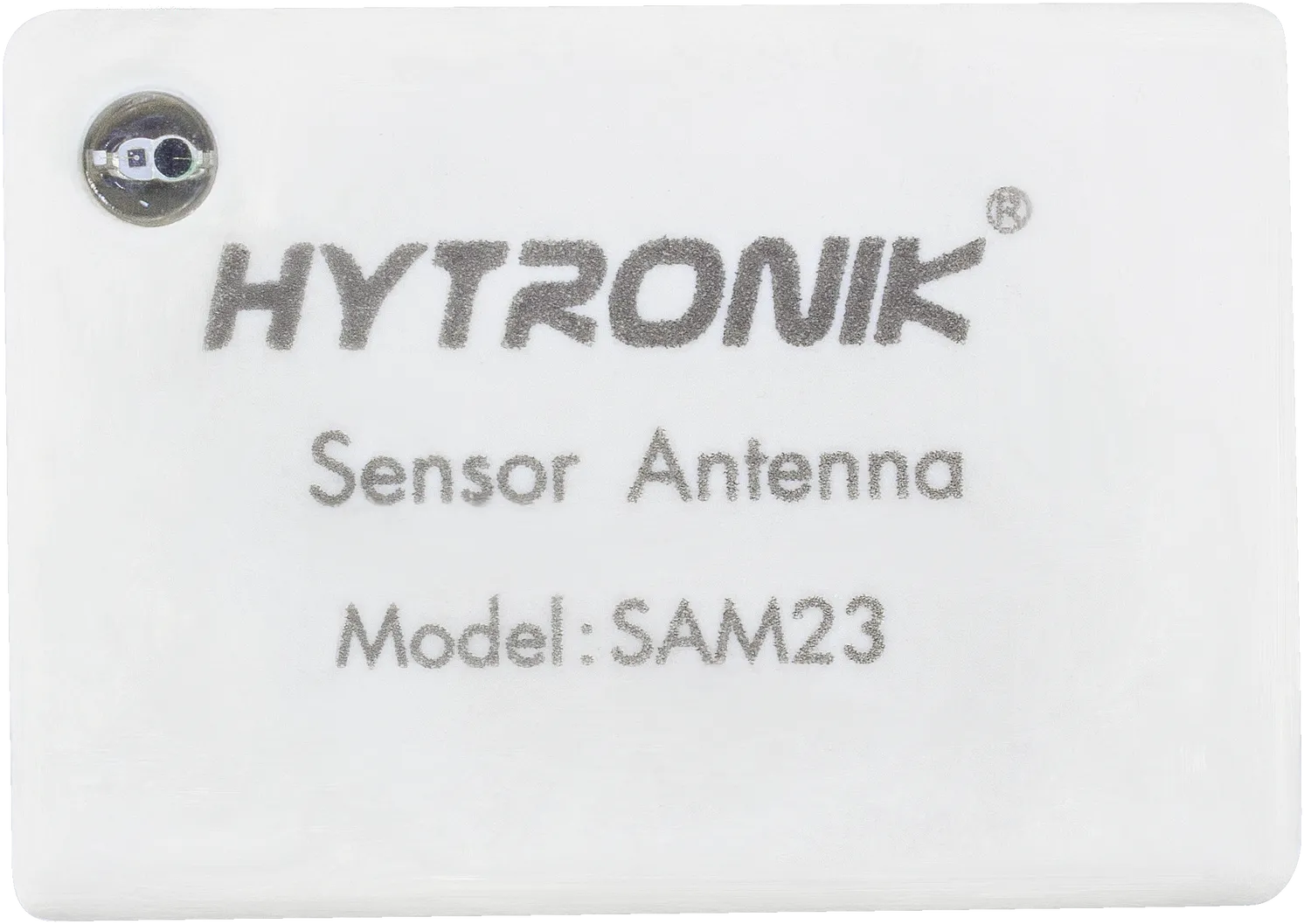

SAM23
HF Highbay | Photocell Advance | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless control with Bluetooth control base
APPLICATIONS
- Luminaire build-in integration, snap in slots
- Classrooms
- Offices
Product information "SAM23"
SAM23 is a high bay HF sensor head and compatible with the daylight harverst, circadian rhythm and tri-level dimming. Plug-and-play with Bluetooth control bases such as HCD038/BT or HC038V/BT, etc., to achieve wireless configuration.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 20×15 |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Mounting Height: | Mid & High-bay |
| Operating voltage range: | 5 VDC |
| Product height: | 26.5000 mm |
| Product length: | 45.2000 mm |
| Product weight: | 36.0000 g |
| Product width: | 32.5000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: sam23.pdf
Login

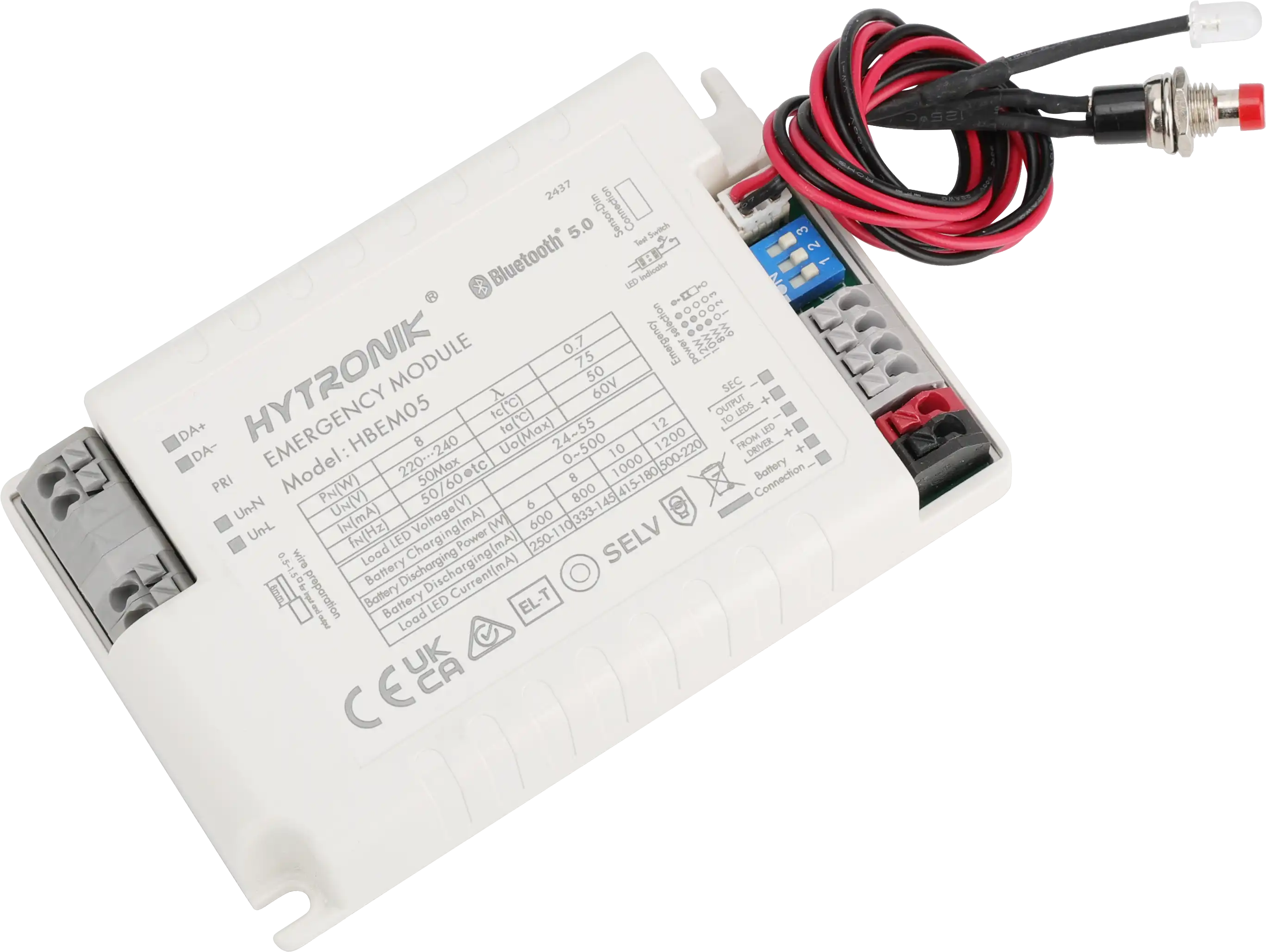

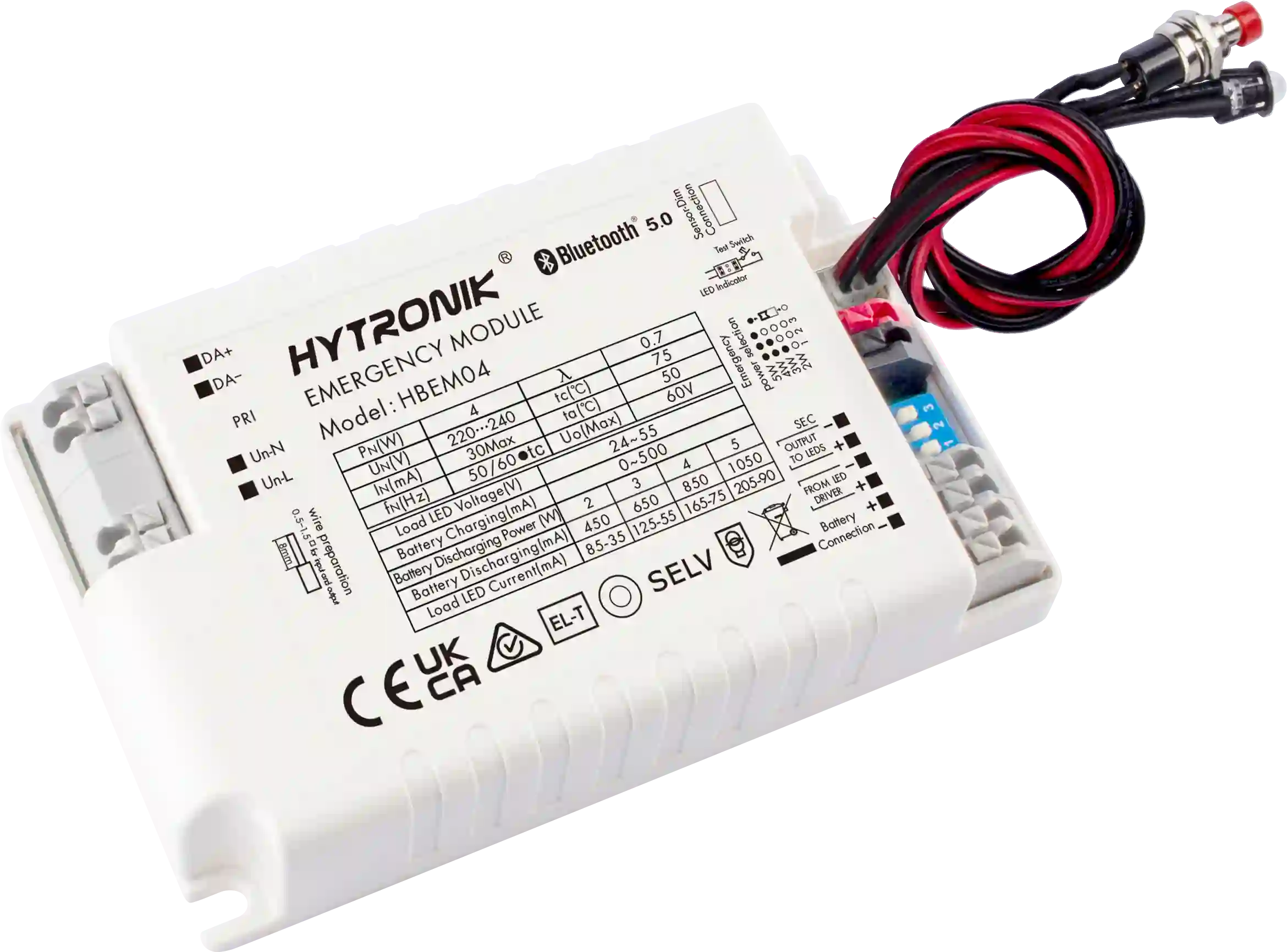

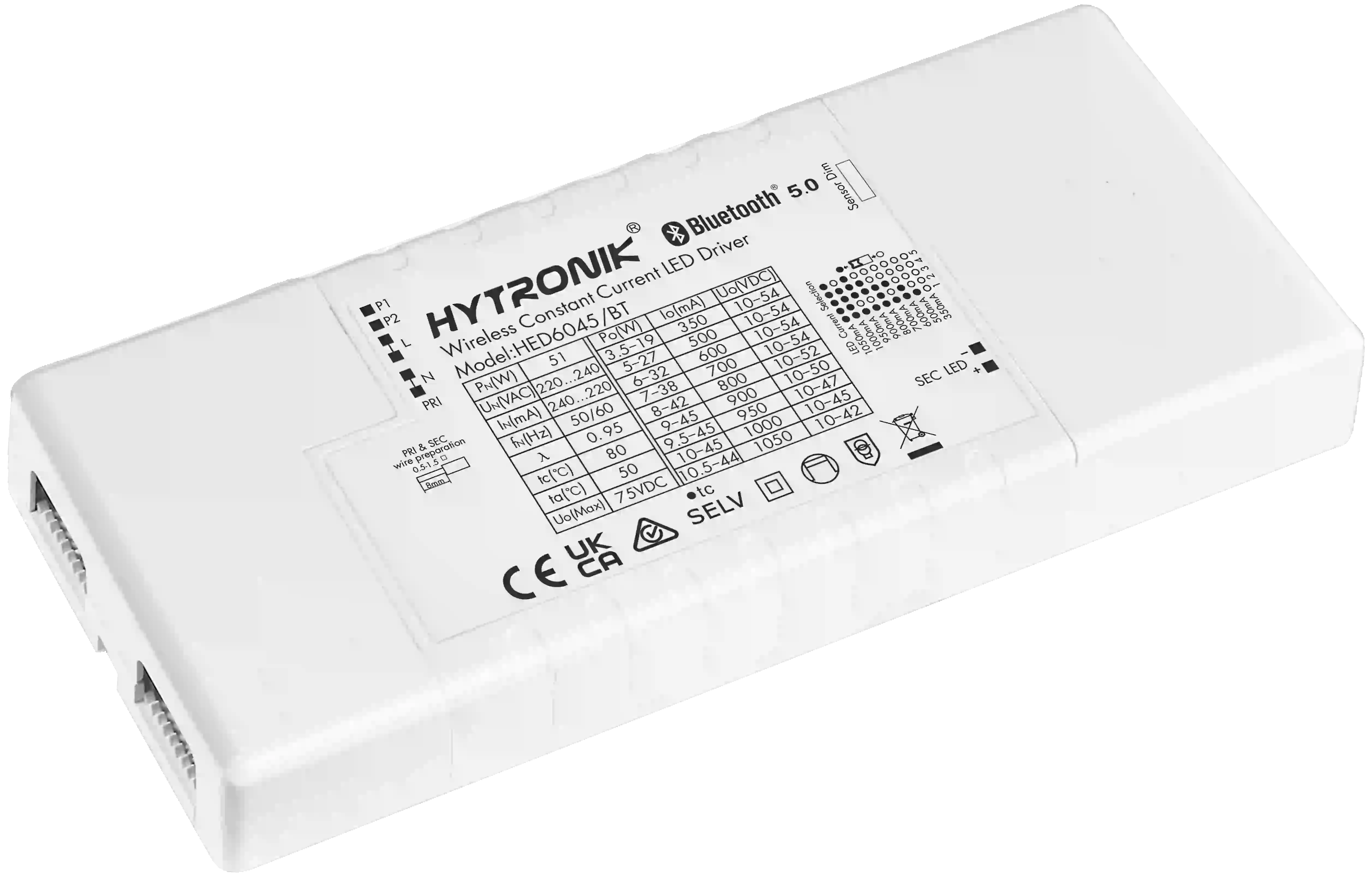

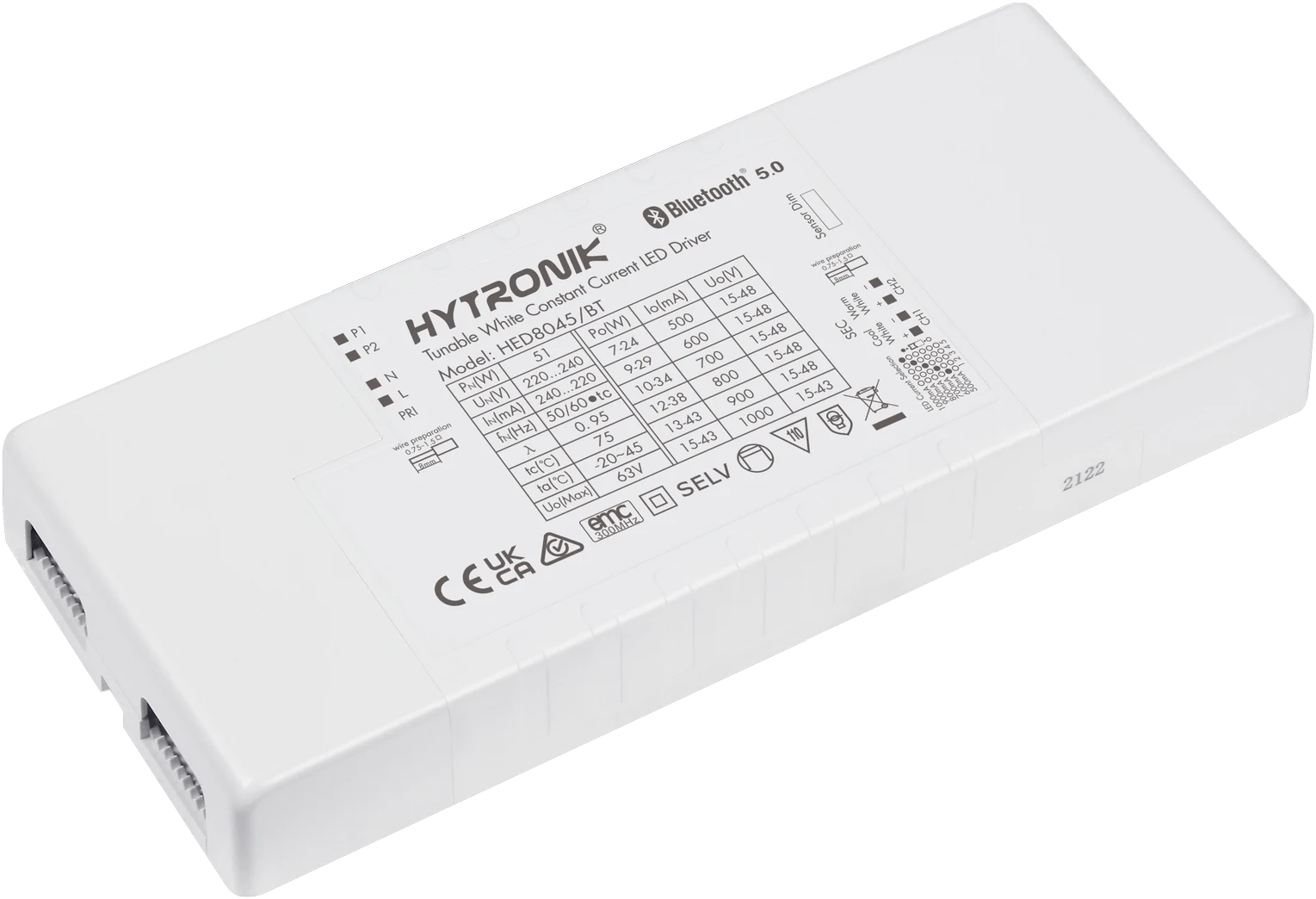

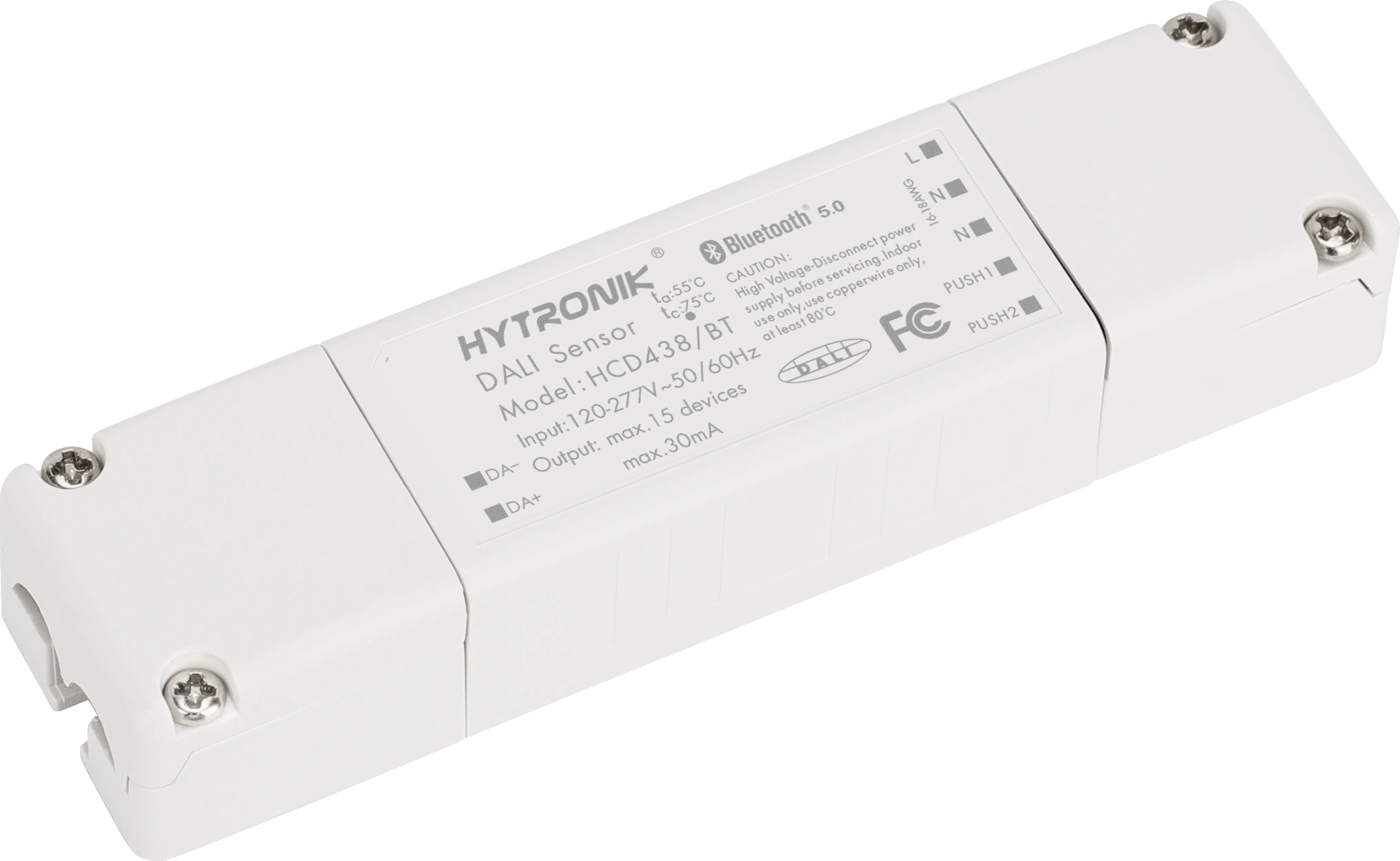

Compatible products (for full functionality)
