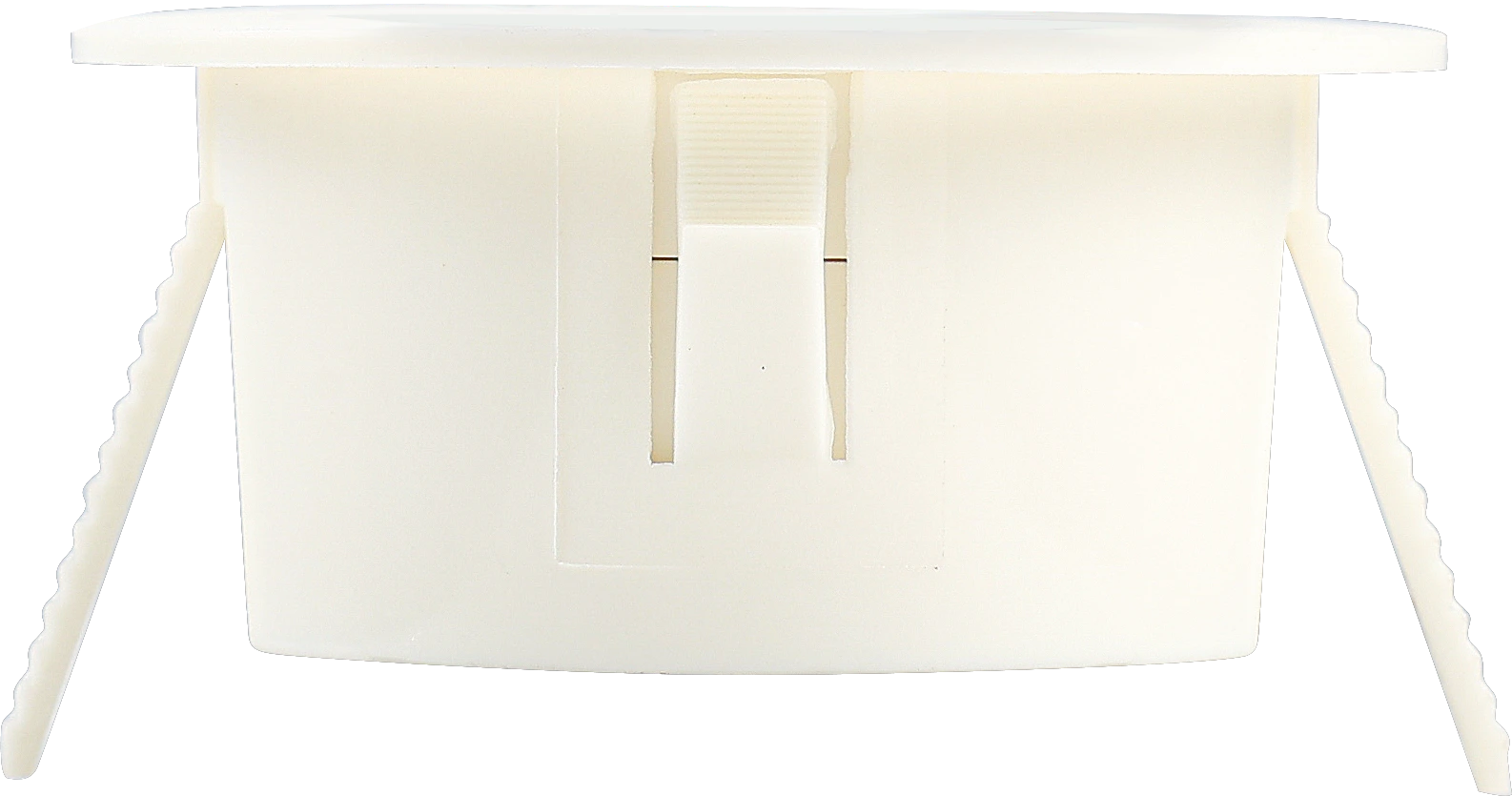

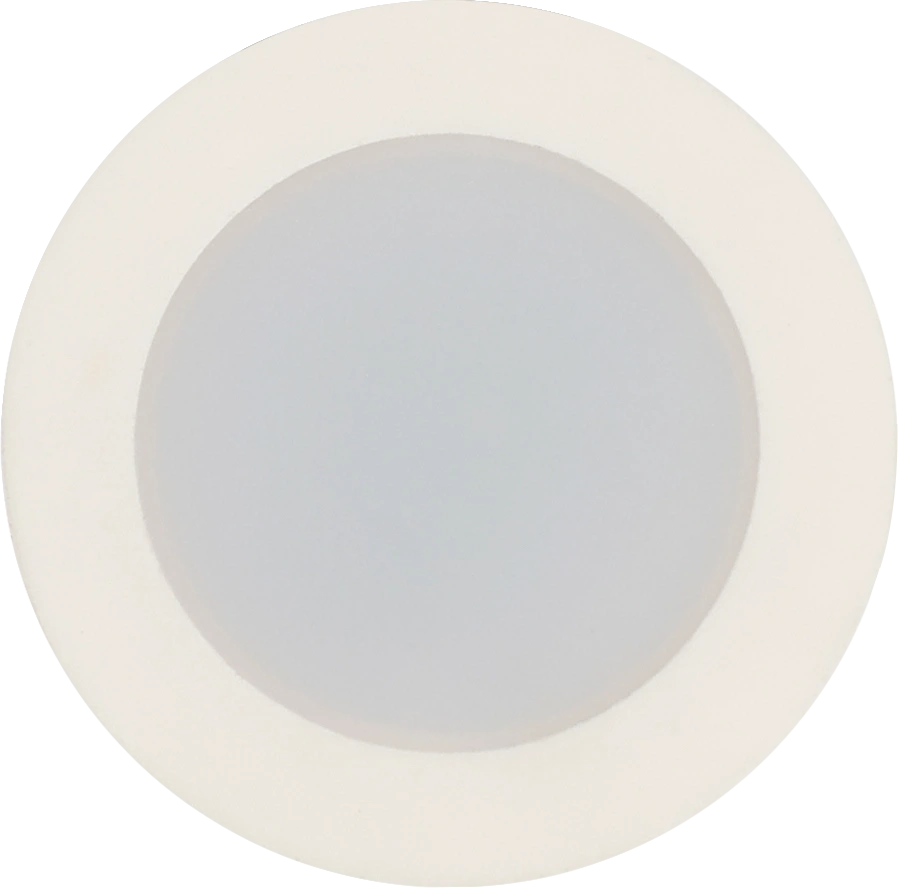

SAM22
HF Lowbay | Ciradian Rhyhm | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless control via Bluetooth control base
APPLICATIONS
- Flush mount installation
- Classrooms
- Offices
Product information "SAM22"
This sensor features microwave (HF) detection and is designed for flush mount installation. It supports tri-level dimming, daylight harvesting, and Human Centric Lighting/Circadian Rhythm with DT8 drivers for tunable white control. It includes a robust HF antenna design to minimize wireless interference, a photocell, and active lux switching capabilities. Suitable for installations up to 6m high with a detection range up to Ø = 12m.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Connector Type: | RJ12 |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 360° |
| Detection range (Diameter): | 12x3 |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 41.0000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 26.5000 mm |
| Product length: | 48.0000 mm |
| Product weight: | 35.0000 g |
| Product width: | 48.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Voltage Type: | DC |
Datasheets
Product datasheet: sam22.pdf
Login

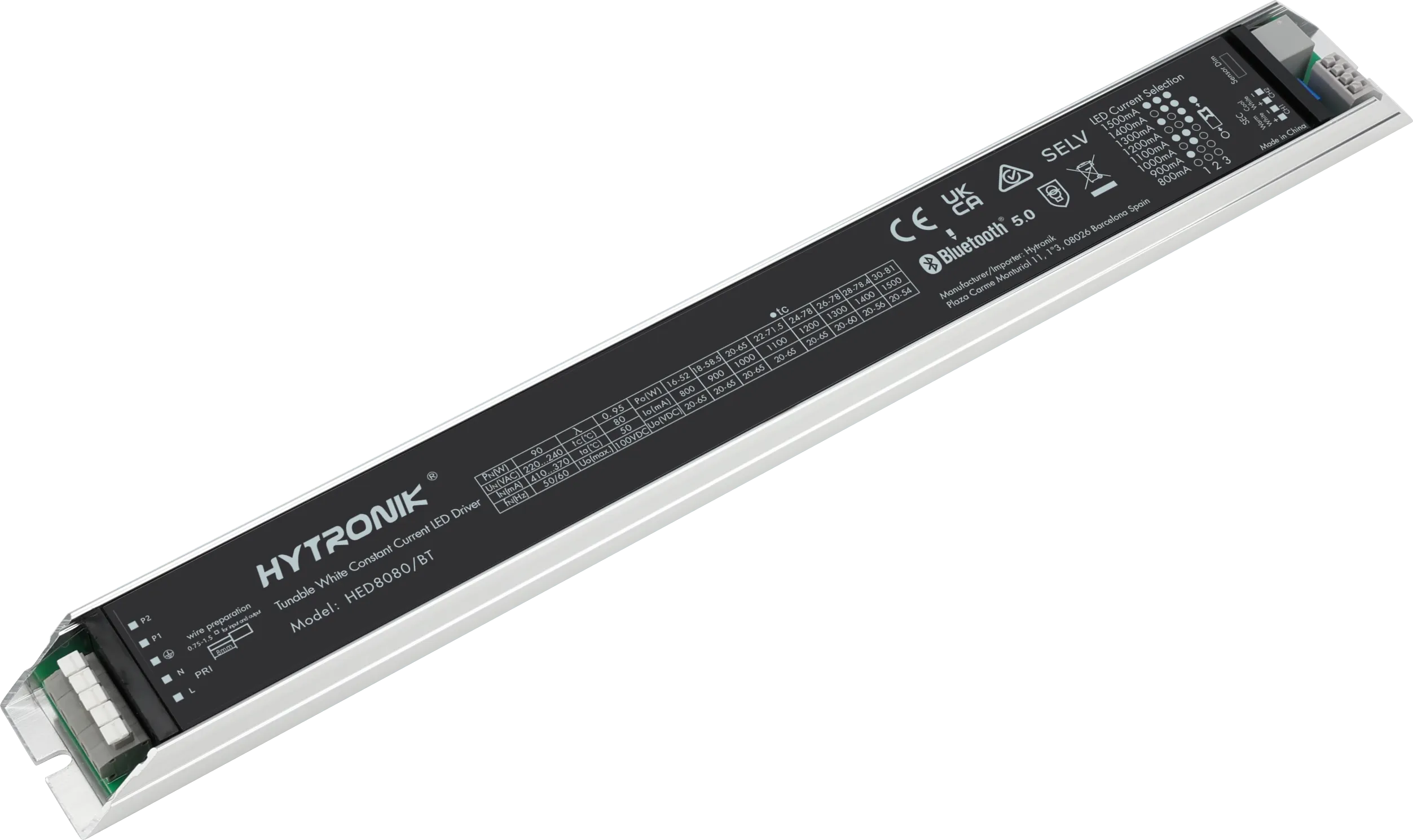

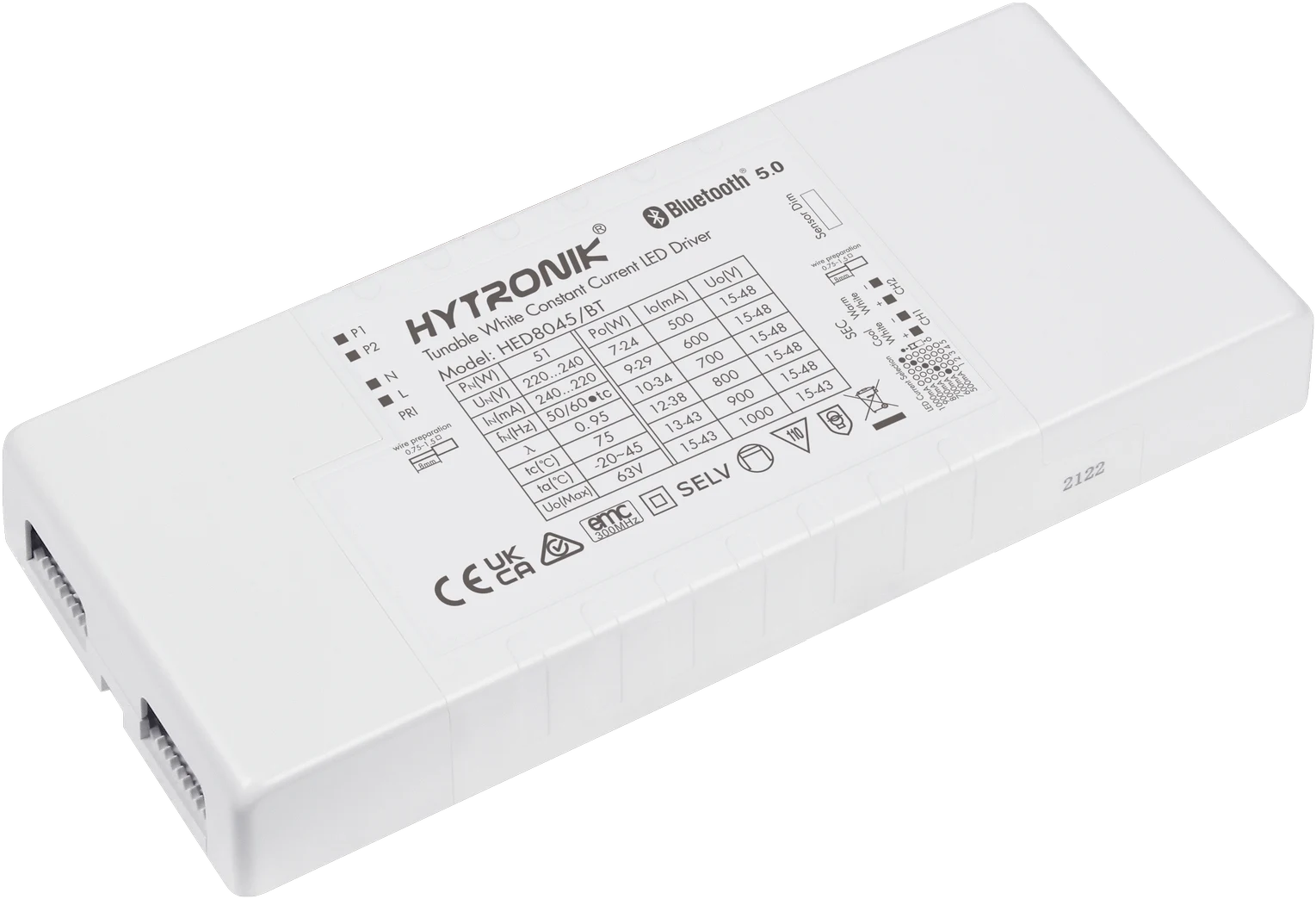

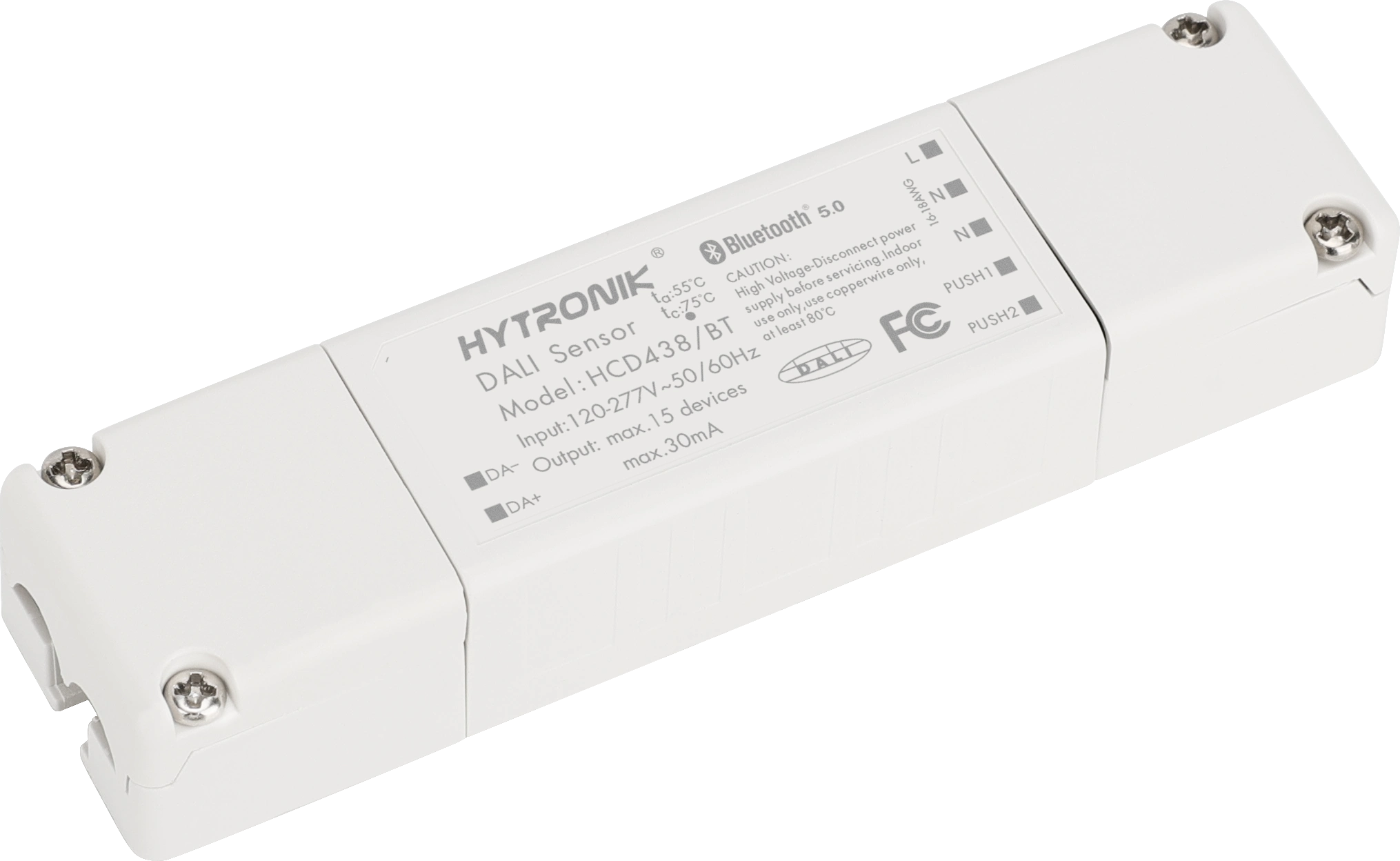

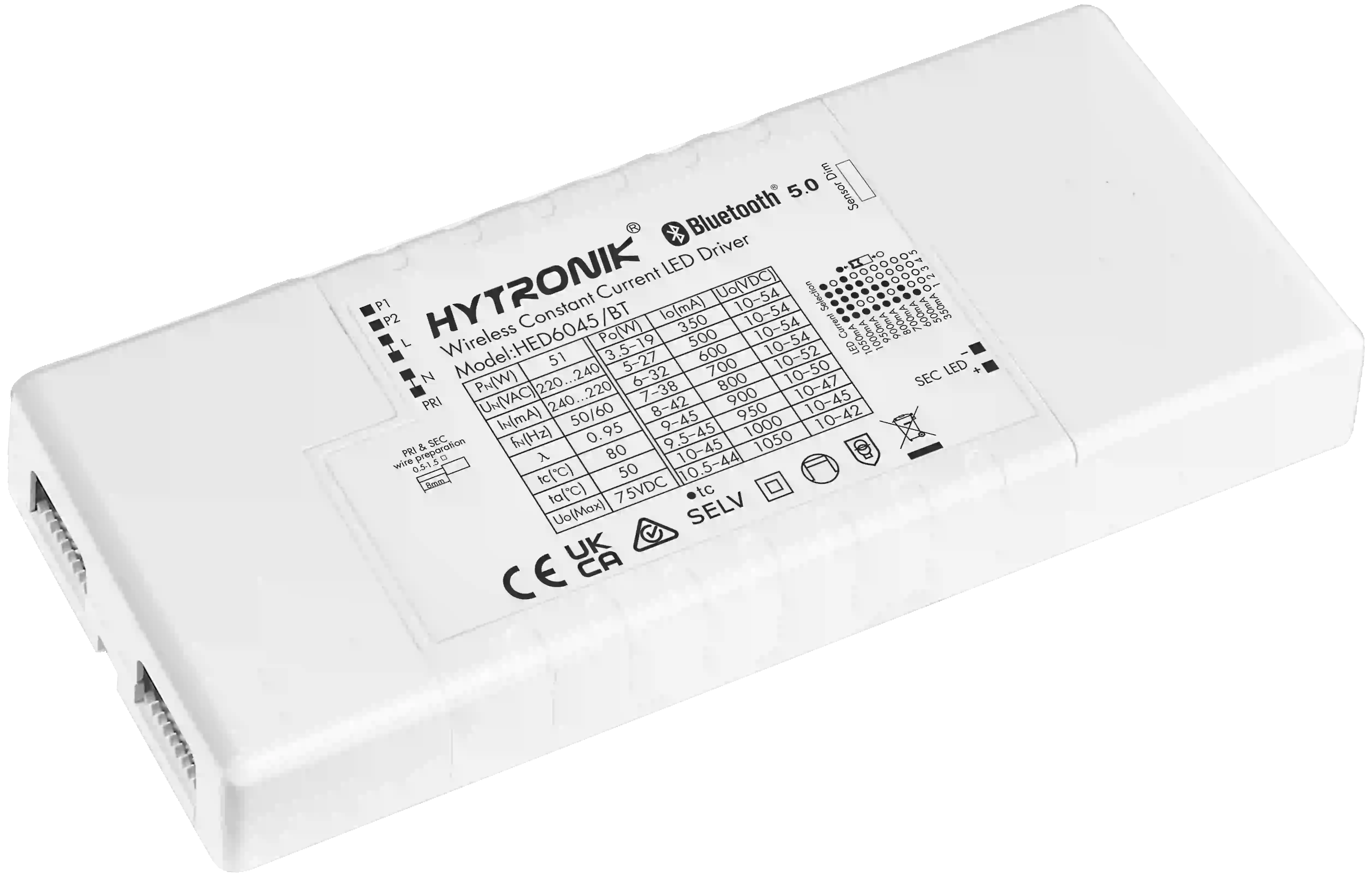

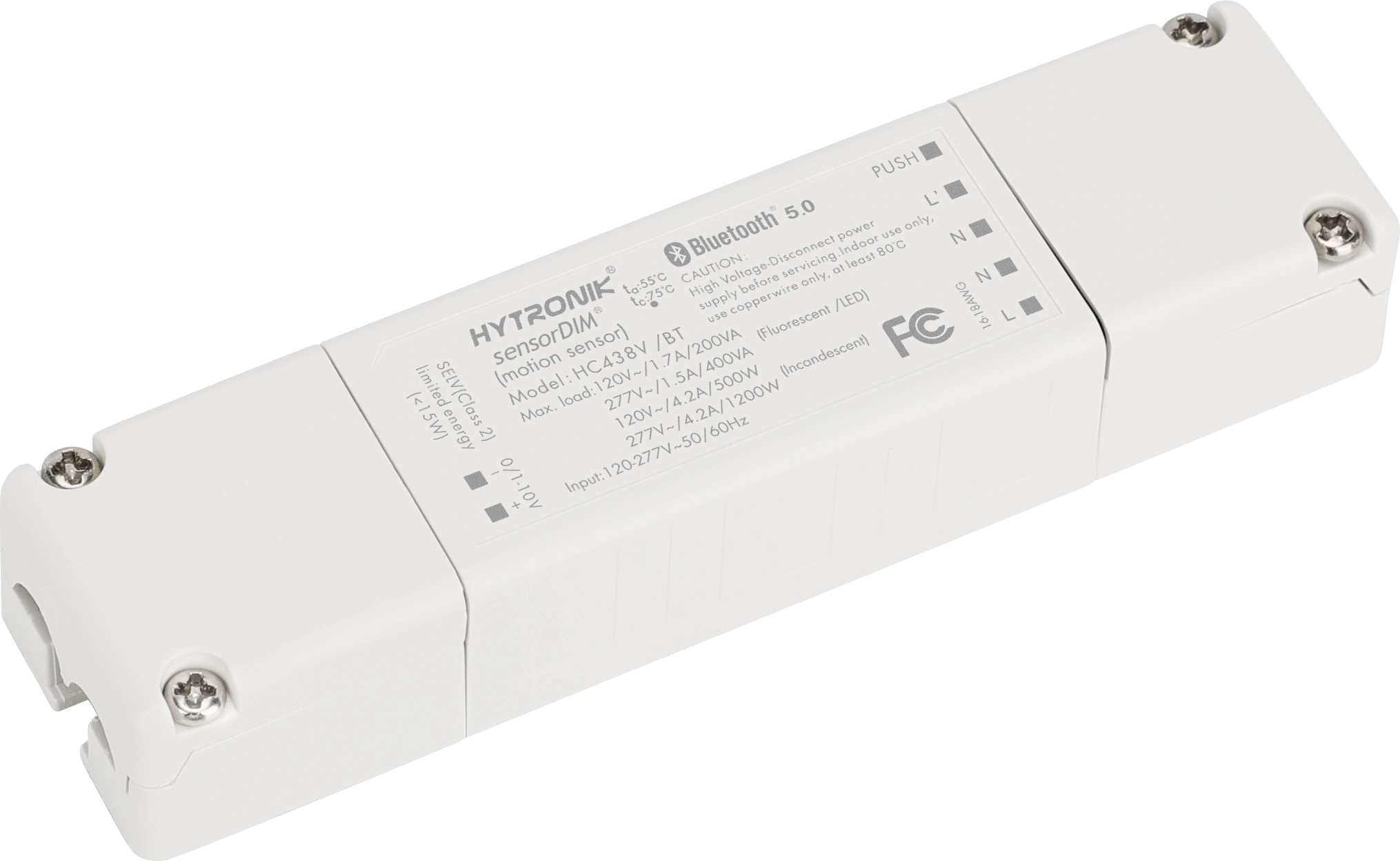

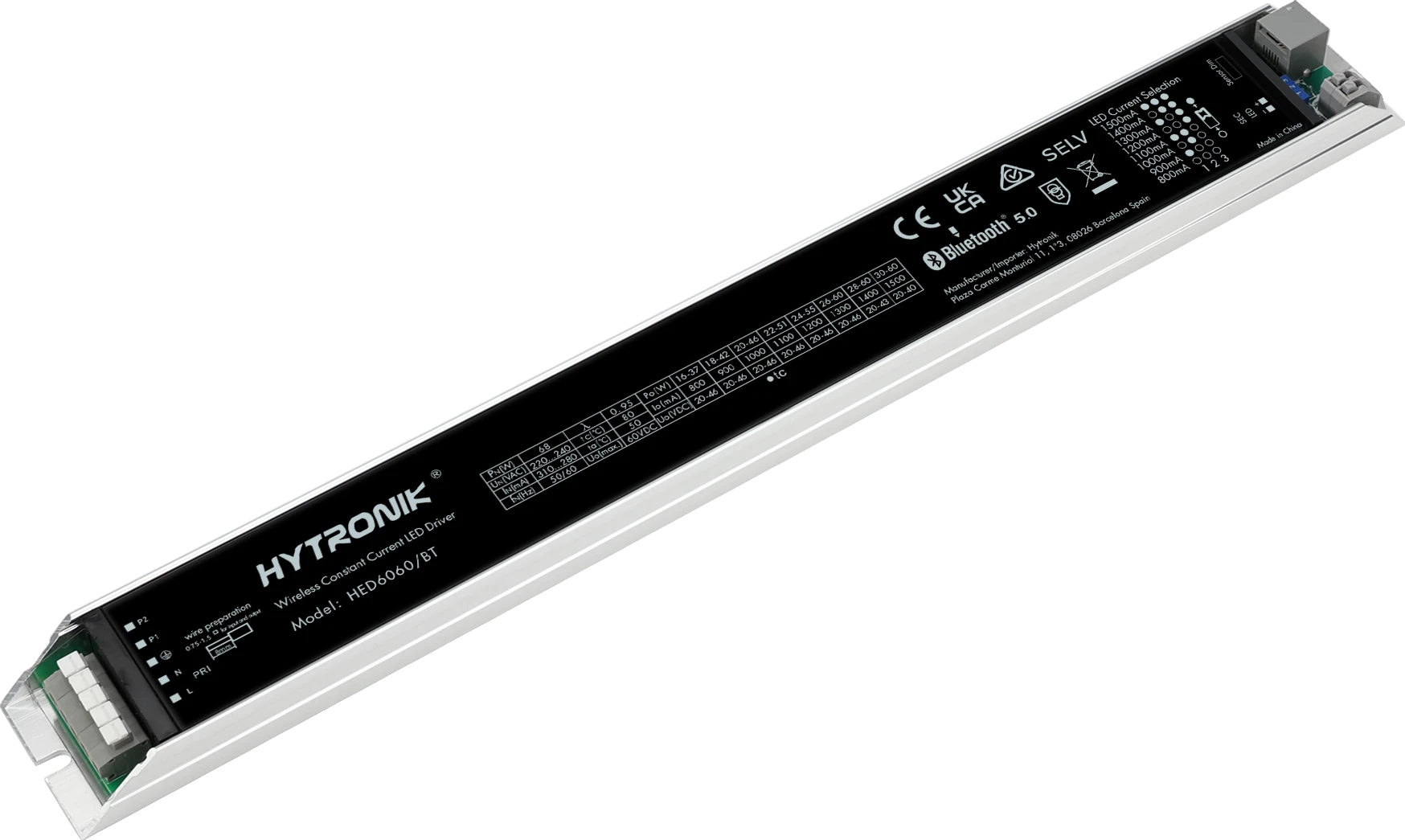

Compatible products (for full functionality)
