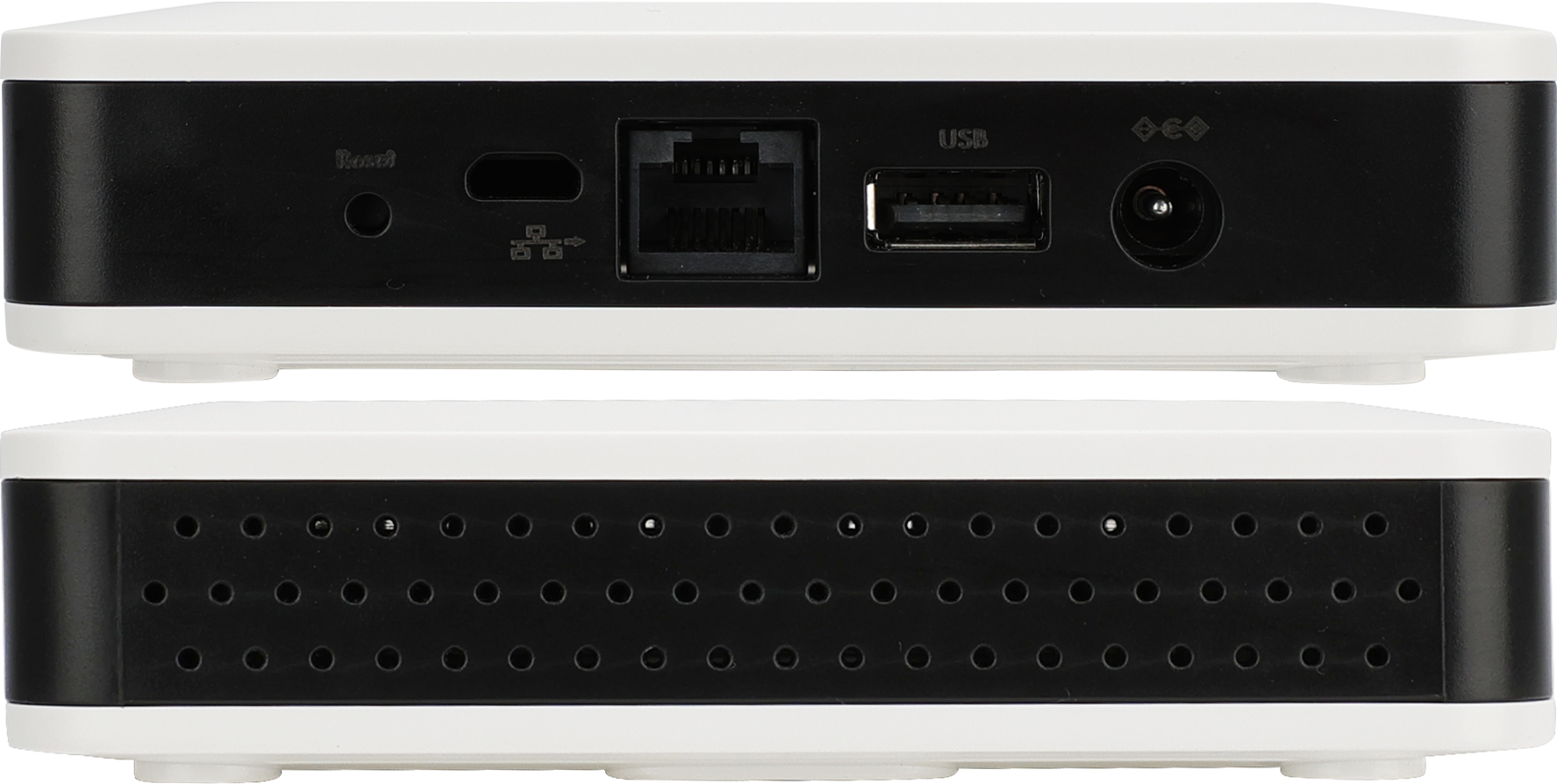

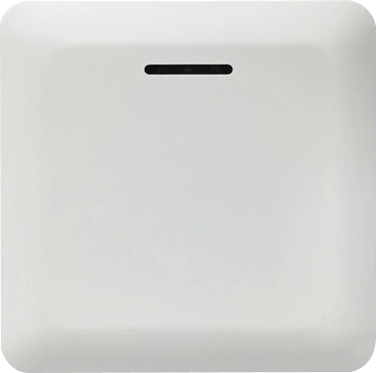

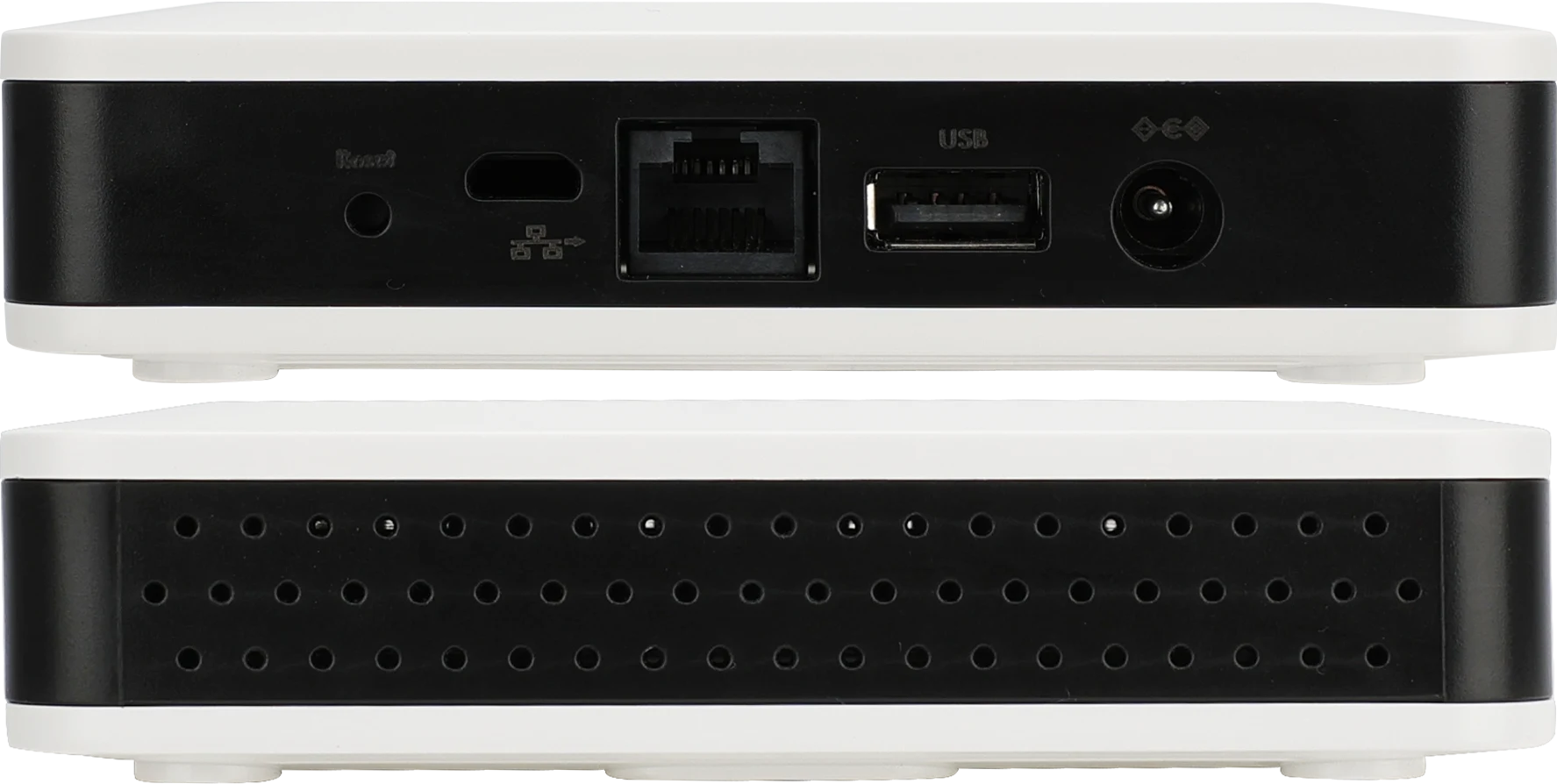

HBGW02
Bluetooth Mesh Gateway | Ethernet or Wi-Fi 2.4GHz | Remote access/monitoring
BENEFITS
- Design: Compact enabling flexible deployment
- Empowering: Streamlined troubleshooting in real applications
- Configuration: Efficient enabling remote monitoring and data collection
APPLICATIONS
- Network cabinets or enclosures
- 1 gateway per bluetooth network
- All types of applications
Product information "HBGW02"
HBGW02 is a Bluetooth Mesh gateway featuring frequency-hopping Bluetooth technology for stable one-to-many connections, reducing disconnections in typical applications. It supports up to 200 Bluetooth nodes and provides connectivity via Ethernet or 2.4 GHz Wi-Fi. The gateway can be powered conventionally or via PoE, enabling remote monitoring, control, and data collection for easier network management and maintenance. Its compact design and versatile connectivity make it ideal for smart lighting systems.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -25 °C |
| Bluetooth frequency: | 2.4 GHz |
| Bluetooth range: | max. 10 |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Category - System Level Components: | Gateway for Bluetooth System |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 30.0000 mm |
| Product length: | 120.0000 mm |
| Product weight: | 135.0000 g |
| Product width: | 120.0000 mm |
| Tri-level (Corridor function): | No |
Datasheets
Product datasheet: hbgw02.pdf
Installation Manual
User manual: installation-manual-hbgw02.pdf
