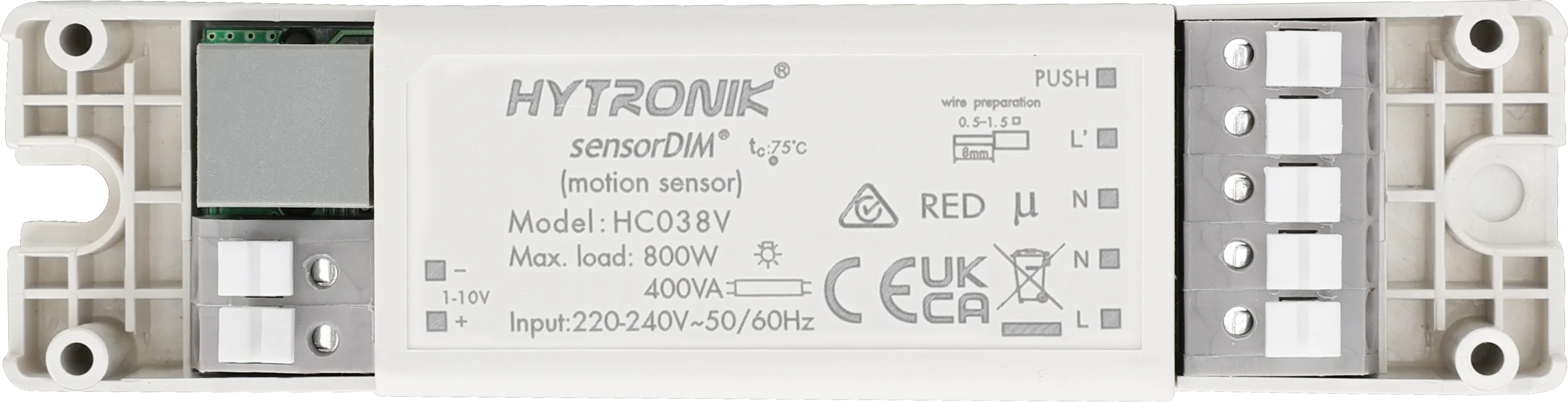

HC038V
Control unit | 1-10V | Attachable sensor heads
BENEFITS
- Adaptable: Small control unit with strain relief

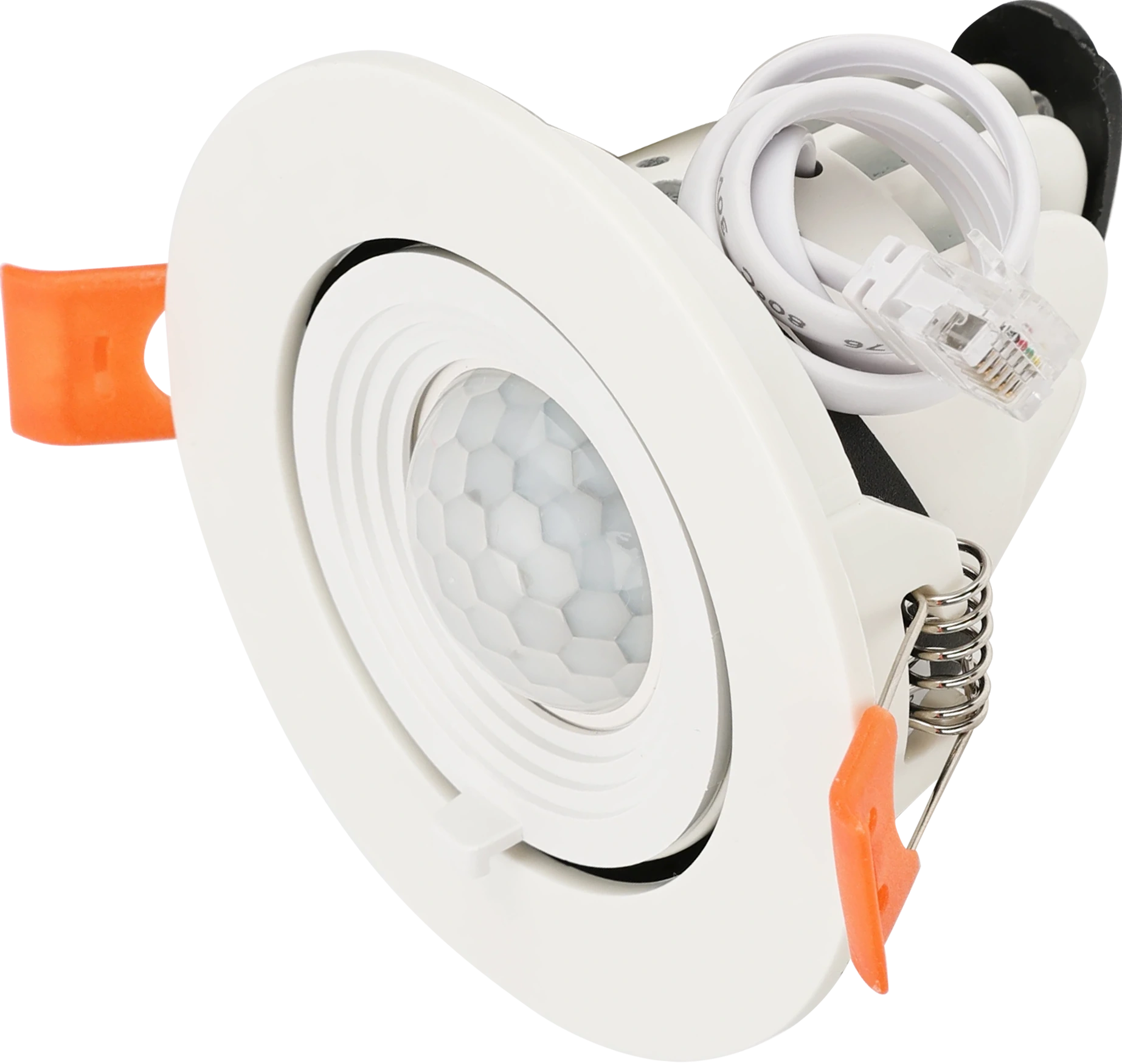

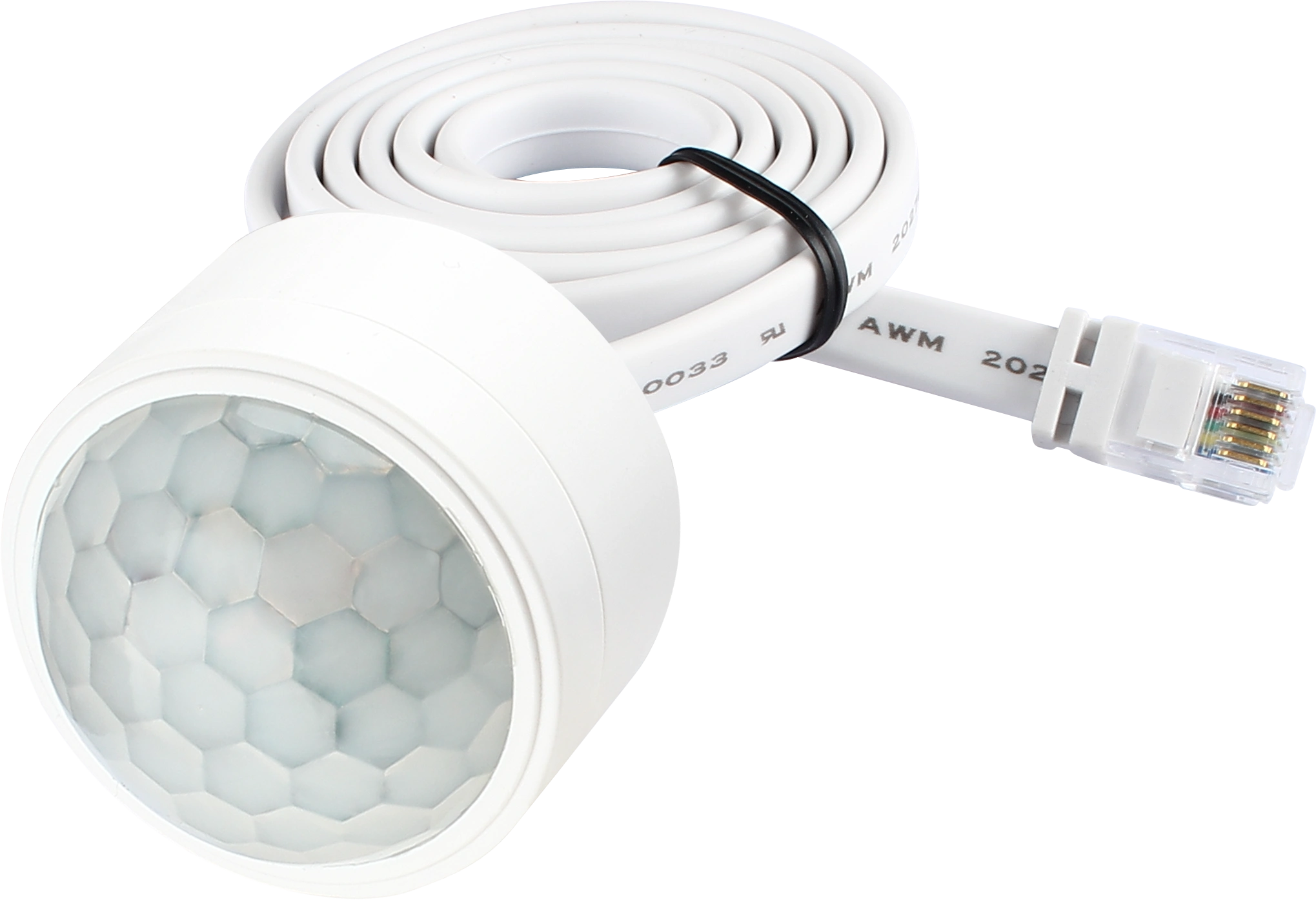

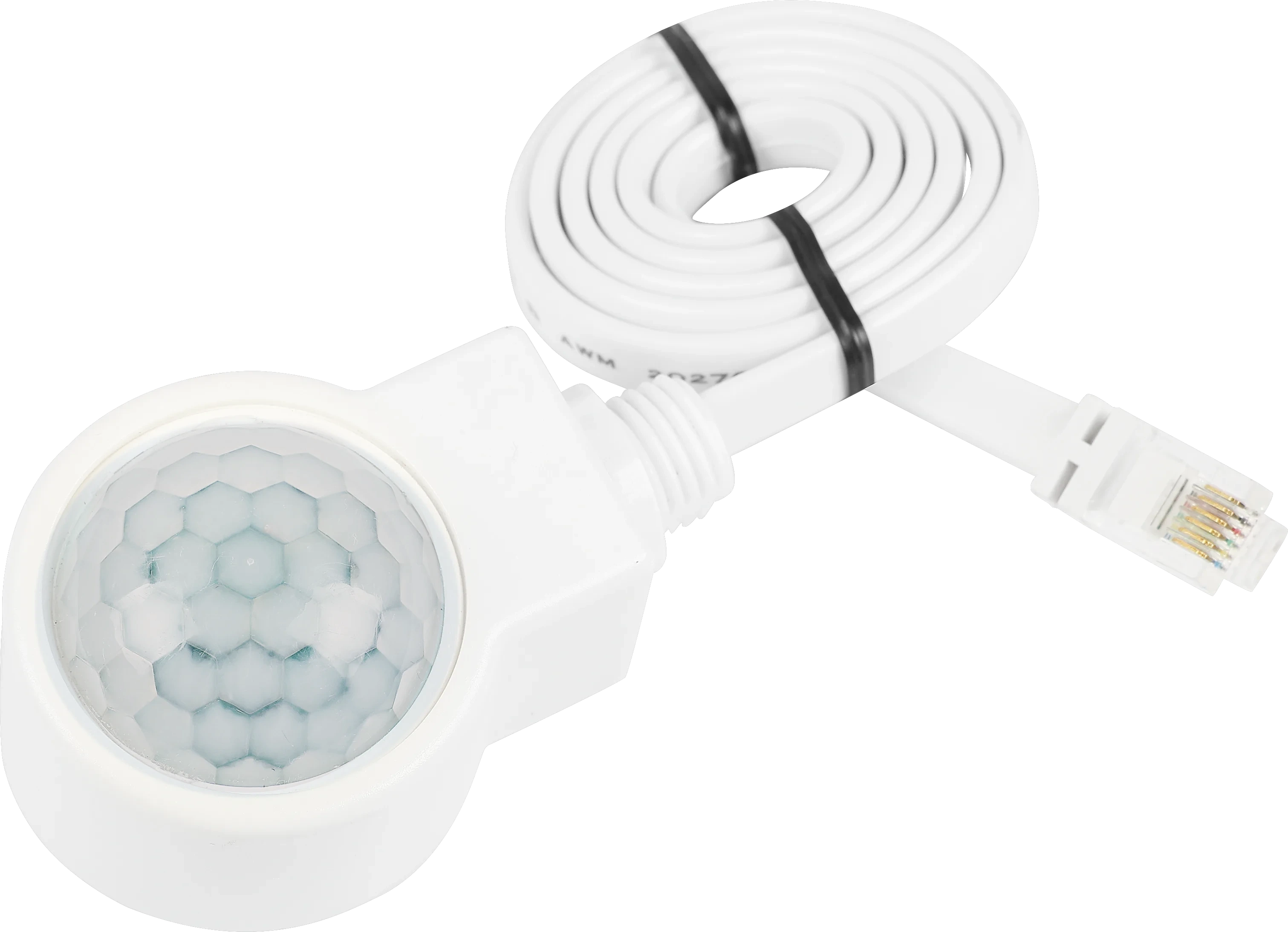

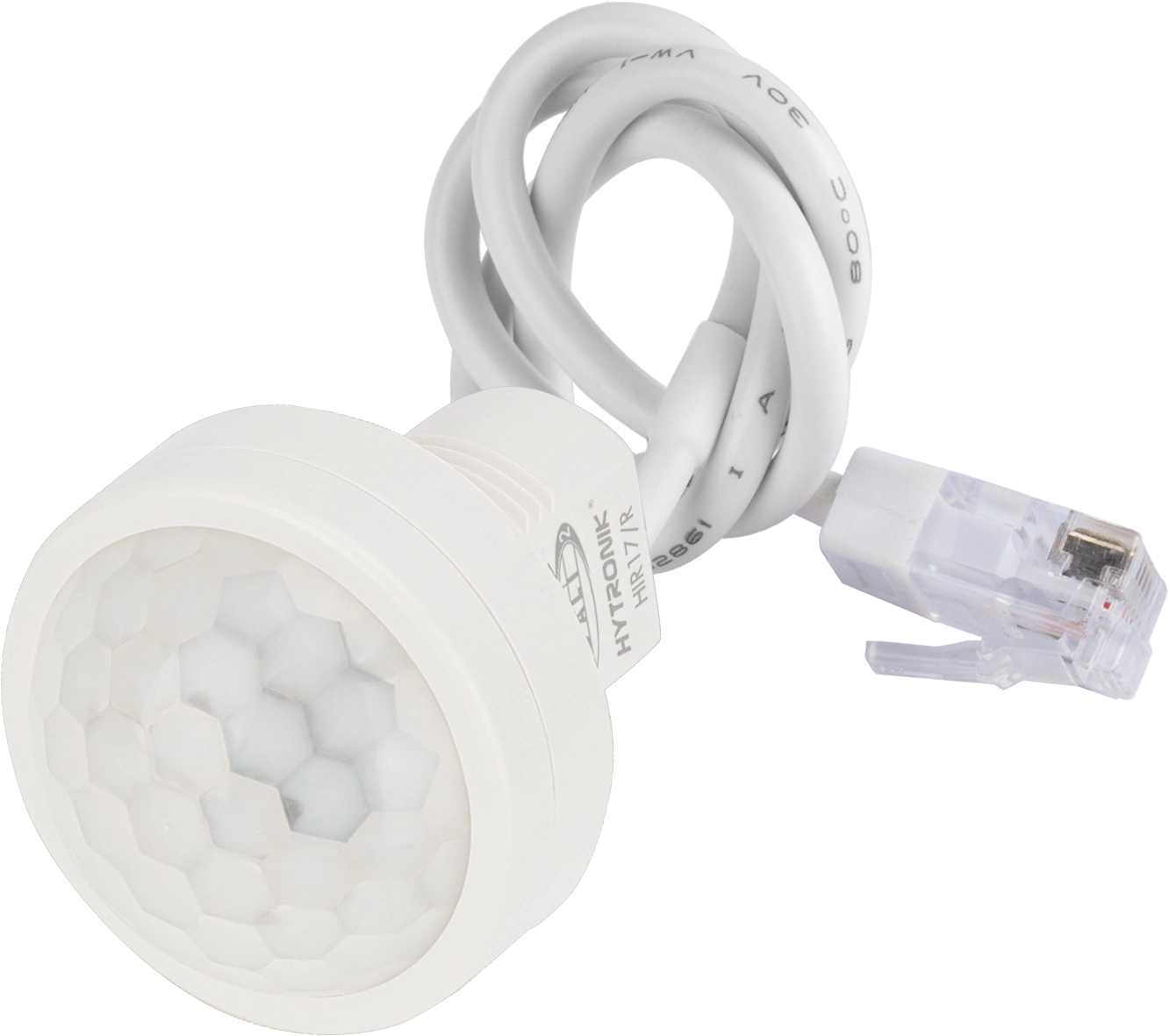

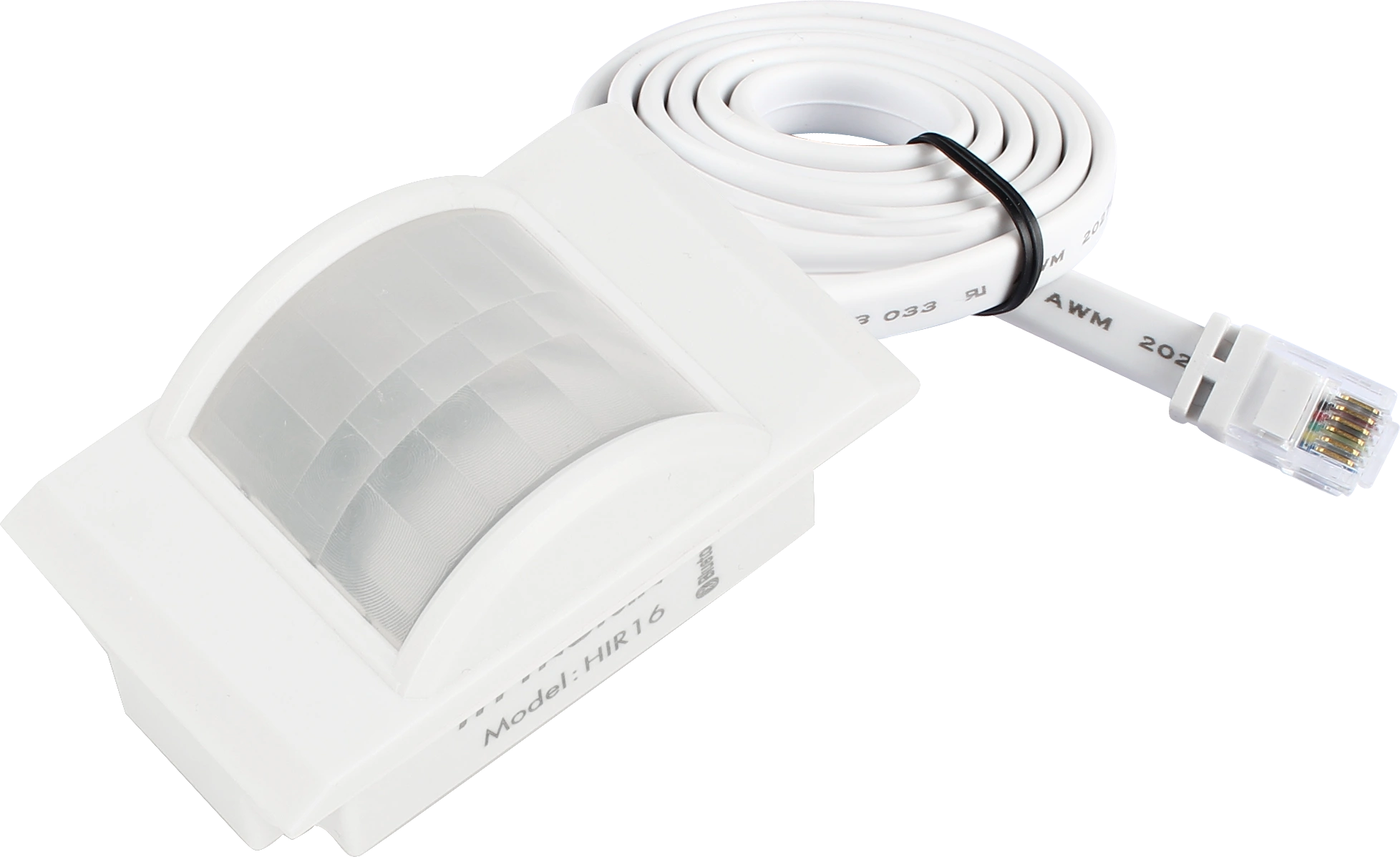

- Versatile: Supports multiple sensor heads for different applications

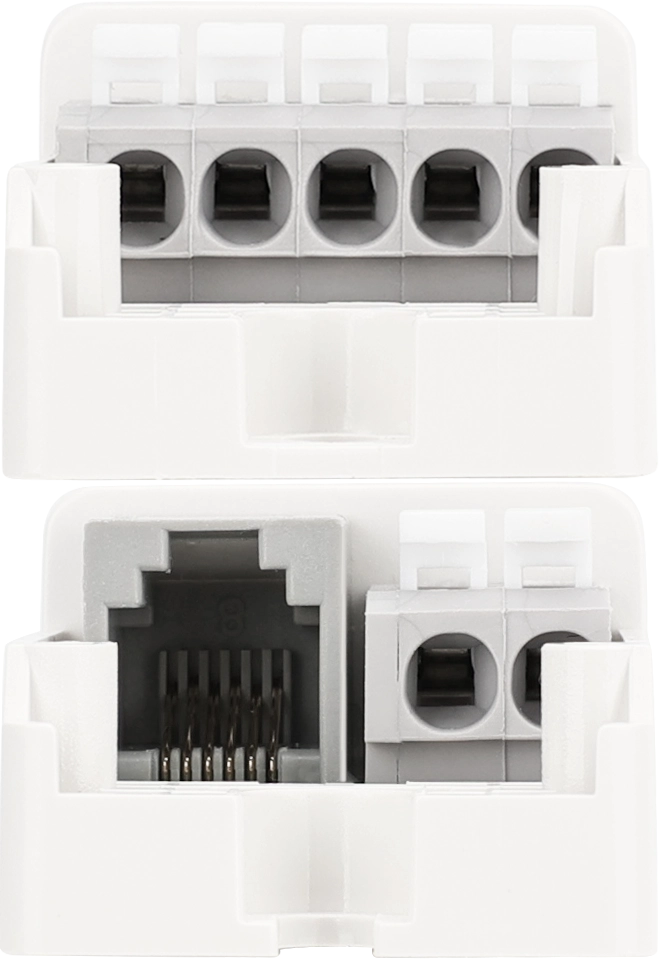

- Effcient: Loop-in and loop-out terminals for installation
APPLICATIONS

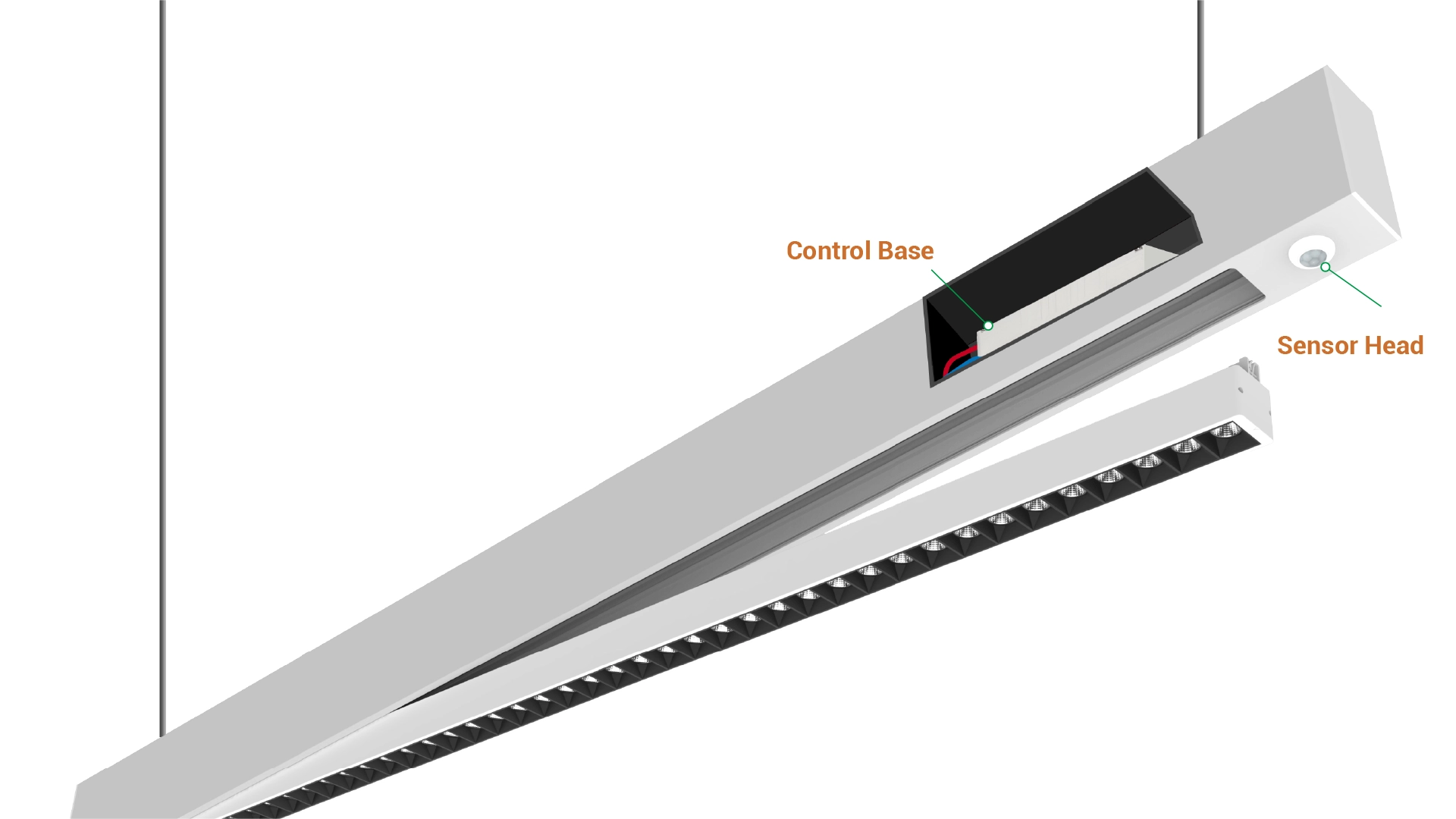

- Master luminaire with sensor
- Classrooms
- Offices
Product information "HC038V"
HC038V is a modular 1-10V control unit designed for flexible smart luminaire integration. It works with a wide range of microwave and PIR sensor heads, allowing lighting manufacturers to select suitable sensing solutions for different applications. By placing the Bluetooth module inside the sensor head, it ensures reliable wireless communication even in metal luminaire designs where signal transmission can be challenging. This modular architecture simplifies luminaire development while providing greater flexibility for smart lighting upgrades.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | App & Web (Bluetooth) |
| Detection Methods: | Microwave (MW), Passive Infrared (PIR) |
| Detection angle: | 360° |
| Dimming (Output) Interface: | 1-10V |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Load capacitive: | 400.0000 VA |
| Load resistive: | 800.0000 W |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 21.0000 mm |
| Product length: | 120.0000 mm |
| Product weight: | 59.0000 g |
| Product width: | 30.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hc038v.pdf
