HBGW03/R

BACnet Gateway | DIN rail/wall/flat surface mounting | Remote access/monitoring

BENEFITS

Compact: Enables flexible installation in various environments.
Seamless: Connects Bluetooth lighting devices to BMS for unified control.
Efficiency: Centralized control speeds up operations and saves energy.

APPLICATIONS

Building automation and lighting systems
Network cabinets or enclosures
1 gateway per bluetooth network

Download the data sheet

Product information "HBGW03/R"

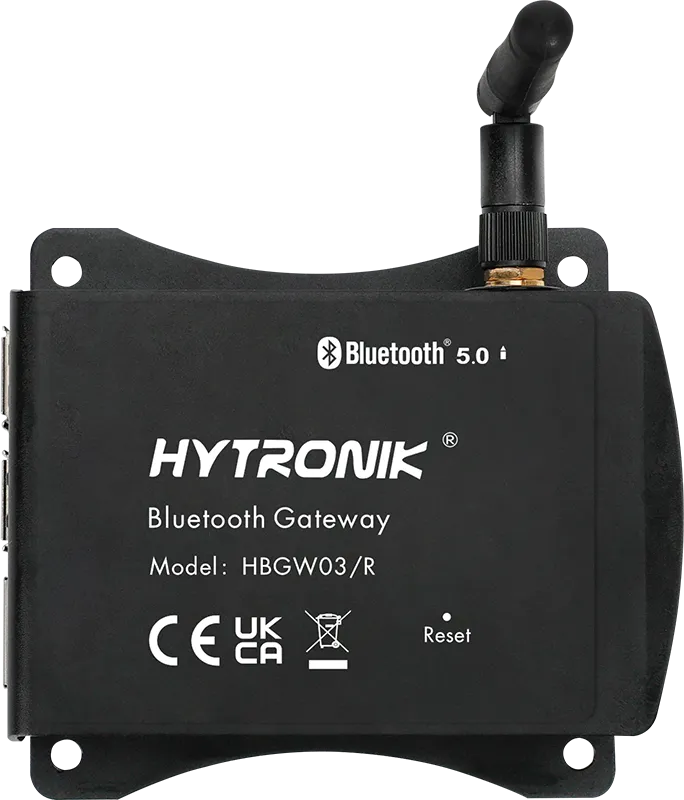

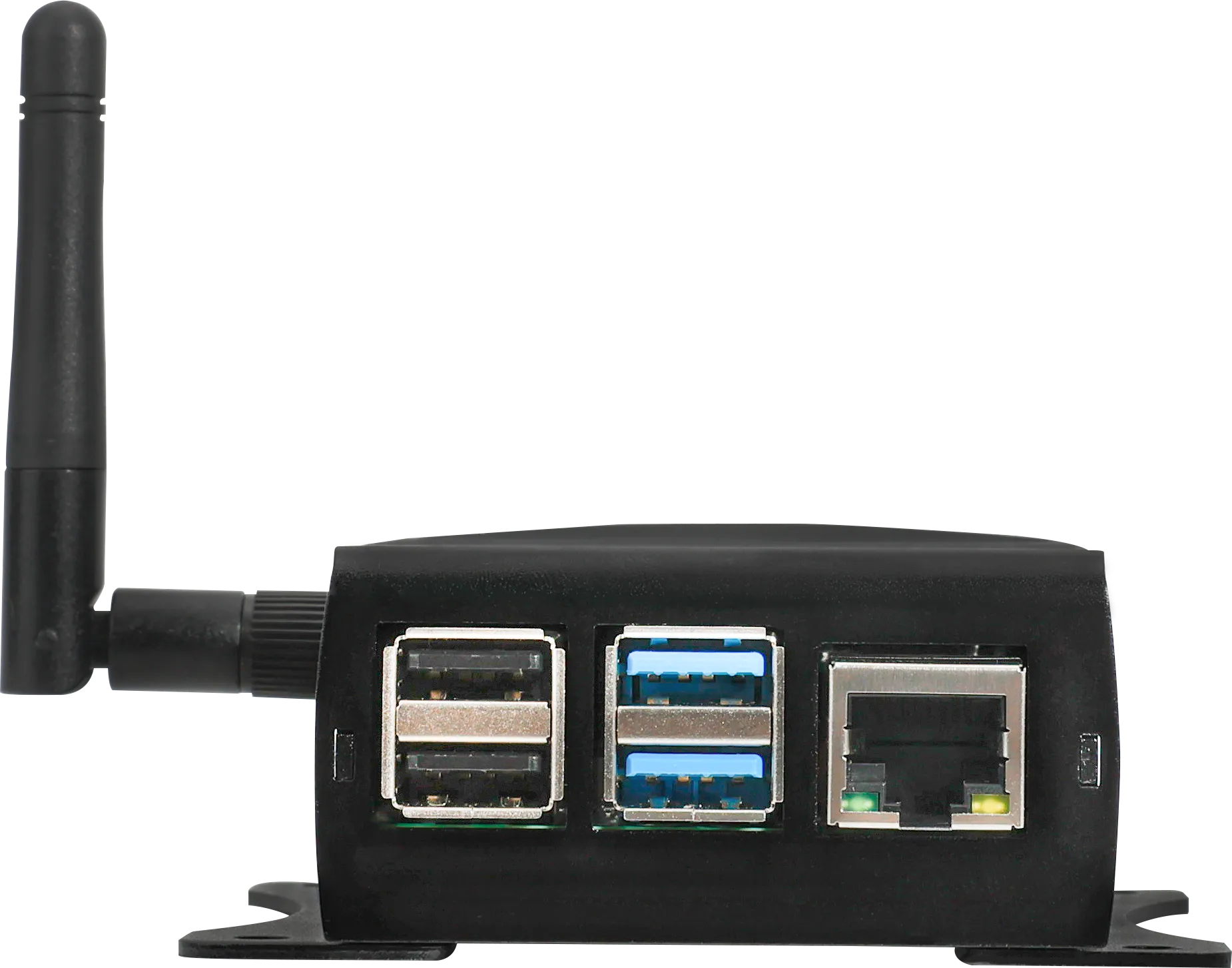

HBGW03/R is an industrial-grade BACnet gateway with a built-in nRF52840 Bluetooth module. It converts Bluetooth device data into BACnet or Ethernet signals, enabling seamless integration of Bluetooth lighting networks with BMS for unified monitoring and control. Designed for flexible installation, the gateway supports DIN rail, wall, or flat surface mounting, and features an external antenna to enhance signal stability and communication range. With its compact footprint (95.7×70×28.7 mm) and robust performance, HBGW03/R ensures reliable operation and easy deployment in diverse industrial and commercial applications.

Ambient temperature max.:	50 °C
Ambient temperature min.:	0 °C
Bluetooth frequency:	2.4 GHz - 2.483 GHz
Bluetooth range:	10-50m
Bluetooth system:	Koolmesh
Bluetooth transmit power:	19 dBm
Category - System Level Components:	Gateway for Bluetooth System
Human Centric Lightning (HCL):	No
Humidity max:	60 %
Humidity min:	30 %
IP Rate:	IP20
Product height:	82.8000 mm
Product length:	96.6000 mm
Product width:	85.5000 mm
Storage temperature max.:	60 °C
Storage temperature min.:	-10 °C
Tri-level (Corridor function):	No
