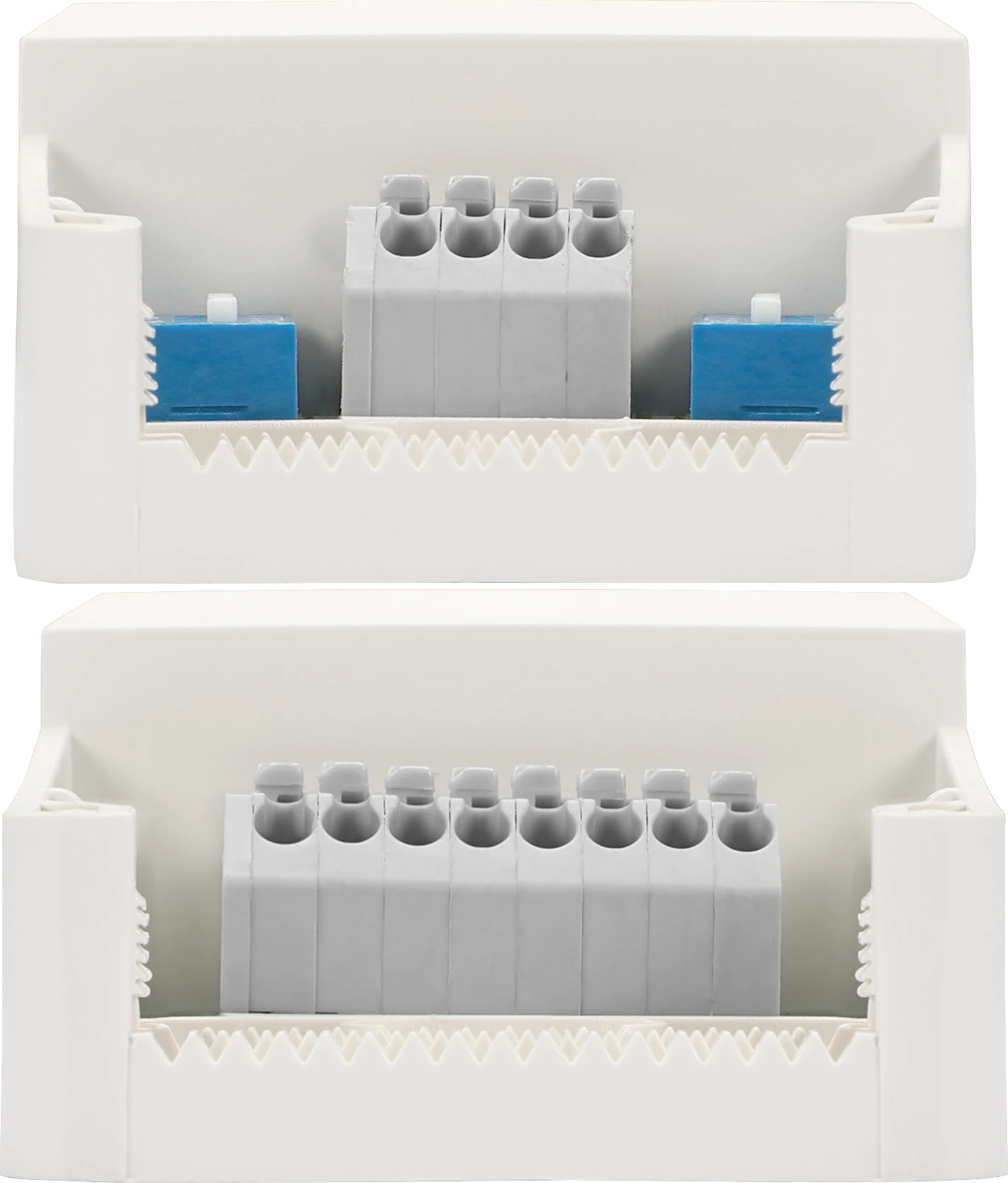

HED8025/BT
Bluetooth LED Driver 25W (CC) | Tunable white | Built-in/Stand-alone
BENEFITS
- Compact: Space-saving design for flexible luminaire integration
- Dual: Push Switch and Bluetooth control interfaces for flexible operation
- Simple: Wireless setup and commissioning via Koolmesh App
APPLICATIONS
- Retrofit projects with no extra wiring for control
- Offices
- Classrooms
Product information "HED8025/BT"
HED8025/BT is a Bluetooth dimming and tunable white LED driver designed for smart lighting applications, supporting both Push Switch and Bluetooth control interfaces for flexible dimming and colour temperature adjustment. It is suitable for luminaire development and lighting upgrade projects. Bluetooth Mesh networking enables wireless communication between luminaires without additional control wiring, reducing installation complexity and project costs. With a compact design and a maximum output power of 25W, it is suitable for a wide range of smart luminaire applications. All configuration and commissioning can be completed easily via the Koolmesh App.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Dimming (Output) Interface: | Bluetooth dimming, Switch-Dim |
| Driver Type: | Dimming & Color Tuning |
| Efficiency: | 88.0000 % |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Operating Mode: | Constant Current |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Power: | ≤25W |
| Product height: | 30.5000 mm |
| Product length: | 150.0000 mm |
| Product weight: | 196.0000 g |
| Product width: | 53.5000 mm |
| Storage temperature max.: | 50 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | No |
Datasheets
Product datasheet: hed8025-bt.pdf
