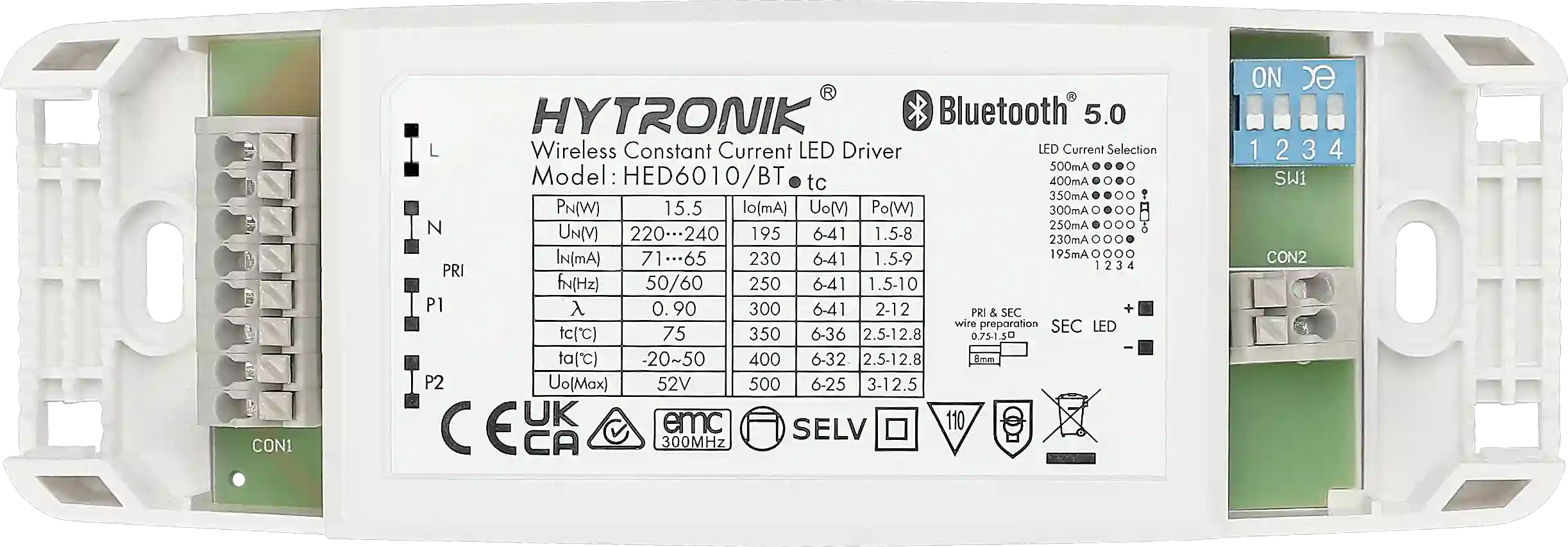

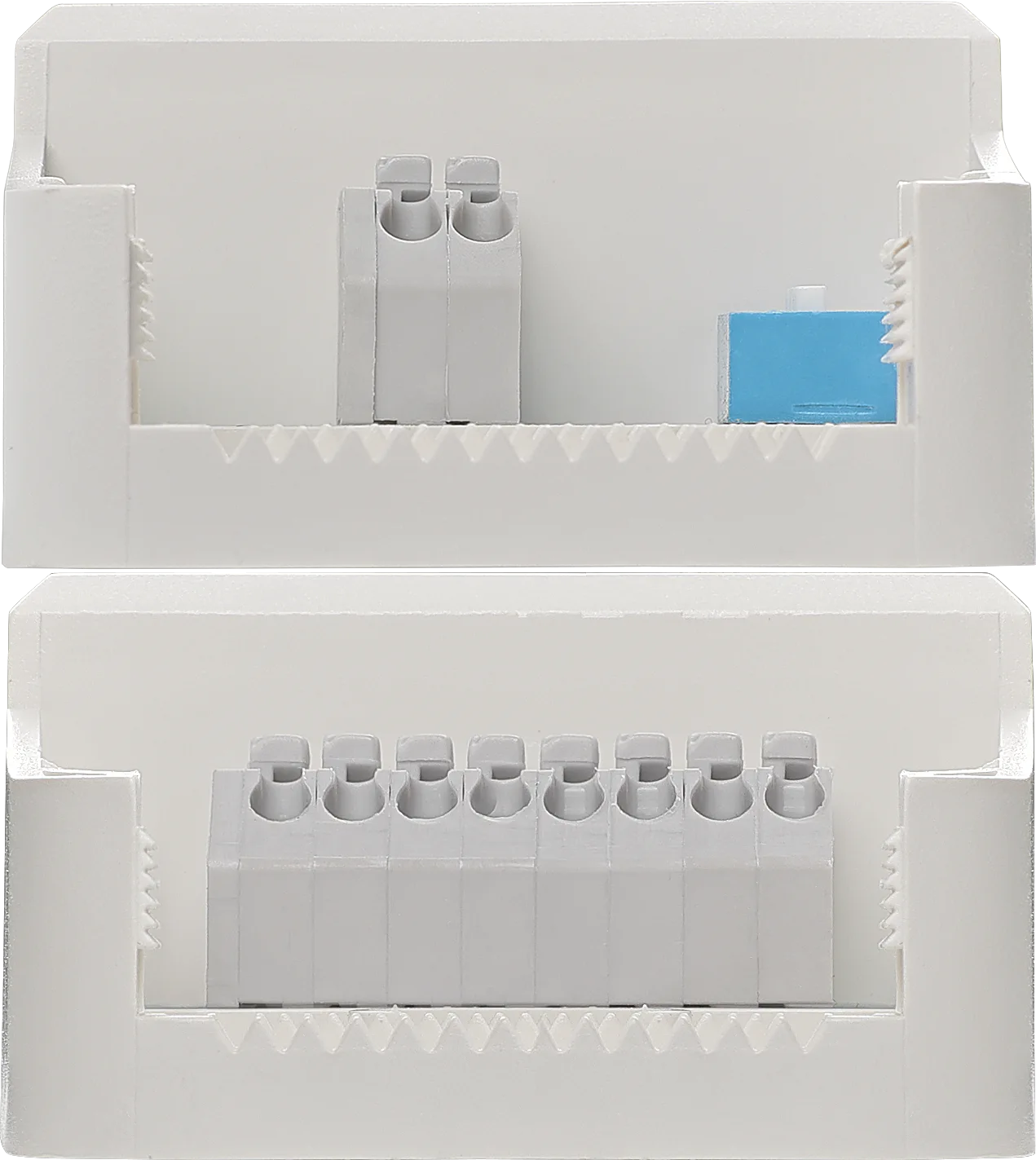

HED6010/BT
Bluetooth LED Driver 12.5W (CC) | Dimmable | Built in/Stand-alone
BENEFITS
- Compact: Linear LED Driver with Bluetooth interface
- Efficient: Loop-in & Loop-out terminals design
- Easy configuration: via Dip-switch & Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Stand-alone installation
- Offices
- Classrooms
Product information "HED6010/BT"
HED6010/BT is a Bluetooth dimmable LED driver, with a maximum power output of 12.5W. It has a Switch-Dim interface using a Push switch (retractive switch) and of course a Bluetooth dimming interface. Meanwhile, simple device setup and commissioning can be done through the Koolmesh app.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| DALI device type: | DT6 |
| Dimming (Output) Interface: | Relay On/Off |
| Driver Type: | Dimming Only |
| Efficiency: | 82 % |
| Human Centric Lightning (HCL): | No |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Mounting hole: | 4.1000 mm |
| Operating Mode: | Constant Current |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Power: | ≤25W |
| Product height: | 28.0000 mm |
| Product length: | 150.0000 mm |
| Product weight: | 115.0000 g |
| Product width: | 52.0000 mm |
| Storage temperature max.: | 50 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | No |
Datasheets
Product datasheet: hed6010-bt.pdf
