HIR05/FM
PIR Lowbay | Circadian Rhythm | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Circadian Rhythm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS

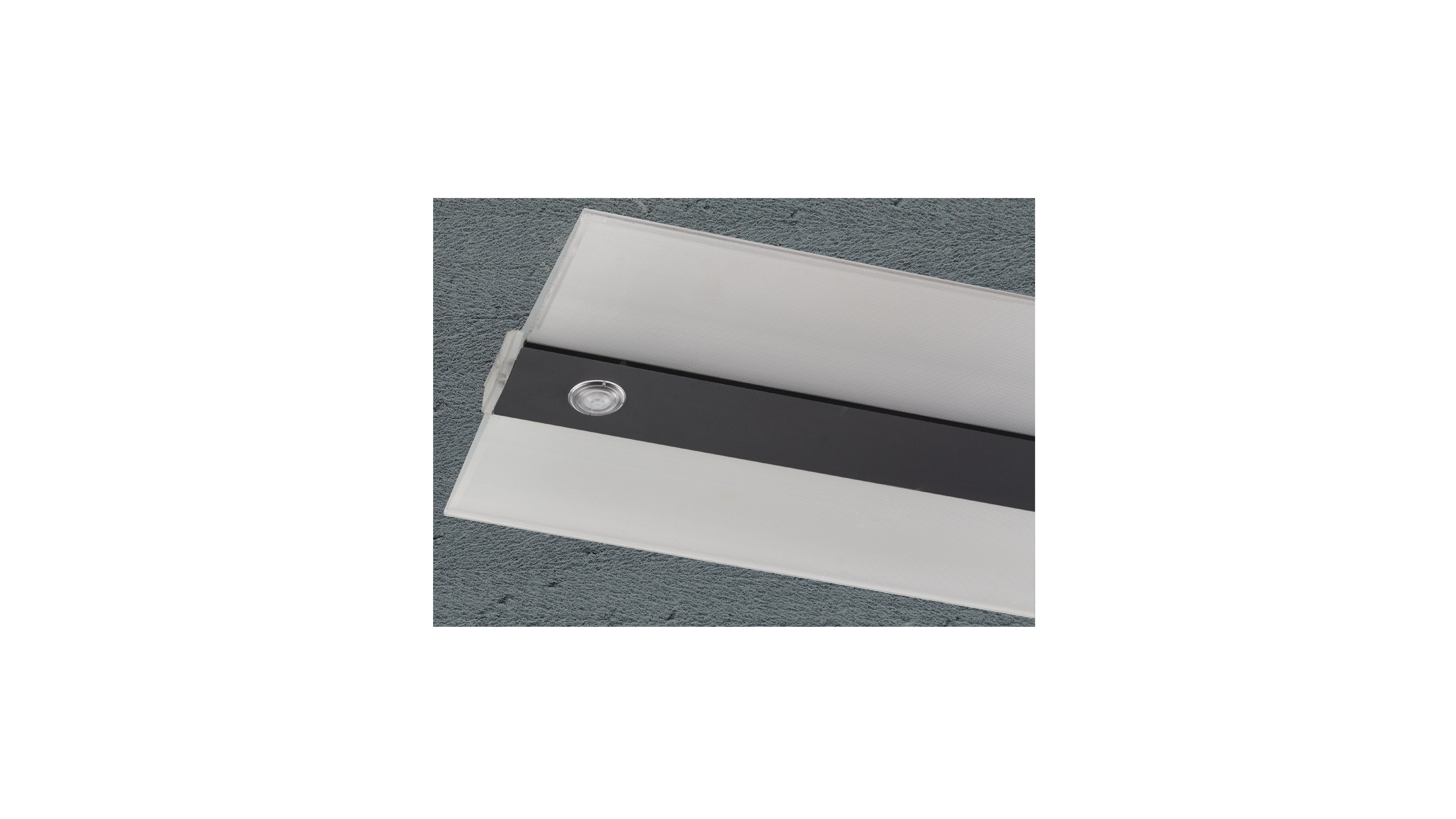

- Flush mount application
- Classrooms
- Offices
Product information "HIR05/FM"

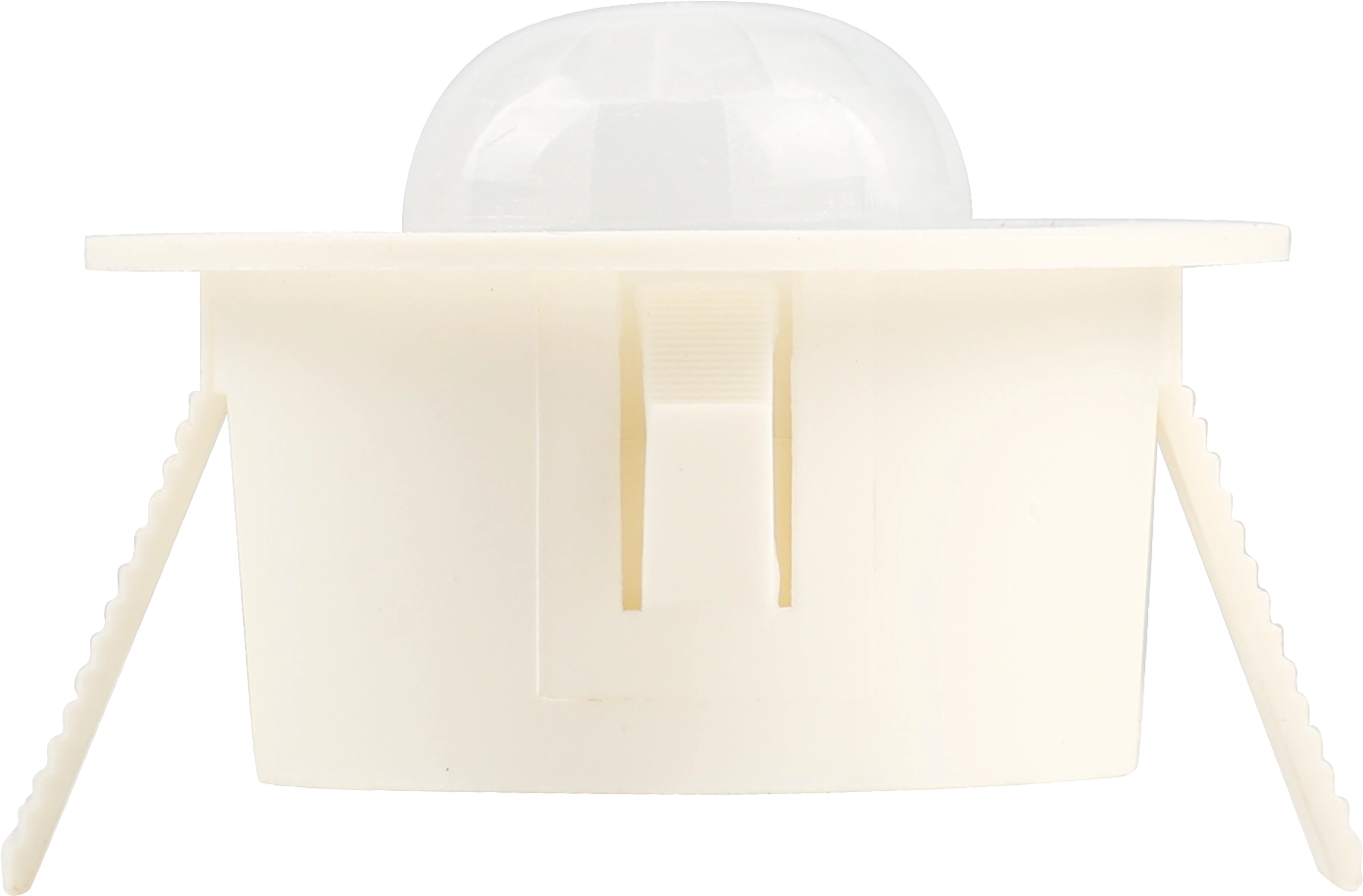

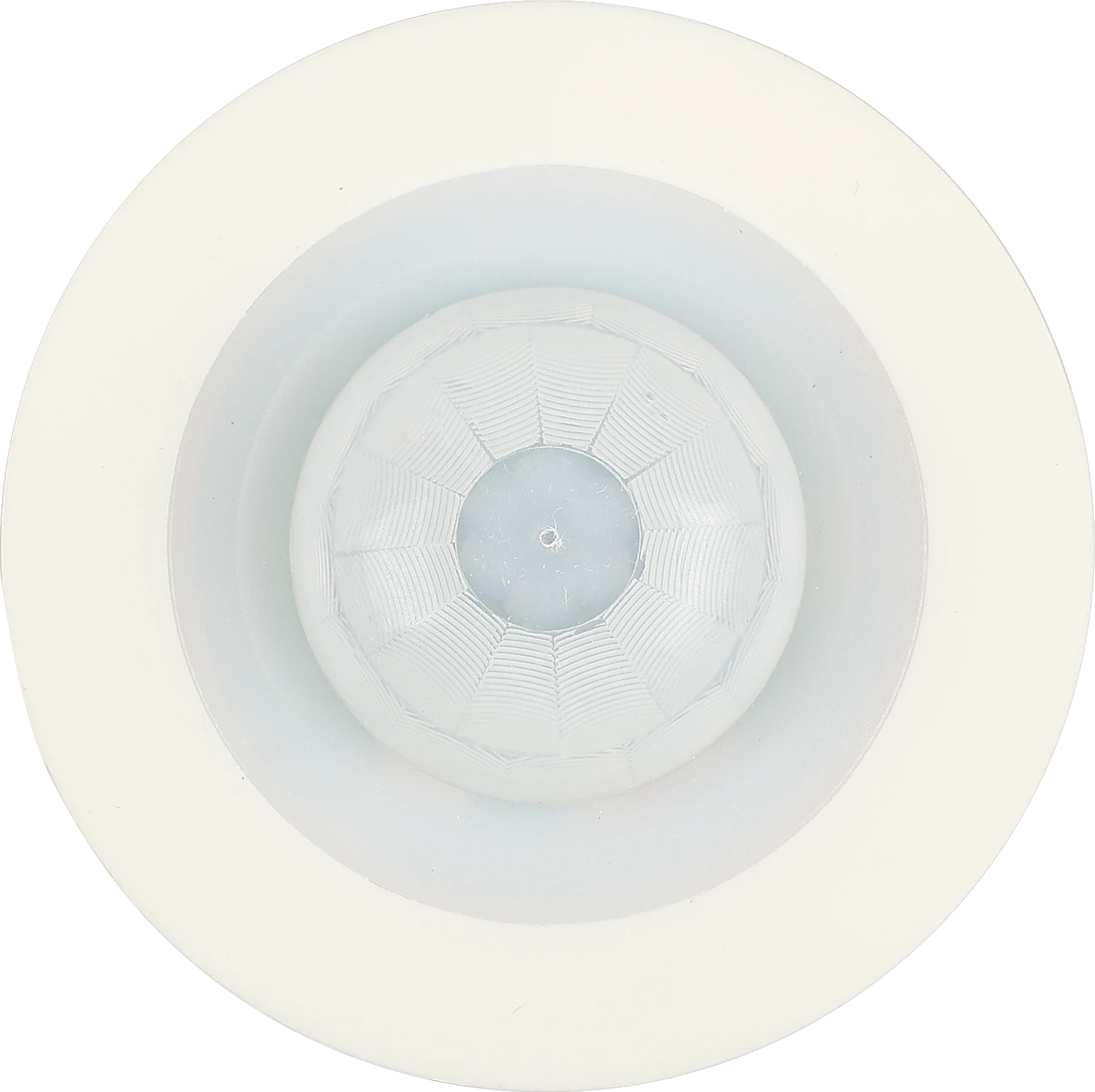

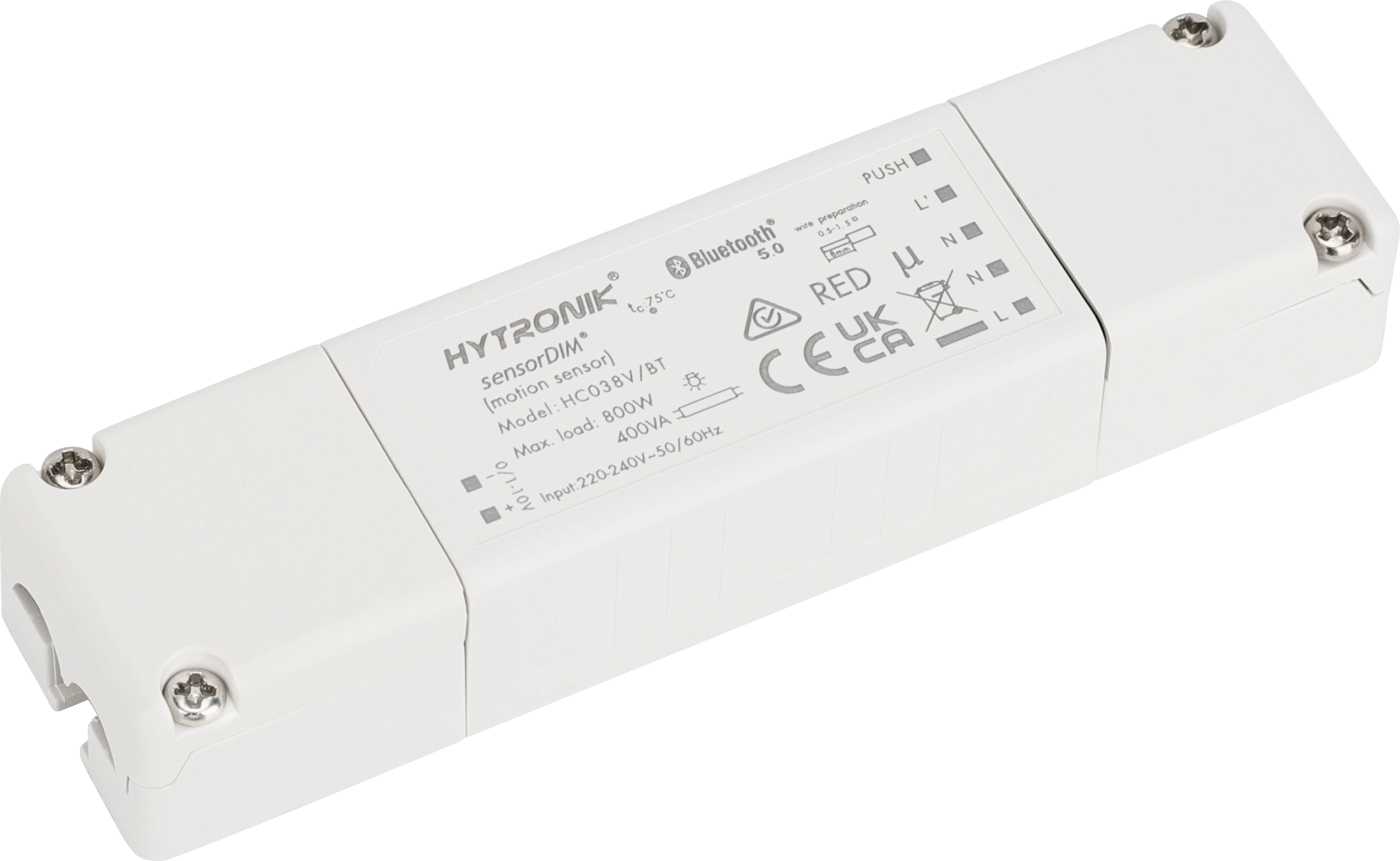

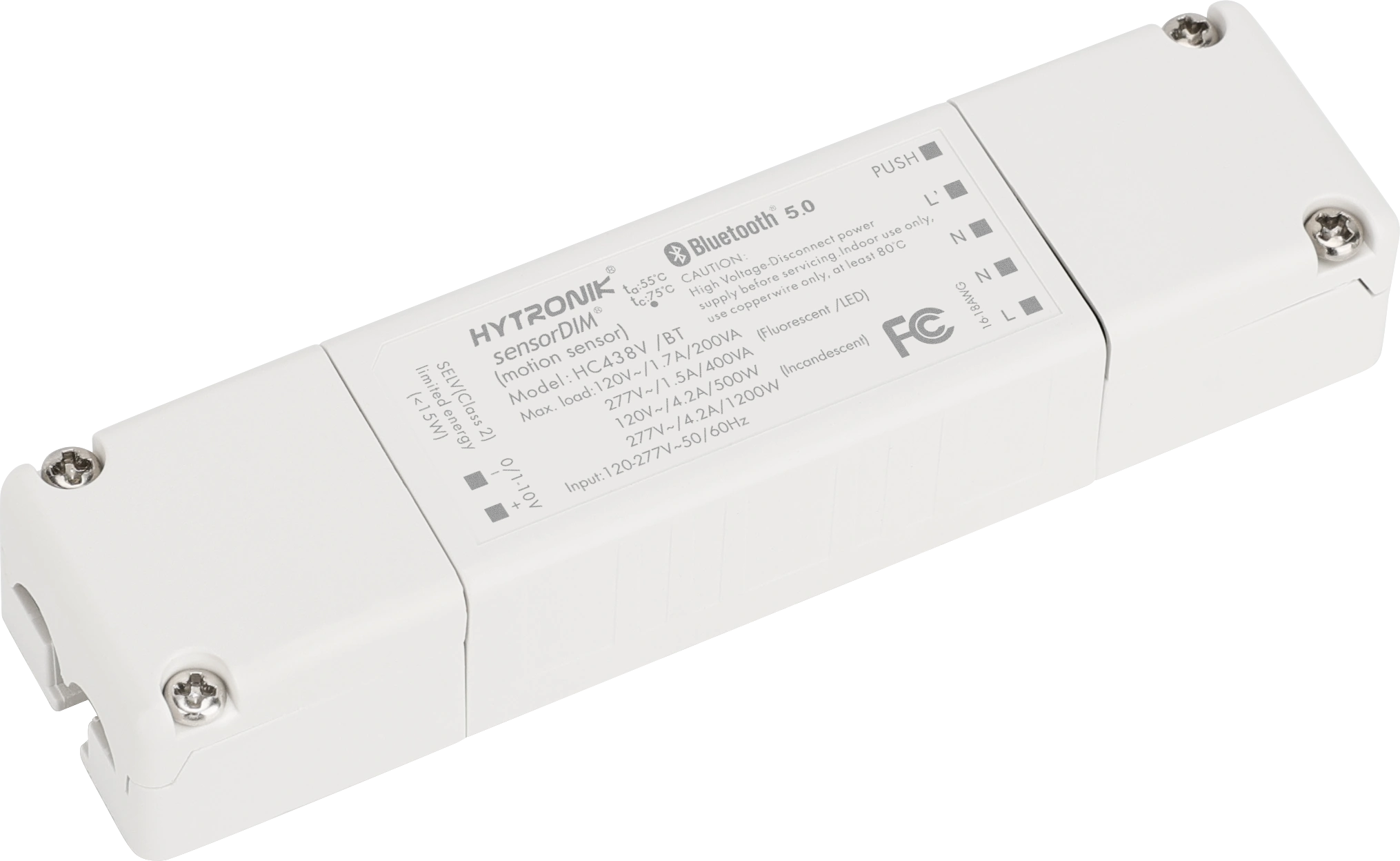

HIR05/FM is a PIR sensor head and compatible with the Daylight Harverst. It can work with the linear shaped control base such as HC038V/BT；HCD038/BT；HC438V/BT；HCD438/BT； HCD038/CA； HCD438/CA. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | App & Web (Bluetooth) |

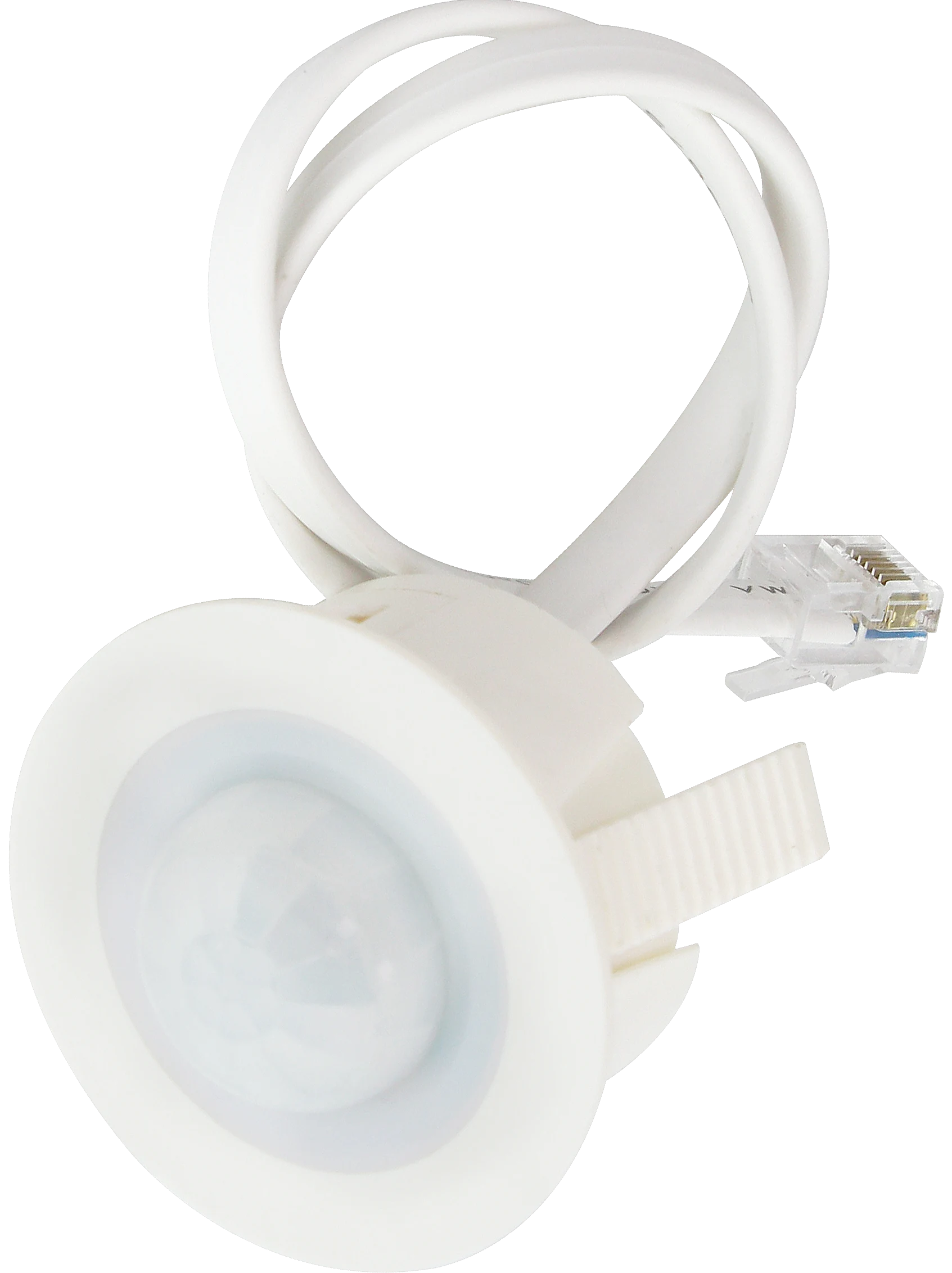

| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 6x3 |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Lens type: | Standard Low-bay |
| Mounting Height: | Low-bay |
| Mounting hole: | 39.0000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 26.5000 mm |
| Product length: | 48.0000 mm |
| Product weight: | 35.0000 g |
| Product width: | 48.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Zhaga: | No |
Datasheets
Product datasheet: hir05-fm.pdf
Login

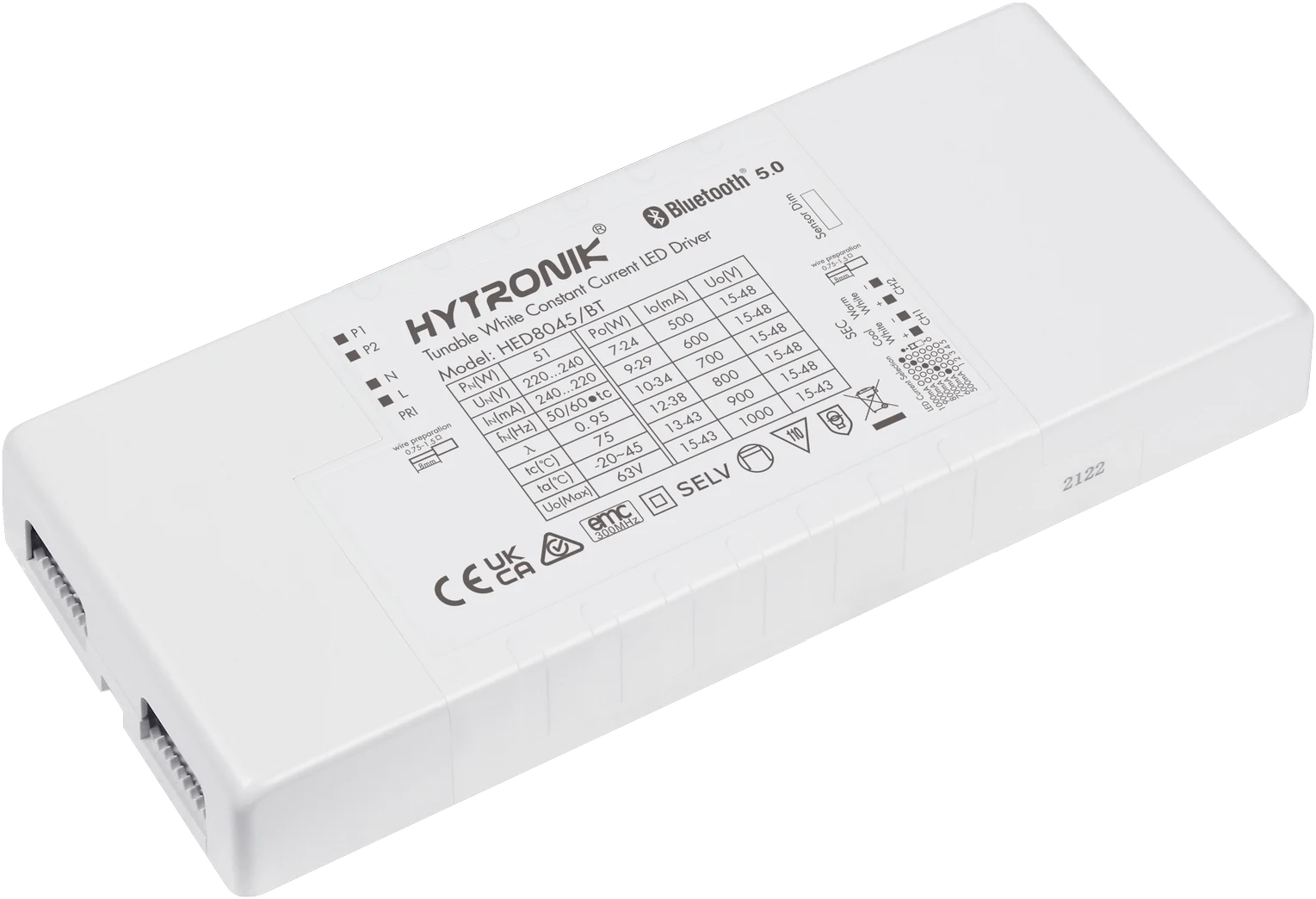

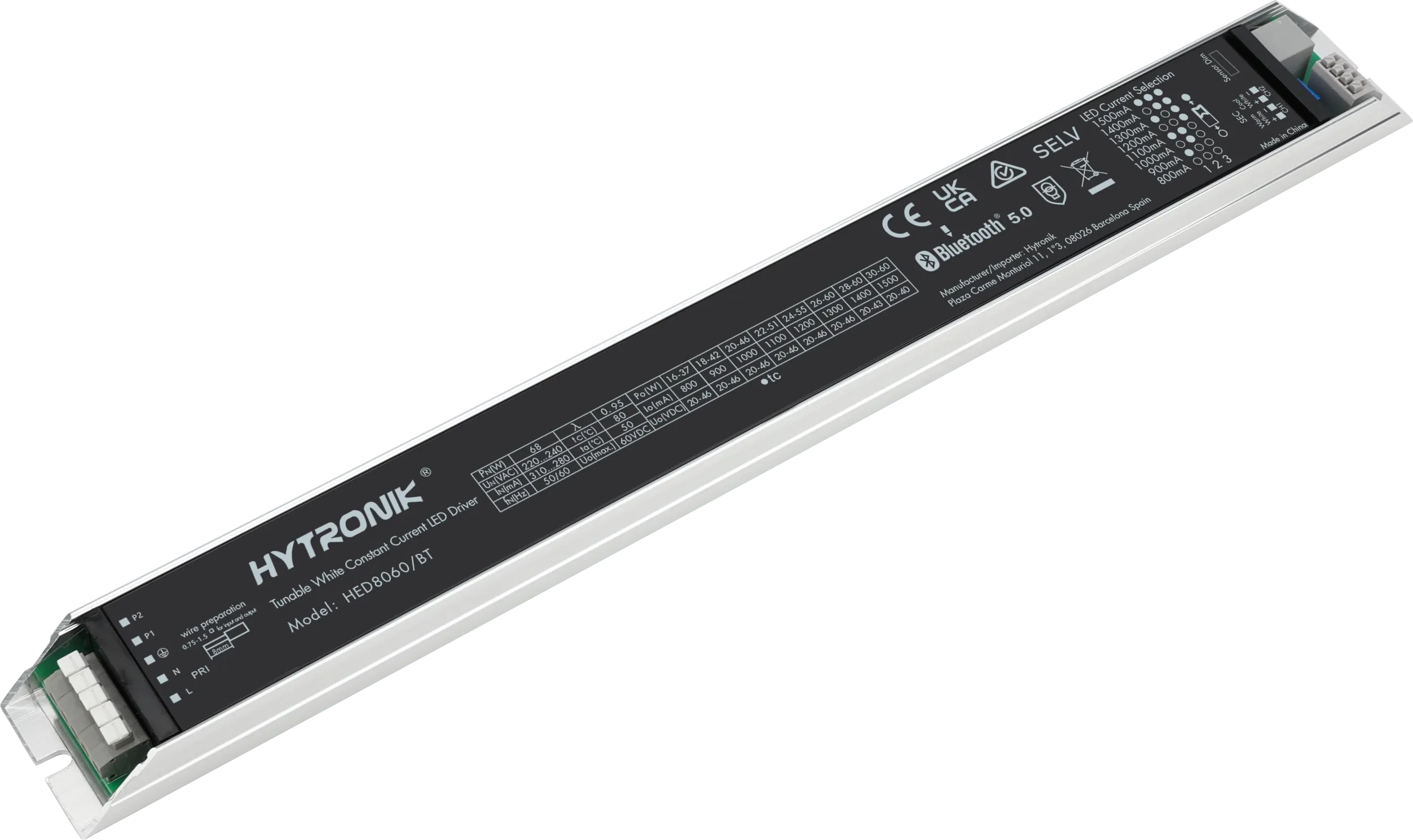

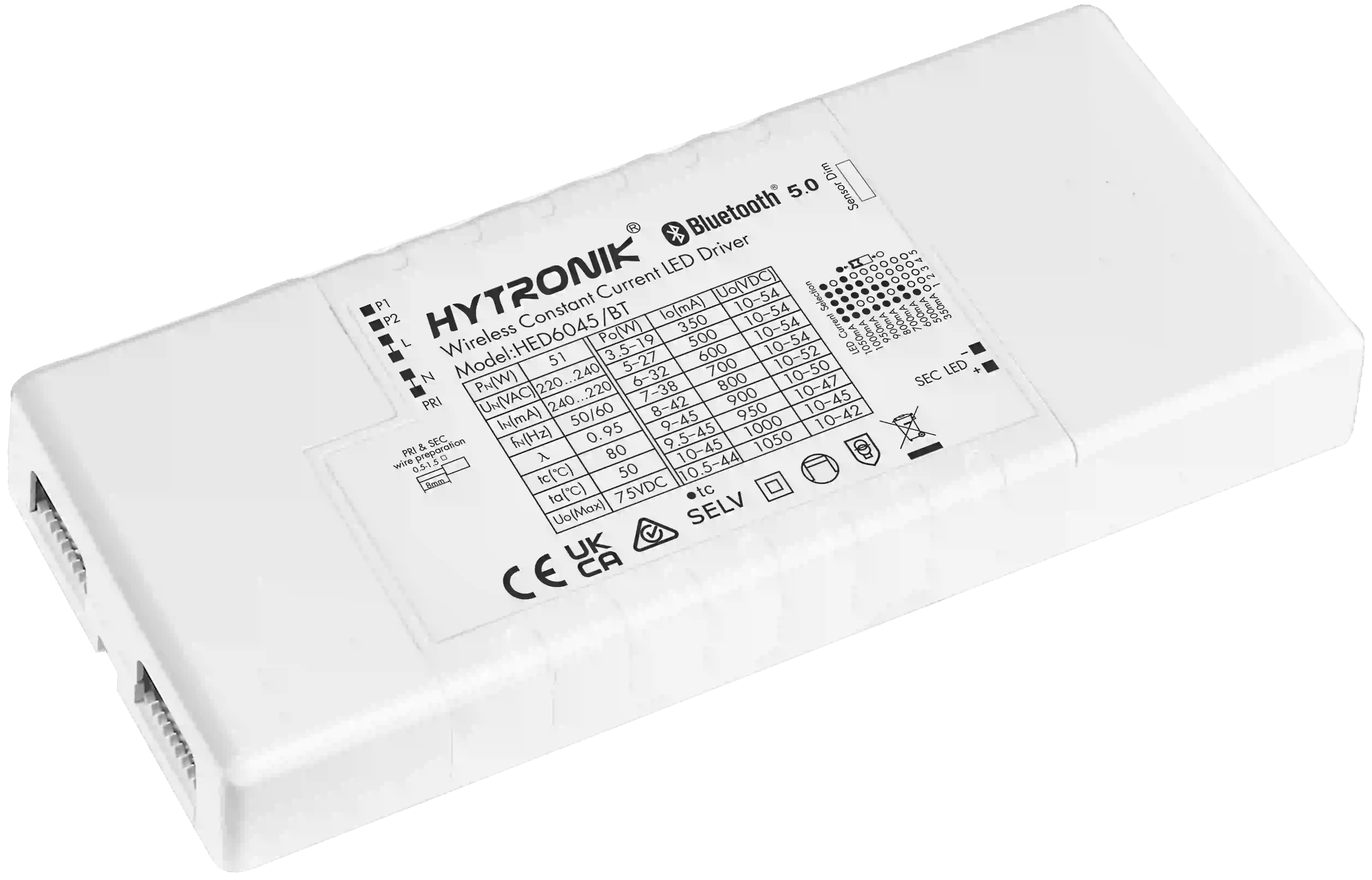

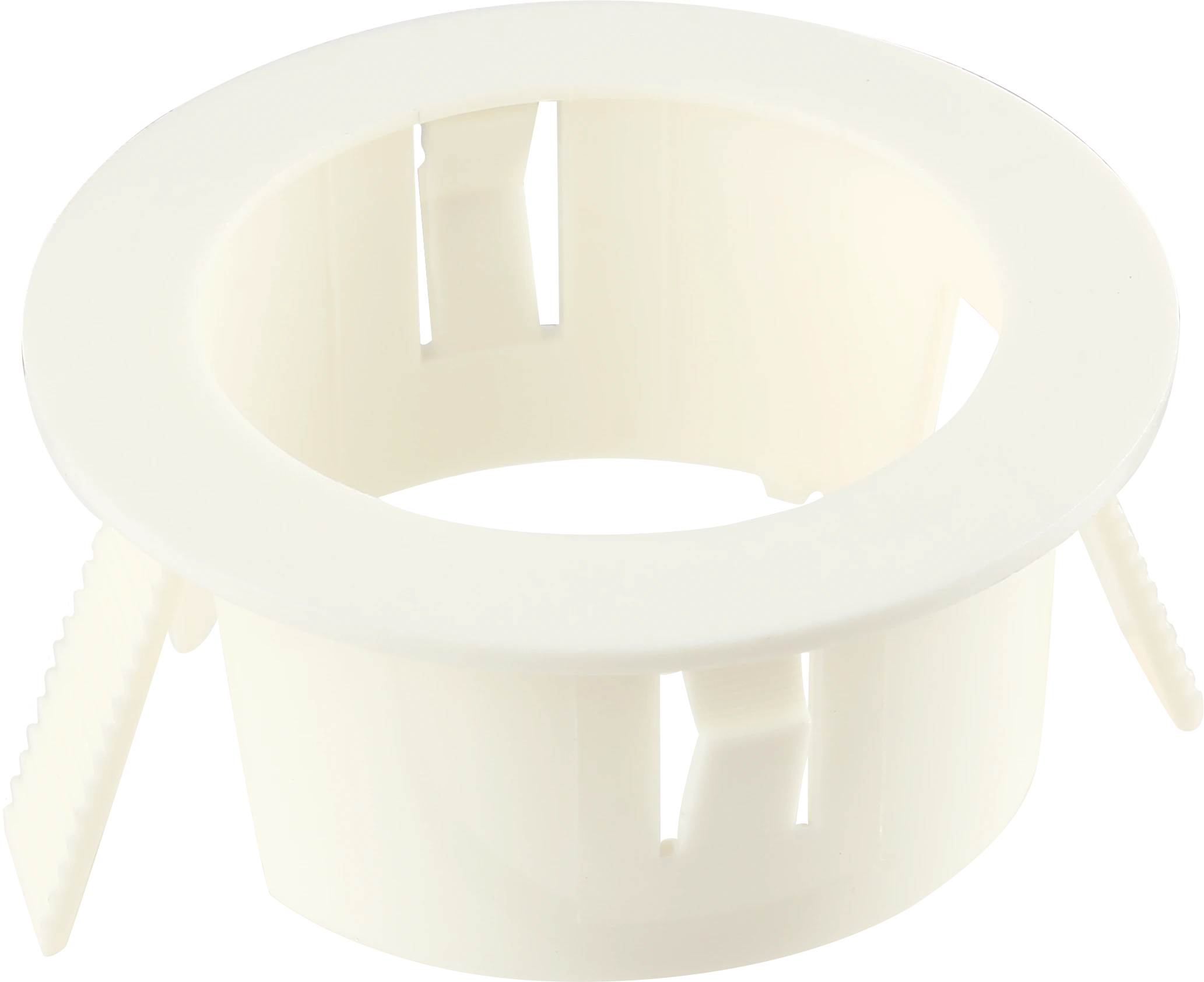

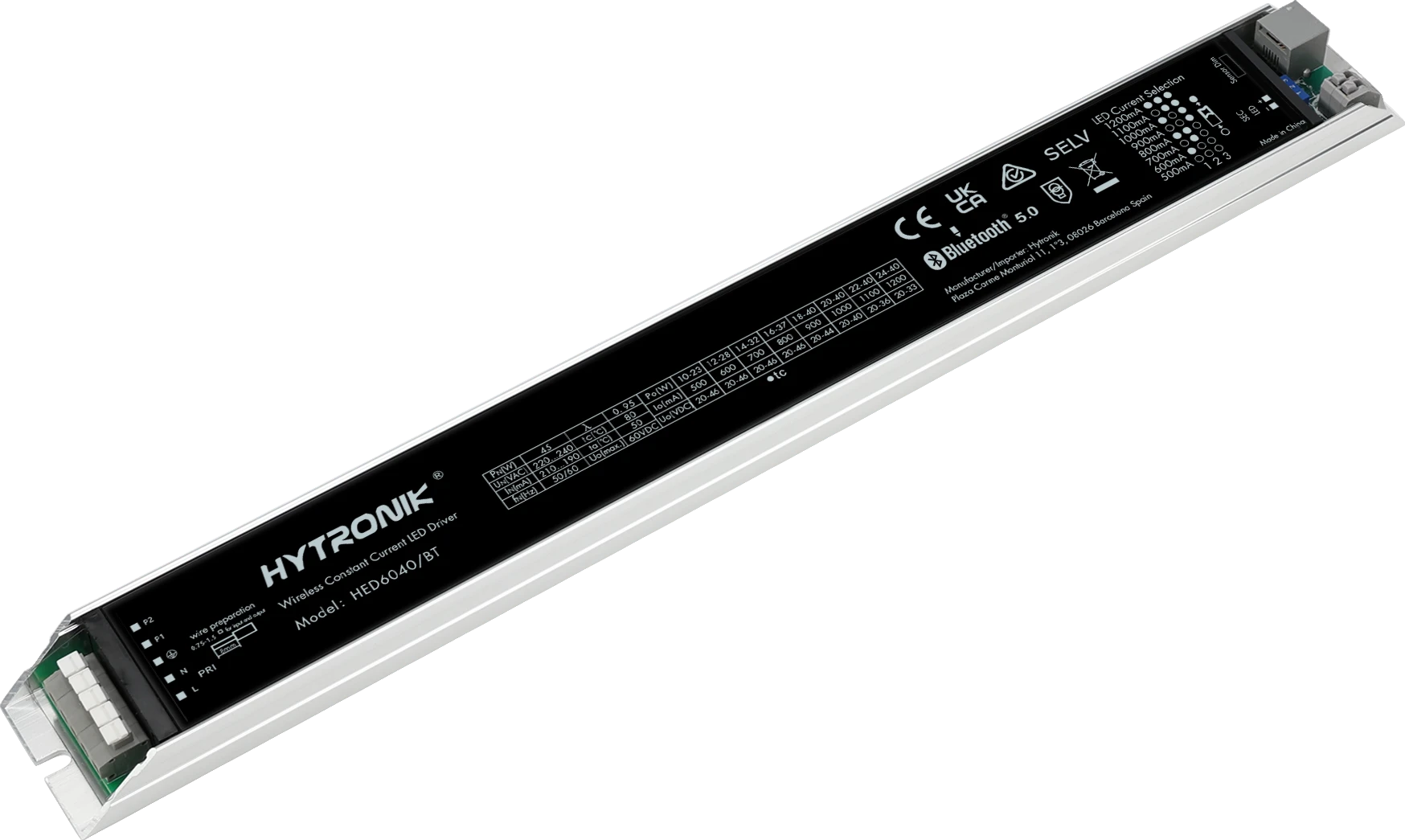

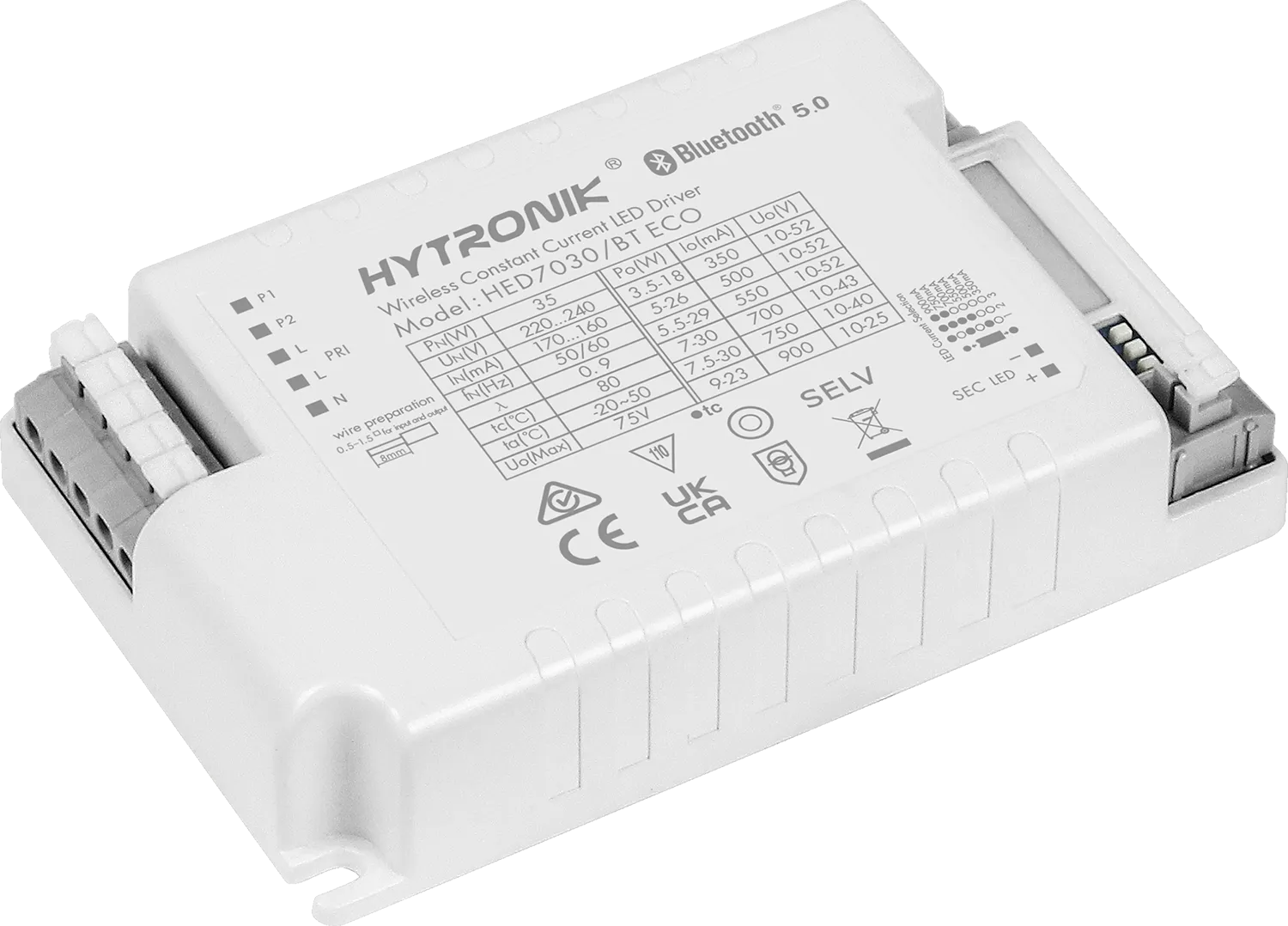

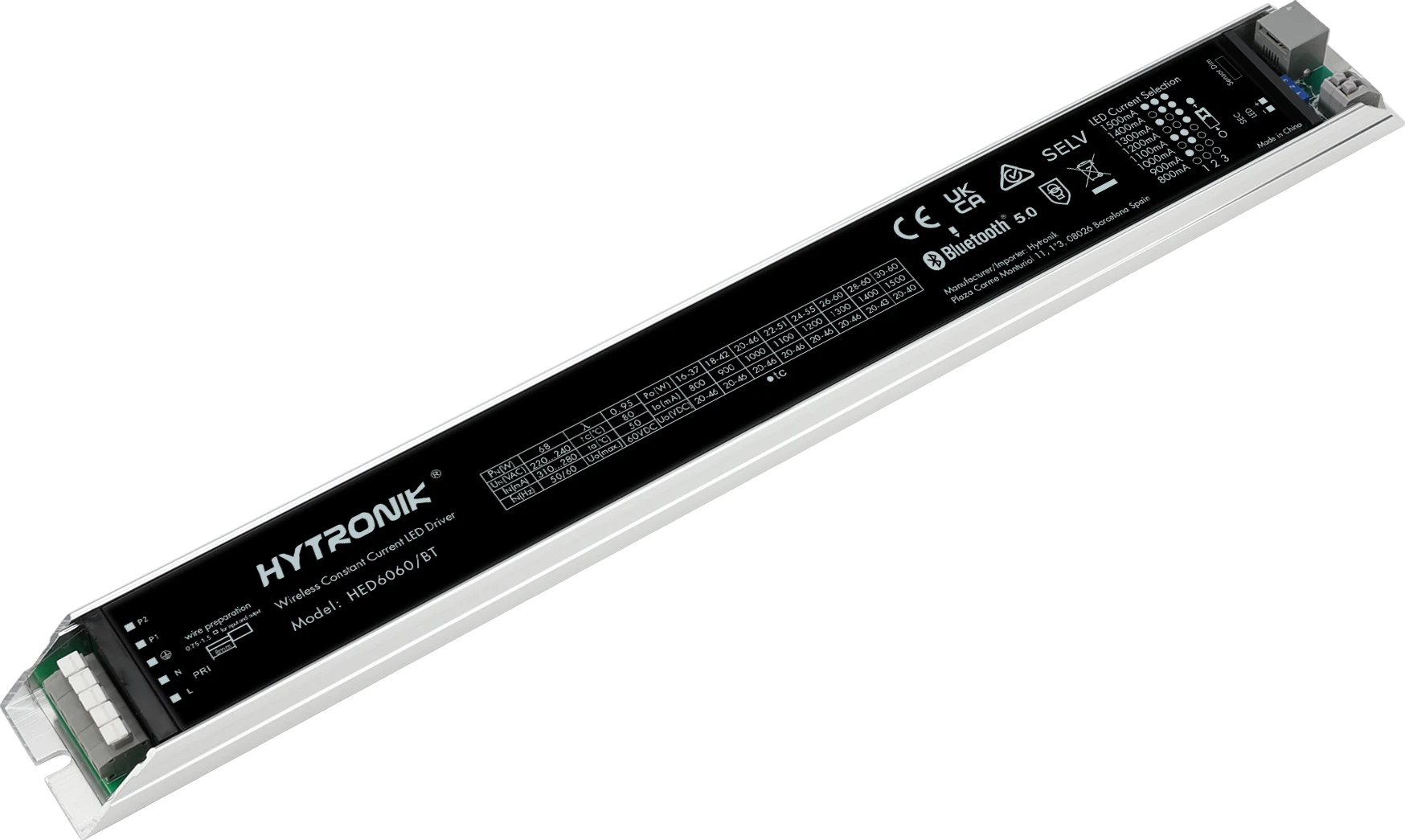

Compatible products (for full functionality)
