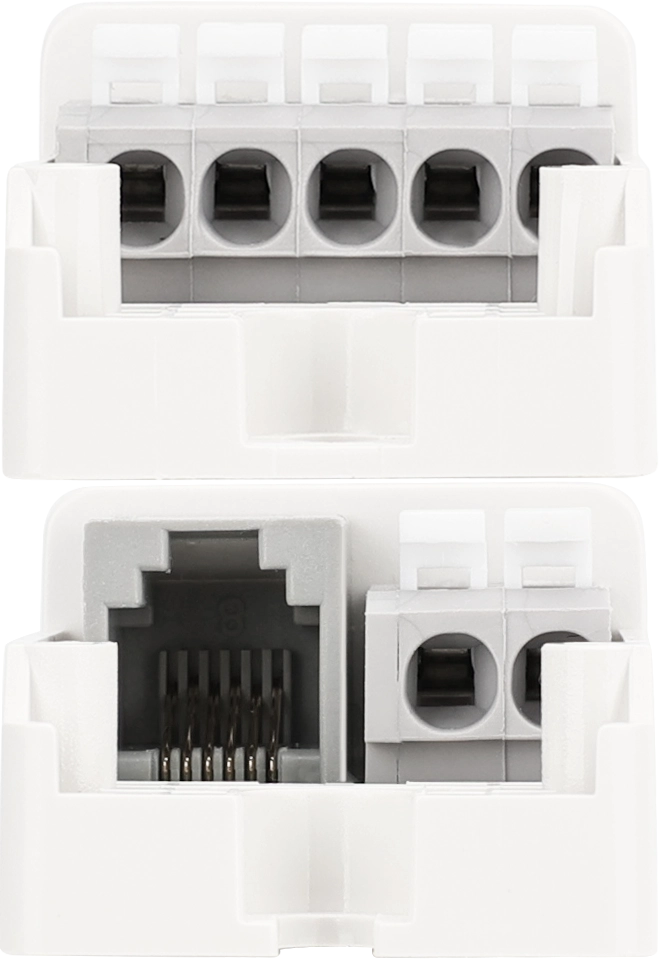

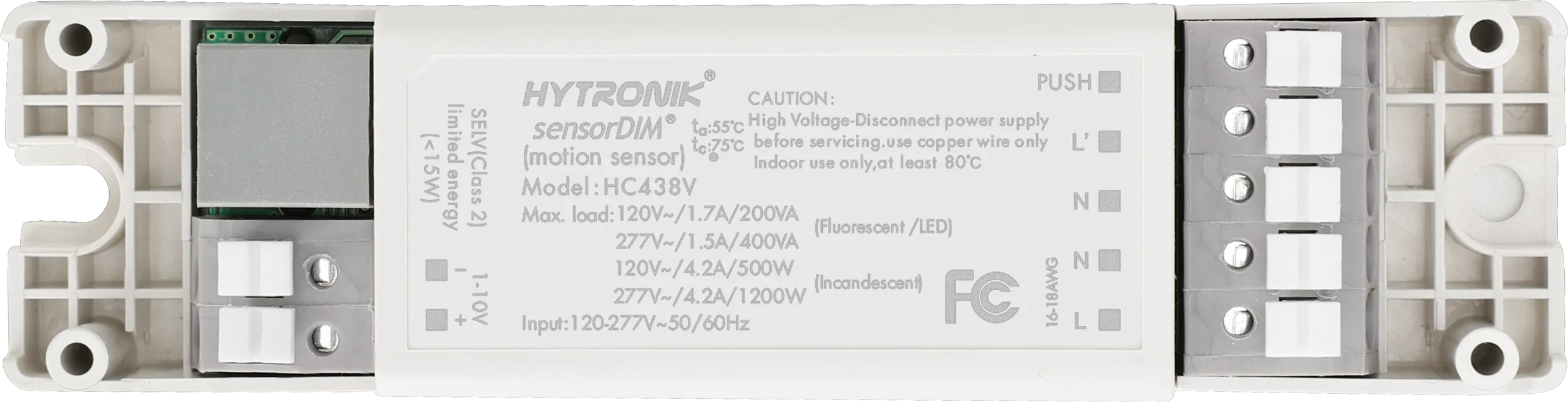

HC438V
Control unit | 1-10V Dimming | Attachable sensor heads
BENEFITS
- Adaptable: Small control unit with strain relief
- Versatile: Suitable for various sensor head options via Plug’n’Play
- Easy setting: 1 switch-Dim (PUSH) terminal
APPLICATIONS
- Master luminaire with sensor
- School/Classrooms
- Office/Commercial Lighting
Product information "HC438V"

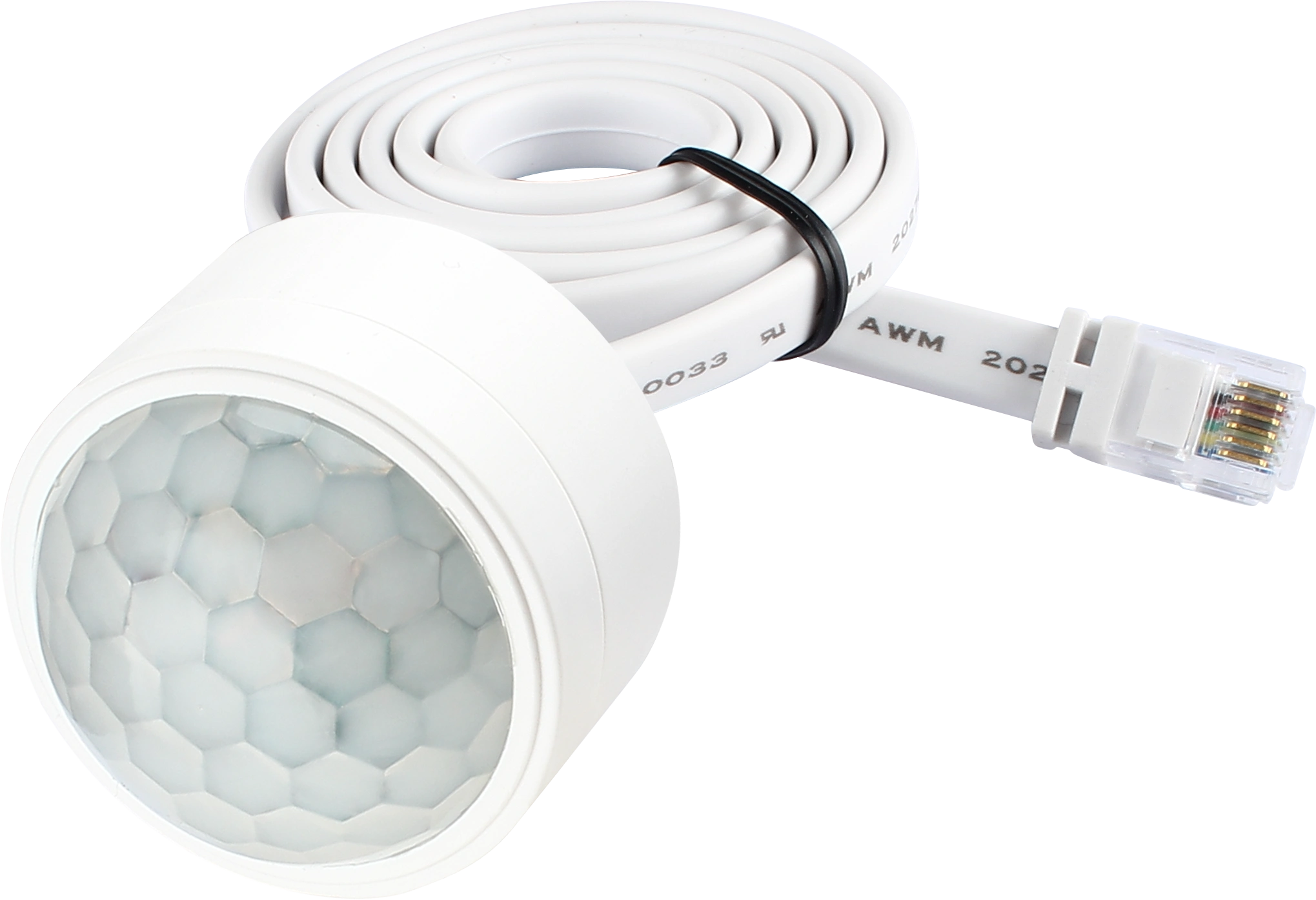

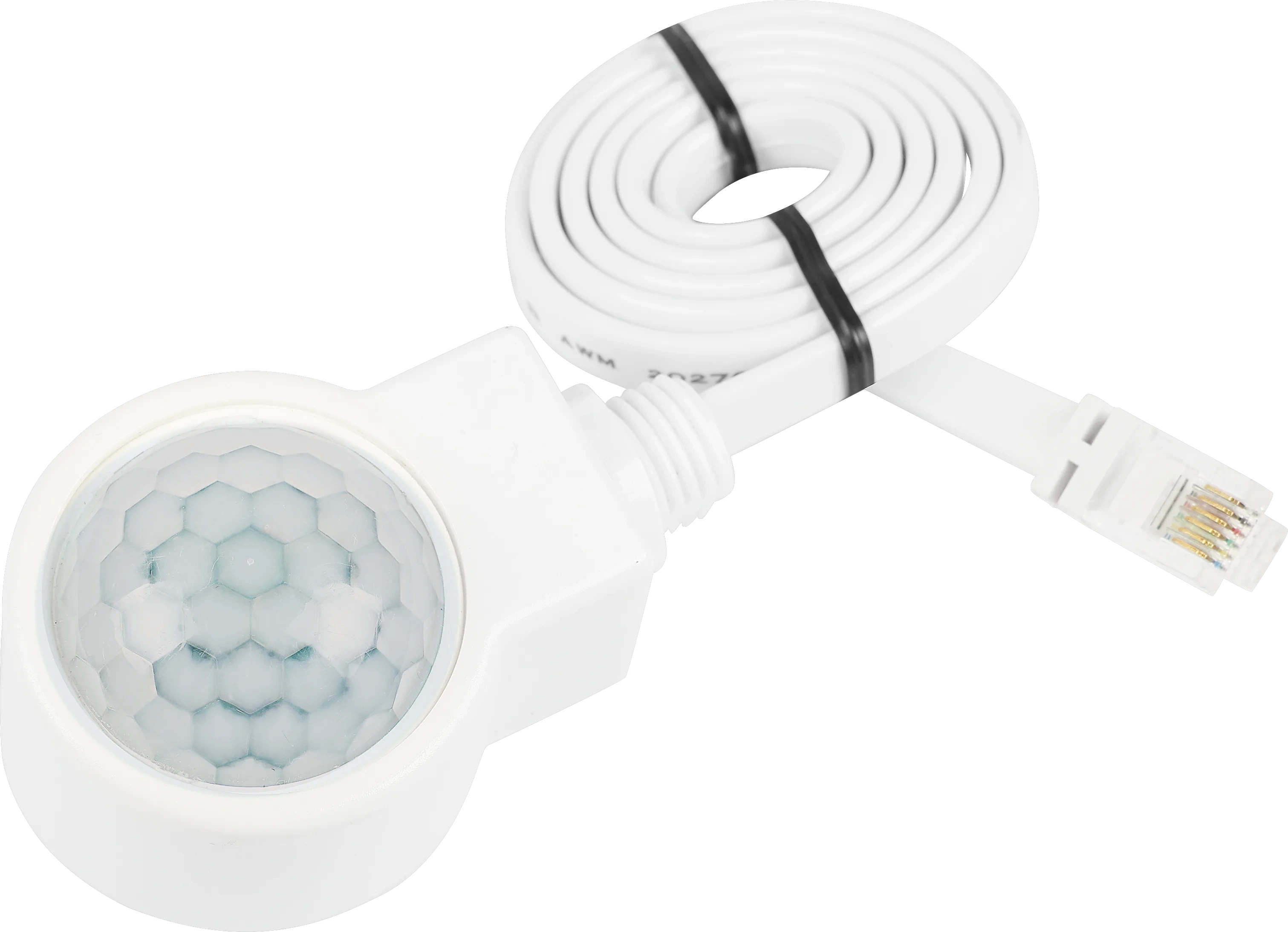

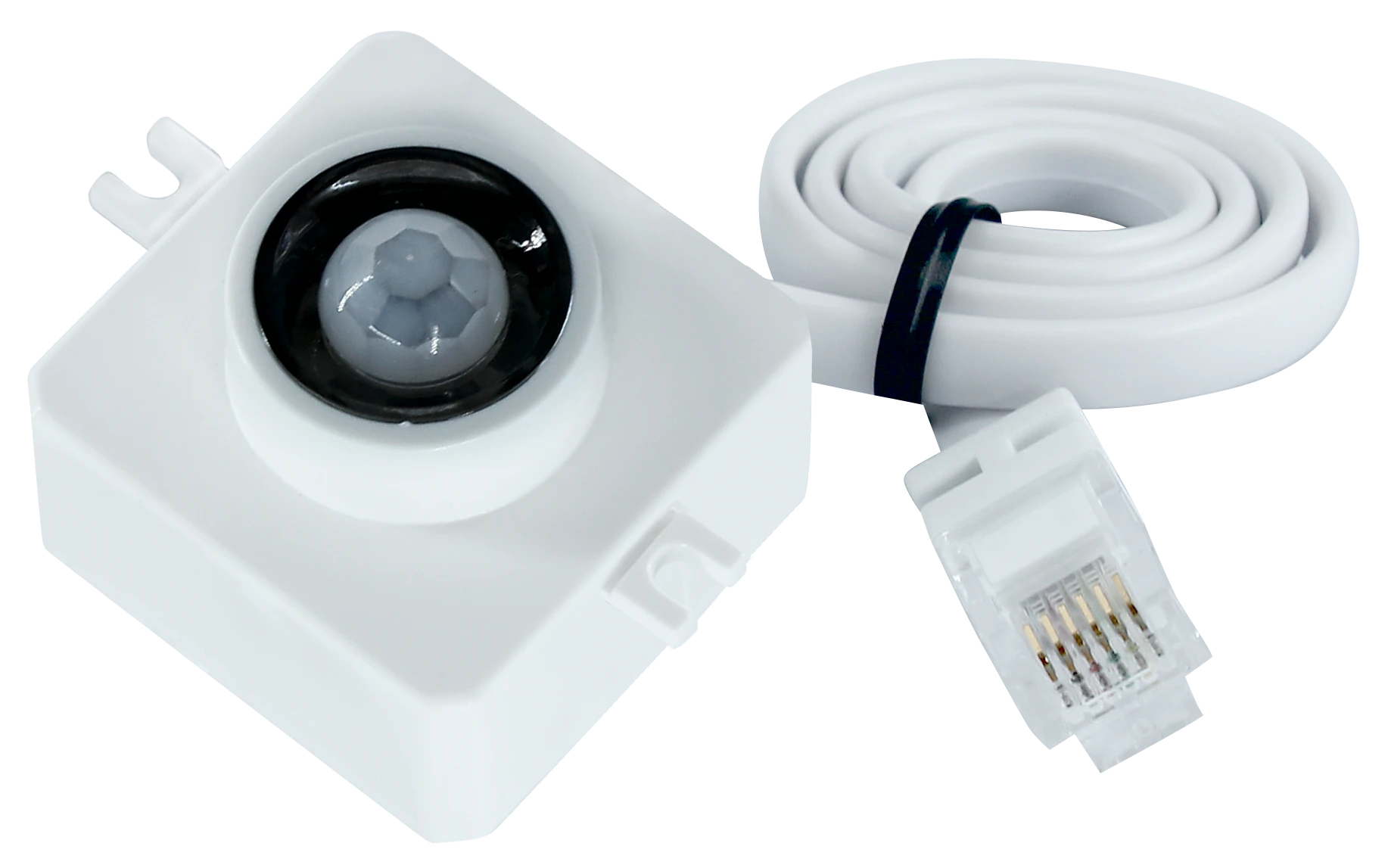

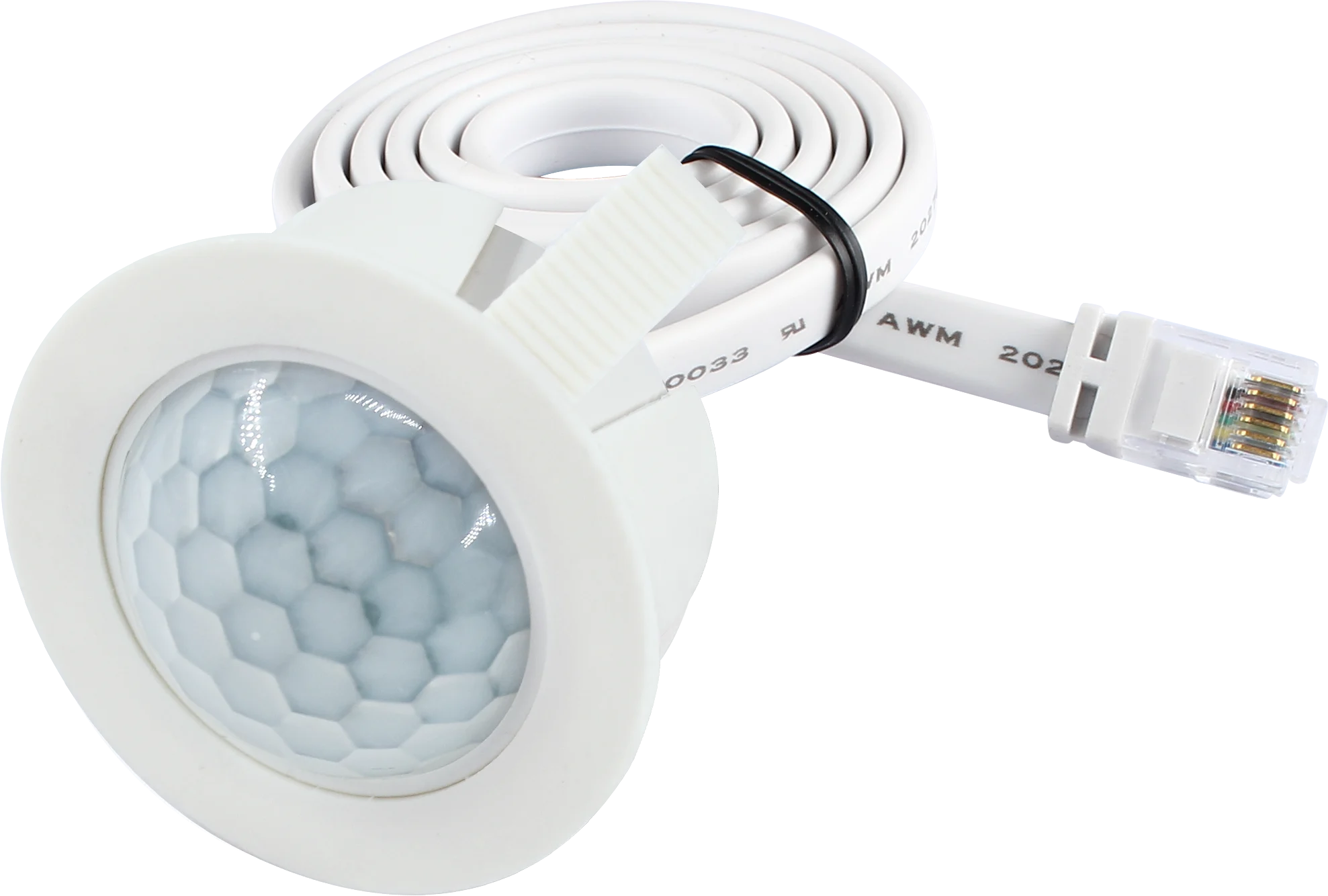

HC438V is a 1-10V control unit. It works with a wide range of
microwave and PIR sensor heads. They are ideal for metal luminaire designs
because the Bluetooth module is placed inside the sensor head instead of
control unit, so that the Bluetooth signal transmission is viable. They are
suitable for any typical indoor applications such as offices, classrooms, car
parks, warehouses and other commercial/industrial areas. With Bluetooth
wireless mesh networking, it makes communication much easier without any
hardwiring, which eventually adds values to luminaires and saves costs for
projects.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Connector Type: | RJ12 |
| Detection Methods: | Microwave (MW), Passive Infrared (PIR) |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Operating voltage range: | 120-277 VAC |
| Product height: | 21.0000 mm |
| Product length: | 120.0000 mm |
| Product weight: | 60.0000 g |
| Product width: | 30.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hc438v.pdf
Login

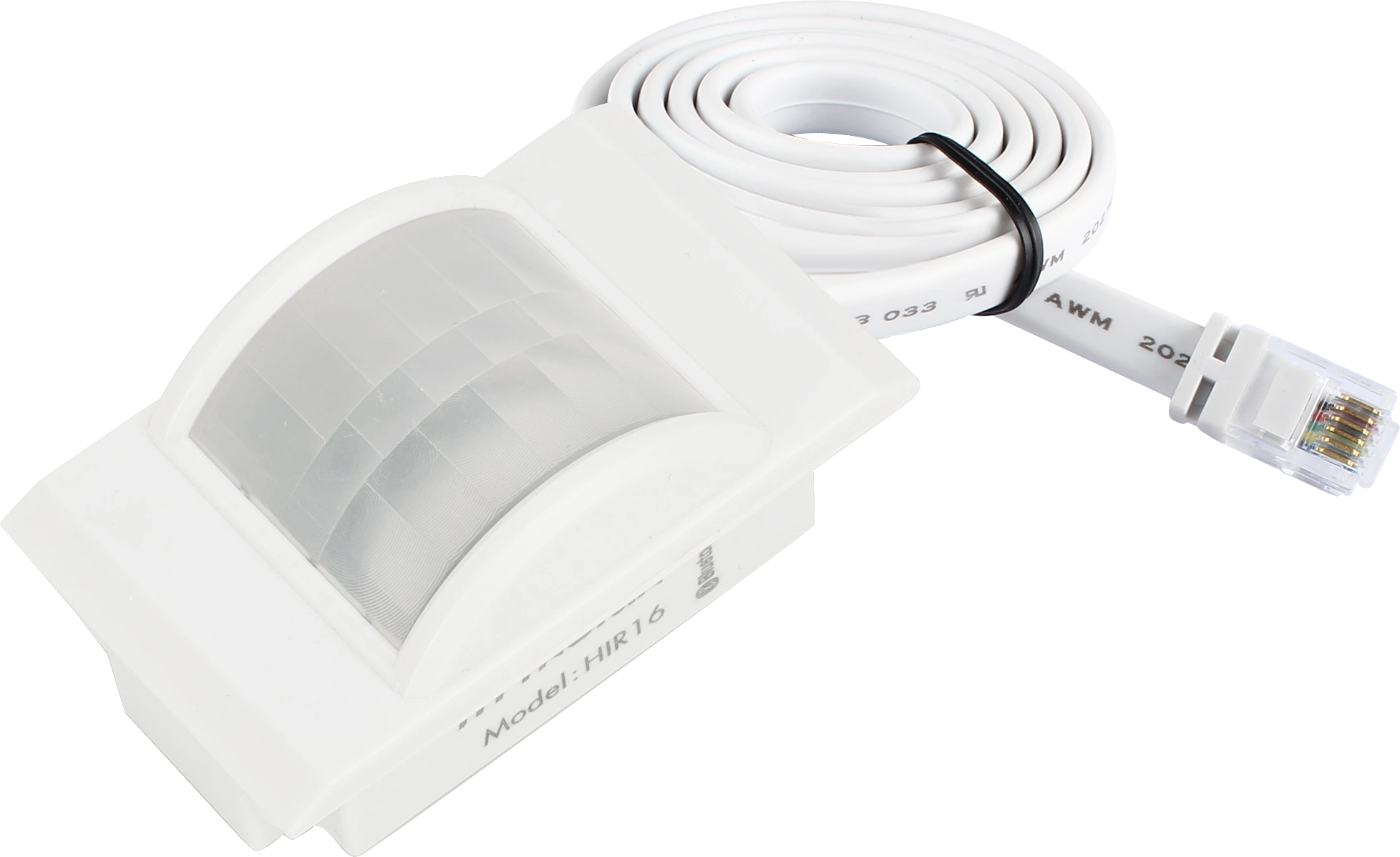

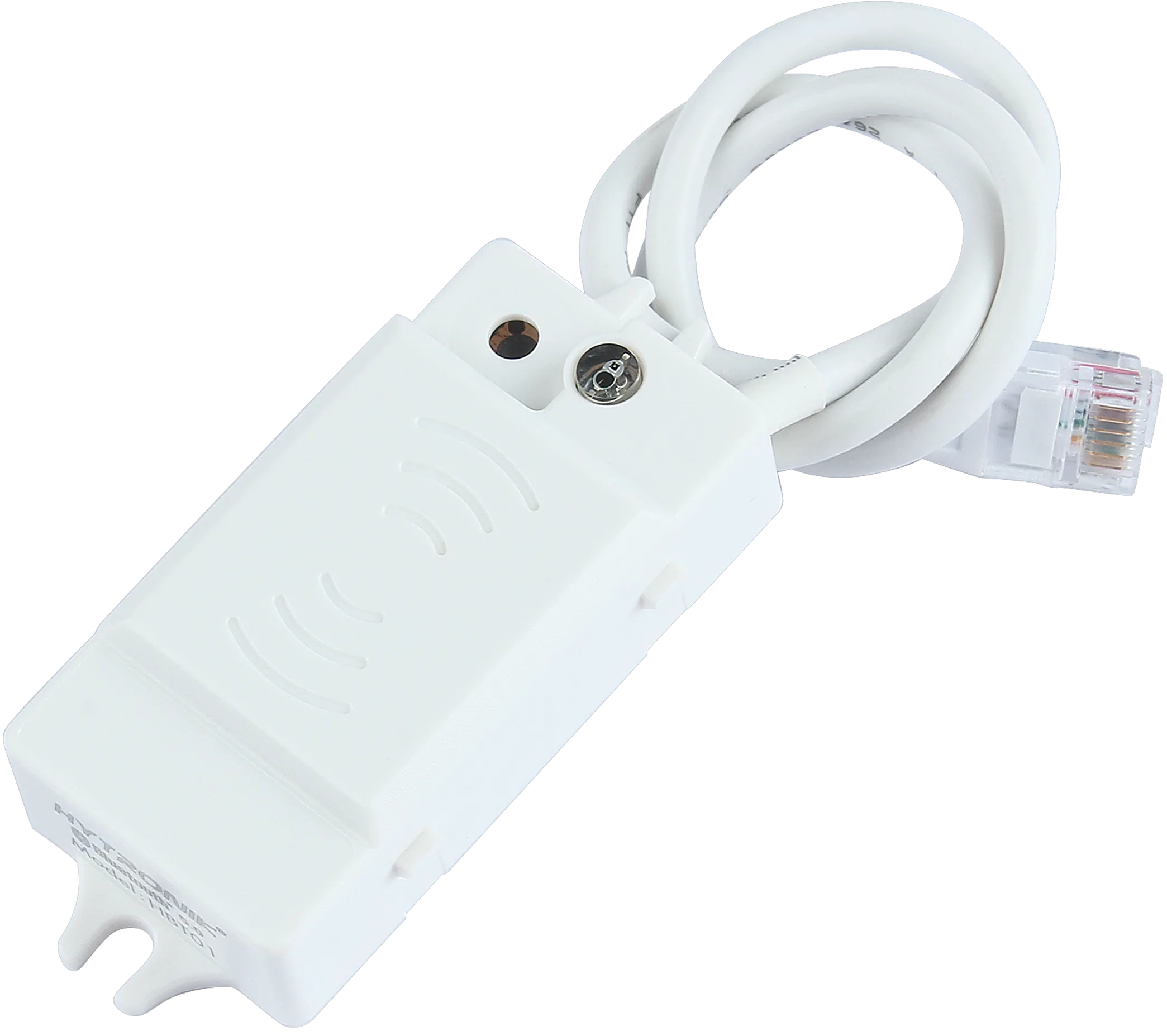

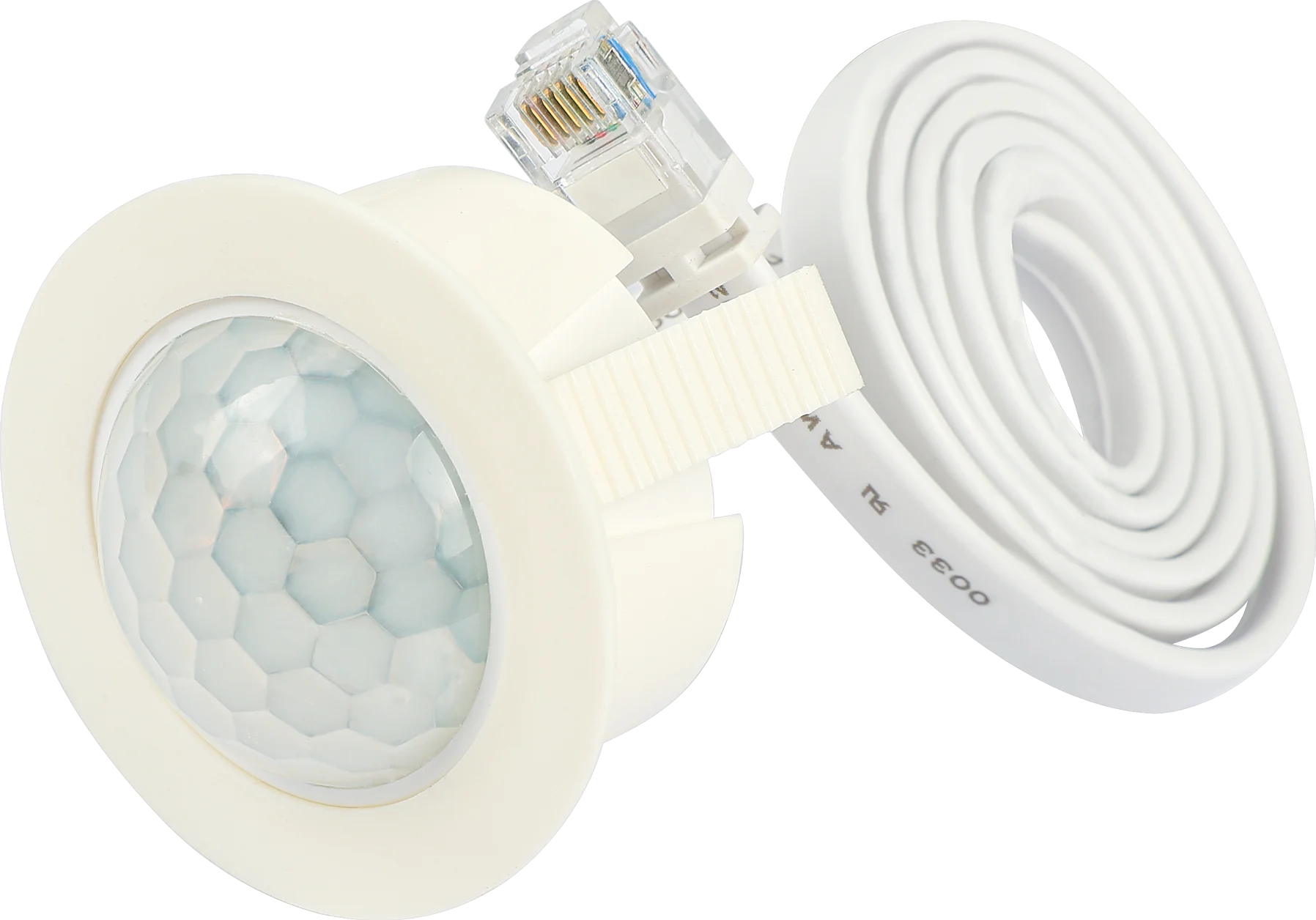

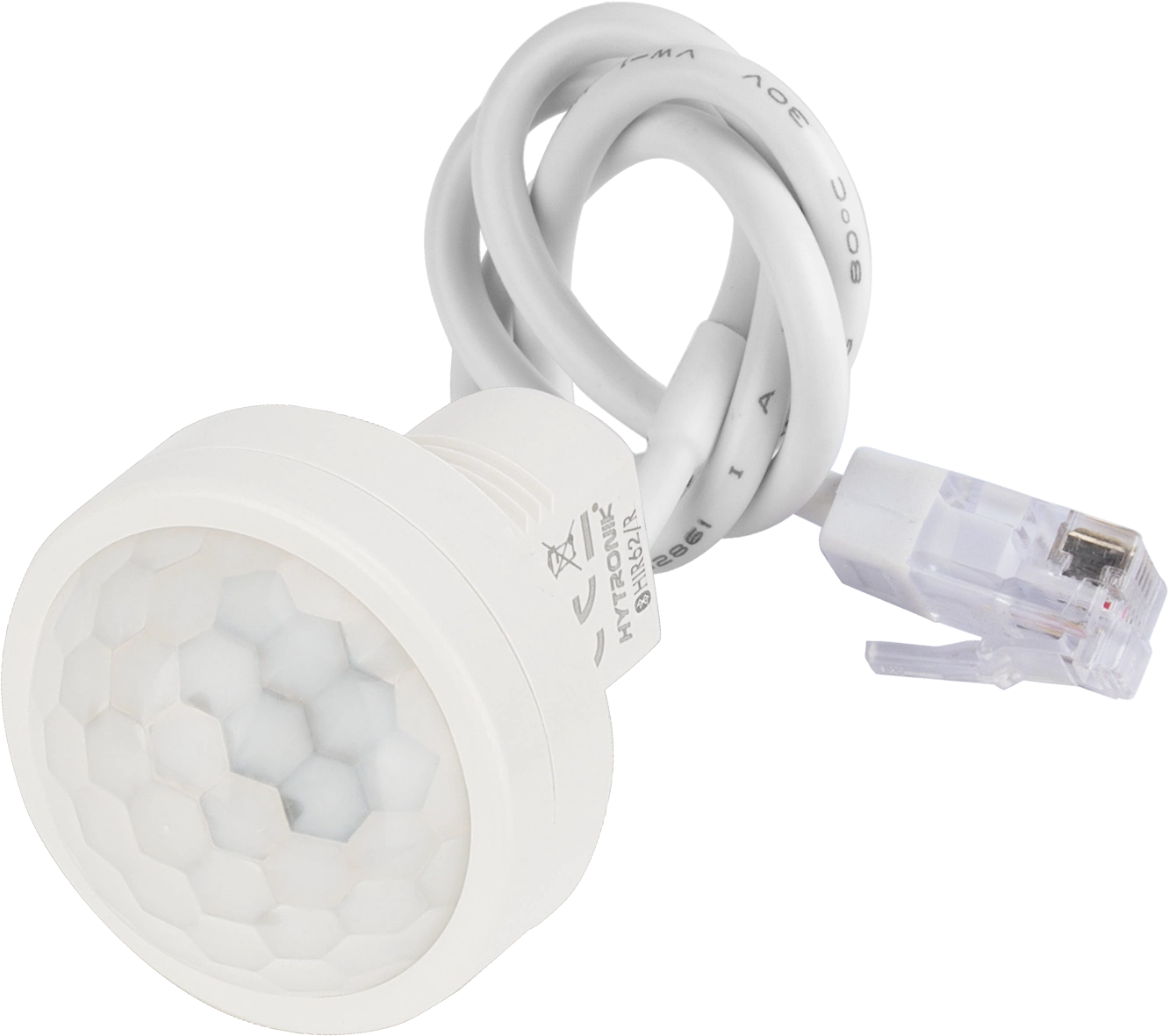

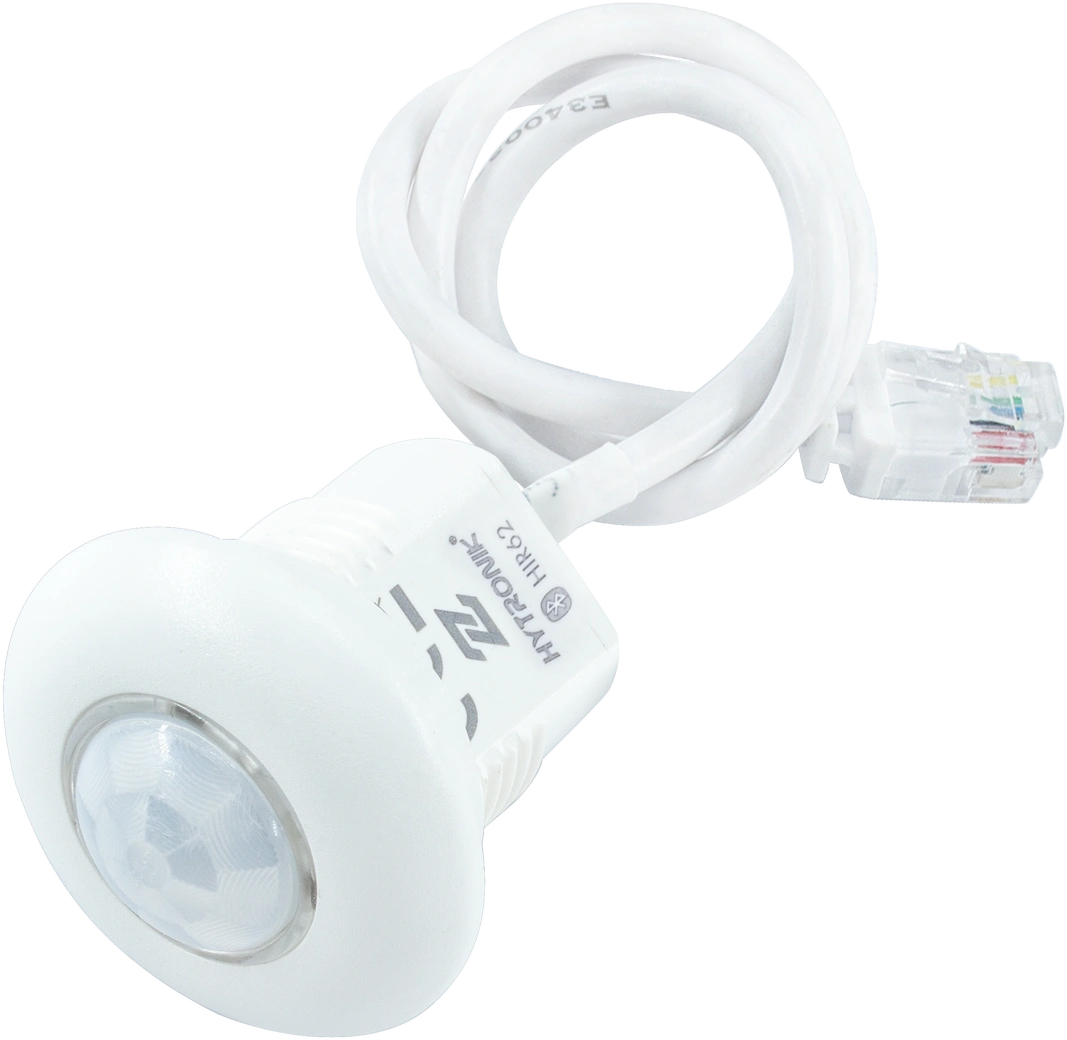

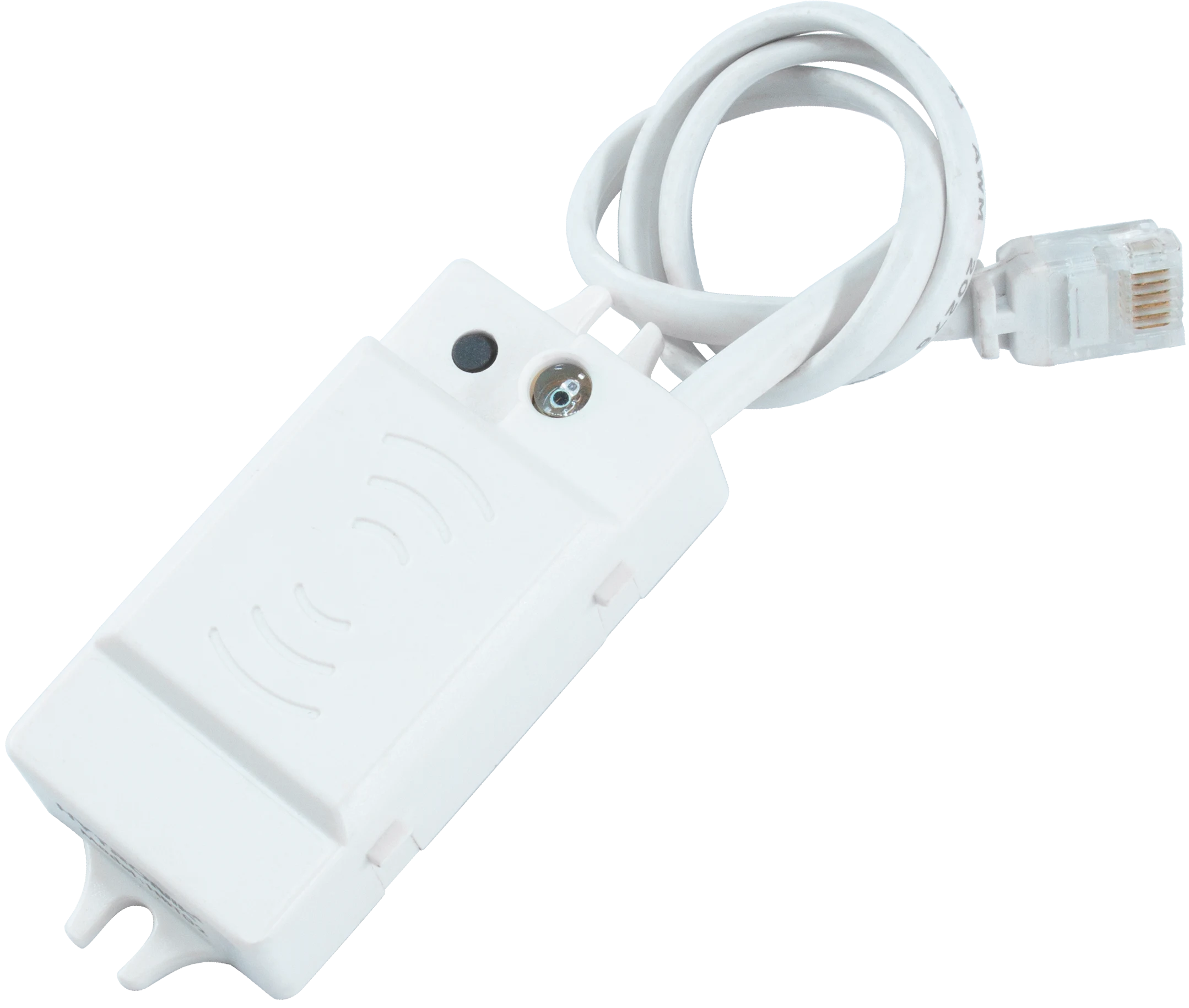

Compatible products (for full functionality)
