HBP02
Bluetooth Touch Panel | Real-time keeper | 4 Scenes
BENEFITS
- Minimalist: Very clear actions for each button
- Configurable: Up to 4 scenes and colour dimming
- Auto: Tell the sensor to take over and keep real time
APPLICATIONS

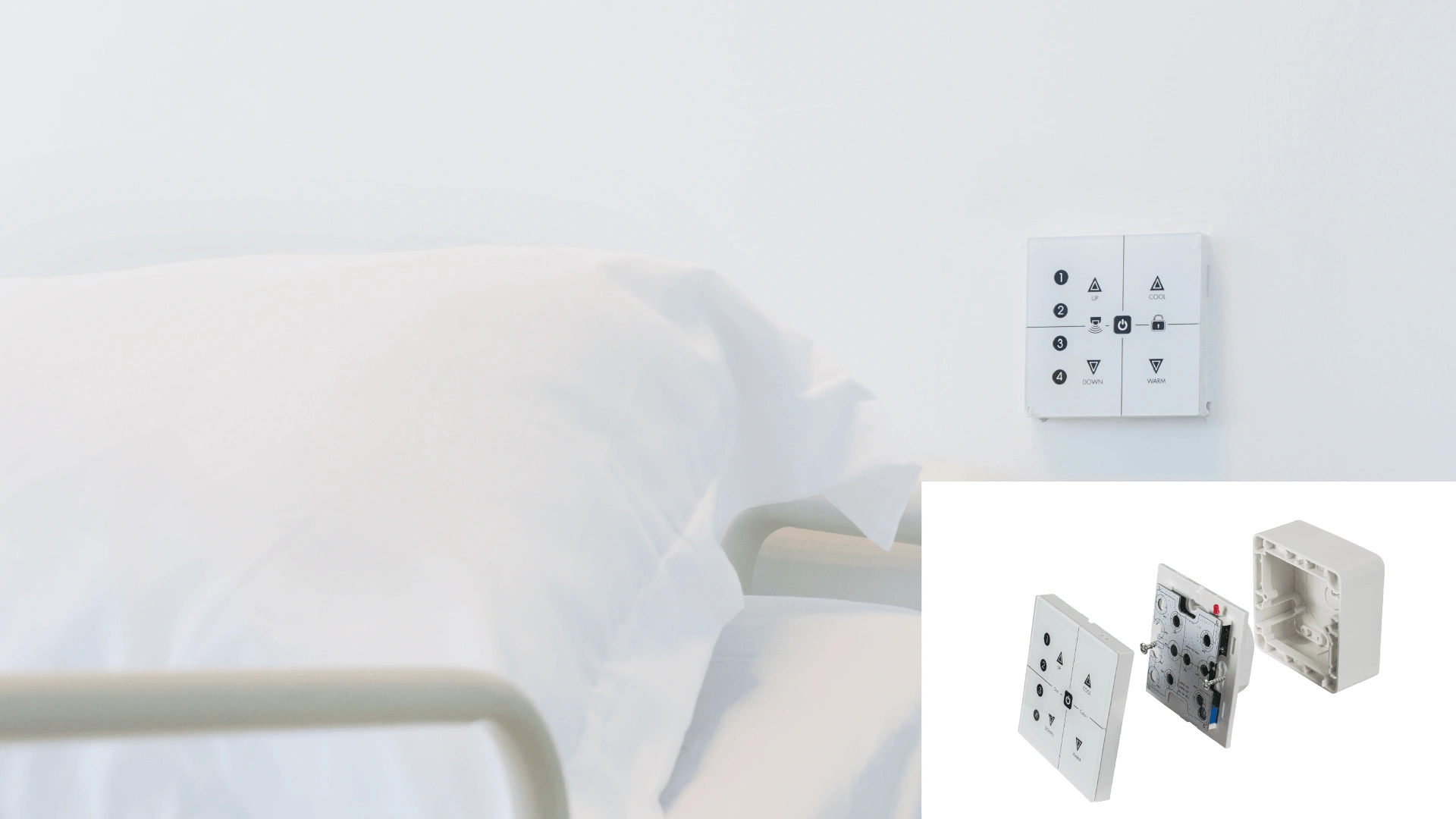

- Wall switch mounting boxes
- Classrooms, Meeting rooms
- Maintenance and control rooms
Product information "HBP02"

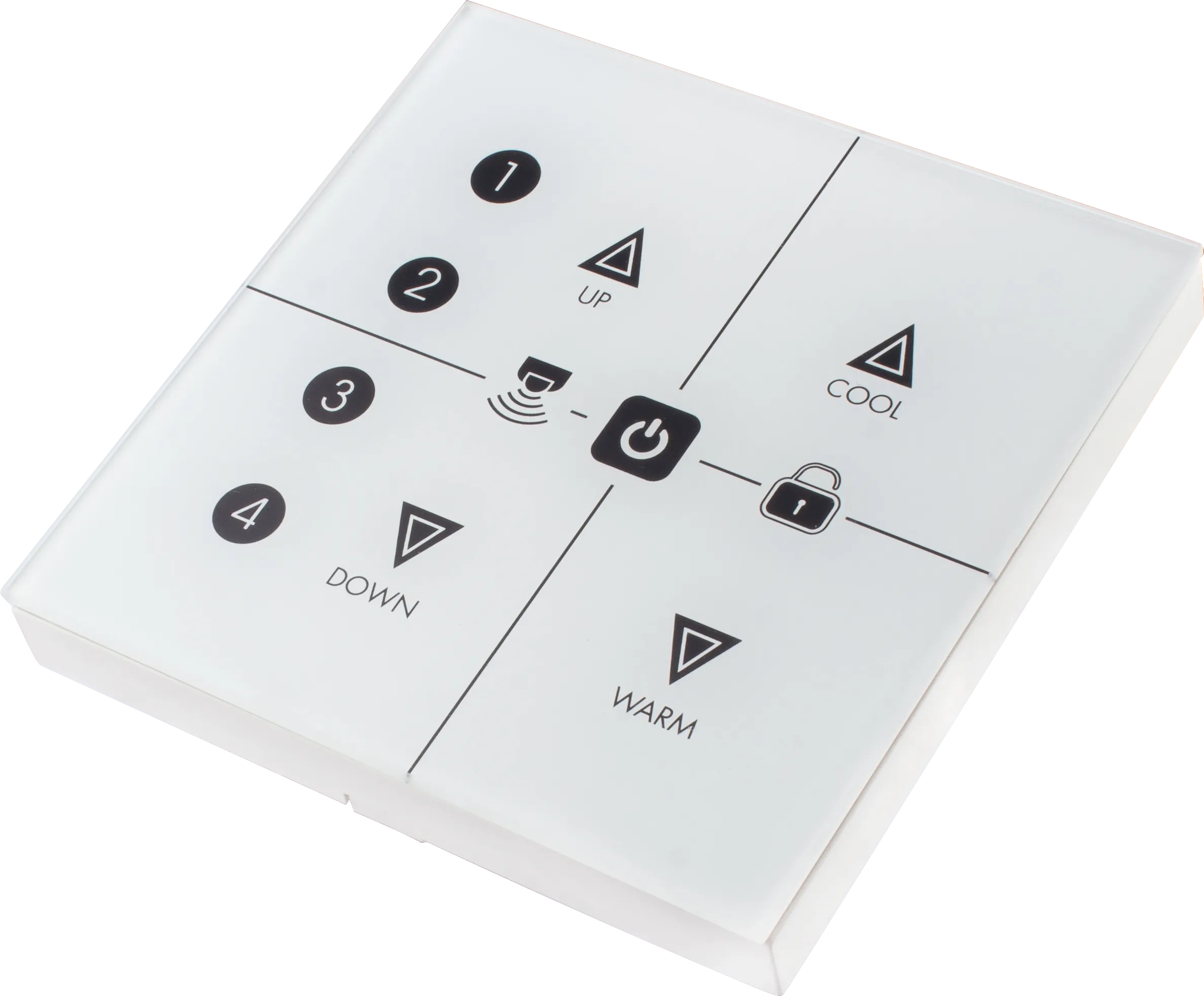

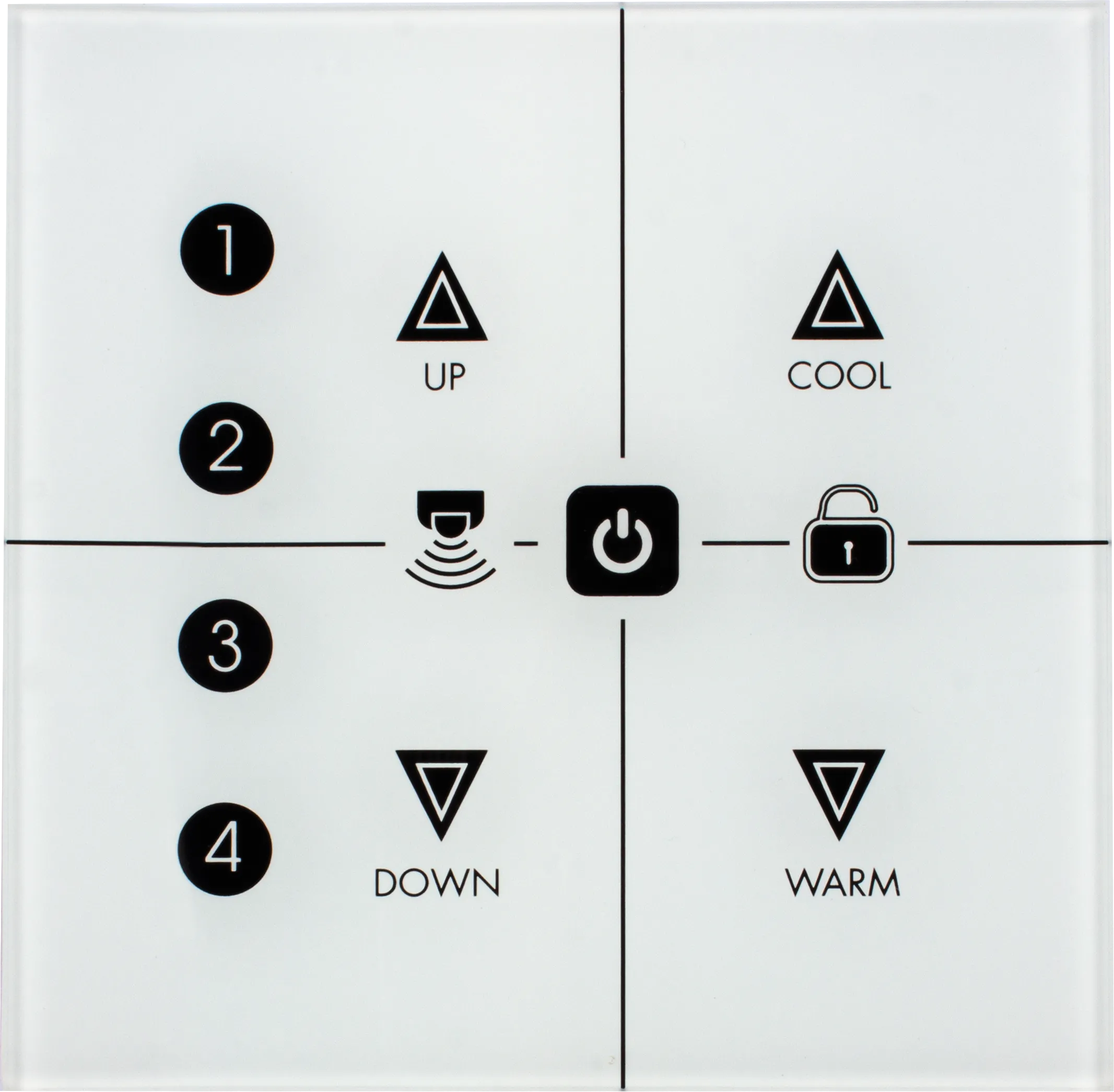

HBP02 is a wall-mounted touch panel meticulously crafted to seamlessly interface with the Hytronik range of Bluetooth products. It offers 6 programmable scenes, along with precise control over brightness and tunable white settings. Elevating user experience, we've introduced a "sensor take-over" button and a "clean mode" button for added functionality.
Programming the HBP02 is effortlessly achieved through the Koolmesh app, providing users with a versatile and user-friendly platform for customization. Experience enhanced control and convenience with HBP02, ensuring optimal operation and versatility in managing your lighting preferences.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | 20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Category - System Level Components: | Wall Panel |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 36.0000 mm |
| Product length: | 98.0000 mm |
| Product weight: | 113.0000 g |
| Product width: | 86.0000 mm |
| Zhaga: | No |
Datasheets
Product datasheet: hbp02.pdf
