HCD438
Control body | DALI with PSU | Attachable sensor heads | US Certified
BENEFITS
- Adaptable: Small control unit with strain relief
- Versatile: Many sensor options for DALI control
- Support: available to control DT8 LED drivers
APPLICATIONS

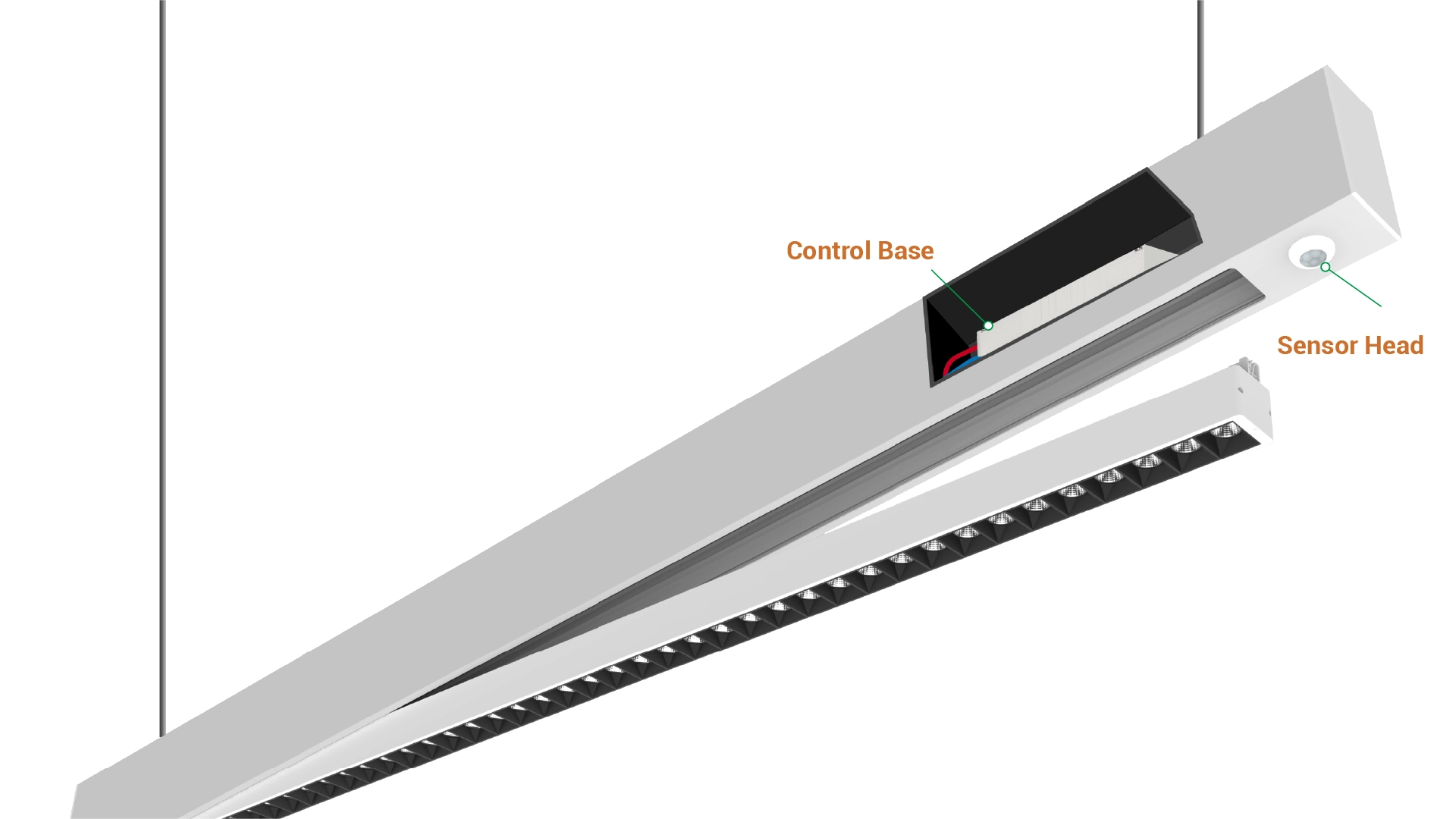

- Master luminaire with sensor
- Classrooms
- Offices
Product information "HCD438"

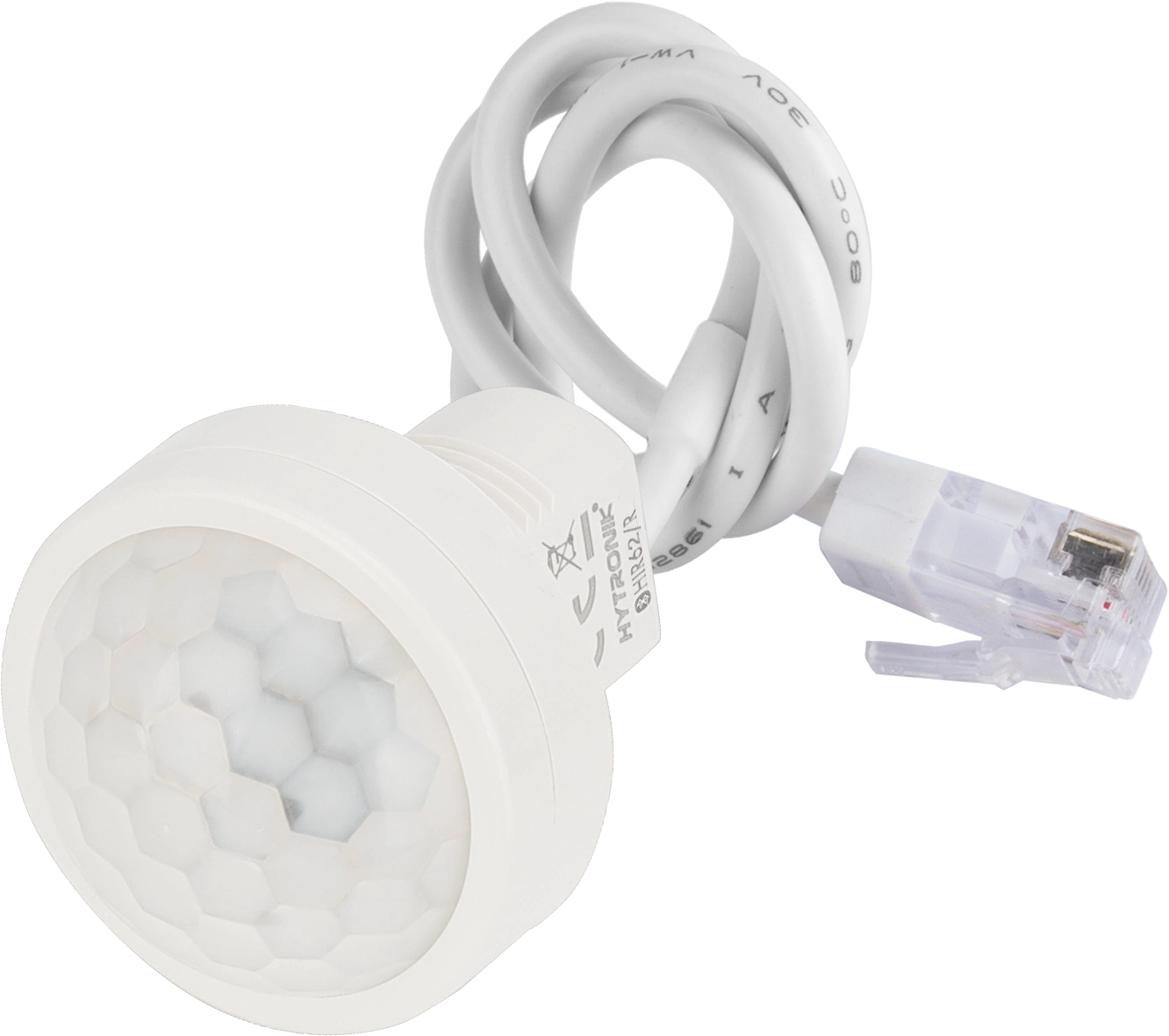

HCD438 is a DALI control base with 30mA DALI power supply built in. They work with a wide range of microwave and PIR sensor heads. It is ideal for metal luminaire designs because the Bluetooth module is placed inside the sensor heads instead of control base. It is suitable for any typical indoor applications.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Mounting hole: | 4.5000 mm |
| Operating voltage range: | 120-277 VAC |
| Product height: | 21.0000 mm |
| Product length: | 110.5000 mm |
| Product weight: | 50.0000 g |
| Product width: | 30.0000 mm |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
Datasheets
Product datasheet: hcd438.pdf
