Active / New
HCD038/P
Control unit | DALI with PSU | Attachable sensor heads
BENEFITS
- Adaptable: Small control unit with strain relief
- Versatile: Many sensor options for DALI control
- Flexible: 2 Push inputs for fiexible manual control
APPLICATIONS

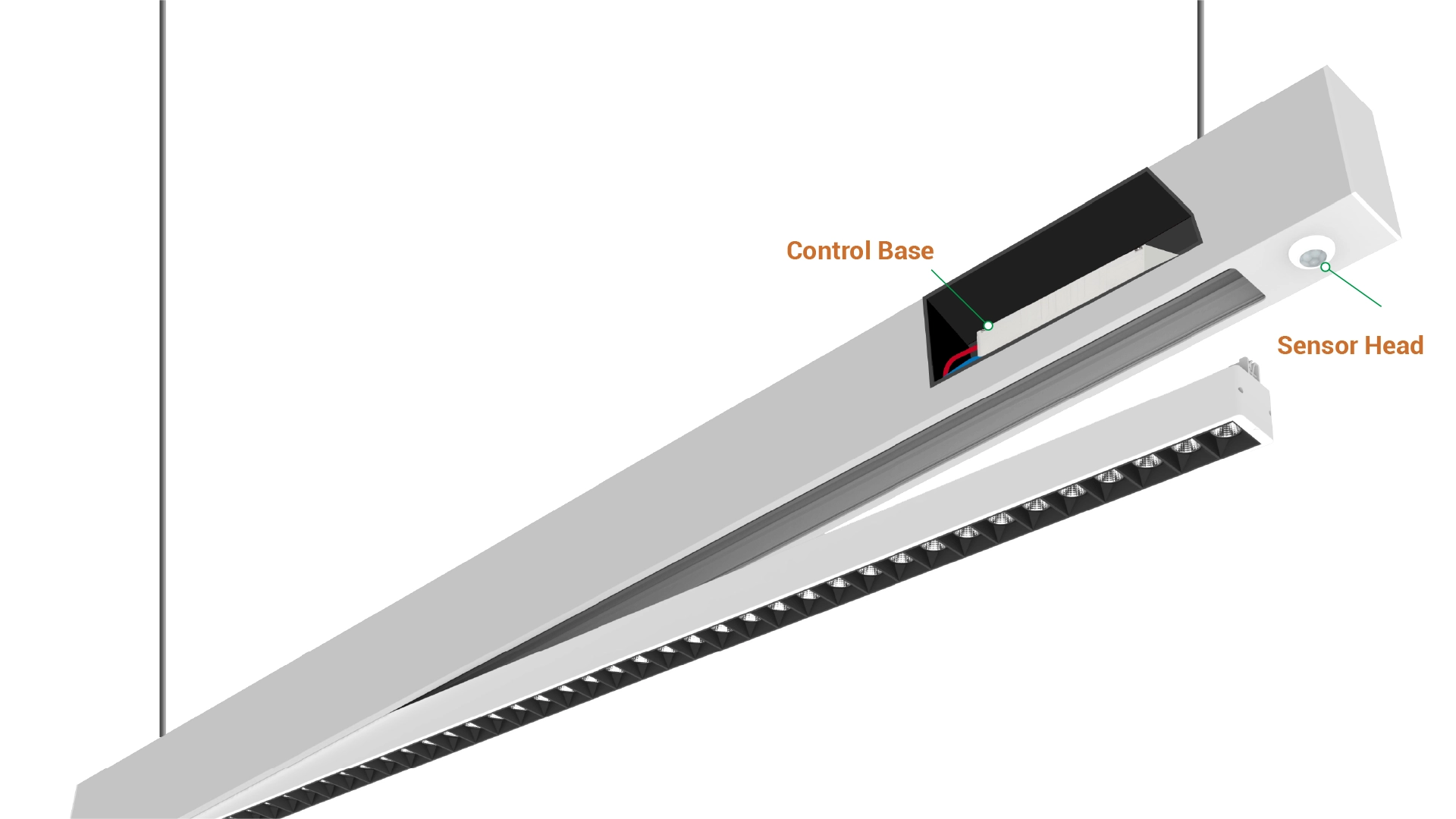

- Master luminaire with sensor
- Classrooms
- Offices

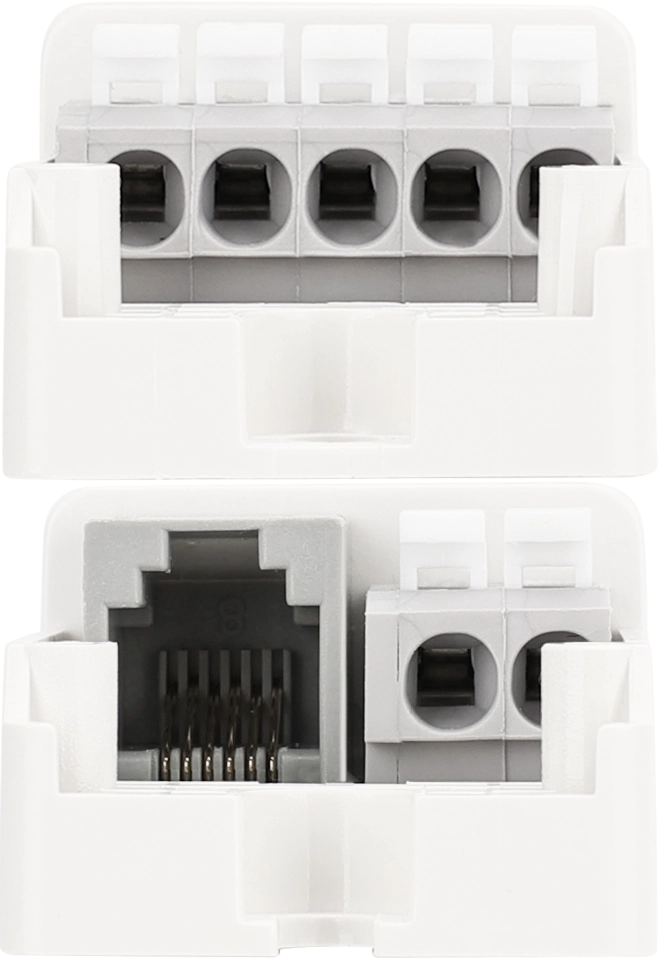

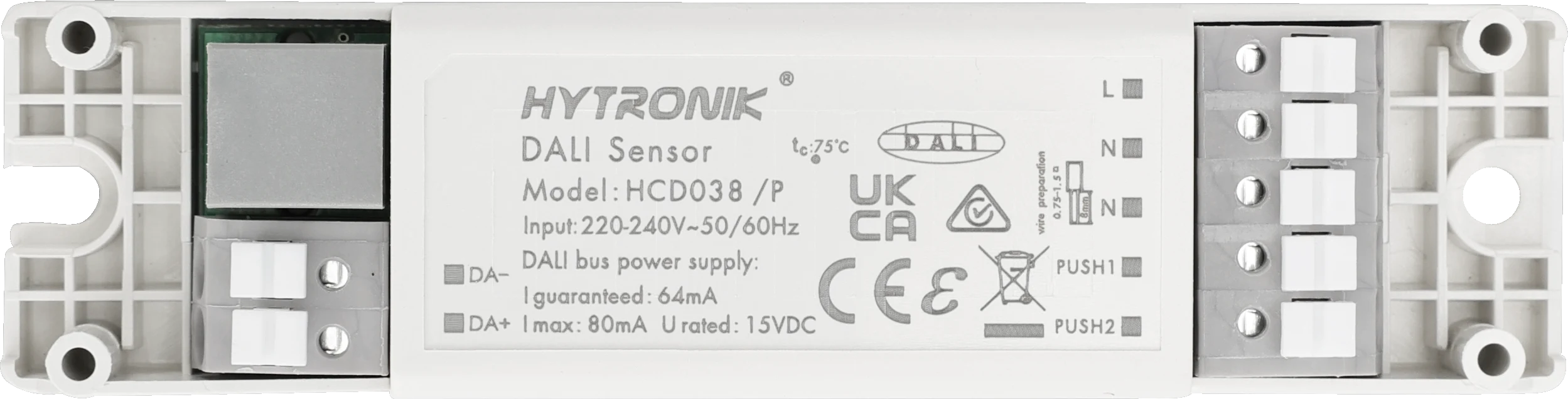

Product information "HCD038/P"

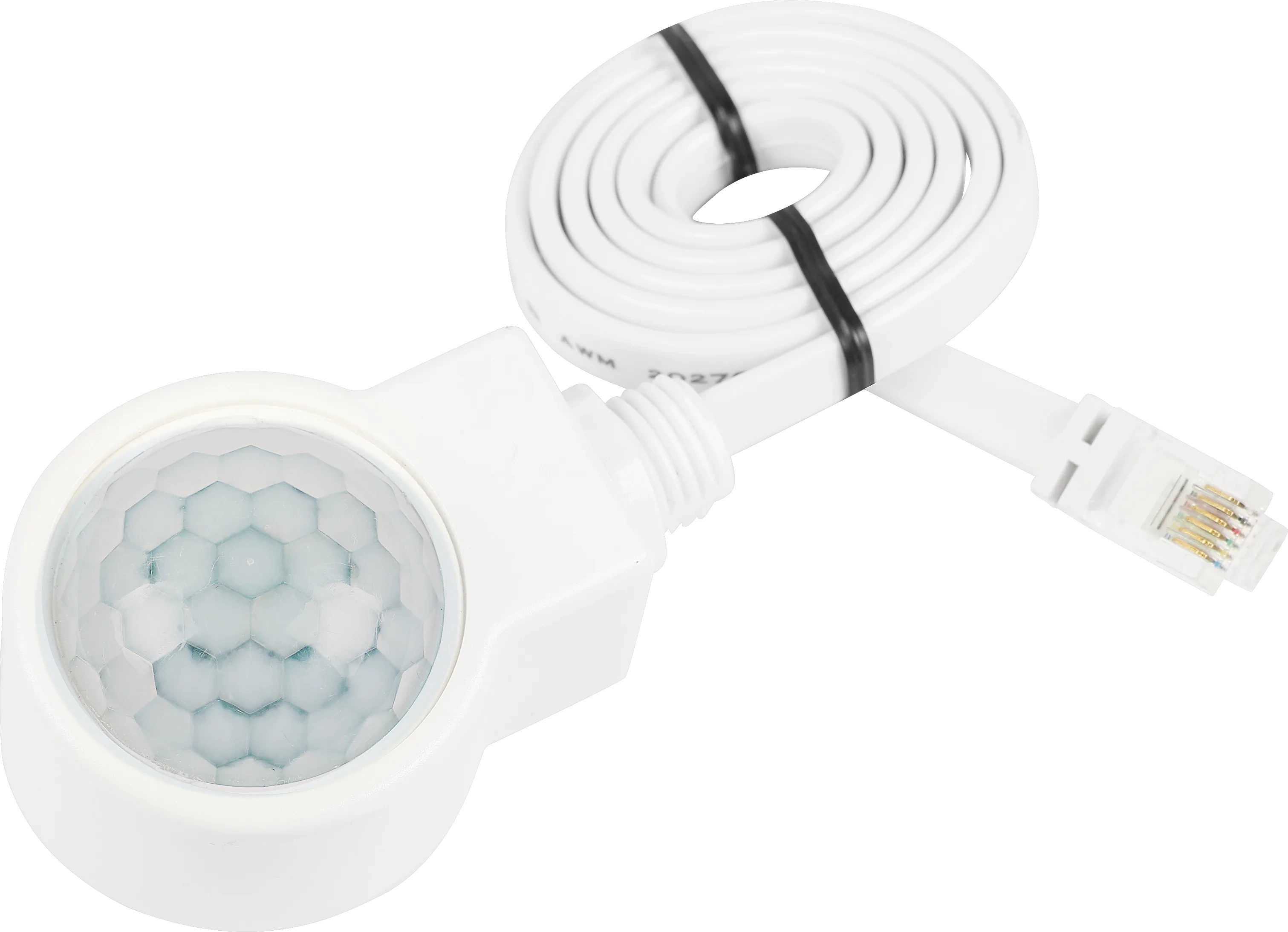

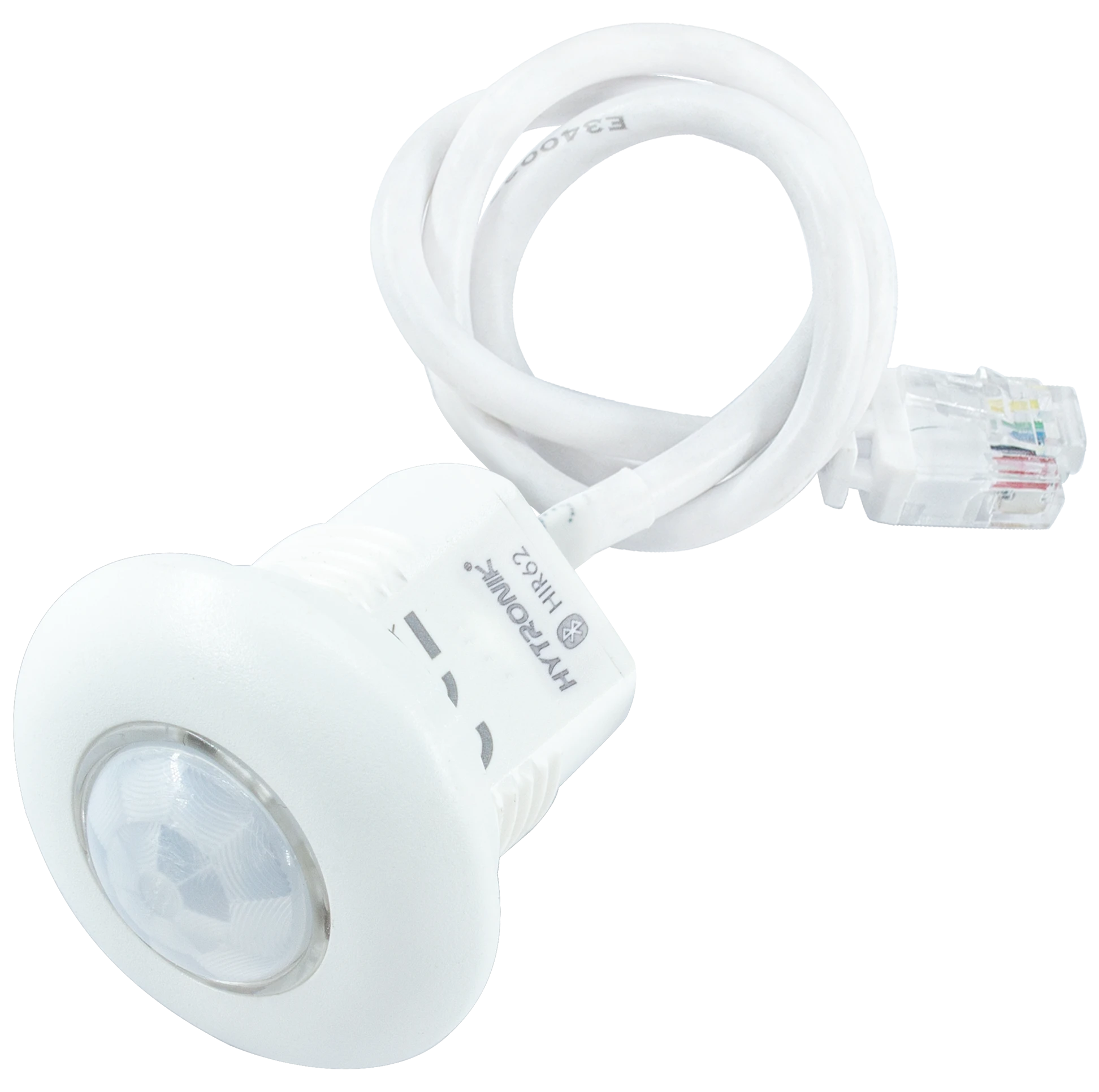

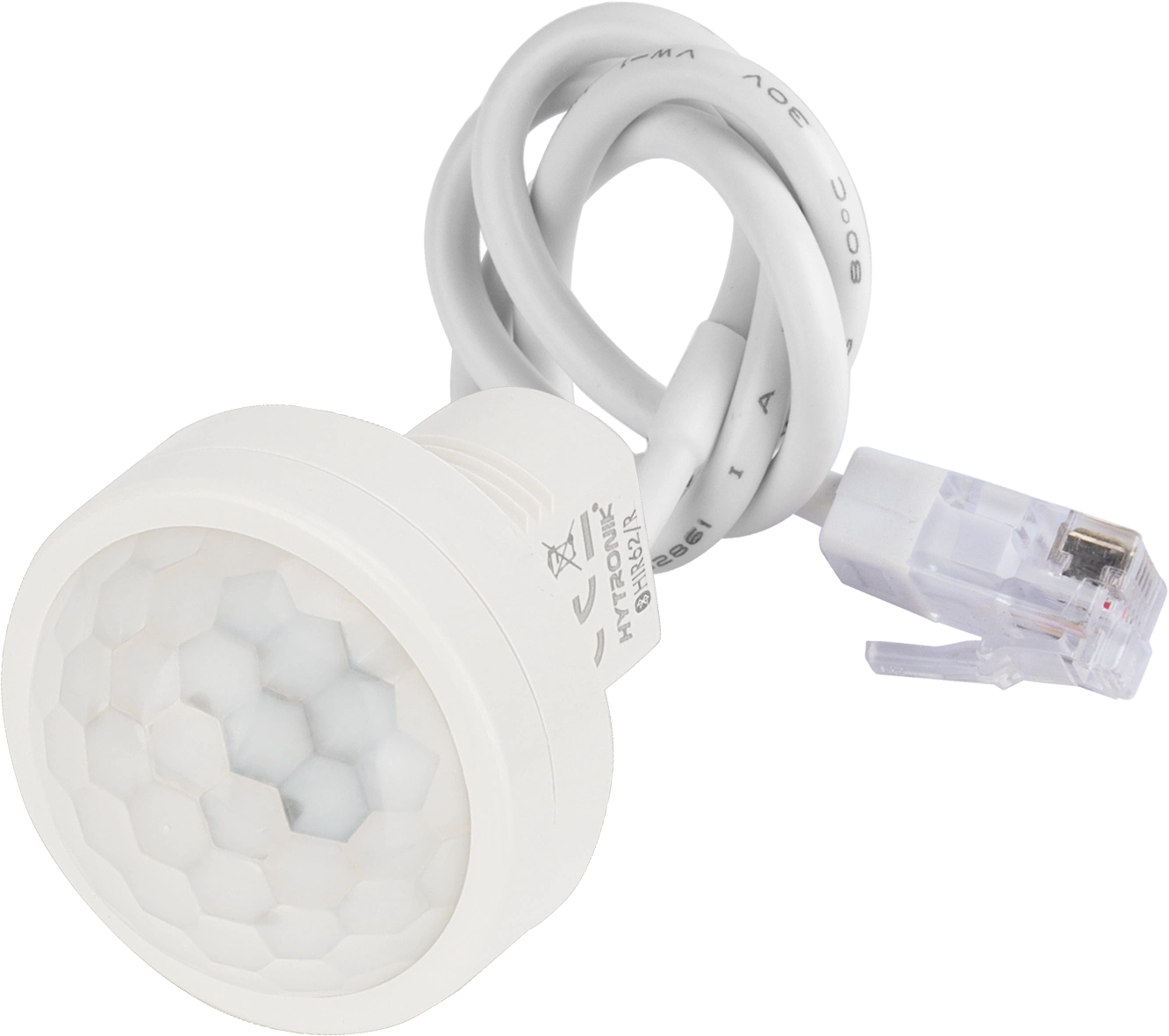

HCD038/P control unit features integrated DALI control with built-in DALI power supplies, compatible with various microwave and PIR sensor heads. Designed for metal luminaire applications, it optimizes Bluetooth signal transmission by housing the Bluetooth module inside sensor head. Setup and commissioning can be done via Koolmesh app.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Connector Type: | Standard 2 cables |
| Detection Methods: | Microwave (MW), Passive Infrared (PIR) |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Mounting hole: | 4.5000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / New |
| Product height: | 21.0000 mm |
| Product length: | 120.0000 mm |
| Product weight: | 50.0000 g |
| Product width: | 30.0000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hcd038-p.pdf
