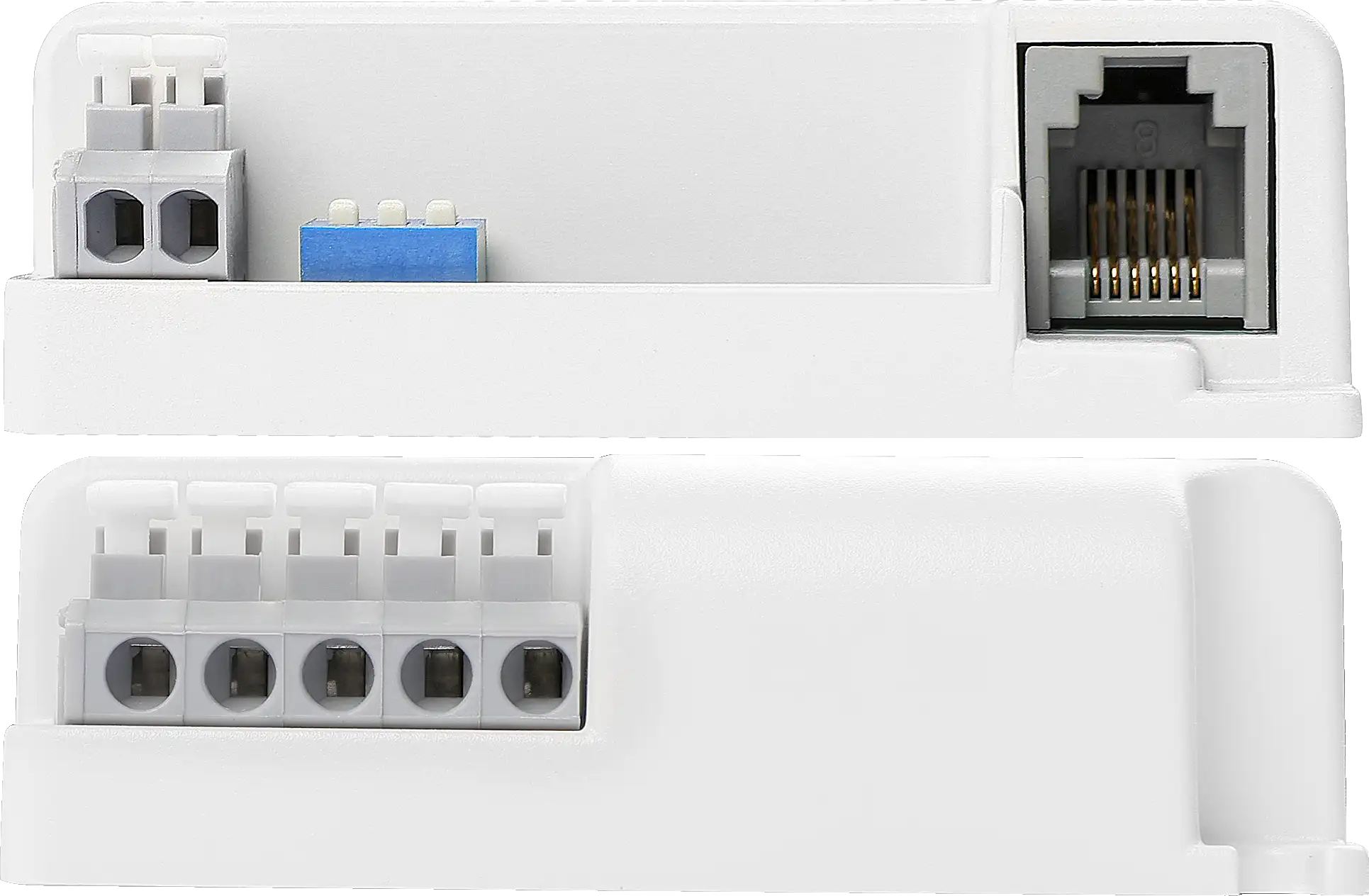

Side view of HEC7030/BF LED Driver 30W Dimmable CC DIP-switch setting

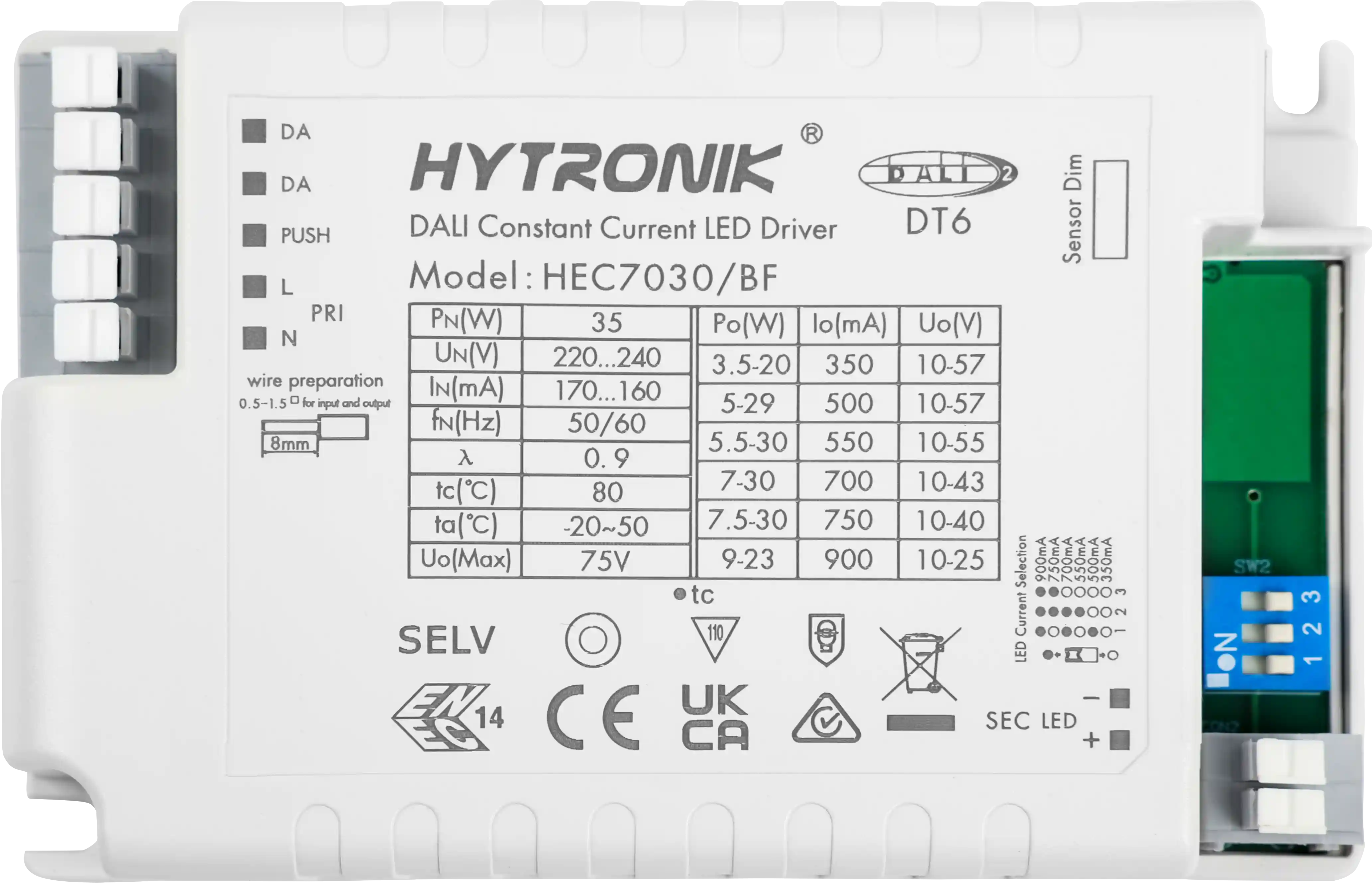

HEC7030/BF
HEC7030/BF
Side view of HEC7030/BF LED Driver 30W Dimmable CC DIP-switch setting

HEC7030/BF

DALI DT6 LED Driver (CC) 30W | Optional Bluetooth Sensor Head | Built-in version

BENEFITS

  • Precise: DALI-2 DT6 dimming for smooth and reliable lighting control
  • Expandable: Optional Bluetooth sensor head adds wireless functions
  • Flexible: Switch-Dim and configurable current suit different luminaires

APPLICATIONS

  • LED Panels · Troffer Luminaires · Office Luminaires
  • DALI Dimming · Switch-Dim · Optional Sensor Control
  • Offices · Meeting Rooms · Classrooms
Download the data sheet

Product information "HEC7030/BF"

HEC7030/BF is a 30W DALI-2 DT6 dimmable LED driver with a detachable Bluetooth sensor head, designed to give luminaire manufacturers greater flexibility in product configuration. Used on its own, it operates as a DALI-2 DT6 LED driver; when connected to a compatible Bluetooth sensor head, sensing functions can be added without changing the driver platform. Switch-Dim and configurable constant current output provide further flexibility for different luminaire requirements. Bluetooth Mesh enables wireless communication between luminaires without additional control wiring, helping simplify installation and system upgrades. All configuration and commissioning can be completed easily via the Koolmesh App.
Ambient temperature max.: 50 °C
Ambient temperature min.: -20 °C
Commissioning Methods: App & Web (Bluetooth)
DALI device type: DT6
Daylight Harvest: No
Dimming (Output) Interface: DALI/DALI-2, Switch-Dim
Driver Type: Dimming Only
Efficiency: 86.0000 %
Human Centric Lightning (HCL): No
Humidity max: 90 %
Humidity min: 10 %
IP Rate: IP20
Installation Type: Built-in
Mounting hole: 4.1000 mm
Operating Mode: Constant Current
Operating voltage range: 220-240 VAC 50/60 Hz
Output Power: 3.5 - 30W
Output Voltage: 10~57V
Product Status: Active / Make to Stock
Product height: 22.2000 mm
Product length: 108.0000 mm
Product weight: 129.0000 g
Product width: 69.0000 mm
Push Button Input: 1
Storage temperature max.: 70 °C
Storage temperature min.: -40 °C
Tri-level (Corridor function): No

Datasheets

Product datasheet: hec7030-bf.pdf

Installation Manual

User manual: installation-manual-hec7030-bf.pdf
