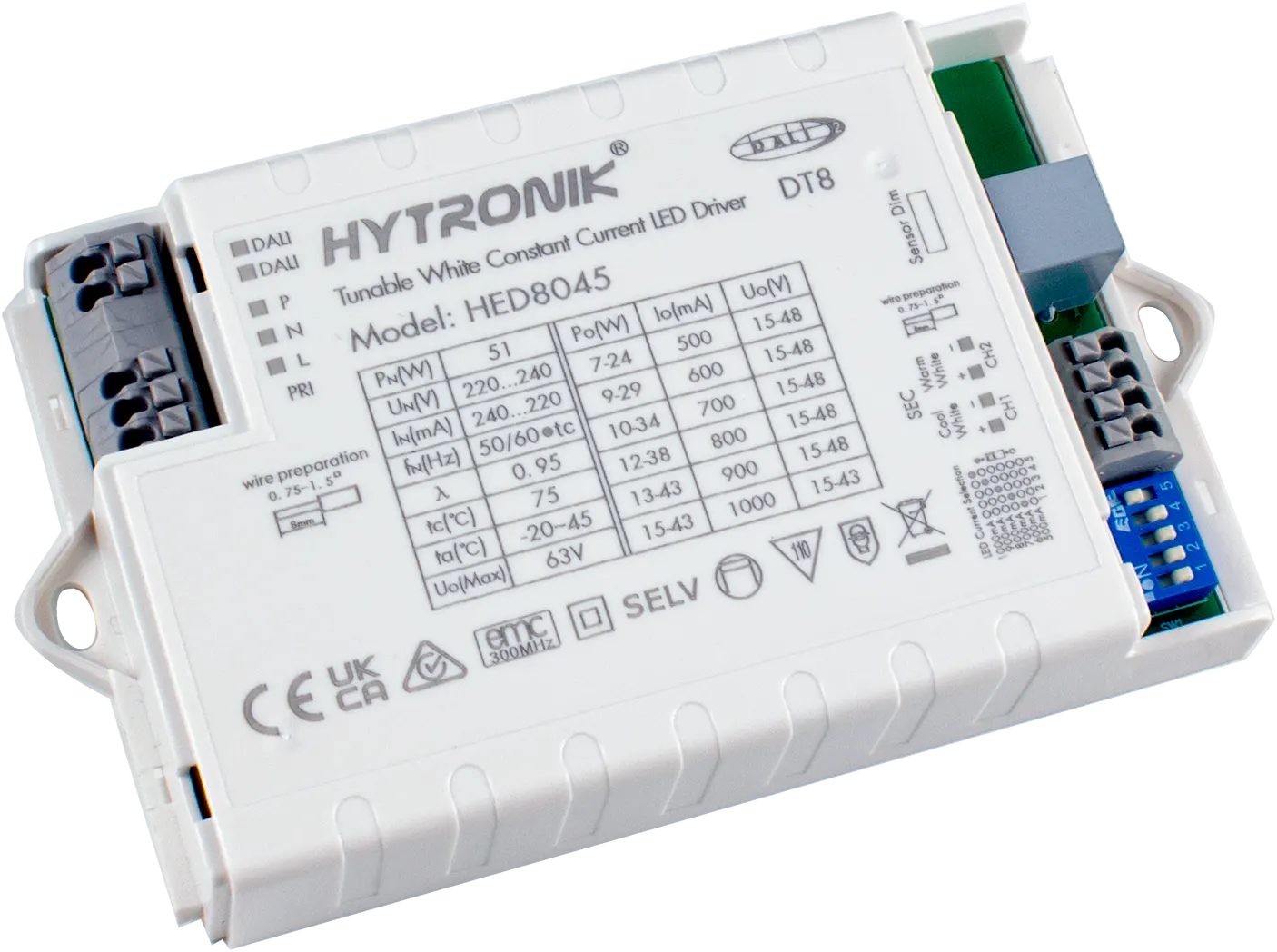

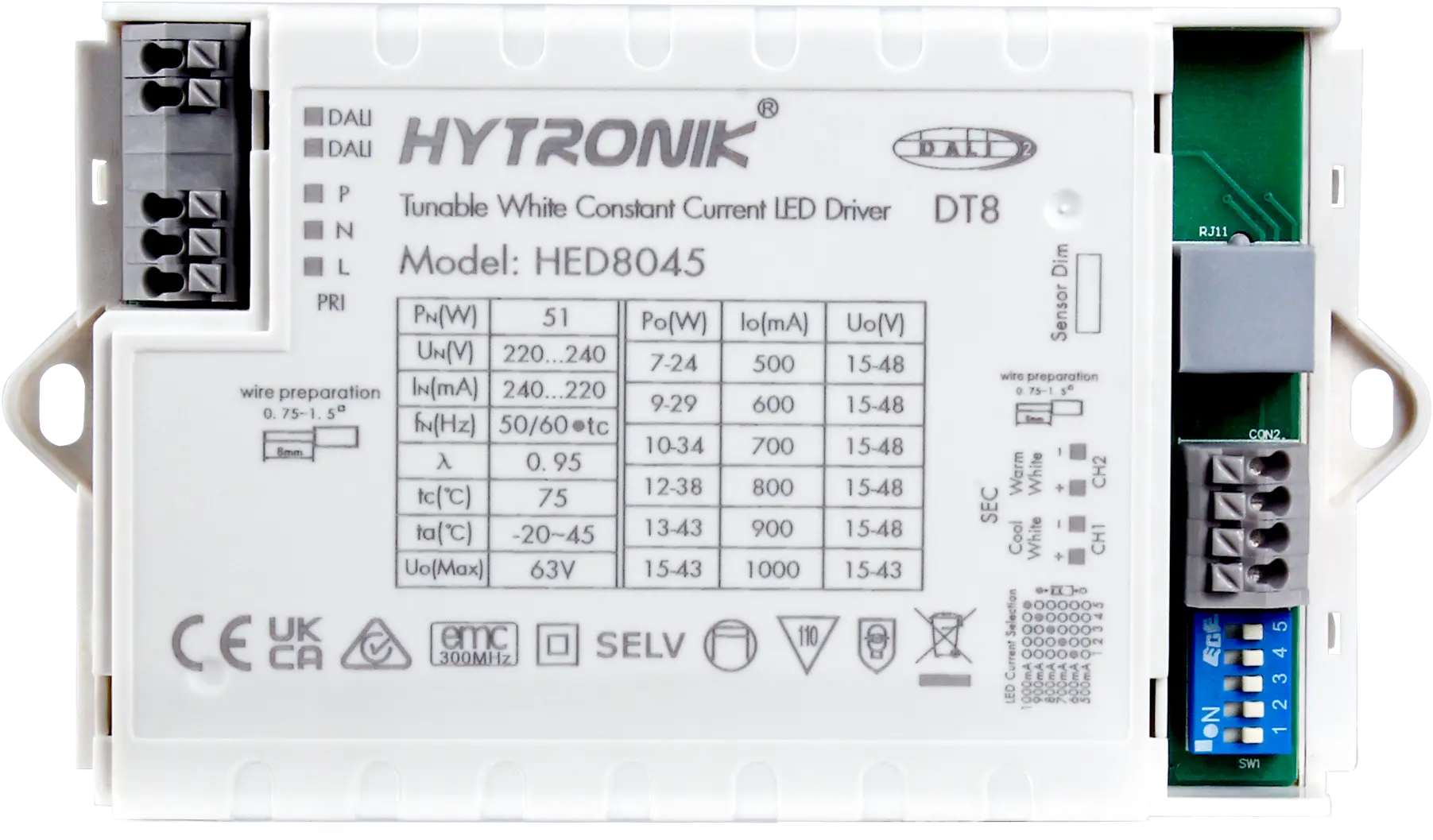

HED8045
DALI-2 DT8 LED Driver 45W (CC) | Tunable white | Built-in/Stand alone
BENEFITS
- Compact: DT8 Driver with plugable RJ12 Sensorhead
- Flexible: Configurable constant current (CC) output via DIP switches
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Luminaire Built-in integration
- Offices
- Classrooms
Product information "HED8045"

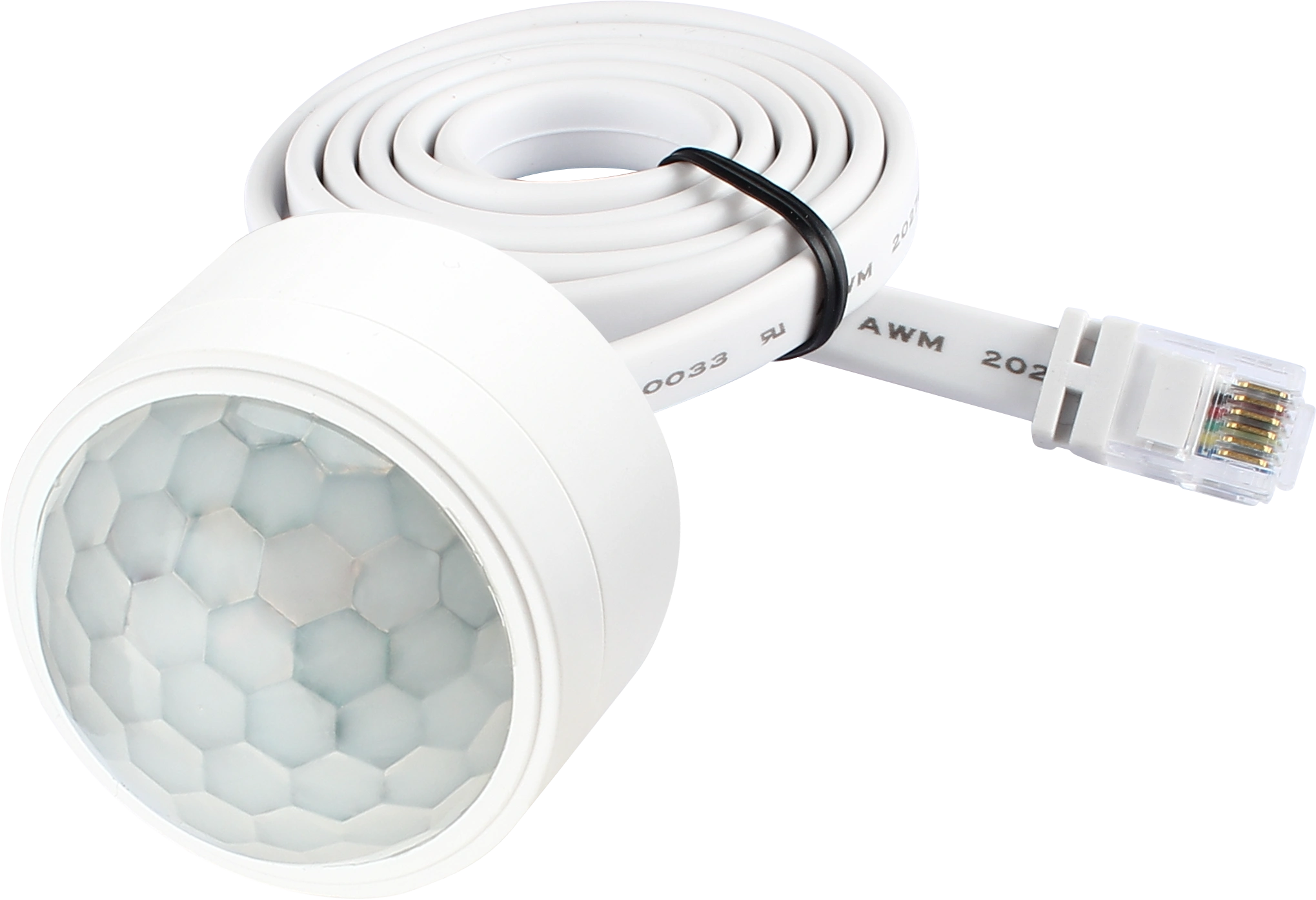

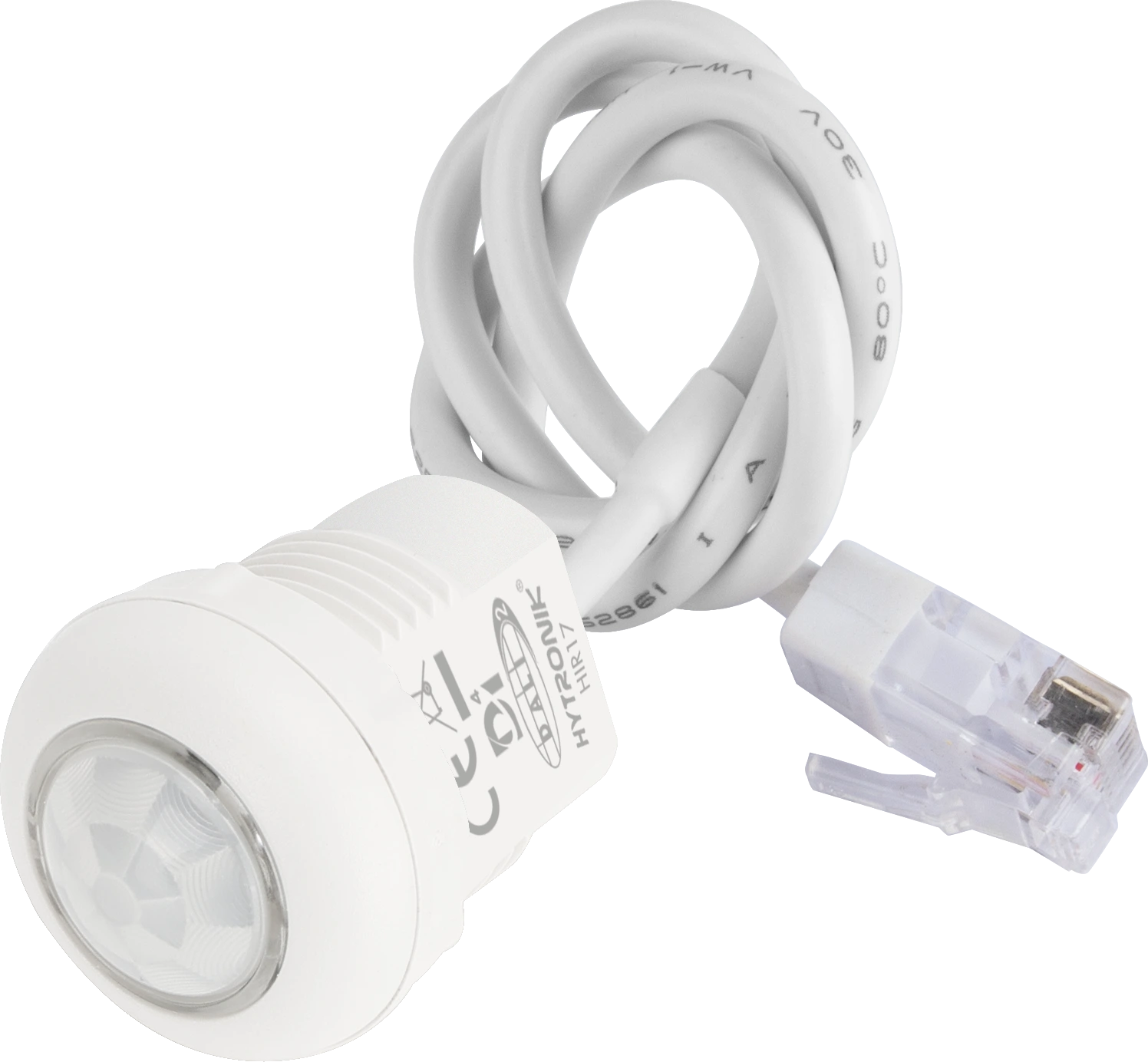

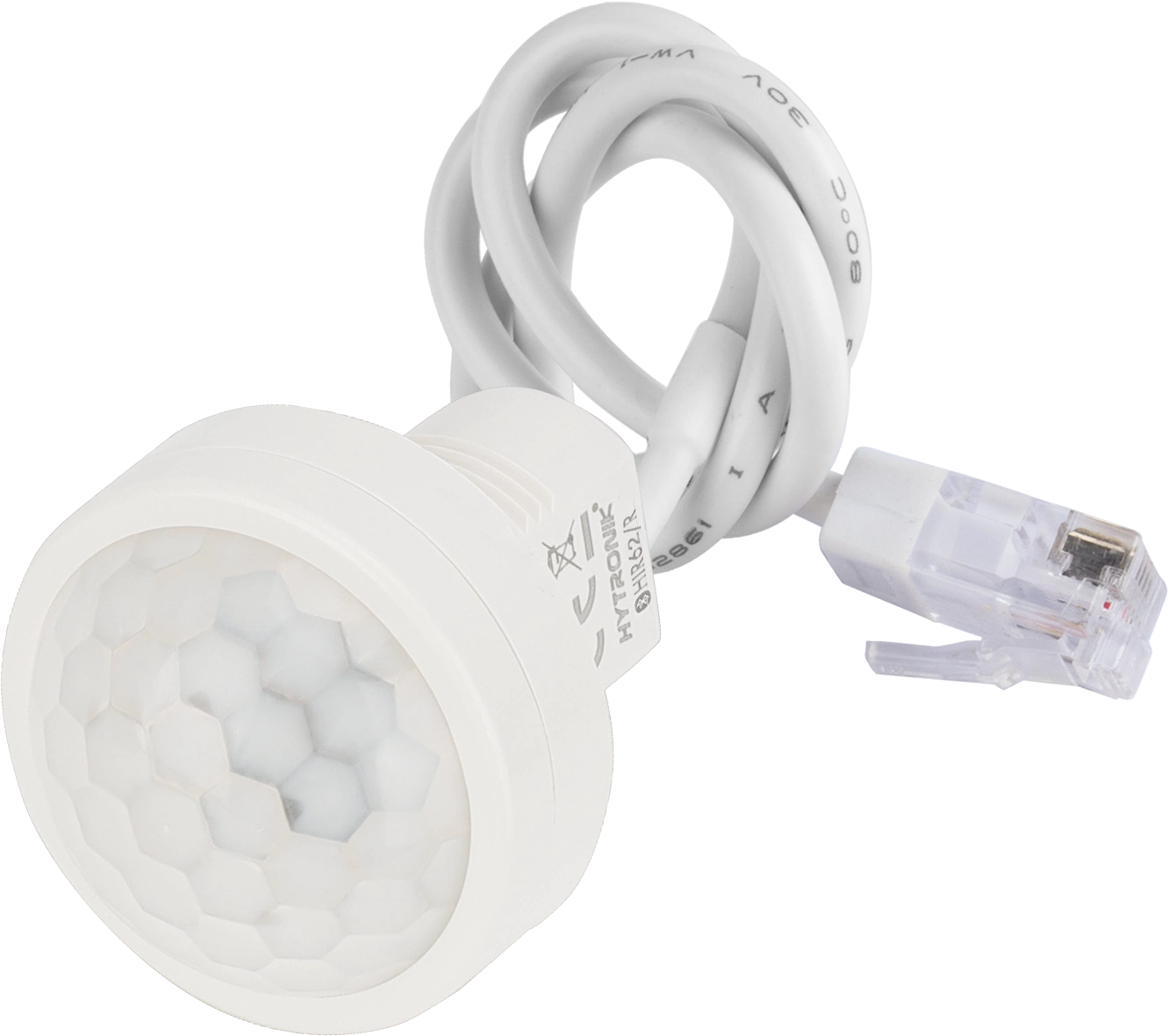

HED8045 is a detached LED Driver with DALI feedback. By simply connecting Bluetooth sensor head HBT01/HBT02/HIR13/HIR16/HIR62/HIR62/R to the driver, it allows for motion detection and Bluetooth mesh control. Once the sensor head is connected to the driver, DALI control are then disabled, and sensor antenna will take control. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring. Meanwhile, simple device setup and commissioning can be done via Koolmesh app.
| Ambient temperature max.: | 45 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth technology: | Nordic nRF52832 |
| Bluetooth transmit power: | 4 dBm |
| DALI device type: | DT8 |
| Daylight Harvest: | No |
| Detection range (DxH): | 8x3 |
| Dimming Interface: | DALI2 |
| Driver Type: | Dimming & Color Tuning |
| Efficiency: | 88 % |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Maximum Mounting Height: | 15.0000 m |
| Mounting hole: | 3.9000 mm |
| Operating Mode: | Constant Current |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Output Power: | ≥45W |
| Product height: | 23.0000 mm |
| Product length: | 140.6000 mm |
| Product width: | 79.2000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
