HBHC25/H
PIR High-bay | 2CH DALI + Circadian Rhythm| Circadian Rhythm | Ceiling mounting
BENEFITS
- Adaptable: Lens and blind variants for different detection ranges
- 2 DALI channels: two built-in DALI PSU + Circadian Rhythm
- Easy: Motion and Daylight harvest configuration with Koolmesh app

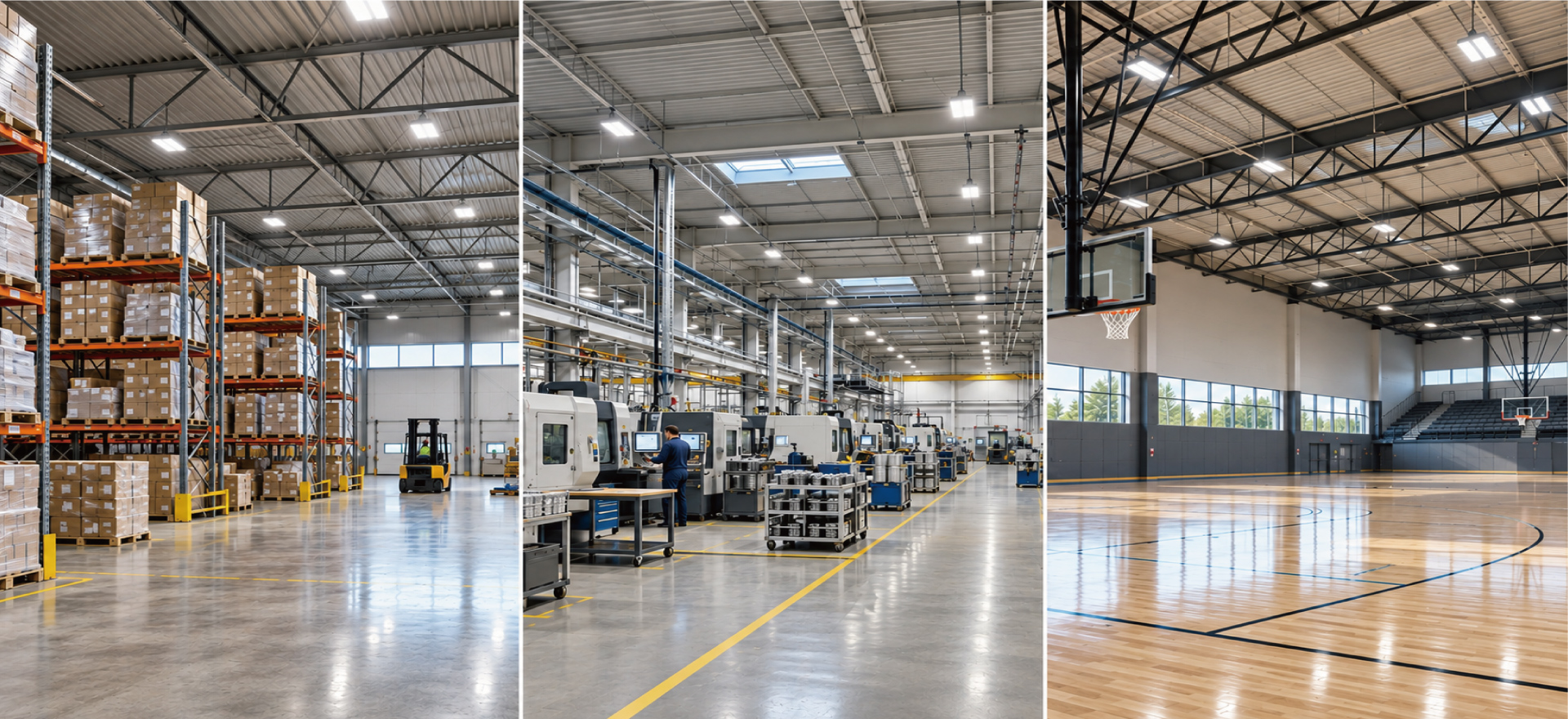

APPLICATIONS
- Remote ceiling or surface mounting (with accessory)
- Classrooms with blackboards and student zones
- Offices with two zones
Product information "HBHC25/H"
HBHC25/H is a Bluetooth PIR motion sensor with circadian rhythm and 80mA DALI power supply, featuring 2 DALI channels: 50mA for Channel 1 and 30mA for Channel 2. Ideal for offices, classrooms, and commercial areas, it facilitates easy luminaire communication via Bluetooth mesh networking, simplifying installation.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth technology: | Nordic nRF52832 |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| DALI max. current channel 1: | 50 mA |
| DALI max. current channel 2: | 30 mA |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection range (DxH): | 24x15 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 66.0000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 80.5000 mm |
| Product width: | 778.0000 mm |
| Push Button Input: | 3 |
| Required DALI Current: | 80.0000 mA |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
