Active / Make to Stock
HBIR28/2CH/UH
Bluetooth PIR Ultra Highbay | Dual Channel ON/OFF | Voltage Free Contact
BENEFITS
- Reliable: Fail-safe lighting support through NC relay configuration
- Flexible: Dual relay outputs for load control and system integration
- Wireless: App-based setup for fast commissioning
APPLICATIONS

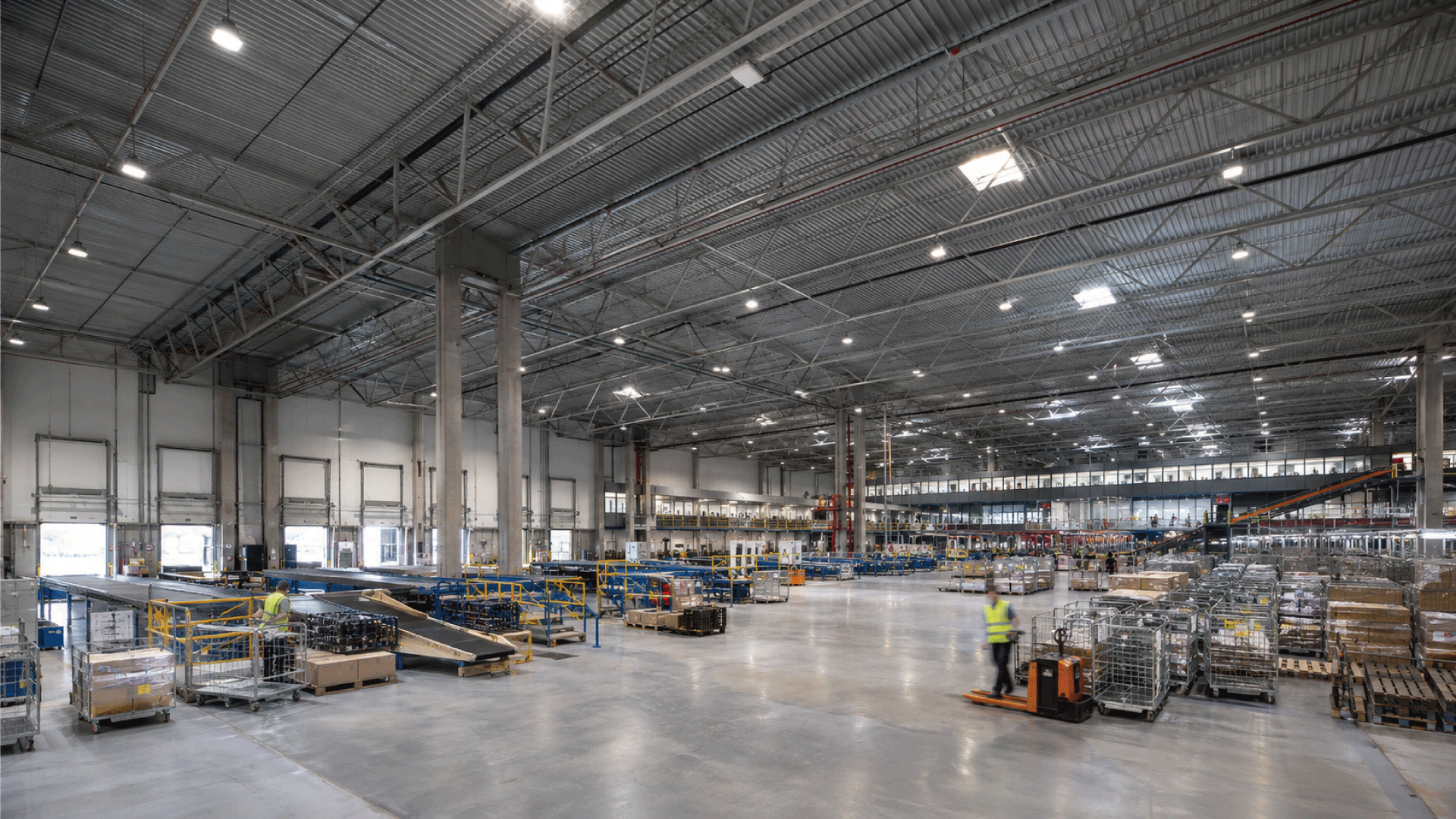

- Ultra High-bay Spaces / Max. 21 m · Ø 28 m
- Logistics · Warehousing · Industrial Facilities
- Distribution Halls · High-rack Aisles · Large Industrial
Product information "HBIR28/2CH/UH"
HBIR28/2CH/UH is a Bluetooth PIR motion sensor for ceiling mounting, using an ultra high bay lens with a typical mounting height of 15 m. It provides two independent relay channels for flexible ON/OFF control, including a voltage free contact with selectable NO and NC terminals. When the NC option is configured for fail safe operation, lighting can remain on if the sensor loses power or fails, providing additional protection for demanding high level applications. All configuration and commissioning can be completed wirelessly via the Koolmesh App, with settings easily applied across multiple devices.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| DALI multichannel: | Yes |
| Daylight Harvest: | No |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 28×21 |
| Dimming (Output) Interface: | Relay On/Off, Volt-free Contact (VFC) |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Lens type: | Ultra high-bay |
| Load capacitive: | 400.0000 VA |
| Maximum Mounting Height: | 21.0000 m |
| Max withstandable in-rush current: | 80A@160μs |
| Mounting Height: | Ultra High-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 101.0000 mm |
| Product length: | 94.0000 mm |
| Product weight: | 84.0000 g |
| Product width: | 94.0000 mm |
| Push Button Input: | 2 |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hbir28-2ch-uh.pdf
