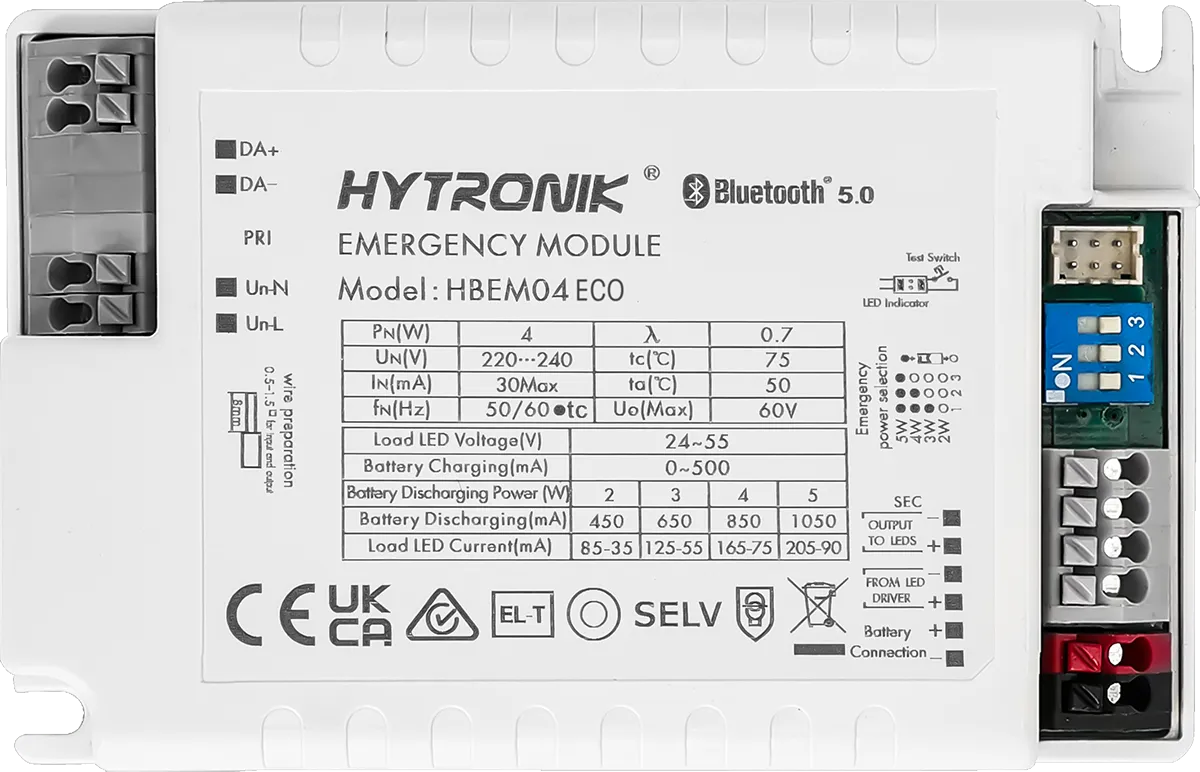

HBEM04 ECO
Emergency Inverter Max. EM 5W | Self-Test | DALI Dimmable
BENEFITS
- Compact: Emergency inverter with Bluetooth
- Intelligent: Supports wireless self-test battery life prediction and fault alerts.
- Flexible: Allows wireless test scheduling and easy output adjustment.
APPLICATIONS
- Luminaire Built-in integration or standalone
- Retrofit upgrades & New luminaire designs
- Offices, Classrooms, Industry and Healthcare Spaces
Product information "HBEM04 ECO"
HBEM04 is a Bluetooth Emergency module designed for DALI dimmable drivers with a maximum output power of 6W.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Category - Emergency LED Drivers & Inverters: | Emergency Inverter (Bluetooth) |
| Commissioning Methods: | App & Web (Bluetooth) |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Efficiency: | 85.0000 % |
| Features: | Emergency Control |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Mounting hole: | 4.1000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 60V |
| Product height: | 22.2000 mm |
| Product length: | 108.0000 mm |
| Product weight: | 102.0000 g |
| Product width: | 69.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Zhaga: | No |
Datasheets
Product datasheet: hbem04-eco.pdf
