Active / Make to Stock
HBIR28/2CH/R
Bluetooth PIR Reinforced Width Lowbay | Dual Channel ON/OFF | Voltage Free Contact
BENEFITS
- Reliable: Fail-safe lighting support through NC relay configuration
- Flexible: Dual relay outputs for load control and system integration
- Wireless: App-based setup for fast commissioning
APPLICATIONS

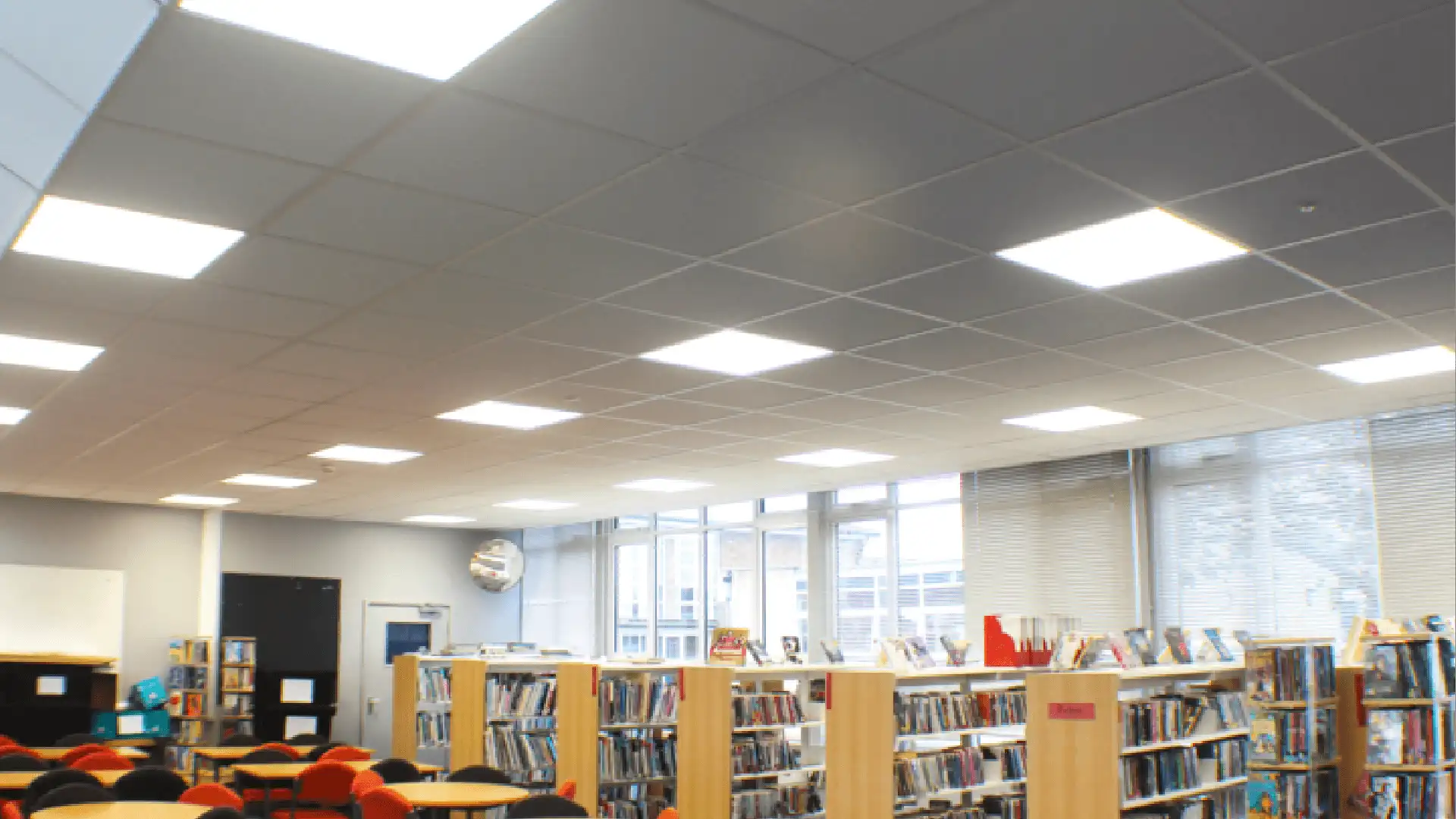

- Extended Low-bay Spaces / Max. 6 m · Ø 10 m

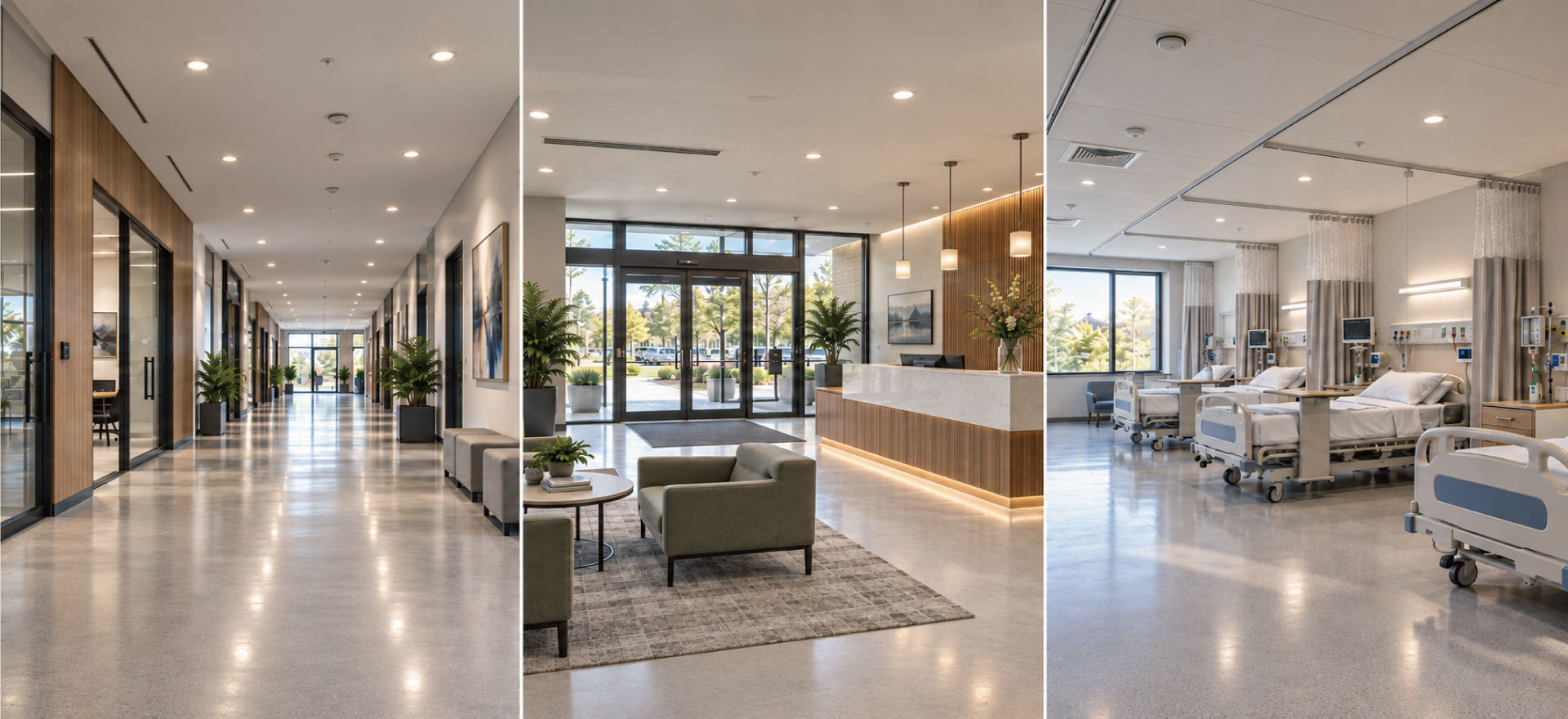

- Retail · Public Buildings · Healthcare

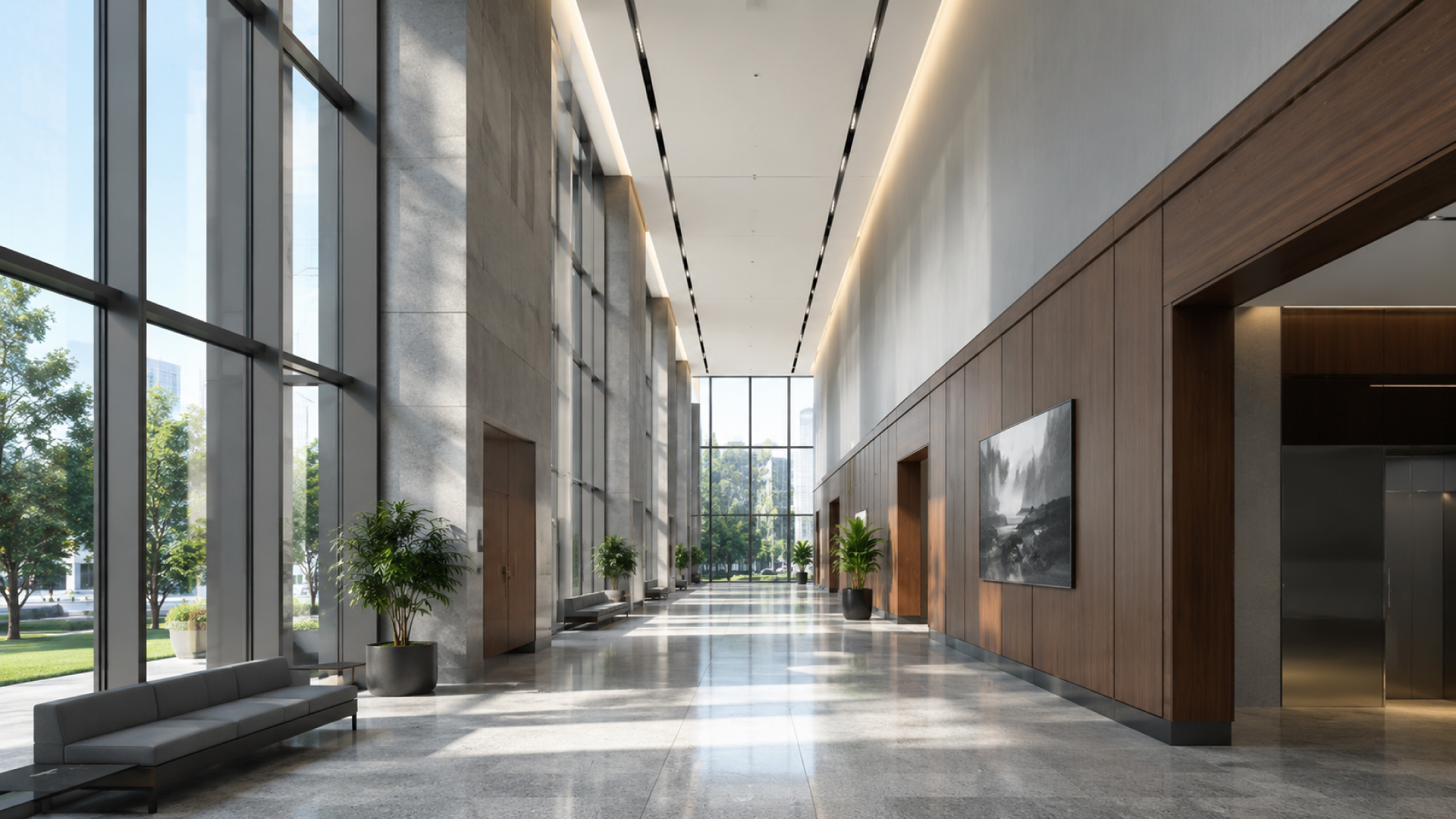

- Lobbies · Corridors · Hospital Areas
Product information "HBIR28/2CH/R"
HBIR28/2CH/R is a Bluetooth PIR motion sensor for ceiling mounting, using a reinforced low bay lens with a typical mounting height of 2.5 m. It provides two independent relay channels for flexible ON/OFF control, including one voltage free contact with selectable NO and NC terminals. The NC configuration can keep lighting powered if the sensor loses power or fails, providing additional protection for applications where continuous lighting is important. All configuration and commissioning can be completed wirelessly via the Koolmesh App, with settings easily applied across multiple devices.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 10x6 |
| Dimming (Output) Interface: | Relay On/Off, Volt-free Contact (VFC) |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Lens type: | Reinforced Low-bay |
| Load capacitive: | 400.0000 VA |
| Maximum Mounting Height: | 6.0000 m |
| Max withstandable in-rush current: | 80A@160μs |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 81.6000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 84.0000 g |
| Product width: | 78.0000 mm |
| Push Button Input: | 2 |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hbir28-2ch-r.pdf
