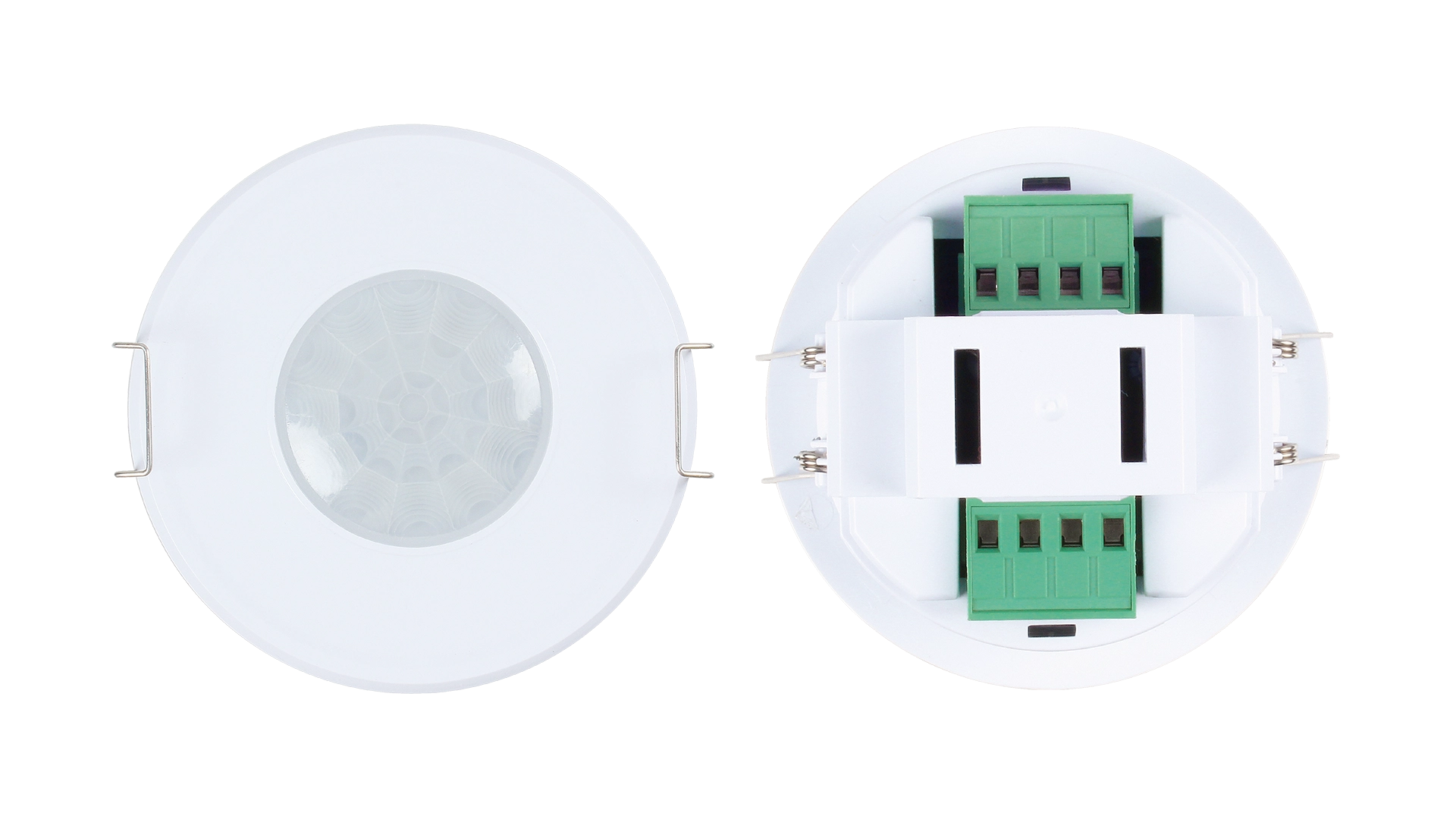

Product information "HBIR28/2CH"

It is a Bluetooth PIR standalone motion sensor with On/Off control and two independent relay channel outputs. It features a dual-function relay (NO/NC) and a normally closed relay. Ideal for offices, classrooms, healthcare, and commercial areas, it enables easy luminaire communication via Bluetooth mesh networking.
Ambient temperature max.: 50 °C
Ambient temperature min.: -20 °C
Bluetooth frequency: 2.4 GHz
Bluetooth range: 10-30m
Bluetooth system: Koolmesh
Bluetooth technology: Nordic nRF52832
Bluetooth transmit power: 4 dBm
Commissioning Methods: App & Web (Bluetooth)
Connector Type: Standard 2 cables
DALI multichannel: Yes
Daylight Harvest: No
Detection Methods: Passive Infrared (PIR)
Detection angle: 360°
Detection range (DxH): 9x6
Dimming (Output) Interface: Relay On/Off
Features: On/Off Control
Human Centric Lightning (HCL): No
Humidity max: 90 %
Humidity min: 10 %
IP Rate: IP20
Installation Type: Stand-alone
Lens type: Standard Low-bay
Maximum Mounting Height: 3.0000 m
Mounting Height: Low-bay
Mounting hole spacing: 66.0000 mm
Operating Voltage: 220 - 240 VAC 50/60 Hz
Product height: 75.2000 mm
Product width: 78.0000 mm
Push Button Input: 2
Tri-level (Corridor function): No
Voltage Type: AC
Warming-up: 20 s
Zhaga: No
