HBHC25/R
PIR Midbay | 2CH DALI + Circadian Rhythm | Ceiling mounting
BENEFITS
- Adaptable: Options of blind inserts and metal surface mount boxes
- 2 DALI channels: two built-in DALI PSU + Circadian Rhythm
- Easy: Motion and Daylight harvest configuration with Koolmesh app
APPLICATIONS
- Remote ceiling or surface mounting (with accessory)
- Standalone installation for ceiling up to 6m
- Office / Meeting rooms
Product information "HBHC25/R"

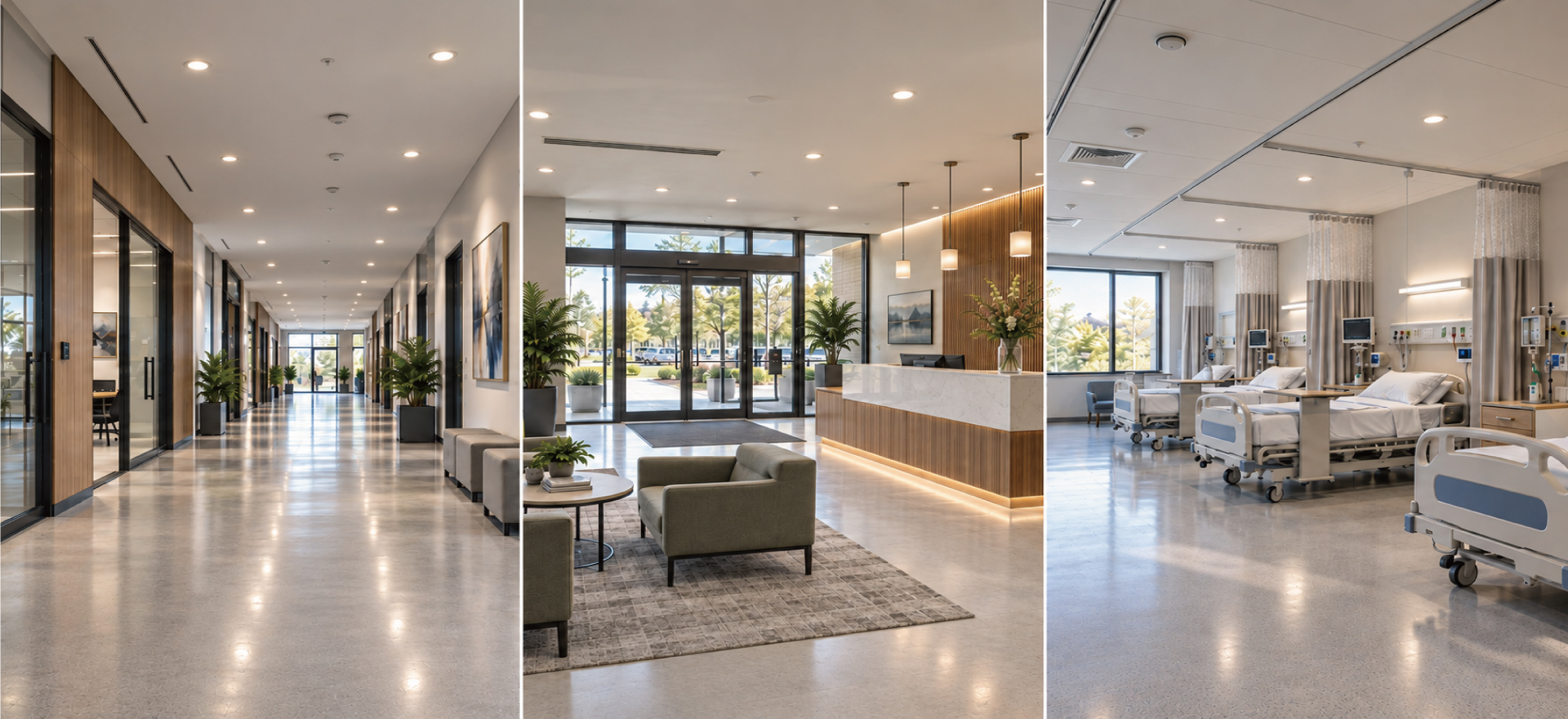

HBHC25/R is a Bluetooth PIR standalone motion sensor with 80mA DALI power supply built in, splitting into 2 DALI channels: 50mA for Channel 1 and 30mA for Channel 2. It is ideal for typical indoor applications such as office, classroom, healthcare and other commercial areas. it facilitates easy luminaire communication via Bluetooth mesh networking, simplifying installation.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| DALI Bus Current Consumption: | 80.0000 mA |
| DALI max. current channel 1: | 50 mA |
| DALI max. current channel 2: | 30 mA |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 10x6 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 81.6000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 87.0000 g |
| Product width: | 78.0000 mm |
| Push Button Input: | 3 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hbhc25-r.pdf
