Active / Make to Stock
HBIR28
PIR Lowbay | Bluetooth and ON/OFF | Ceiling mounting
BENEFITS
- Adaptable: Options of blind inserts and metal surface mount boxes
- Reliable: Relay switching control for simple On/Off lighting automation
- Simple: Wireless setup and commissioning via Koolmesh App
APPLICATIONS
- Ceiling or surface mounting (with accessory)
- Offices & Classrooms

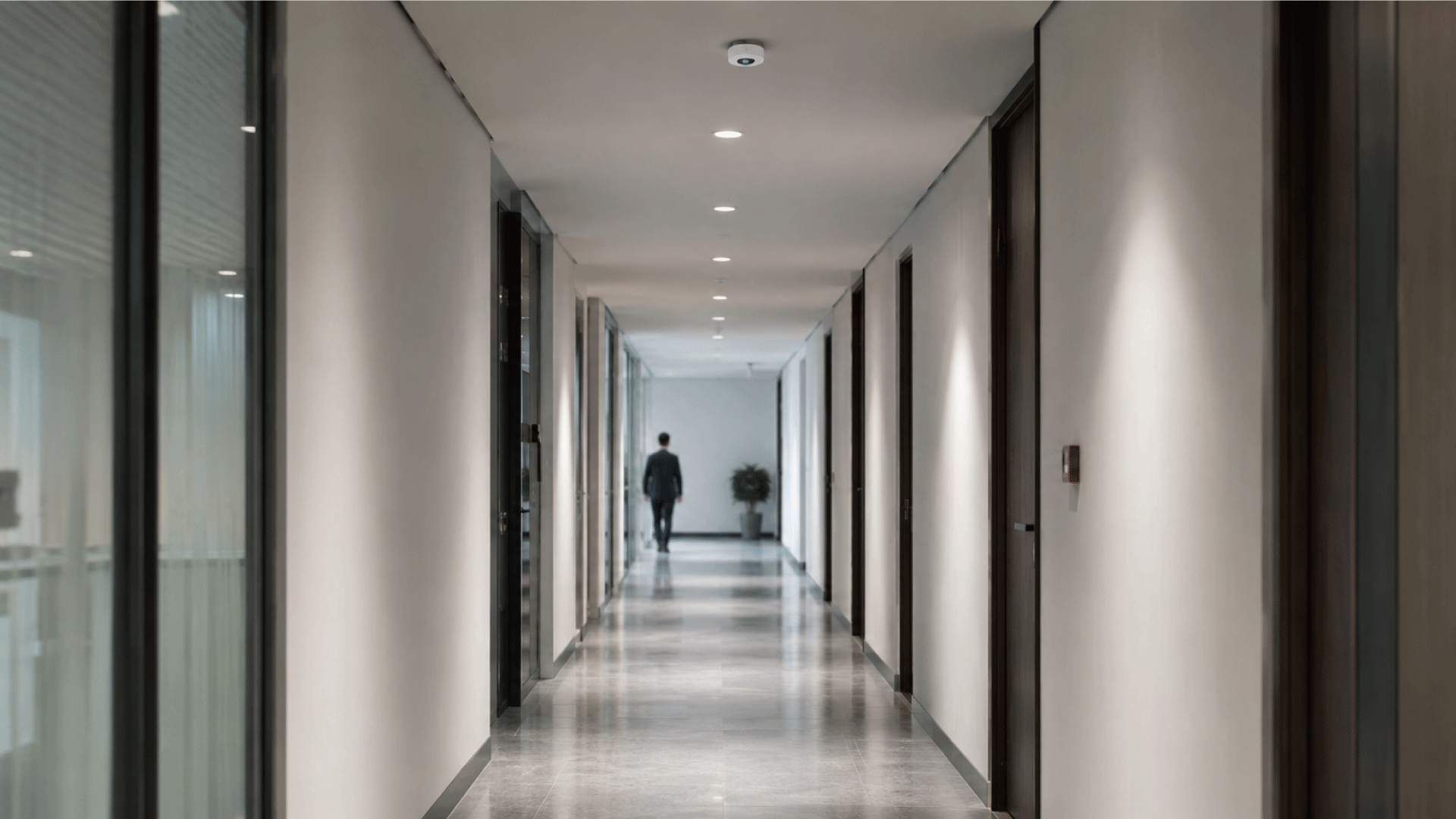

- Corridors & Staircases
Product information "HBIR28"
HBIR28 is a Bluetooth PIR standalone motion sensor designed for indoor lighting applications, providing a simple and flexible solution for automatic On/Off lighting control. Featuring one relay channel output with a normally open (NO) contact, it enables reliable switching control for offices, classrooms, healthcare facilities, and other commercial spaces. Bluetooth Mesh networking allows wireless communication between devices without additional control wiring, reducing installation complexity and costs, especially for retrofit projects. All configuration and commissioning can be completed easily via the Koolmesh App.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| DALI multichannel: | No |
| Daylight Harvest: | No |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 9x6 |
| Dimming (Output) Interface: | Relay On/Off |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Lens type: | Standard Low-bay |
| Load capacitive: | 800.0000 VA |
| Load resistive: | 800.0000 W |
| Maximum Mounting Height: | 6.0000 m |
| Max withstandable in-rush current: | 120A@160μs |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 79.2000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 87.0000 g |
| Product width: | 78.0000 mm |
| Push Button Input: | 1 |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hbir28.pdf
