HBIR28/W
PIR Lowbay | Bluetooth and ON/OFF | Ceiling mounting
BENEFITS
- Flexible: Designed for ceiling or surface mounting
- Versatile: Bluetooth motion and daylight control with additional relay
- Cost-Saving: BLE eliminates the need for time-consuming hardwiring

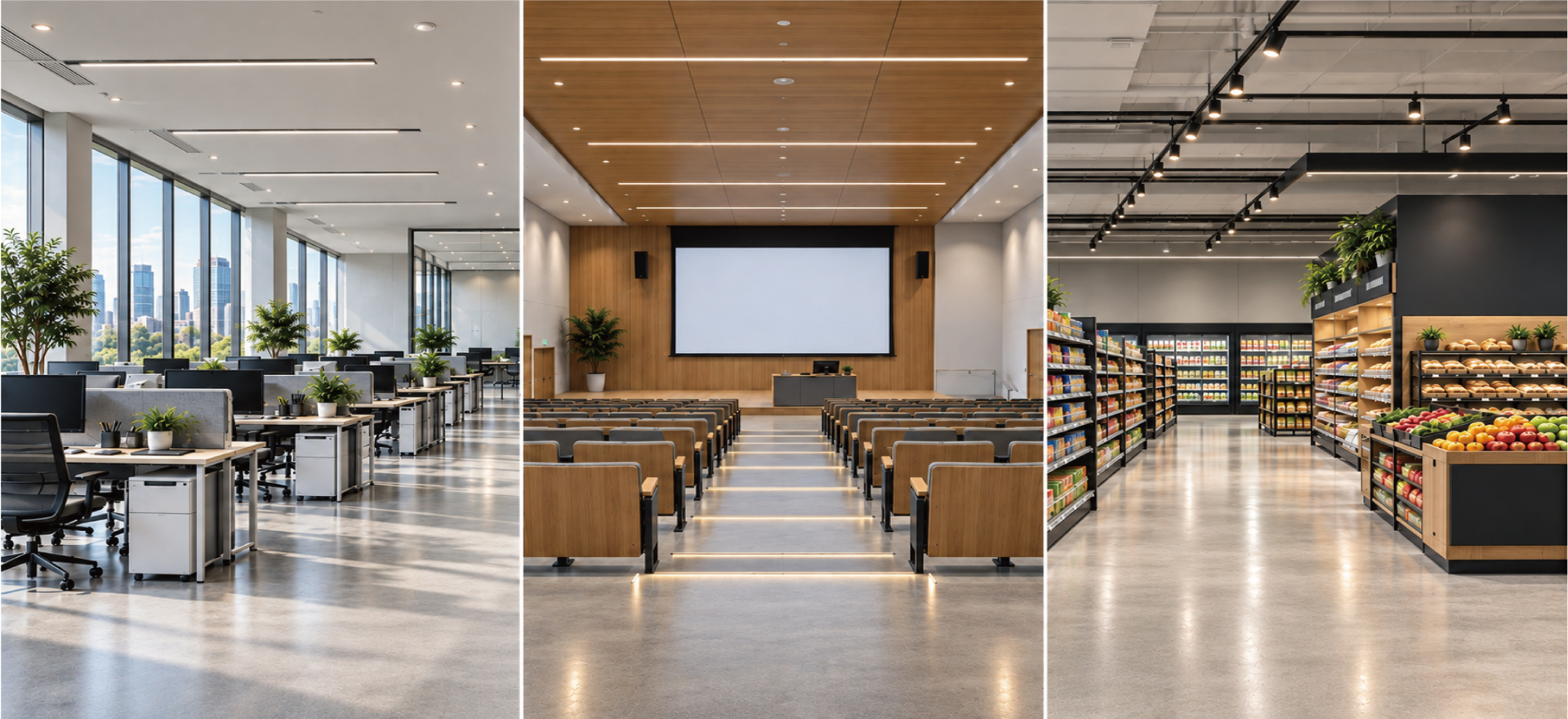

APPLICATIONS
- Standalone installation for ceiling up to 6m
- Classrooms with blackboards and student zones
- Offices with two zones
Product information "HBIR28/W"
HBIR28/W is a Bluetooth PIR standalone motion sensor, On/Off control with one relay channel output. It is ideal for typical indoor applications. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring. Meanwhile, simple device setup and commissioning can be done via koolmesh app.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth technology: | Nordic nRF52832 |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | No |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 18x6 |
| Dimming (Output) Interface: | Relay On/Off |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 81.0000 mm |
| Product weight: | 150.0000 g |
| Product width: | 78.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
