Active / Make to Stock
HBIR28/UH
PIR Highbay | Bluetooth and ON/OFF | Ceiling mounting
BENEFITS
- Adaptable: Metal surface mount box options
- Reliable: Relay switching control for simple On/Off lighting automation
- Simple: Wireless setup and commissioning via Koolmesh App
APPLICATIONS
- Ceiling or surface mounting (with accessory)

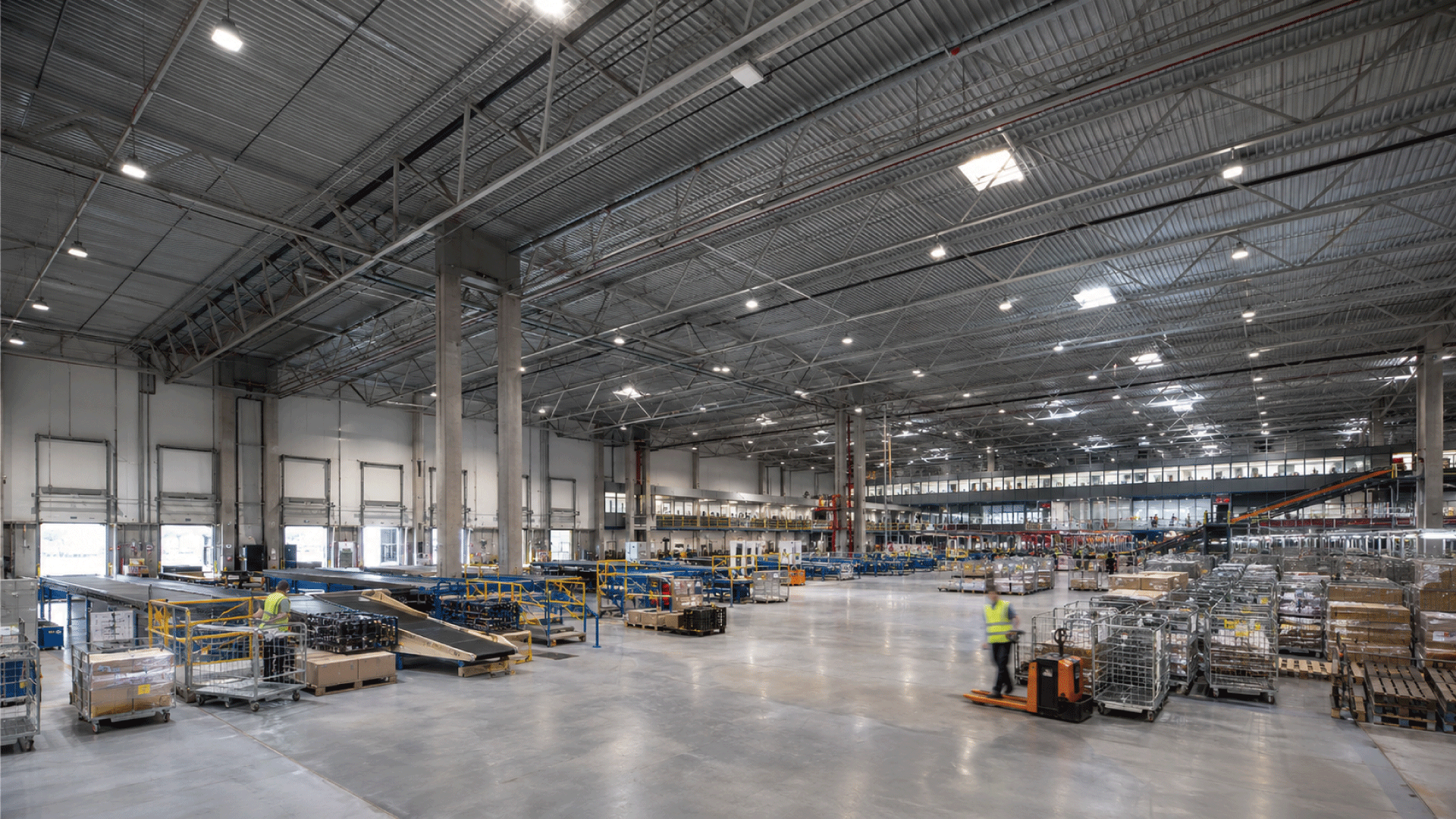

- Warehouse
- Logistics
Product information "HBIR28/UH"
HBIR28/UH is a Bluetooth PIR standalone motion sensor designed for ultra high-bay lighting applications, supporting a typical mounting height of up to 15m. Its optimized optics provide reliable motion detection in very high-ceiling environments while offering simple and flexible automatic On/Off lighting control through one normally open (NO) relay output. Bluetooth Mesh networking enables wireless communication between devices without additional control wiring, reducing installation complexity and costs, especially for retrofit projects. All configuration and commissioning can be completed easily via the Koolmesh App.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Daylight Harvest: | No |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 28×21 |
| Dimming (Output) Interface: | Relay On/Off |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Lens type: | Ultra high-bay |
| Load capacitive: | 800.0000 VA |
| Load resistive: | 800.0000 W |
| Maximum Mounting Height: | 21.0000 m |
| Max withstandable in-rush current: | 120A@160μs |
| Mounting Height: | Ultra High-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 101.0000 mm |
| Product length: | 94.0000 mm |
| Product weight: | 160.0000 g |
| Product width: | 94.0000 mm |
| Push Button Input: | 1 |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hbir28-uh.pdf
