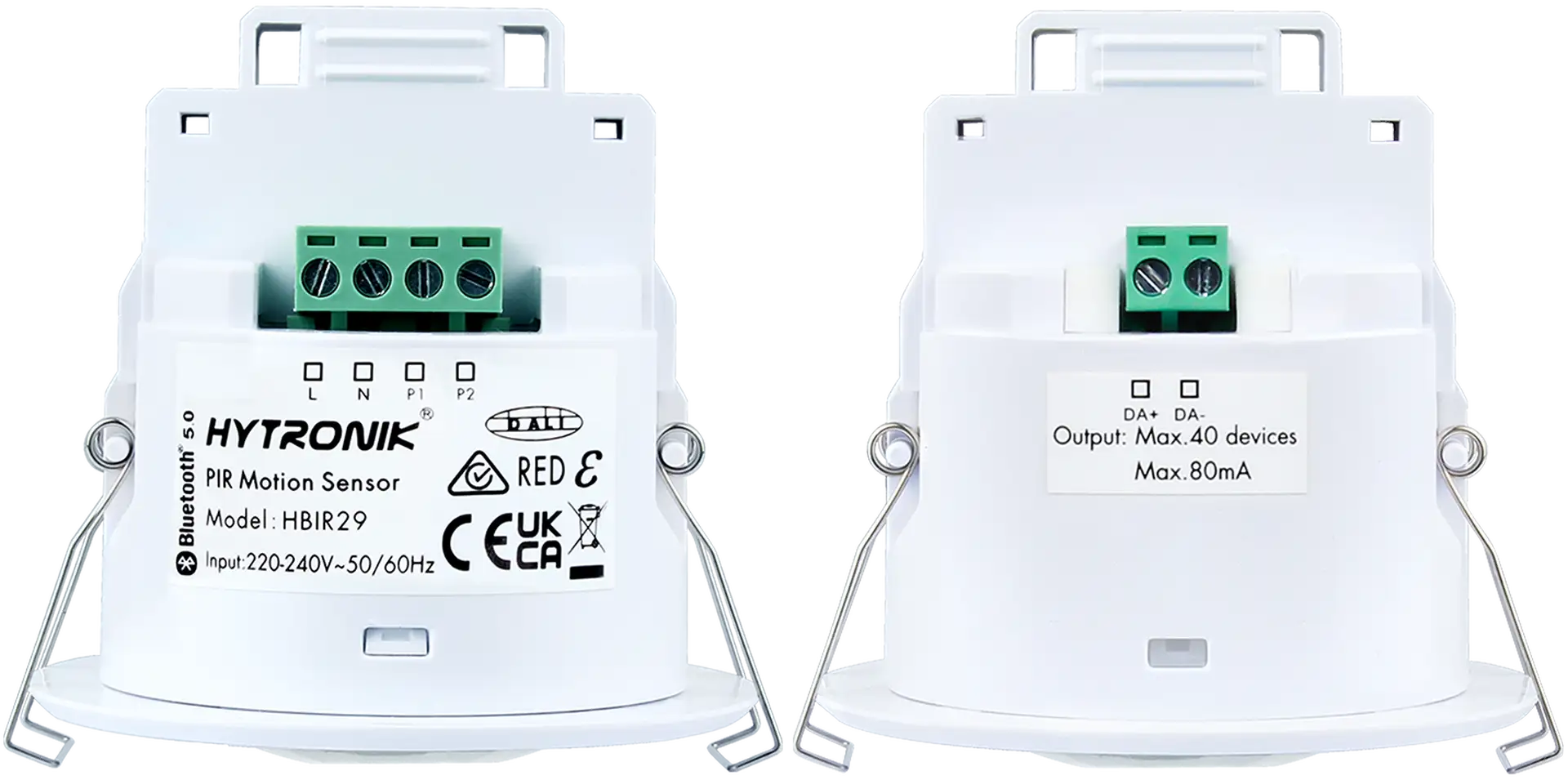

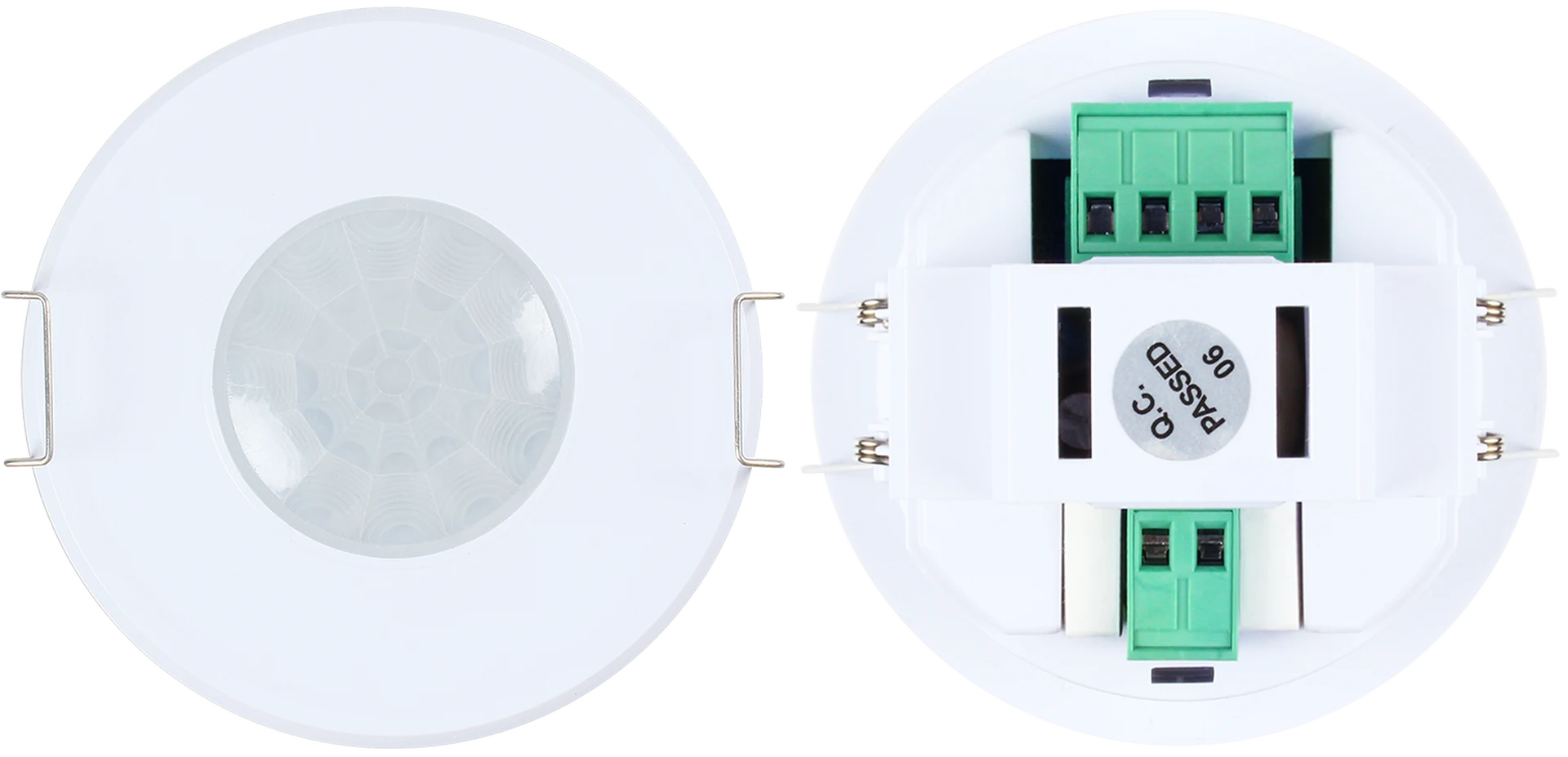

HBIR29
PIR Lowbay | Bluetooth DALI + Circadian Rhythm | Ceiling mounting
BENEFITS

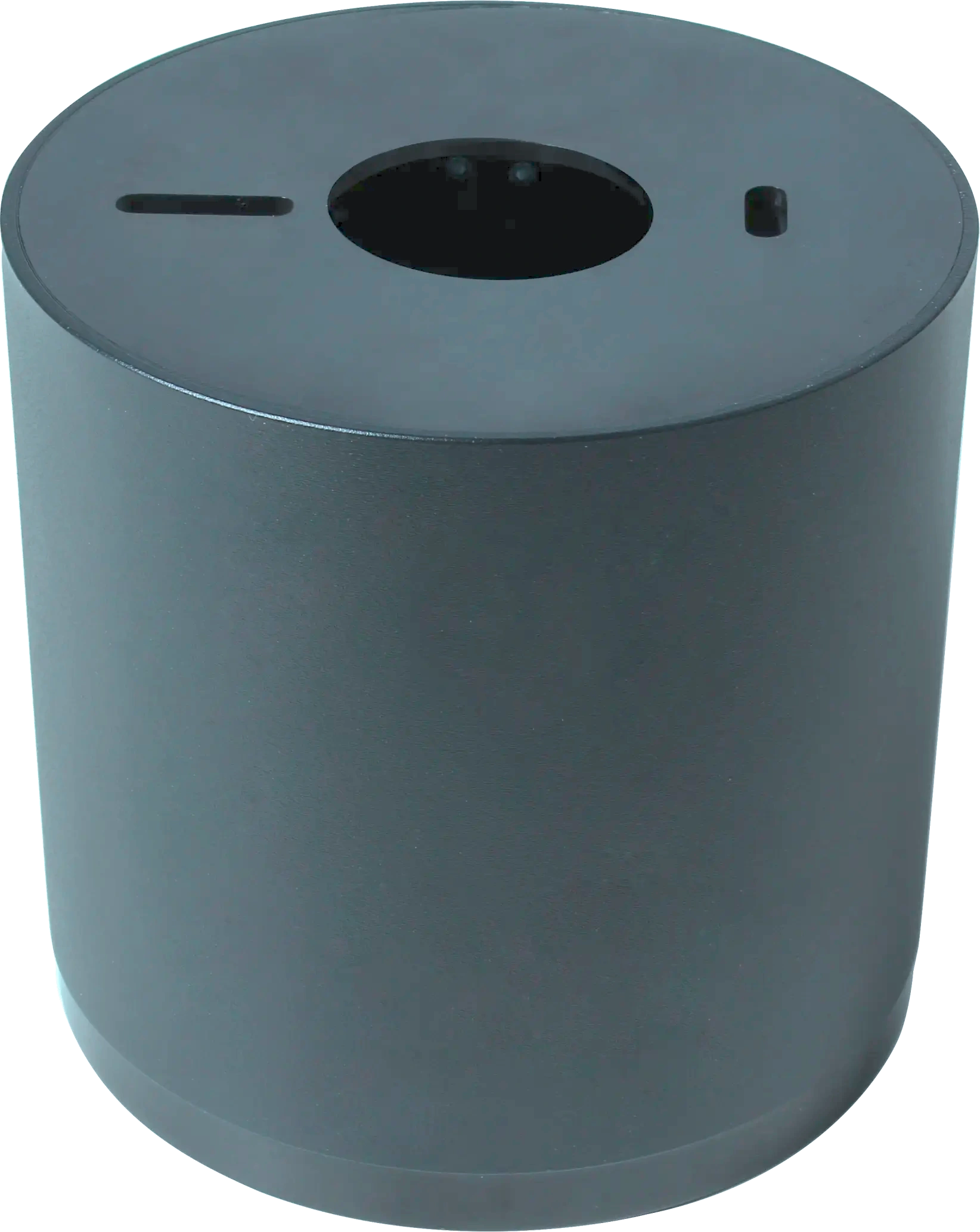

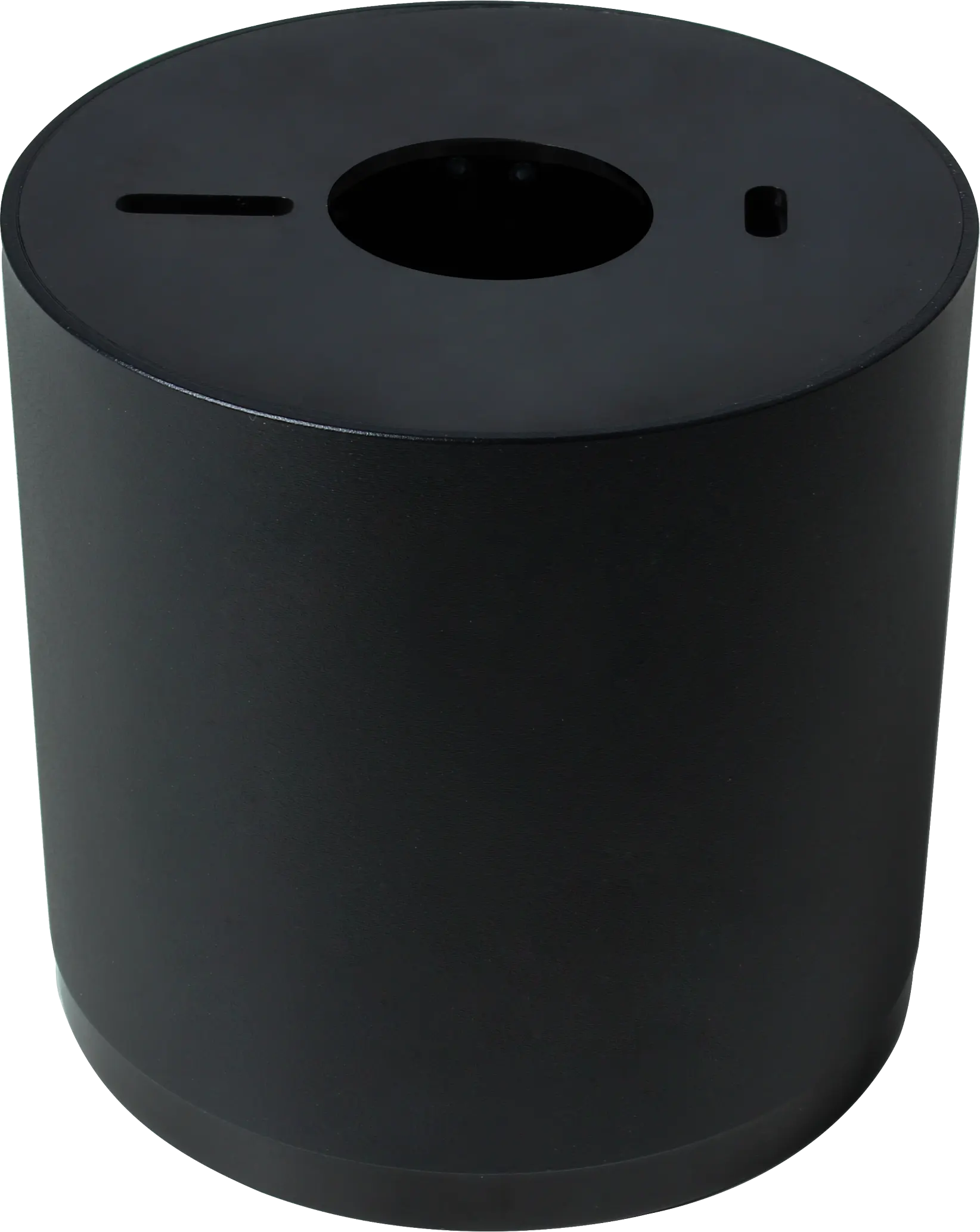

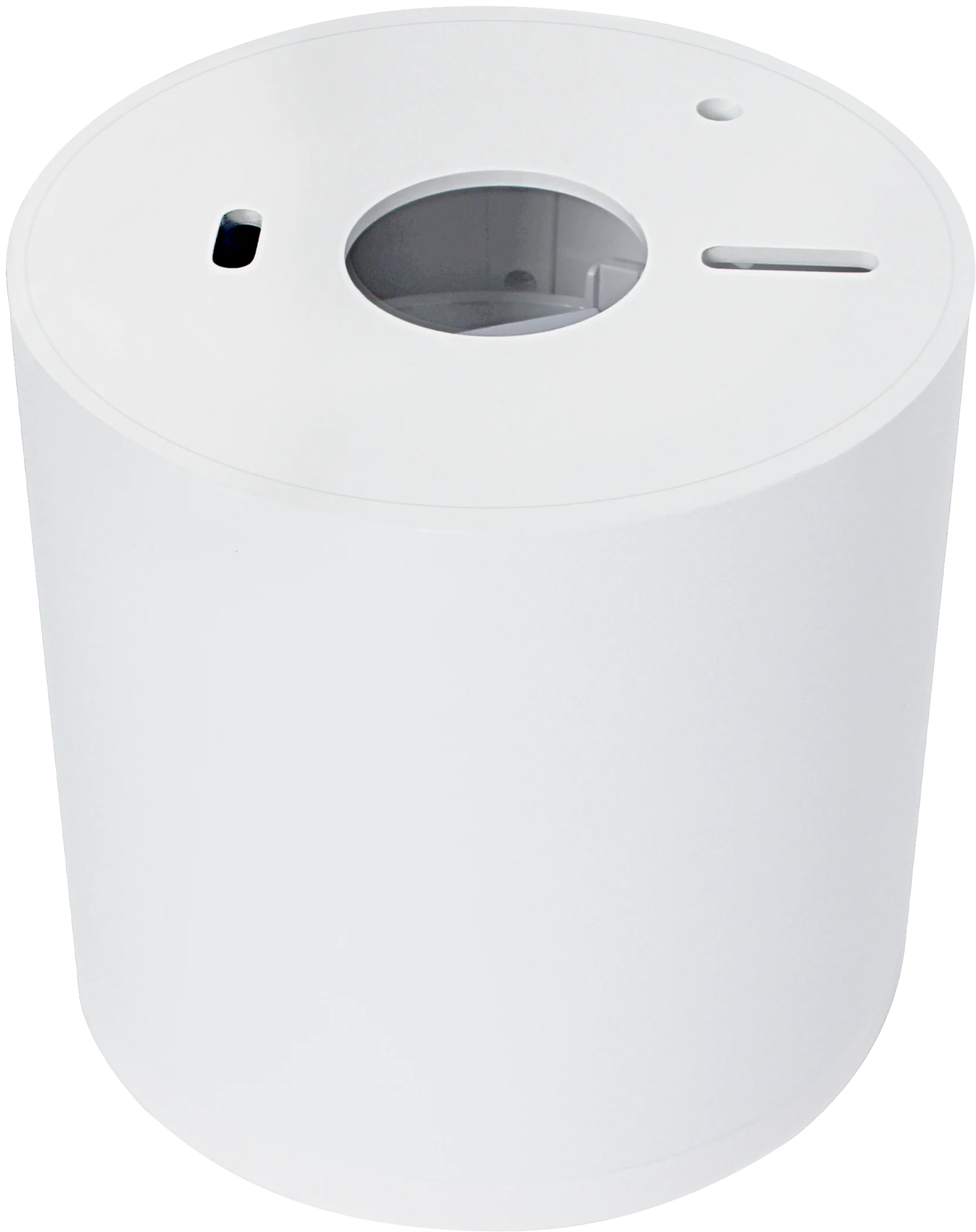

- Adaptable: Options of blind inserts and metal surface mount boxes
- Versatile: Tri-level dimming + Daylight harvest + Circadian Rhythm
- Easy: Daylight harvest configuration with Koolmesh app
APPLICATIONS

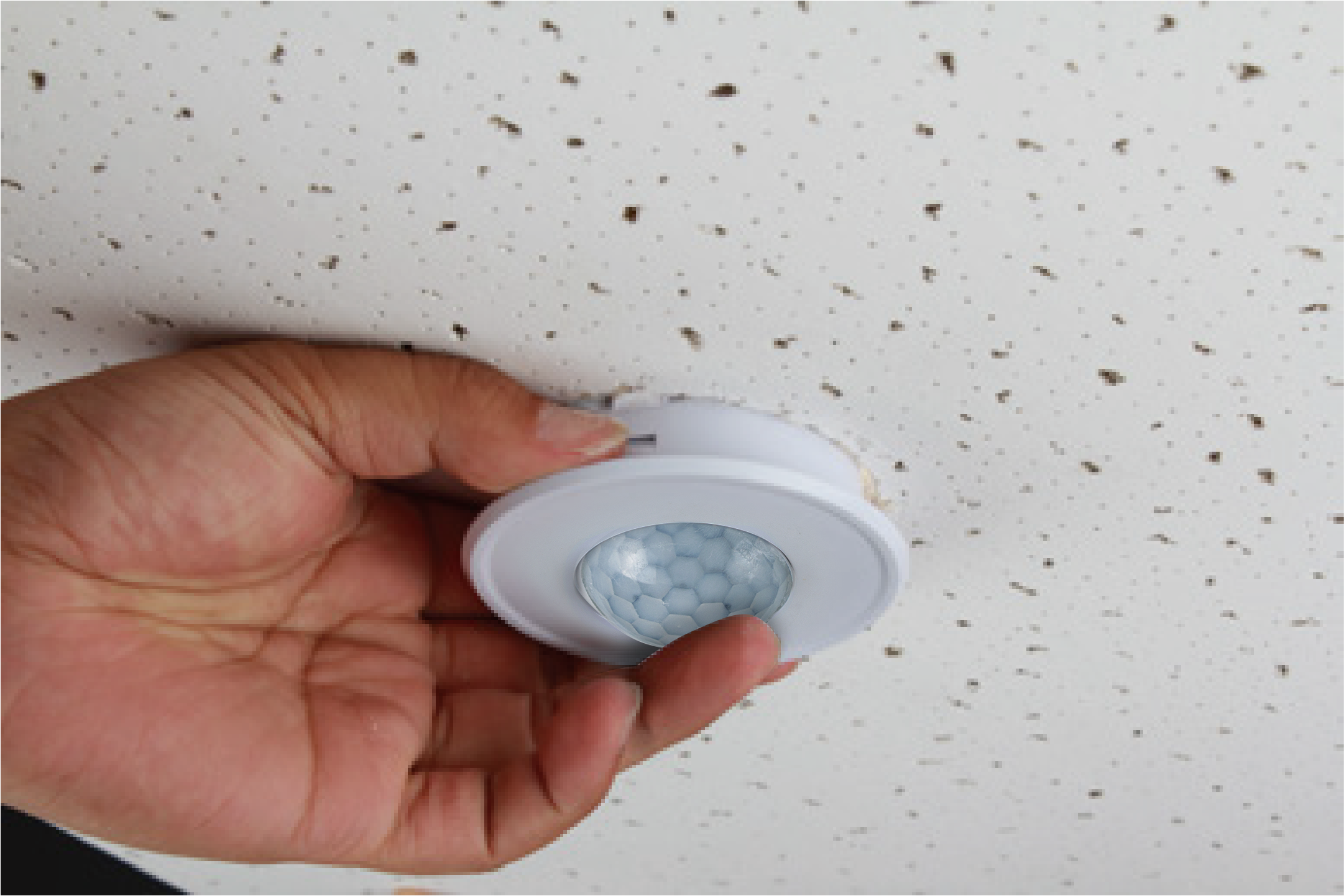

- Ceiling or surface mounting (with accessory)

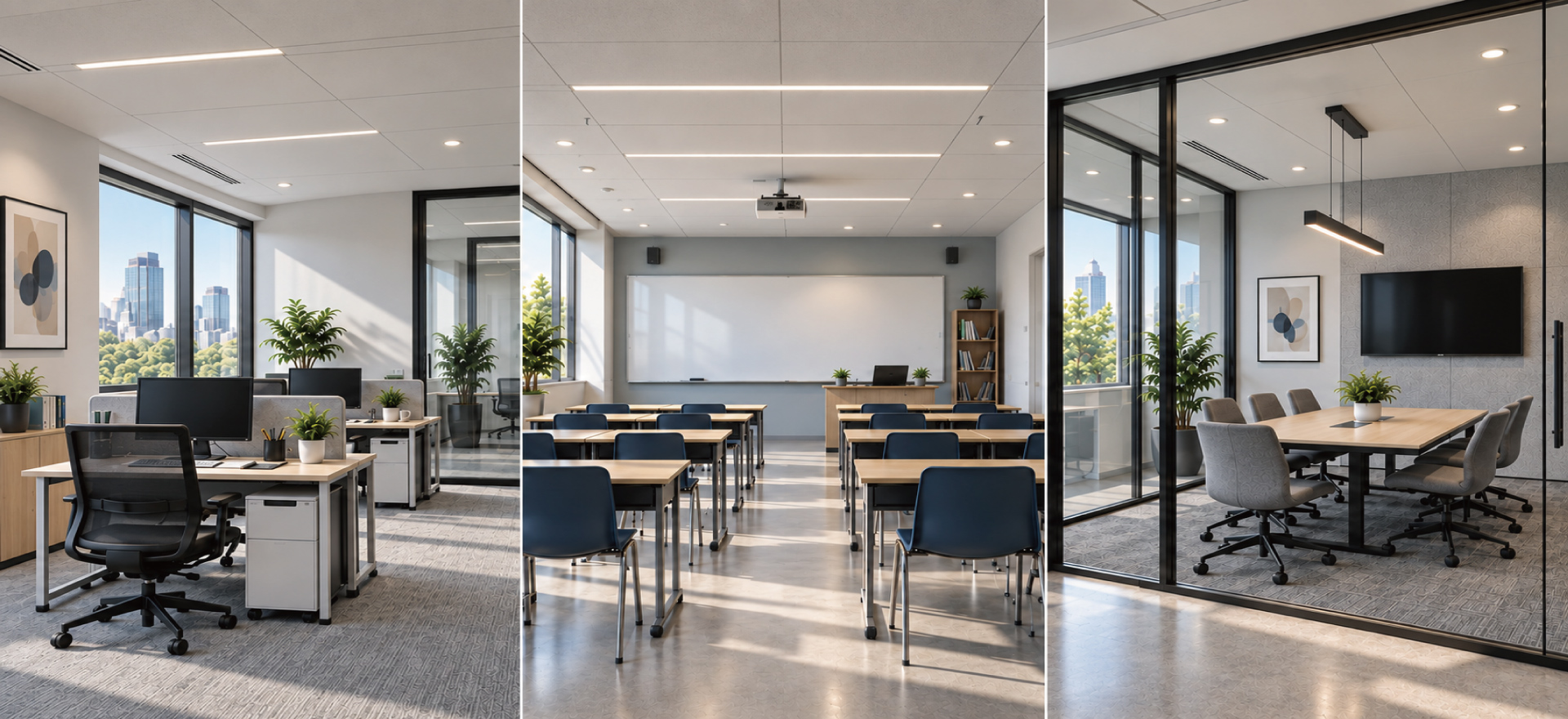

- Offices, Classrooms

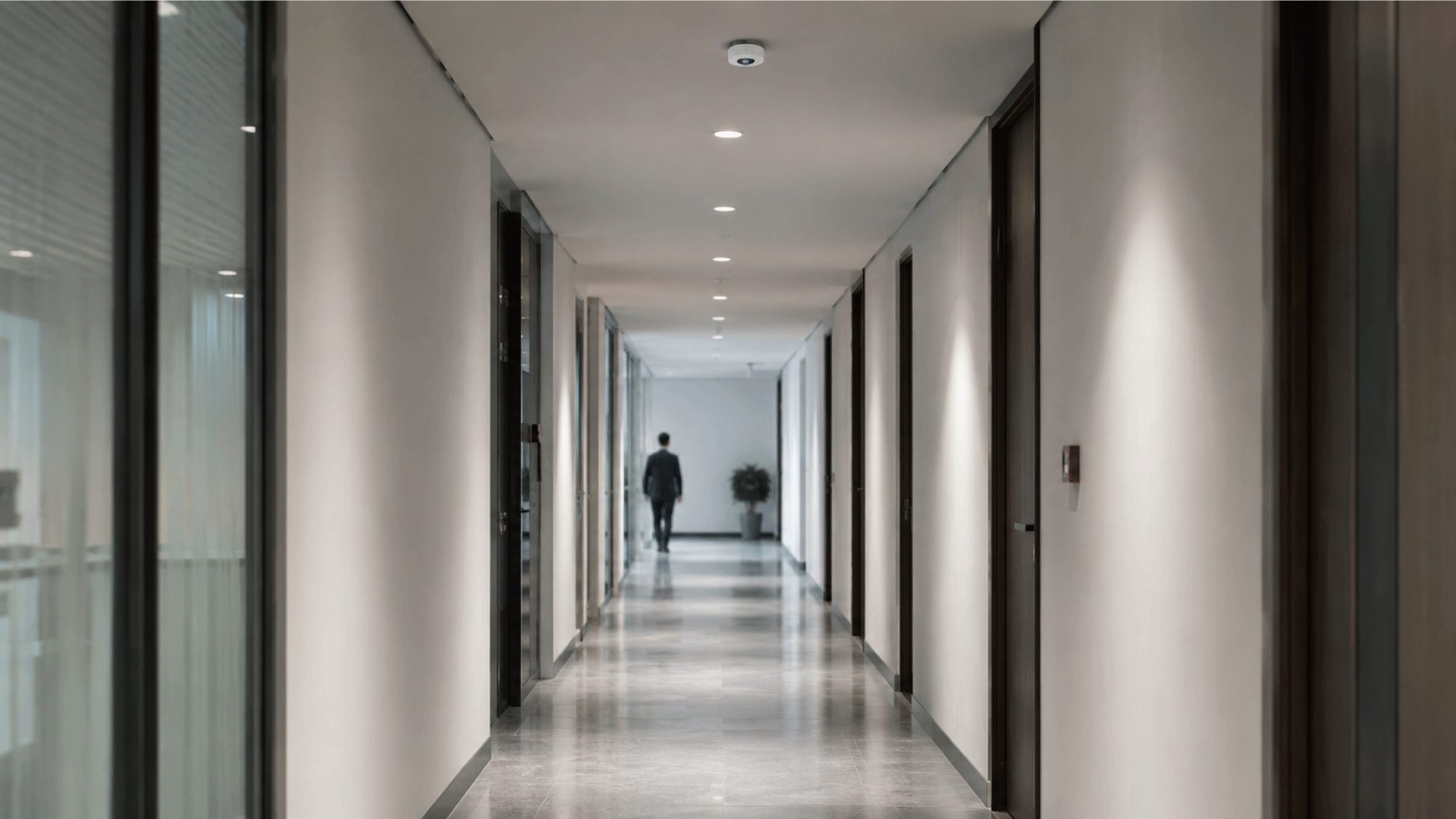

- Common spaces, Corridors
Product information "HBIR29"
It is a 80mA output DALI broadcast and Bluetooth PIR motion sensor with dimming, tunable white, sensitivity adjustment, daylight sensing, circadian rhythm, and RTC functionality. It is ideal for retrofit projects, allowing wireless communication between luminaires via Bluetooth mesh without additional wiring, significantly reducing installation time and cost. Meanwhile, simple device setup and commissioning can be done via Koolmesh app.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 9x6 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function), Tunable White Control / HCL |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 9.5-15VAC |
| Product height: | 79.2000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 130.0000 g |
| Product width: | 78.0000 mm |
| Push Button Input: | 2 |
| Required DALI Current: | 80.0000 mA |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 55 °C |
| Storage temperature min.: | -35 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hbir29.pdf
Installation Manual
User manual: installation-manual-hbir29.pdf
