HBEM01 ECO
Integrated Mains & Emergency Control | Max. (Main 25W / EM 3W) | Wireless Commissioning
BENEFITS
- Compact: Self - contained Emergency & LED drivers combination
- Intelligent: Supports wireless self-test battery life prediction and fault alerts.
- Flexible: Enables dimming via both Switch-Dim and wireless app control.
APPLICATIONS
- Luminaire Built-in integration
- Offices & Classrooms
- Industry & Healthcare Spaces

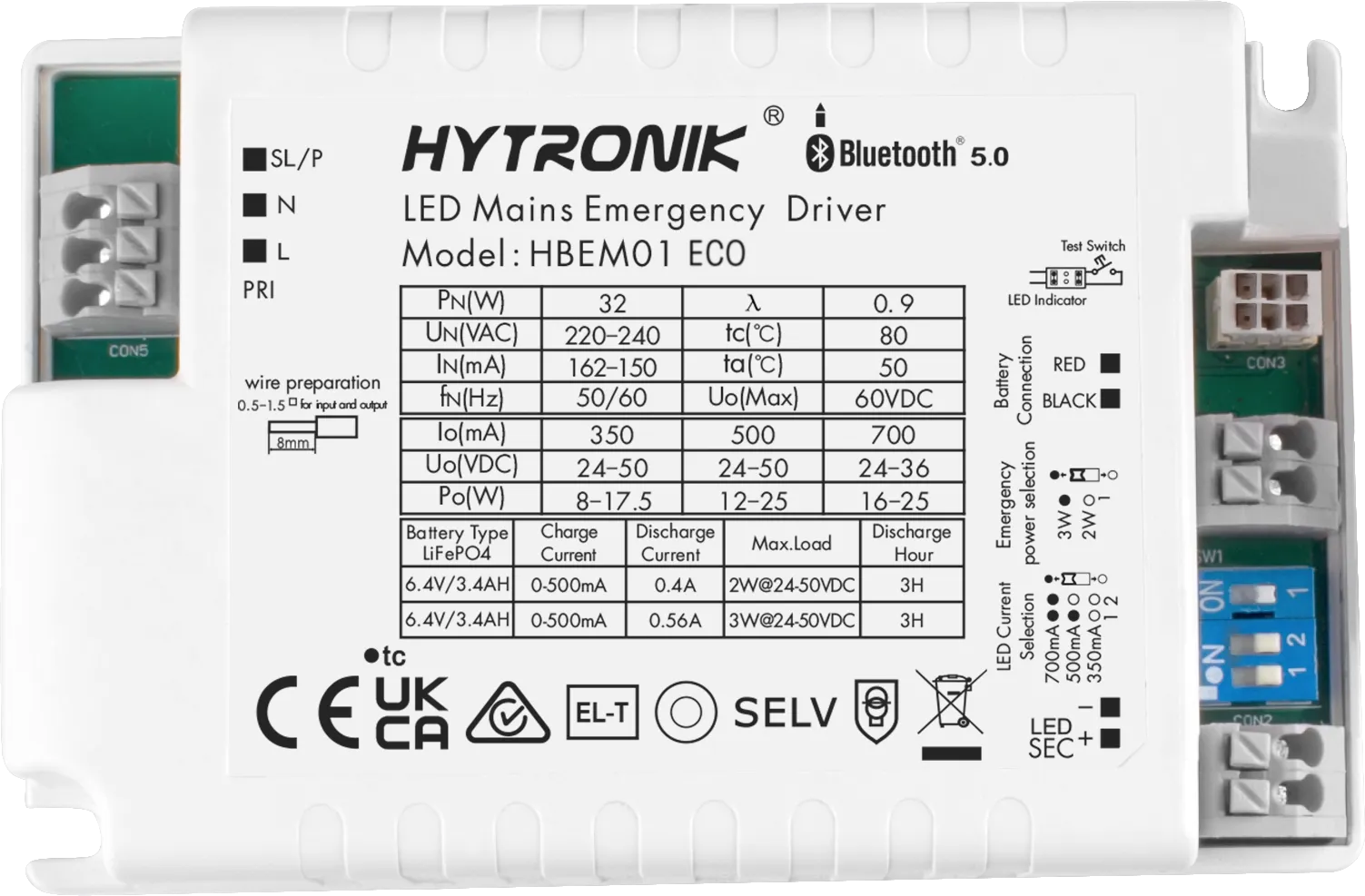

Product information "HBEM01 ECO"
HBEM01 ECO is a compact, dimmable Bluetooth LED driver with integrated
emergency control, delivering a comprehensive solution for intelligent
emergency lighting.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | 0 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Category - Emergency LED Drivers & Inverters: | LED Driver & Inverter Combo (Bluetooth) |
| Dimming (Output) Interface: | Switch-Dim |
| Efficiency: | 85.0000 % |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Mounting hole: | 4.1000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 24-50V |
| Product height: | 22.2000 mm |
| Product length: | 108.0000 mm |
| Product weight: | 158.0000 g |
| Product width: | 69.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 35 °C |
| Storage temperature min.: | -10 °C |
| Tri-level (Corridor function): | No |
| Zhaga: | No |
Datasheets
Product datasheet: hbem01-eco.pdf
