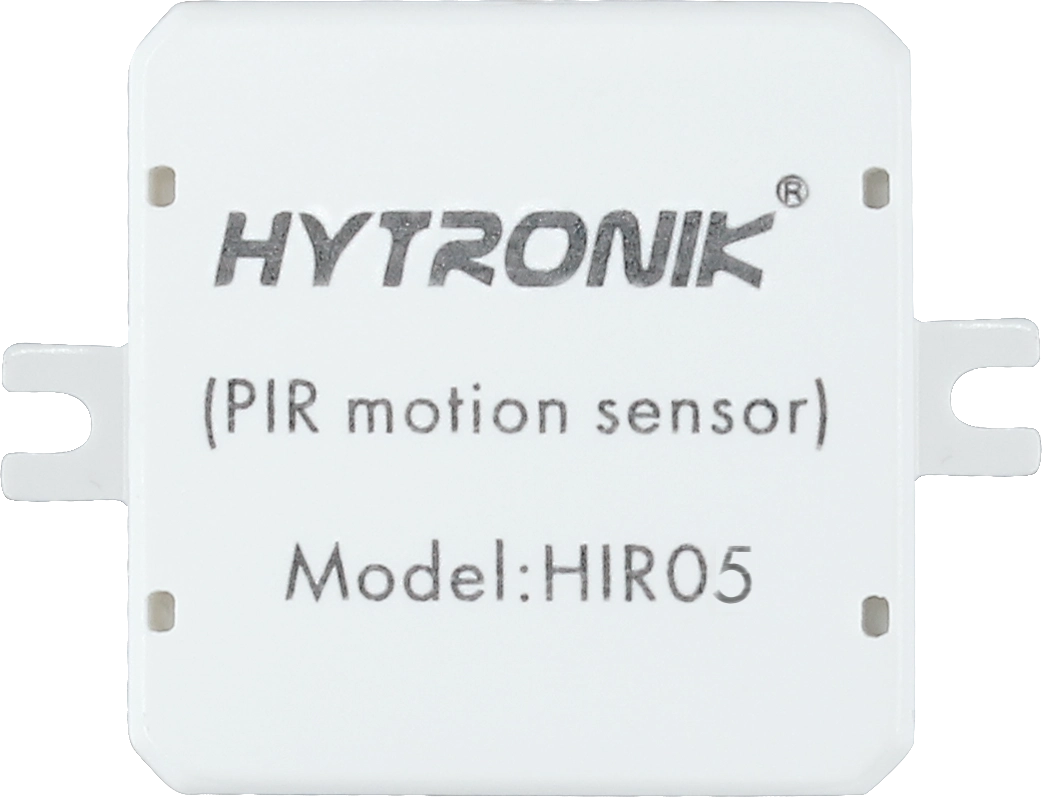

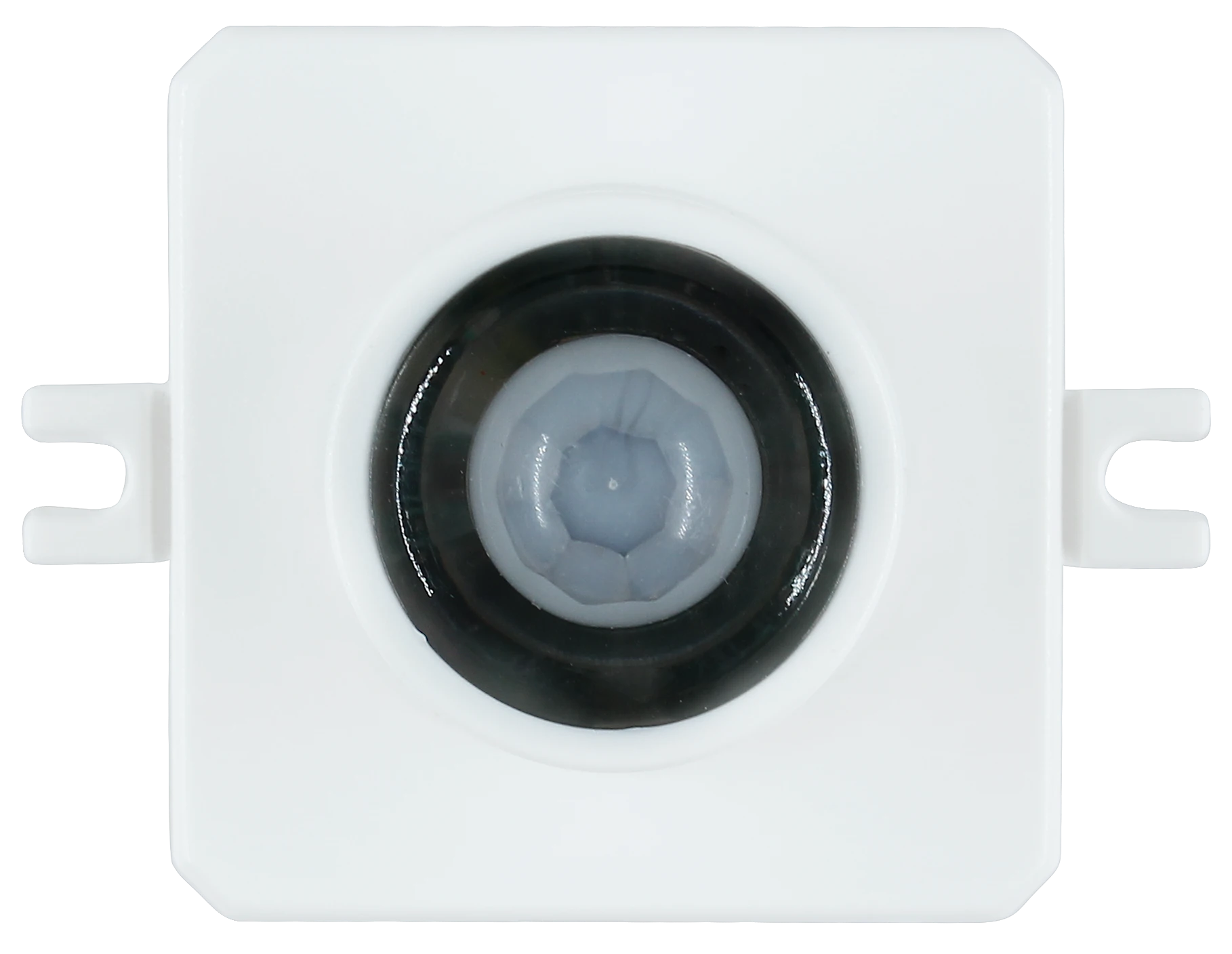

HIR05
PIR Lowbay | Ciradian Rhyhm | RJ12 connector to control body
Vorteile
- Compact: Standard rectangular Plug&Play sensor design
- Versatile: Tri-level dimming + Daylight harvest + Ciradian Rhyhm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- For luminaires with a height of up to 3m
- Classrooms
- Offices
Produktinformationen "HIR05"
This PIR sensor features tri-level dimming and daylight harvesting capabilities. It supports Human Centric Lighting/Circadian Rhythm with DT8 drivers for tunable white control, includes a photocell for light sensing, and offers active lux switching. Suitable for installations up to 3m high with a detection range up to Ø = 6m.
| Anschlusstyp: | RJ12 |
|---|---|
| Befestigungsloch: | 2.5000 mm |
| Betriebsspannung: | 5 VDC |
| Daylight Harvest: | Ja |
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 6x3 |
| Features: | Daylight Harvest, Human Centric Lighting, Tri-level (Corridor Function), Tunable White Control |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Nein |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Installationstyp: | Built-in, Plug & Play Sensor Heads |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Maximale Montagehöhe: | 3.0000 m |
| Montagehöhe: | Low-bay |
| Product height: | 26.2000 mm |
| Produktlänge: | 39.5000 mm |
| Produkttiefe: | 30.0000 mm |
| Schutzart: | IP20 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 55 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | DC |
| Warming-up: | 20 s |
